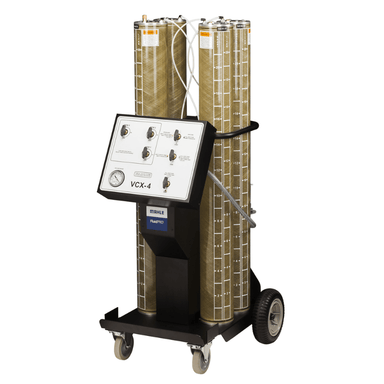

VCX-4 Vacuum Coolant Exchange Systems

The MAHLE VCX-4 Vacuum Coolant Exchange System is designed for fast and efficient coolant replacement using shop air and vacuum technology. It features four transparent, large-capacity coolant cylinders three for new coolant and one for waste allowing technicians to quickly select and switch between different coolant types for flexible vehicle service.

A color-coded valve system simplifies operation and coolant selection, while the vacuum gauge helps technicians monitor the exchange process. The Venturi vacuum generator produces up to 28 inHg of vacuum to support efficient coolant removal and filling. A pressure relief valve on the waste cylinder and no-leak end cap design provide added control during service.

With typical service cycles of 5–15 minutes, the VCX-4 is well suited for professional automotive repair shops, dealerships, and service centers that need a convenient vacuum-based coolant exchange solution.

Exchange System VCX-4 Specifications:

Brand: MAHLE
Model: VCX-4
Product Type: Vacuum Coolant Exchange System
Coolant Compatibility: Any Coolant Type
Coolant Cylinders: 4
New Coolant Cylinders: 3
Waste Coolant Cylinder: 1
Cylinder Capacity: 20 qt each
Total Cylinder Capacity: 80 qt
Controls: Ball Valves with Color-Coded System
Adapters: 2 Cone Plugs and 8" Hose Adapter
Hoses: Clear, Wire-Reinforced, 10 ft
Vacuum Generator: Venturi
Maximum Vacuum: 28 inHg
Power Source: Shop Air
Required Air Pressure: 55–110 psi
Average Process Time: 5–15 minutes
Dimensions (H × W × D): 63" × 28" × 29"
Weight: 200 lbs

VCX-4 Vacuum Coolant Exchange System Special Features

Four transparent, large-capacity coolant cylinders
Three cylinders for new coolant and one for waste coolant
20-quart capacity per cylinder
Compatible with any coolant type
Easy coolant selection and changeover
Color-coded function valves for simple operation
Venturi vacuum generator for coolant exchange
Produces up to 28 inHg vacuum
Vacuum gauge helps monitor exchange efficiency
Pressure relief valve on waste cylinder for added safety
No-leak end cap design helps reduce coolant waste
Clear, wire-reinforced 10-ft hose
Powered by shop air
Typical service time of 5–15 minutes
Includes two cone plugs and 8-inch hose adapter
Designed for professional automotive coolant service
Warranty: 1 Year — Parts & Labor
