Atlas 12AWFSL-N 12,000 lb Alignment Lift w/ Wheels Free Lifts

12AWFSL Alignment Lift by Atlas

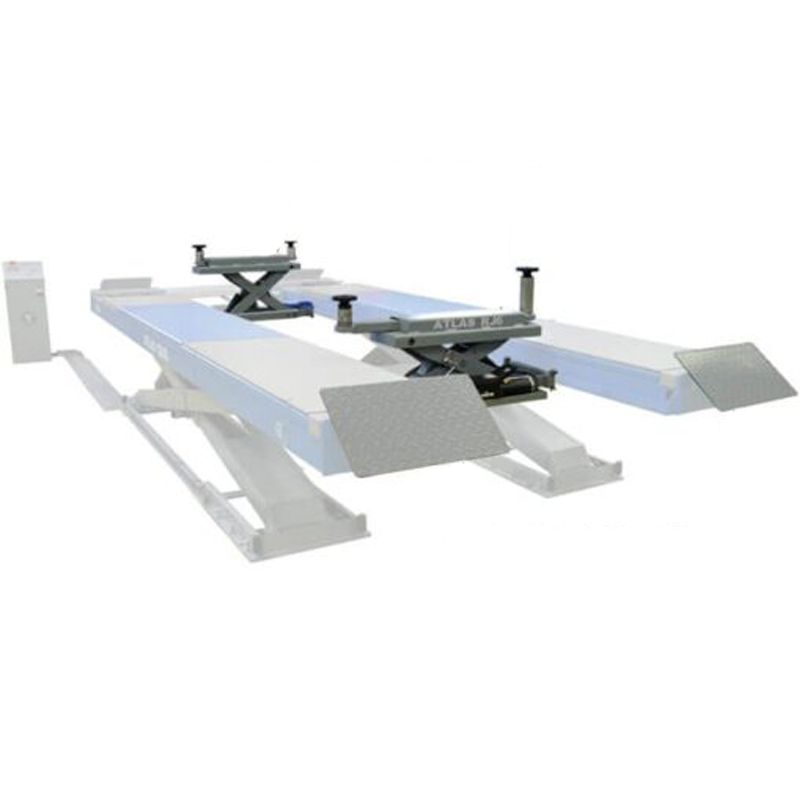

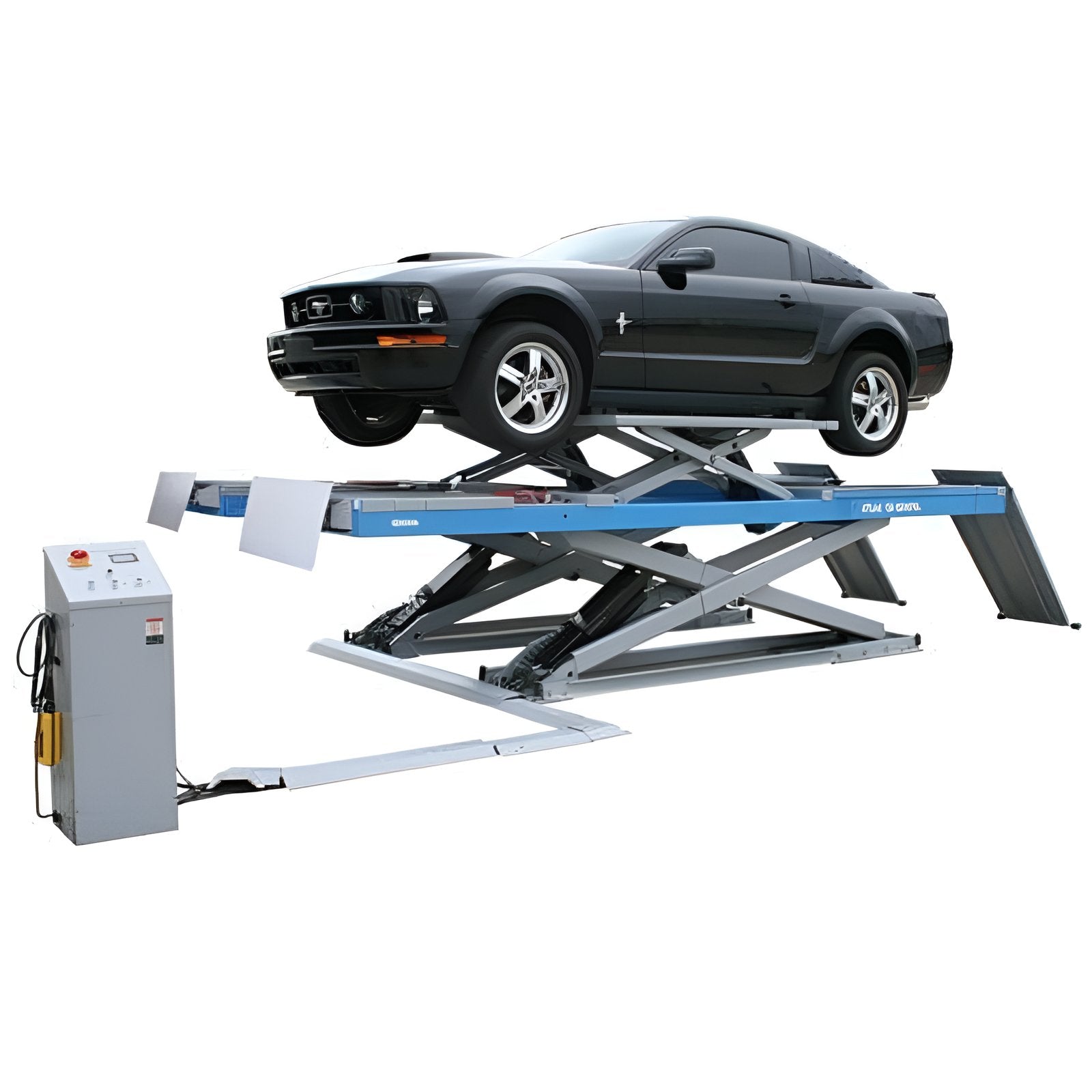

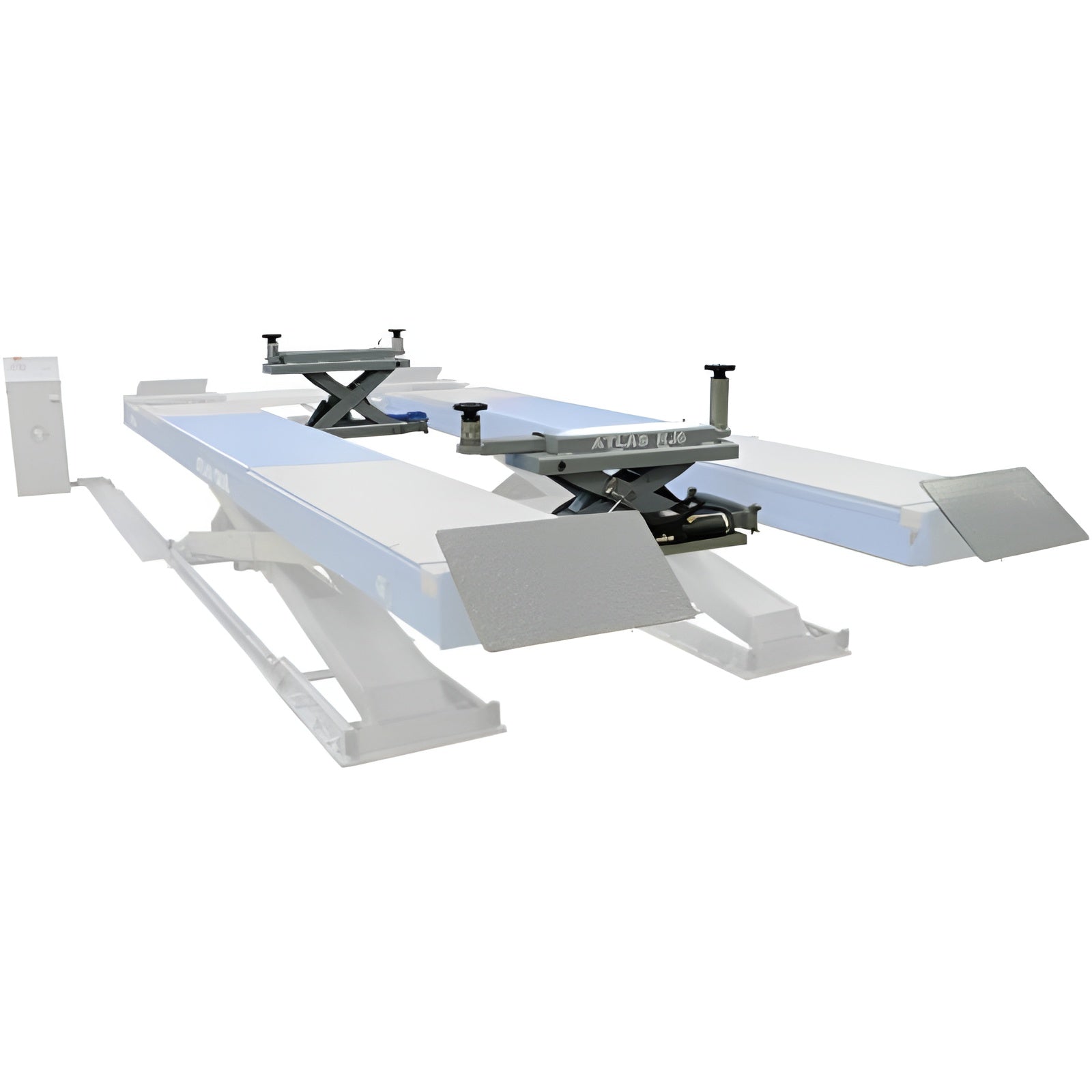

Are you fed up with alignment lifts that drain your energy and don’t deliver when you need them most? Enter the Atlas® 12AWFSL, a game-changer in the world of vehicle alignment. Crafted through a collaboration between our Asian partner and a prestigious Italian lift manufacturer, this robust scissor alignment lift offers exceptional quality without the price tag associated with such performance. Its 12,000 lb lifting capacity plays well with the innovative 'Wheels Free' lifting system raises vehicles by the frame, lifting the wheels off the runways for easy access and precise alignments, making your job faster and more efficient.

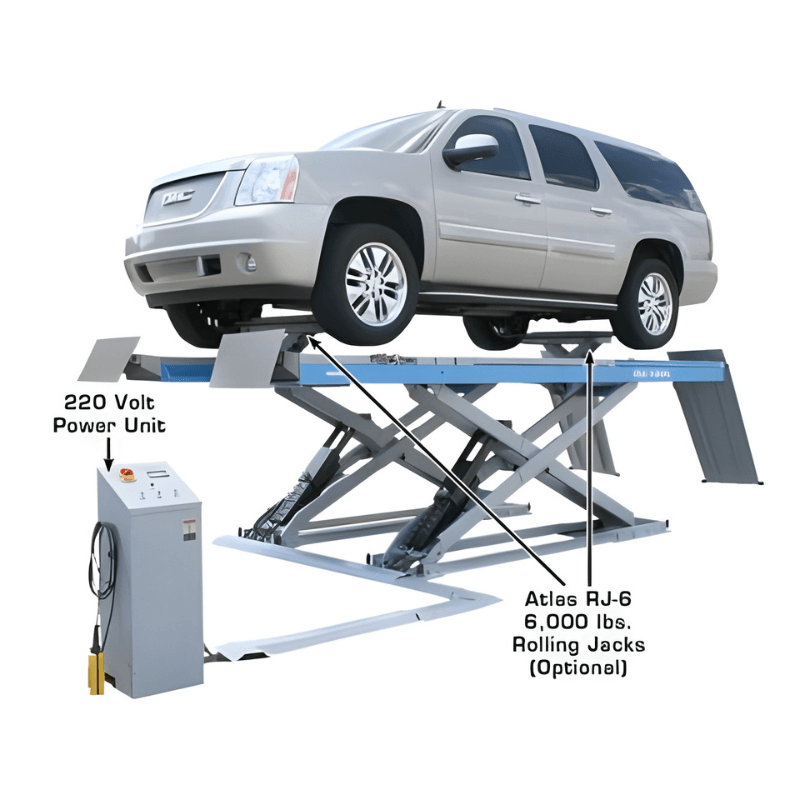

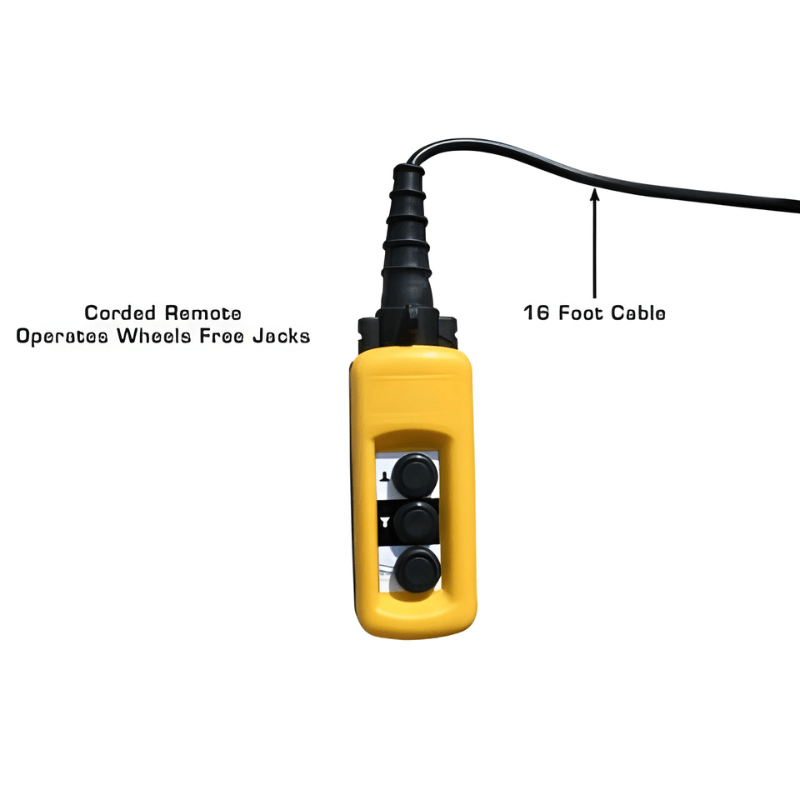

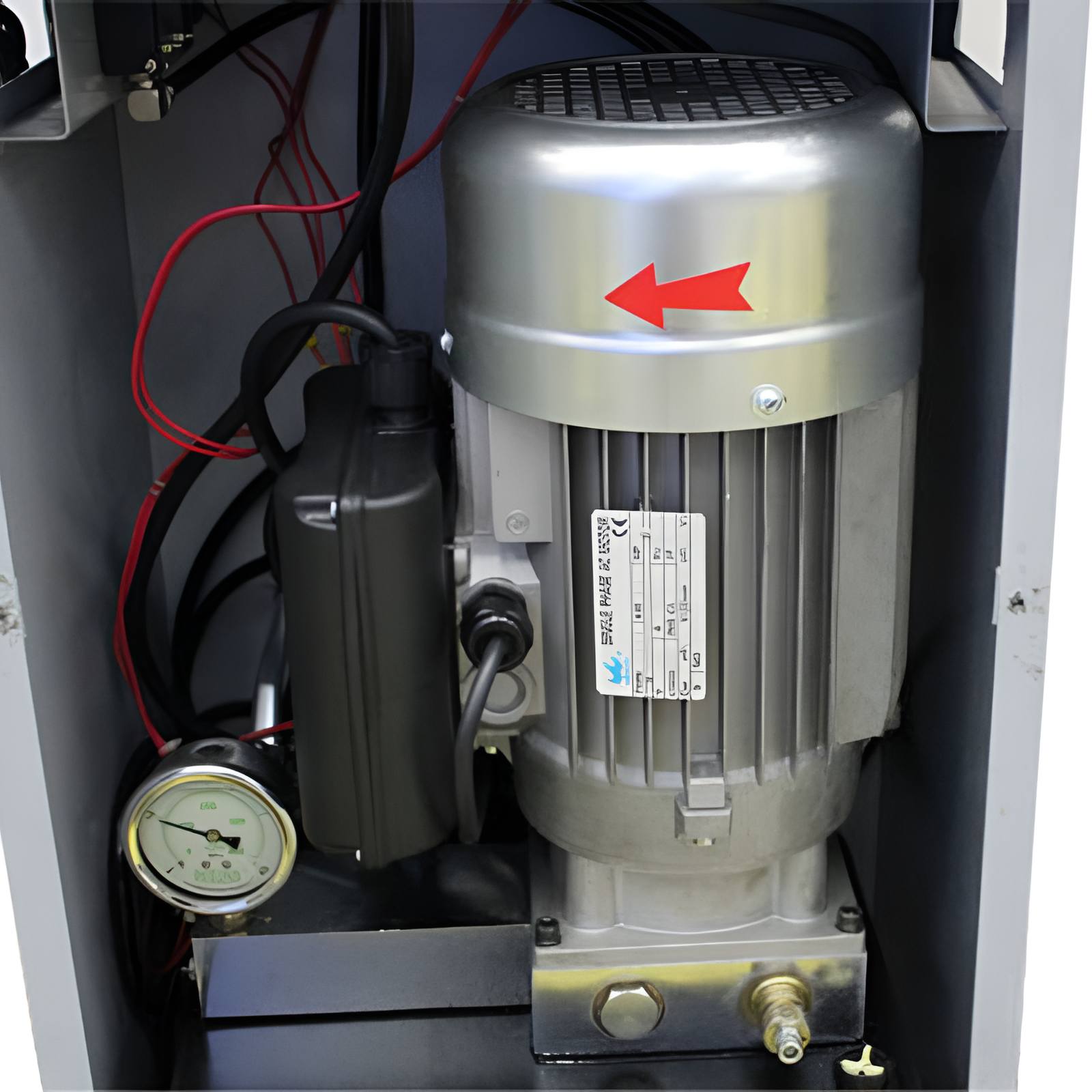

Operational convenience is at your fingertips with a separate control panel housing a powerful 220-volt electric/hydraulic power unit. The push-button controls and automatic air actuated lock system prioritize safety, ensuring you can work confidently. With a lifting height of 84.25 inches and a sturdy full frame for maximum stability, the Atlas® 12AWFSL is designed to accommodate vehicles of all sizes while optimizing your workspace. Need we say more?

Alignment Lift 12AWFSL Specifications:

• Lifting Capacity: 12,000 LB

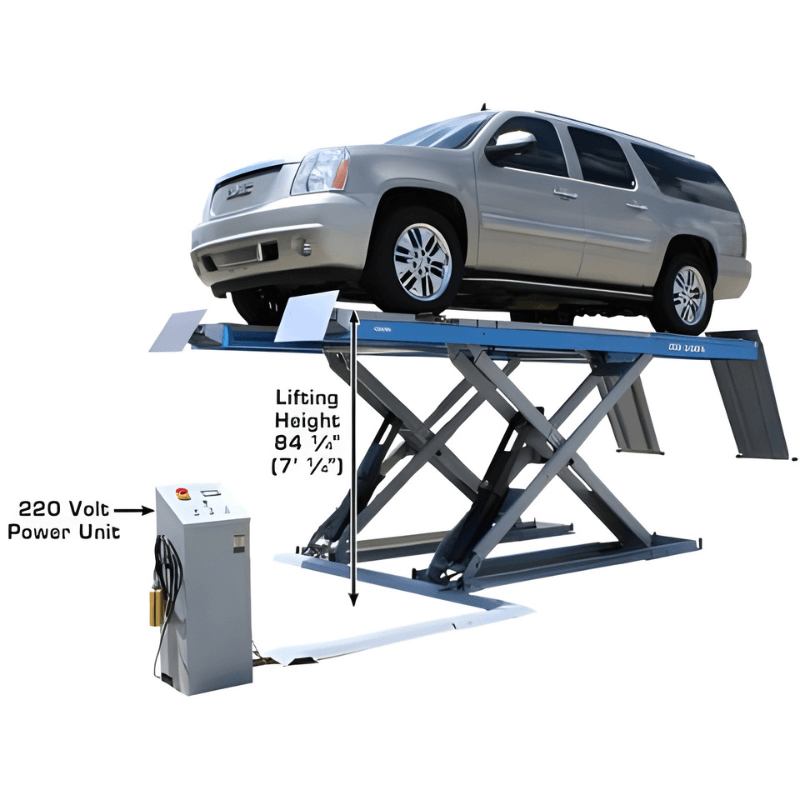

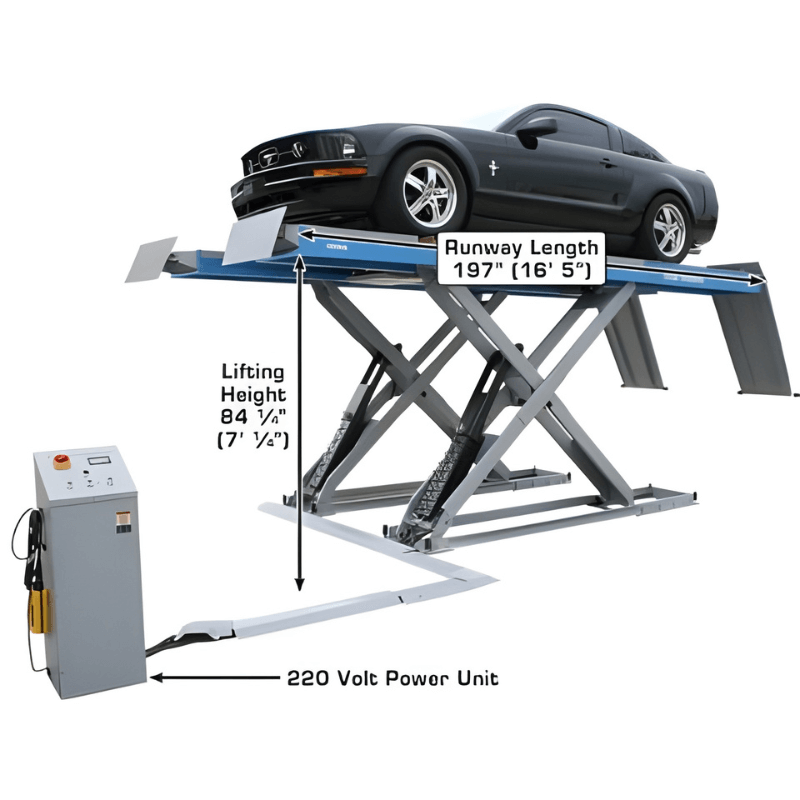

• Lifting Height: 84 1/4" (7' 1/4") (Surface Mounted)
• "Wheels Free" Lift Height: 17" (Above Runway)
• Lowered Height: 11 1/2"
• Overall Width: 86 3/8" (7' 2 3/8")
• Overall Length with Approach Ramps: 250" (20' 10")
• Overall Length without Approach Ramps: 197" (16' 5")
• Approach Ramp Length: 72" (6')
• 4-Wheel Alignment Wheelbase: Max. 168 in. Min.  90 in.
• 2-Wheel Alignment Wheelbase: Max. 172 in. Min. 86 in.
• Runway Width including Rail: 23 3/4" (1' 11 3/4")
• Width Between Runways: 39 1/4"
• Width Between Runway Rails: 34 3/8"
• Air Requirement: 90-120 PSI
• Motor/Electrical Requirement: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

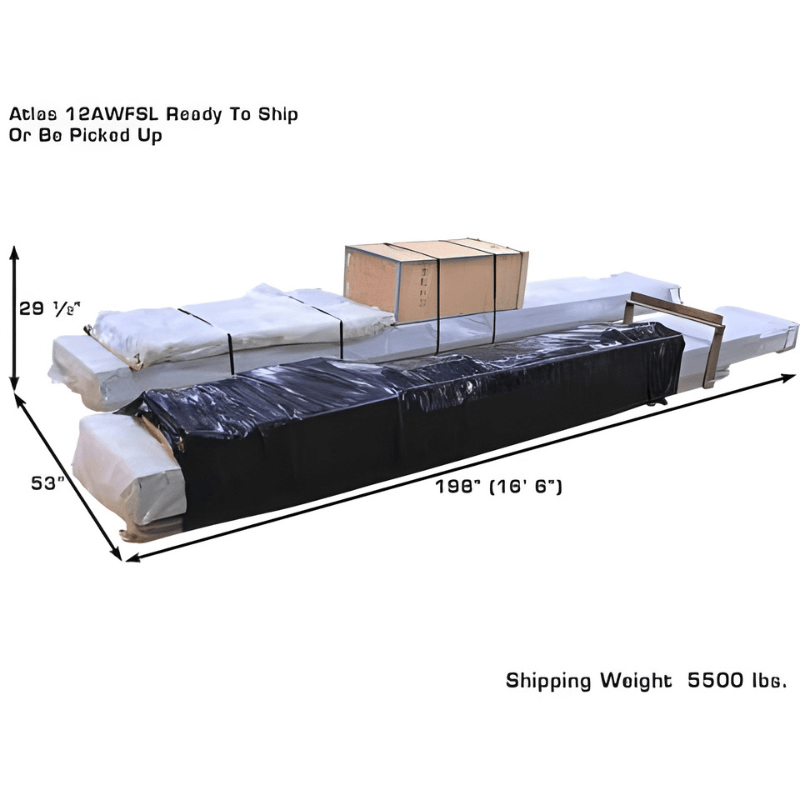

• Shipping Weight: 5,000 lbs.
• Requires a minimum of 6" of concrete with a 3000 psi. rating

12AWFSL 12,000 Alignment Lift Special Features:

• 12,000 LB. Capacity
• Commercial Grade
• Scissor Alignment Lift

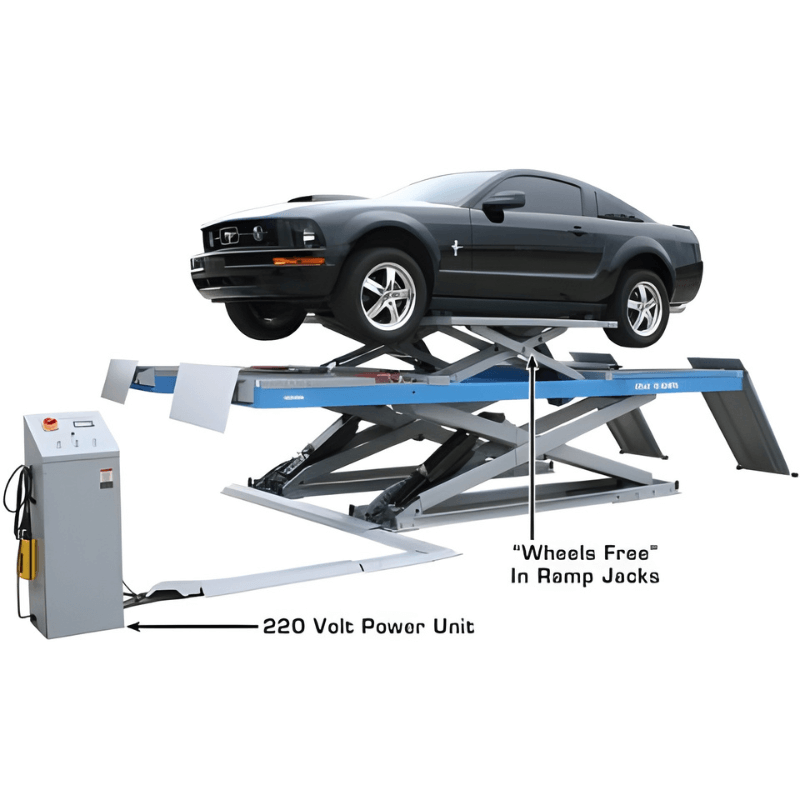

• Built in “Wheels Free” Lifting System
• Built in Slip Plates and Alignment Turntables Included
• Turntable Covers Included
• Open Center Design for Easy Access

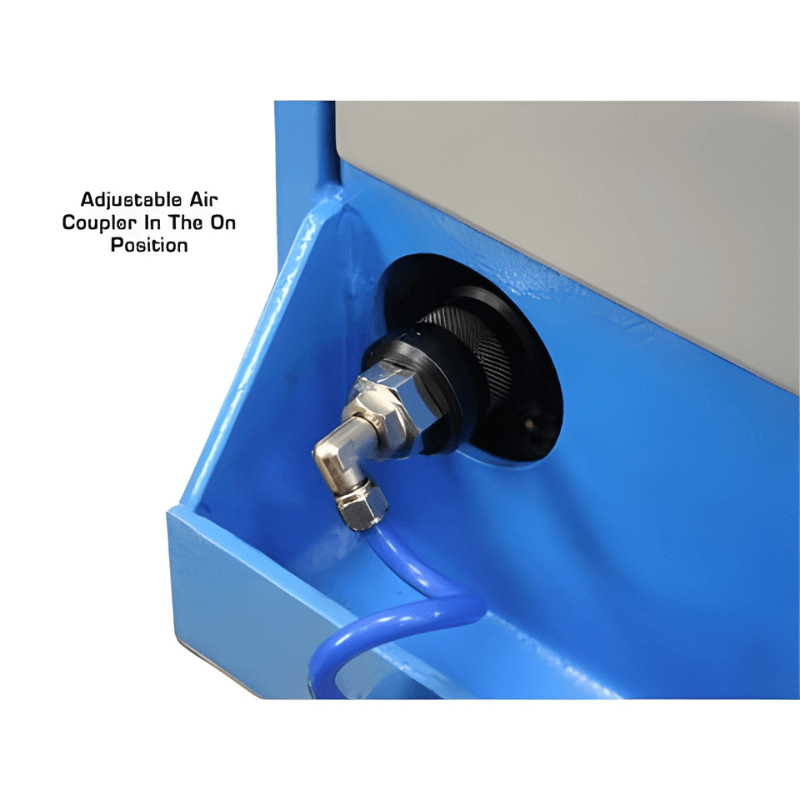

• Air-Operated Single Point Lock Release (External Air Supply Required)
• Airline Kit Included

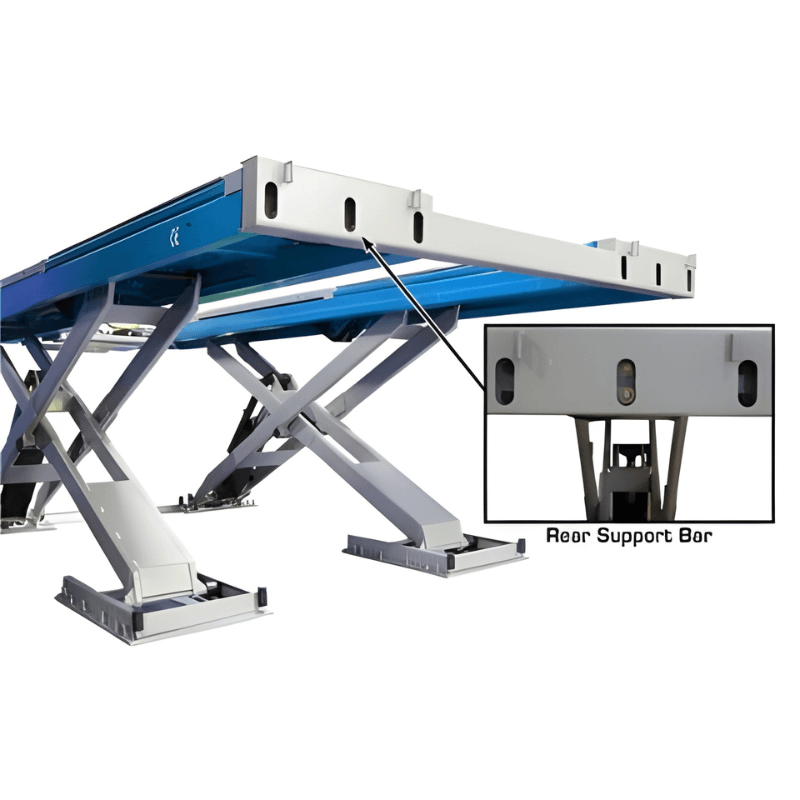

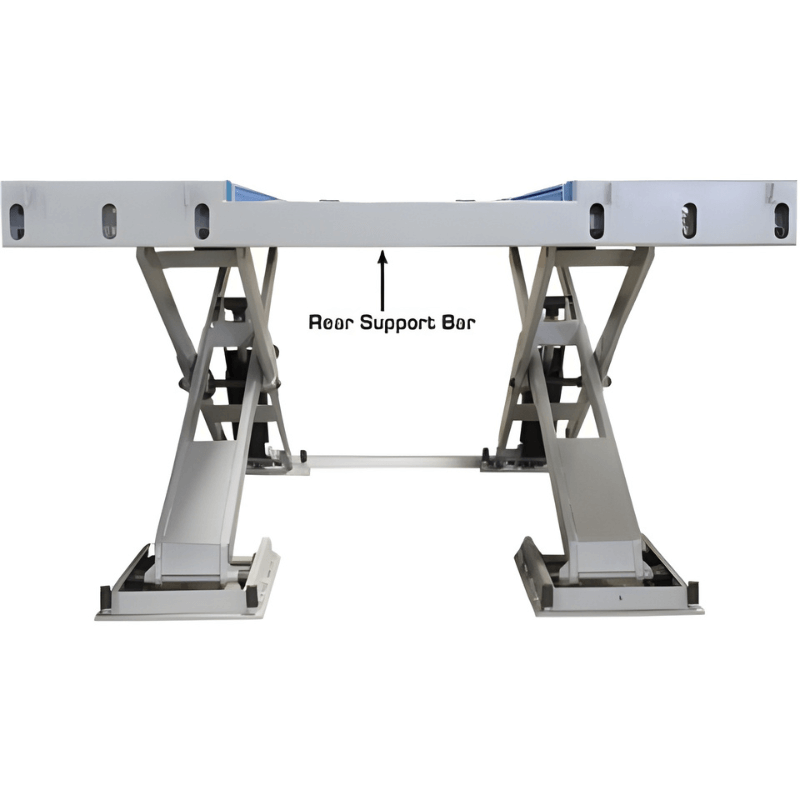

• Rear Cross Beam for Extra Stability Included
• Extra Long 72″ Ramps Standard
• Precise Platform Leveling Accuracy

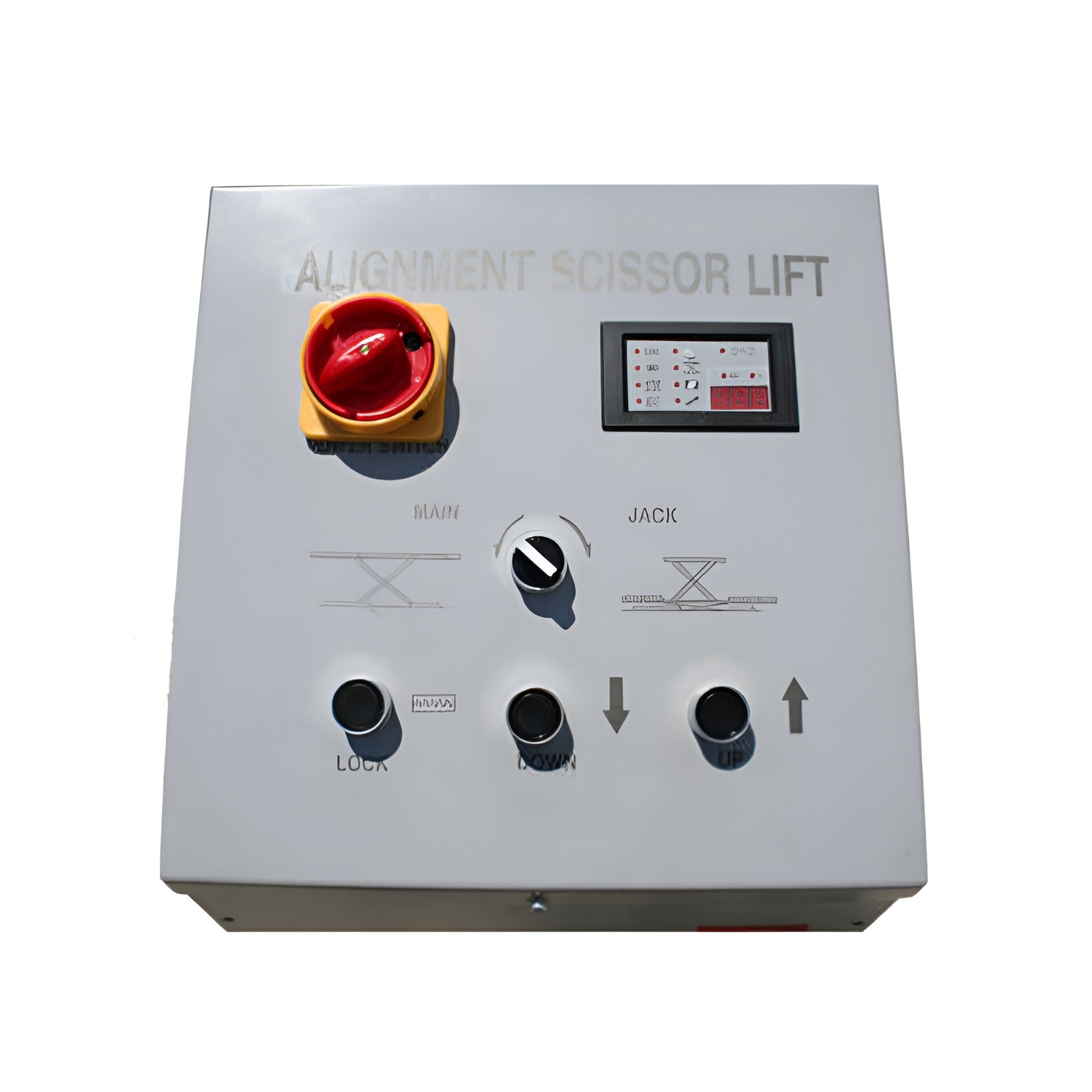

• Separate Self-Contained Control Panel
• Emergency Manual Pump for Lowering
• 19 Locking Positions
• CE Certified
• Can be Surface Mounted or Flush Mounted

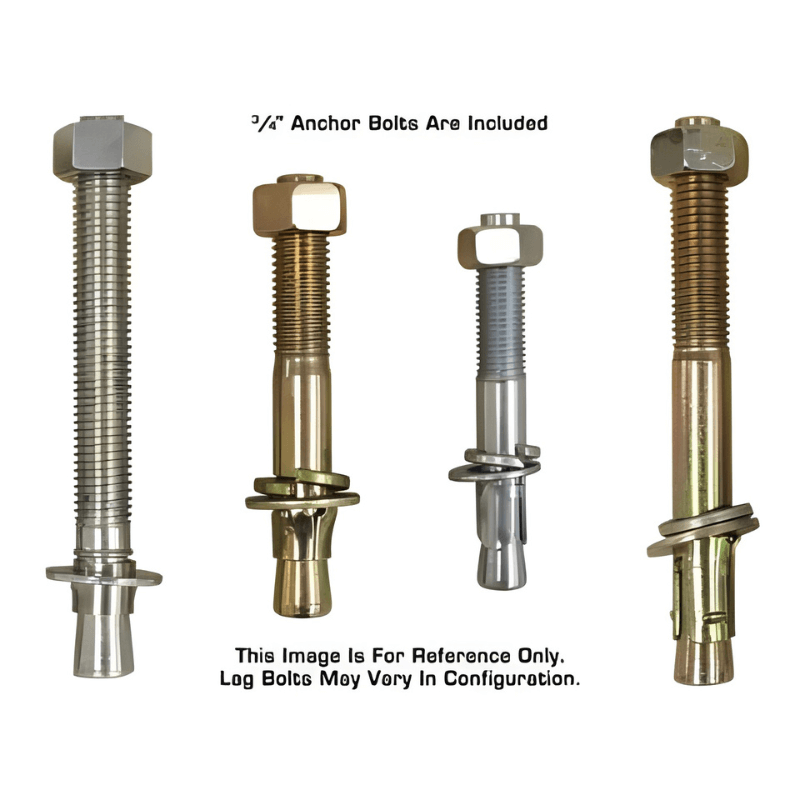

• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 5,000 lb.
• 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Atlas 12AWFSL Documentation:

   Atlas 12AWFSL Alignment Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $1999

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Indianapolis, IN

Atlas 12AWFSL Video
