2PBP-10 10,000lb 2 Post Lift - Low Ceiling

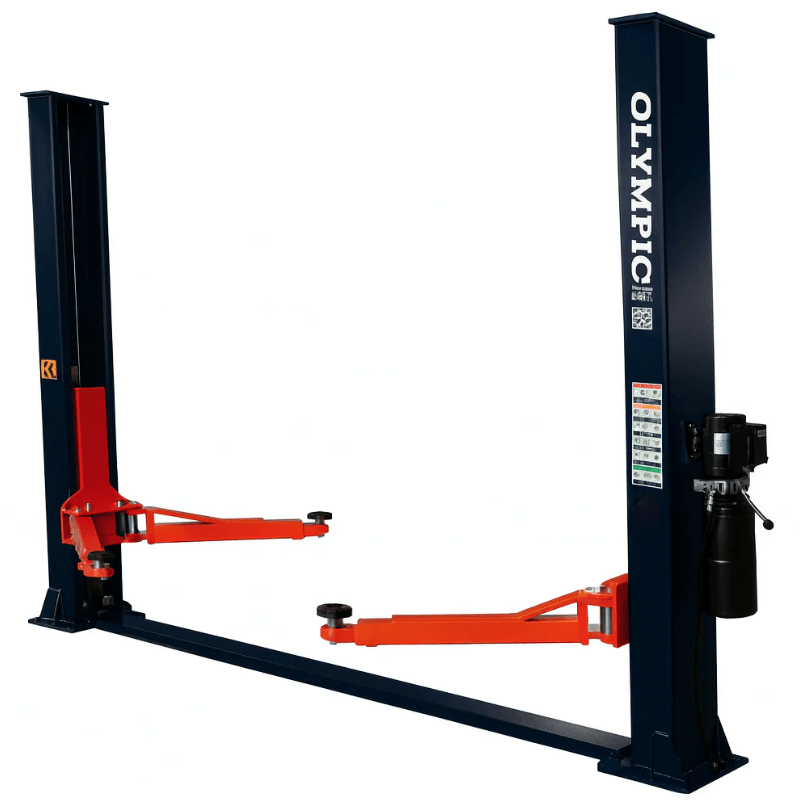

Olympic 2PBP-10 10,000‐lb. Base Plate 2-Post Lift

The Olympic 2PBP-10 Base Plate Two-Post Lift is a professional-grade lifting solution engineered for strength, reliability, and daily shop performance. With a 10,000 lb lifting capacity, this lift is designed to safely service a wide range of passenger vehicles and light trucks. Its base plate configuration makes it an excellent choice for facilities seeking robust lifting power while maintaining compatibility with moderate ceiling heights.

Built using high-quality Q235 structural steel, the 2PBP-10 delivers long-term durability and structural integrity. Large-diameter heavy-duty hydraulic cylinders work with a synchronized hydraulic system to ensure smooth, balanced lifting and lowering. An independent load leveling system, dual-point manual lock release, and automatic stop at maximum height enhance operational safety and technician confidence during every lift cycle.

Designed for efficiency and flexibility, this two-post lift features asymmetric long-reach arms, two-stage adjustable foot pads, and swing arm supports with high-quality pads for secure vehicle contact. A durable powder-coated finish protects against corrosion, while included 3.5-inch truck adapters and mounting hardware streamline installation and daily use. Certified and tested at 150% of rated capacity and backed by an Olympic 10-year warranty, the 2PBP-10 is a dependable investment for demanding automotive service environments.

2 Post Lift 2PBP-10 Specification

• Lift Type: 2-Post Base Plate Lift

• Lifting Capacity: 10,000 lbs

• Overall Height: 110.2″

• Overall Width: 130″

• Width Between Posts: 110.2″

• Minimum Lift Height: 3.9″

• Maximum Lift Height: 70.9″

• Front Arm Reach: 30″ – 47.3″

• Rear Arm Reach: 28″ – 47.3″

• Speed of Rise / Lowering: 55 seconds

• Power Unit: 3 HP / 2.2 kW, Single Phase

• Voltage: 110V standard (220V option available)

• Minimum Ceiling Height Required: 111″

2PBP-10 10,000‐lb. Base Plate 2-Post Lift Special Features

• 10,000 lb lifting capacity for cars and light trucks

• High-strength Q235 structural steel construction

• Base plate design ideal for shops with limited ceiling height

• Asymmetric long-reach arms for improved vehicle access

• Two-stage adjustable foot pads for precise lifting support

• Large-diameter heavy-duty hydraulic cylinders

• Independent load leveling system for stable operation

• Dual-point manual lock release for enhanced safety

• Automatic stop at maximum lift height

• Synchronized hydraulic system for smooth lifting cycles

• Door anti-crush rubber protection

• Durable powder-coated finish for corrosion resistance

• Includes four 3.5″ truck adapters and mounting hardware

• Certified and tested at 150% of rated capacity

• Backed by an Olympic 10-year warranty

2PBP-10 Manual

   2PBP-10 Spec Sheet
