2PBP-12 12,000lb 2 Post Lift

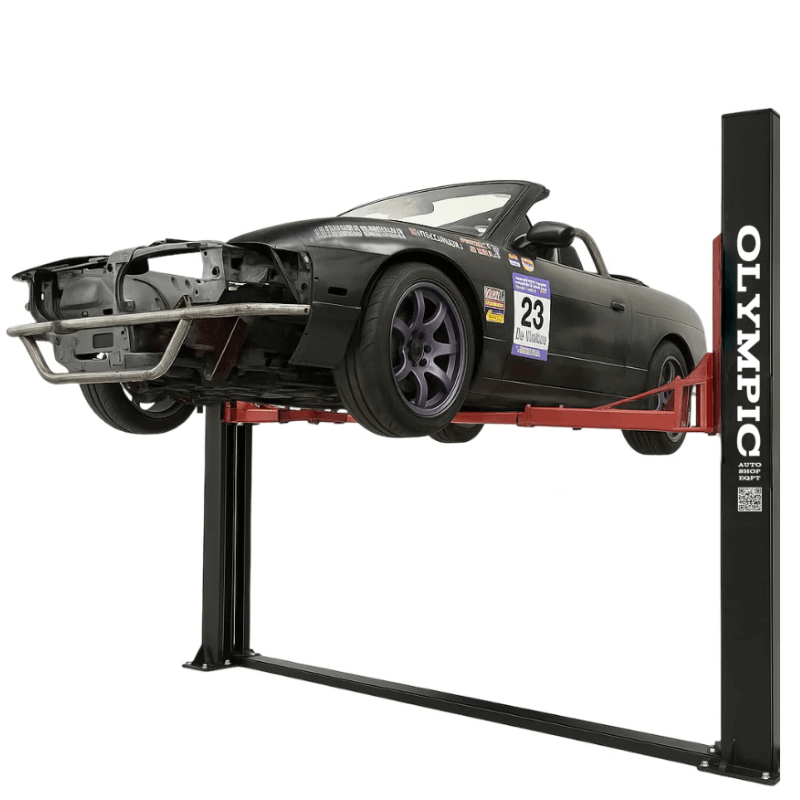

Olympic 2PBP-12 12,000 lb. Base Plate 2 Post Lift

The Olympic 2PBP-12 Base Plate Two-Post Lift is a heavy-duty, professional-grade lifting solution engineered for shops that require maximum strength with minimal ceiling height. With a powerful 12,000 lb lifting capacity, this lift is purpose-built to handle service trucks, vans, and motorhomes while maintaining a compact vertical profile ideal for low-ceiling installations.

Designed with a technically advanced configuration, the 2PBP-12 features large-diameter hydraulic cylinders in each column and a synchronized hydraulic system for smooth, balanced lifting performance. Three-stage symmetrical long-reach arms and screw-on adjustable height foot adapters provide exceptional vehicle positioning flexibility, while the deluxe pin-on carriage and single-point lock release enhance operator efficiency and safety during daily operation.

Perfect for commercial repair facilities, fleet service centers, and professional garages, this base plate lift delivers extra width and impressive drive-through clearance without compromising durability. A rugged powder-coated finish ensures long-term corrosion resistance, and the system is certified and tested at 150% of rated capacity. Backed by an Olympic 10-year warranty, the 2PBP-12 is built for demanding workloads and long-term reliability.

2 Post Lift 2PBP-12 Specification

• Lift Type: 2-Post Base Plate

• Lifting Capacity: 12,000 lbs

• Overall Height: 114.96″

• Overall Width: 153.07″

• Drive-Through Width: 116.54″

• Width Between Posts: 130″

• Minimum Lift Height: 4.33″

• Maximum Lift Height: 74.8″

• Front Arm Reach: 34.64″ – 70.86″

• Rear Arm Reach: 34.64″ – 70.86″

• Speed of Rise: 50 seconds

• Speed of Lowering: 50 seconds

• Power Unit: 4 HP / 3 kW, Single Phase

• Voltage: 110V (220V option available)

• Minimum Ceiling Height Required: 114″

2PBP-12 12,000 lb. Base Plate 2 Post Lift Special Features

• 12,000 lb lifting capacity for trucks, vans, and motorhomes

• Base plate design ideal for low-ceiling installations

• High-strength, technically advanced lift configuration

• Large-diameter hydraulic cylinder in each column

• Three-stage symmetrical long-reach extension arms

• Three-stage screw-on adjustable height foot adapters

• Deluxe pin-on carriage for secure vehicle support

• Convenient single-point manual lock release

• Synchronized hydraulic system for smooth operation

• Automatic stop at maximum lifting height

• Door anti-crush rubber protection

• Swing arm supports with high-quality lifting pads

• Durable powder-coated finish for corrosion resistance

• Includes four 3.5″ truck adapters and mounting hardware

• Certified and tested at 150% of rated capacity

• Backed by an Olympic 10-year warranty
