2PBP-8 8,000lb 2 Post Lift - Low Ceiling

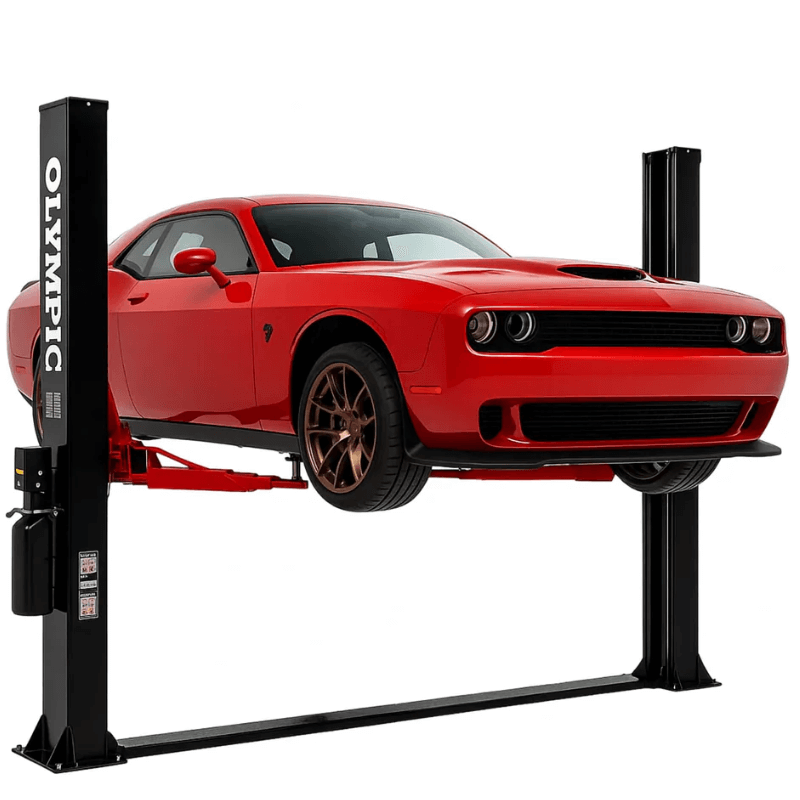

Olympic 2PBP-8 8,000-lb Base Plate 2 Post Lift

The Olympic 2PBP-8 Base Plate Two-Post Lift is a dependable and space-efficient lifting solution designed for professional automotive service bays and home garages alike. With an 8,000 lb lifting capacity, this lift is ideal for safely raising cars and light trucks for maintenance, inspections, and repairs. Its base plate design makes it especially suitable for shops with limited ceiling height while still delivering solid lifting performance.

Constructed from high-quality Q235 structural steel, the 2PBP-8 is engineered for strength, durability, and long-term reliability. Large-diameter dual hydraulic cylinders and a synchronized hydraulic system provide smooth, balanced lifting and lowering. Safety is built into every detail, including dual-point lock release, automatic stop at maximum height, and door anti-crush rubber protection to safeguard both vehicles and technicians.

Designed for efficiency and ease of use, this two-post lift features symmetric long-reach extension arms, two-stage adjustable foot adapters, and swing arm supports with high-quality pads for secure vehicle positioning. With a durable powder-coated finish, included mounting hardware, and certification tested at 150% of rated capacity, the Olympic 2PBP-8 is a smart, confidence-inspiring choice for everyday automotive service environments.

2 Post Lift 2PBP-8 Specification

• Lift Type: 2-Post Base Plate Lift

• Lifting Capacity: 8,000 lbs

• Overall Height: 110.2″

• Overall Width: 129.92″

• Width Between Posts: 110.2″

• Minimum Lift Height: 3.94″

• Maximum Lift Height: 71″

• Front Arm Reach: 31.5″ – 45.75″

• Rear Arm Reach: 31.5″ – 46″

• Speed of Rise: 50 seconds

• Speed of Lowering: 50 seconds

• Power Unit: 3 HP / 2.2 kW, Single Phase

• Voltage: 110V standard (220V option available)

• Ceiling Height Requirement: 110″

2PBP-8 8,000-lb Base Plate 2 Post Lift Special Features

• Heavy-duty Q235 structural steel construction for long-lasting strength

• 8,000 lb lifting capacity suitable for cars and light trucks

• Base plate design ideal for shops with lower ceiling heights

• Dual hydraulic cylinders with synchronized hydraulic system

• Dual-point mechanical lock release for enhanced safety

• Symmetric long-reach extension arms for flexible vehicle positioning

• Two-stage adjustable foot adapters with included 3.5″ truck adapters

• Automatic stop at maximum height for added operational safety

• Durable powder-coated finish for corrosion resistance

• Certified and tested at 150% of rated capacity

• Includes mounting hardware for streamlined installation

• Backed by an Olympic 10-year warranty

2PBP-8 Manual

  Olympic 2PBP-8 Spec Sheet
