2PCF-9 9,000lb 2 Post Lift

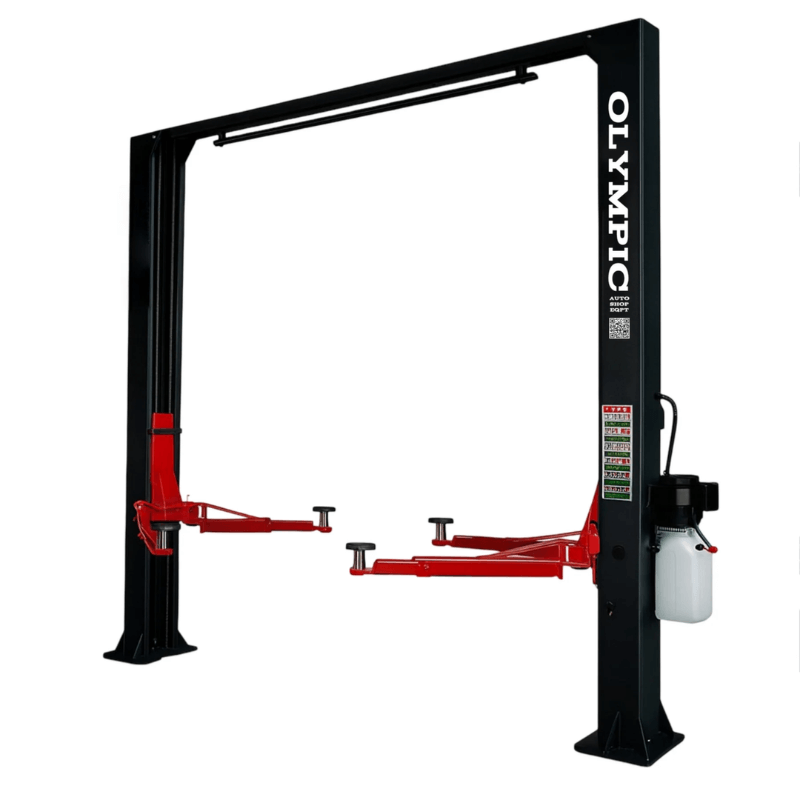

Olympic 2PCF-9 9,000 lb. 2-Post Clear Floor Lift

The Olympic 2PCF-9 Clear Floor Two-Post Lift is a commercial-quality lifting solution engineered for both professional shops and serious automotive enthusiasts. With a 9,000 lb lifting capacity, this lift is ideal for servicing a wide range of passenger vehicles while maintaining a compact, clear-floor design that maximizes workspace efficiency and overhead clearance.

Constructed from high-quality Q235 structural steel, the 2PCF-9 is built for long-term durability and consistent performance. Large-diameter heavy-duty hydraulic cylinders work in tandem with a synchronized hydraulic system and independent load leveling to deliver smooth, stable lifting and lowering. Dual-point lock release and an automatic stop at maximum height enhance safety, giving technicians confidence during daily operation.

Designed with usability and flexibility in mind, this lift features asymmetric long-reach arms, two-stage foot height adapters, and swing arm supports with high-quality pads to accommodate various vehicle sizes and lifting points. A durable powder-coated finish protects against corrosion, while included 3.5-inch truck adapters and mounting hardware simplify installation. Certified and tested at 150% of rated capacity and backed by an Olympic 10-year warranty, the 2PCF-9 offers outstanding value for busy automotive environments.

2 Post Lift 2PCF-9 Specification

• Lift Type: 2-Post Clear Floor Lift

• Lifting Capacity: 9,000 lbs

• Overall Height: 141.73″

• Overall Width: 128.74″

• Width Between Posts: 109.5″

• Minimum Lift Height: 4.3″

• Maximum Lift Height: 74.8″

• Front Arm Reach: 30″ – 41.3″

• Rear Arm Reach: 30″ – 47.2″

• Speed of Rise: 60 seconds

• Speed of Lowering: 55 seconds

• Motor: 3 HP / 2.2 kW, Single Phase

• Voltage: 110V standard (220V option available)

• Minimum Ceiling Height Required: 144″

2PCF-9 9,000 lb. 2-Post Clear Floor Lift Special Features

• 9,000 lb lifting capacity for cars and light-duty vehicles

• Clear floor design for unobstructed workspace and easy tool movement

• High-strength Q235 structural steel construction

• Asymmetric long-reach arms for improved door clearance

• Two-stage foot height adapters for flexible vehicle lifting

• Large-diameter heavy-duty hydraulic cylinders

• Synchronized hydraulic system for smooth, balanced lifting

• Independent load leveling system for added stability

• Dual-point manual lock release for enhanced safety

• Automatic stop at maximum lift height

• Door anti-crush rubber protection

• Swing arm supports with high-quality lifting pads

• Durable powder-coated finish for corrosion resistance

• Includes four 3.5″ truck adapters and mounting hardware

• Certified and tested at 150% of rated capacity

• Backed by an Olympic 10-year warranty
