2PCFHD-12 12,000lb 2 Post Lift - Extra Wide & Tall

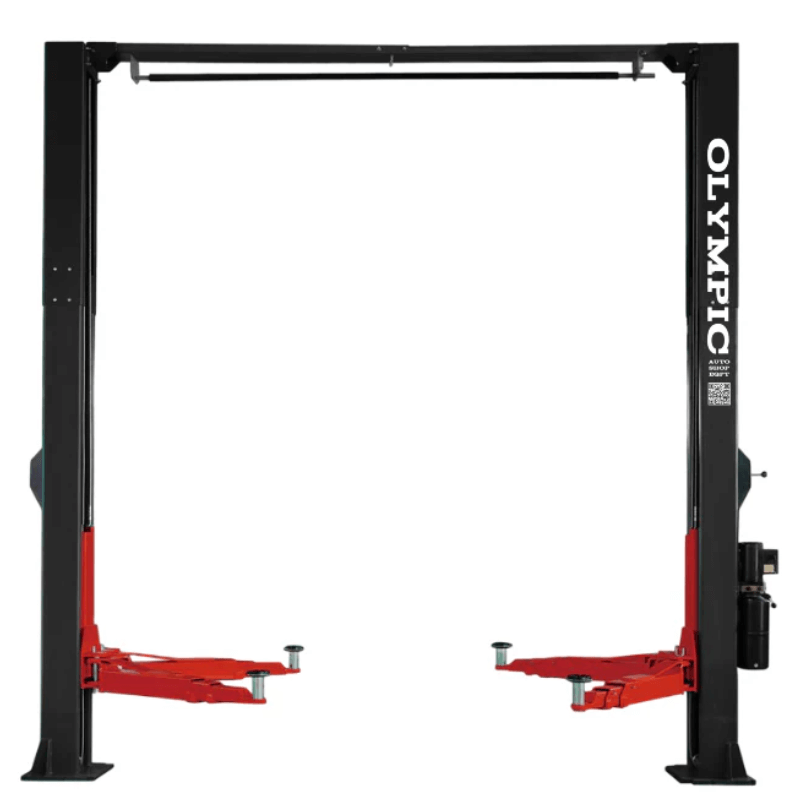

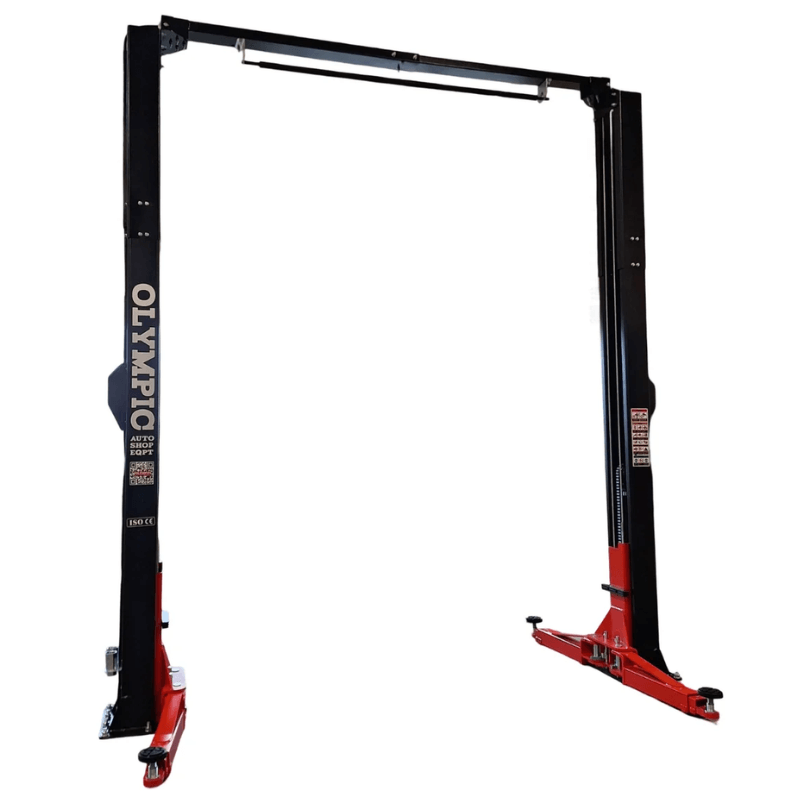

Olympic 2PCFHD-12 12,000 lb. Heavy-Duty Extra-Wide-Extra-Tall Lift

The Olympic 2PCFHD-12 Heavy-Duty Extra-Wide Extra-Tall Two-Post Lift is engineered for demanding service environments that regularly handle large, wide, and tall vehicles. With a robust 12,000 lb lifting capacity, this clear-floor lift is designed to accommodate dual-wheel trucks and oversized vehicles while providing exceptional vertical and lateral clearance for efficient servicing.

Built on the same rugged structural platform as Olympic’s 15,000 lb lift, the 2PCFHD-12 delivers professional-grade durability and long-term reliability. Large-diameter hydraulic cylinders in each column, a synchronized hydraulic system, and a technically advanced configuration ensure smooth, balanced lifting performance. Three-stage symmetrical long-reach arms and screw-on adjustable height foot adapters allow precise vehicle positioning across a wide range of applications.

Ideal for high-volume service centers, commercial repair shops, and serious professional garages, this extra-tall, extra-wide lift maximizes workspace accessibility without sacrificing safety. A durable powder-coated finish enhances corrosion resistance, while built-in safety features such as automatic lift stop and door anti-crush protection support confident daily operation. Backed by an Olympic 10-year warranty and certified to 150% of rated capacity, the 2PCFHD-12 is built for heavy workloads and long service life.

2 Post Lift 2PCFHD-12 Specification

• Lift Type: 2-Post Clear Floor

• Lifting Capacity: 12,000 lbs

• Overall Height: 174″

• Overall Width: 156″

• Width Between Posts: 134″

• Minimum Lift Height: 4.3″

• Maximum Lift Height: 70.87″

• Front Arm Reach: 34.65″ – 70.87″

• Rear Arm Reach: 34.65″ – 70.86″

• Speed of Rise: 55 seconds

• Speed of Lowering: 55 seconds

• Power Unit: 4 HP / 3 kW, Single Phase

• Voltage: 220V

• Minimum Ceiling Height Required: 174″

2PCFHD-12 12,000 lb. Heavy-Duty Extra-Wide-Extra-Tall Lift Special Features

• 12,000 lb heavy-duty lifting capacity for large and tall vehicles

• Extra-wide and extra-tall clear floor design for maximum accessibility

• Built on the same rugged structure as Olympic’s 15,000 lb lift

• High-quality Q235 structural steel construction

• Large-diameter hydraulic cylinder in each column

• Three-stage symmetrical long-reach extension arms

• Three-stage screw-on adjustable height foot adapters

• Deluxe pin-on carriage for secure vehicle support

• Convenient single-point manual lock release

• Synchronized hydraulic system for smooth, balanced lifting

• Automatic stop at maximum lifting height

• Door anti-crush rubber protection for added safety

• Swing arm supports with high-quality lifting pads

• Durable powder-coated finish for long-term corrosion resistance

• Includes four 3.5″ truck adapters and mounting hardware

• Certified and tested at 150% of rated capacity

• Backed by an Olympic 10-year warranty

2PCFHD-12 Manual

  Olympic 2PCFHD-12 Spec Sheet
