2PCFHD-15 15,000lb 2 Post Lift - Heavy Duty

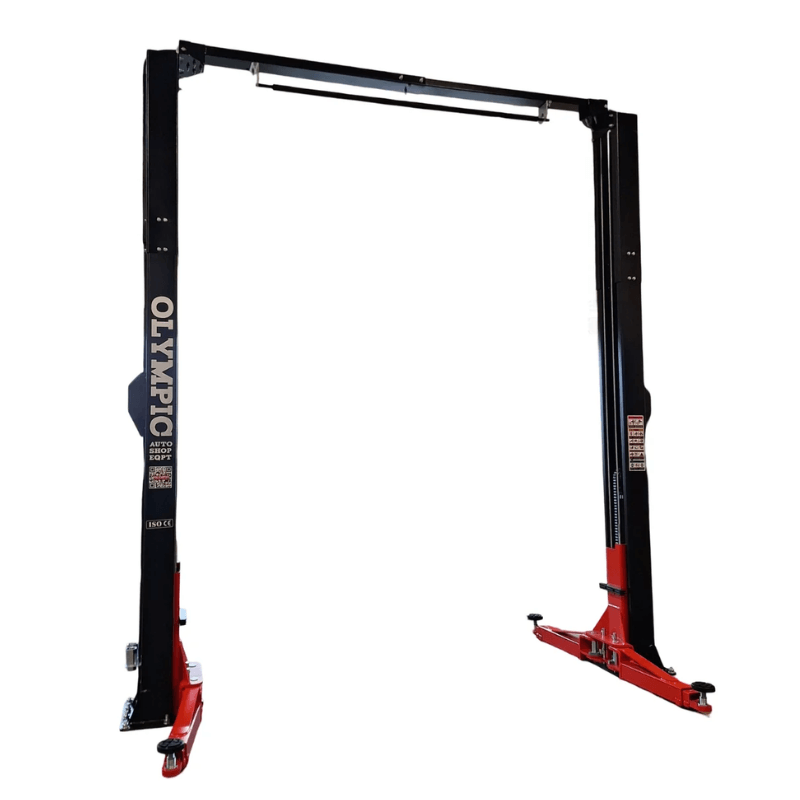

Olympic 2PCFHD-15 15,000 lb. Heavy-Duty Clear Floor Lift

The Olympic 2PCFHD-15 Heavy-Duty Clear Floor Two-Post Lift is built for extreme workloads and oversized vehicles, earning its reputation as “The Beast” in professional service environments. With a massive 15,000 lb lifting capacity, this extra-wide and extra-tall lift is engineered to safely raise large service trucks, vans, and dual-wheel vehicles while maintaining excellent under-vehicle access.

Constructed from high-quality Q235 structural steel, the 2PCFHD-15 delivers exceptional strength, rigidity, and long-term durability. Large-diameter hydraulic cylinders in each column work with a synchronized hydraulic system to provide smooth, balanced lifting and lowering. Three-stage symmetrical long-reach arms and adjustable screw-on foot adapters allow technicians to confidently position a wide range of heavy vehicles with precision and stability.

Designed for high-volume commercial shops and fleet service centers, this clear-floor lift maximizes workspace efficiency without compromising safety. Features such as automatic stop at maximum height, door anti-crush protection, and a convenient single-point lock release enhance daily usability. Backed by an Olympic 10-year warranty and certified to 150% of rated capacity, the 2PCFHD-15 is a true heavy-duty solution for demanding professional operations.

2 Post Lift 2PCFHD-15 Specification

• Lift Type: 2-Post Clear Floor

• Lifting Capacity: 15,000 lbs

• Overall Height: 174″

• Overall Width: 156″

• Width Between Posts: 134″

• Drive-Through Width: 122.83″

• Minimum Lift Height: 4.3″

• Maximum Lift Height: 70.87″

• Front Arm Reach: 34.7″ – 70.9″

• Rear Arm Reach: 34.7″ – 70.9″

• Speed of Rise / Lowering: 50 seconds

• Voltage: 220V

• Recommended Motor: 4 HP / 3 kW, 60Hz, Single Phase

• Minimum Ceiling Height Required: 174

2PCFHD-15 15,000 lb. Heavy-Duty Clear Floor Lift Special Features

• 15,000 lb heavy-duty lifting capacity for oversized commercial vehicles

• Extra-wide and extra-tall clear floor design for maximum access

• High-strength Q235 structural steel construction

• Large-diameter hydraulic cylinder in each column

• Three-stage symmetrical long-reach extension arms

• Three-stage screw-on adjustable height foot adapters

• Deluxe pin-on carriage for secure vehicle support

• Convenient single-point manual lock release

• Synchronized hydraulic system for smooth, stable lifting

• Automatic stop at maximum lifting height

• Door anti-crush rubber protection for added safety

• Swing arm supports with high-quality lifting pads

• Durable powder-coated finish for corrosion resistance

• Includes four 3.5″ truck adapters and mounting hardware

• Certified and tested at 150% of rated capacity

• Backed by an Olympic 10-year warranty

2PCFHD-15 Manual

  Olympic 2PCFHD-15 Spec Sheet
