2PCFXL-10 10,000lb 2 Post Lift

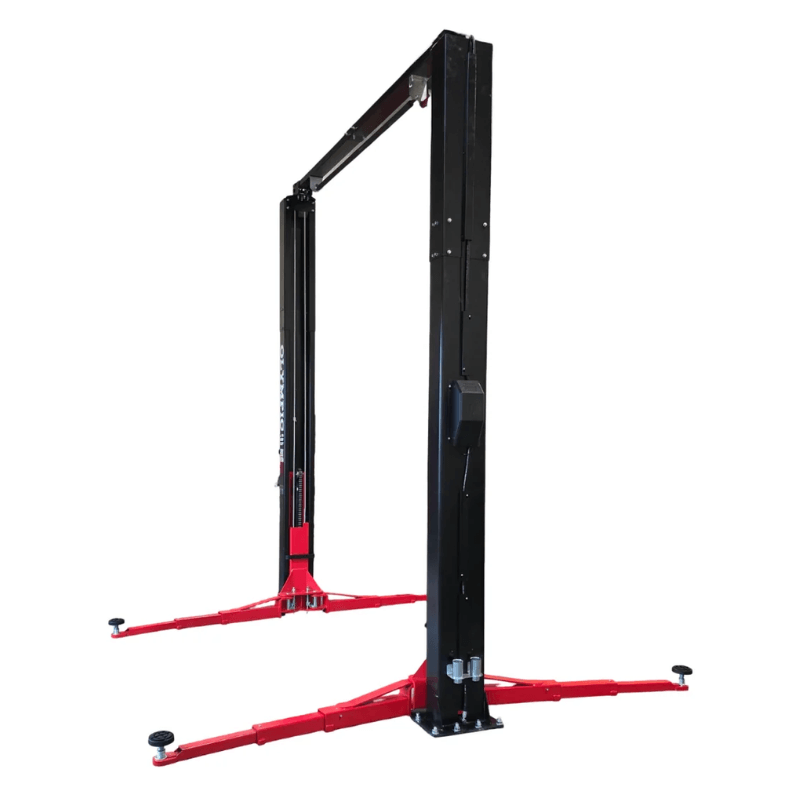

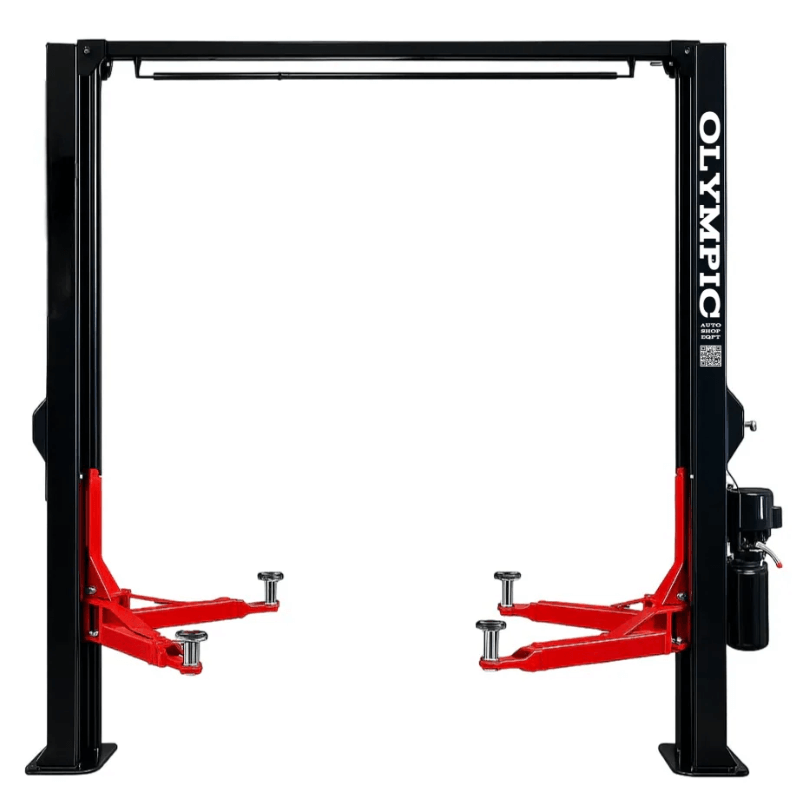

Olympic 2PCFXL-10 10,000 lb. 2-Post Clear Floor Lift

The Olympic 2PCFXL-10 Clear Floor Two-Post Lift is a professional-grade lifting solution engineered for reliability, strength, and daily shop use. Featuring a proven, bulletproof design, this lift has been reengineered with premium materials and advanced technology to deliver consistent performance, low maintenance requirements, and outstanding long-term value for commercial automotive environments.

Built from high-quality Q235 spec structural steel, the 2PCFXL-10 delivers a robust 10,000 lb lifting capacity while maintaining smooth and balanced operation. Large-diameter hydraulic cylinders in each column work with a synchronized hydraulic system to ensure stable lifting and lowering, while the clear-floor configuration provides unobstructed access beneath the vehicle for improved technician efficiency and workflow.

For added versatility and safety, this lift includes three-stage symmetrical long-reach extension arms, three-stage screw-on adjustable foot adapters, and a convenient single-point lock release with automatic stop at maximum lift height. Finished with a durable powder-coated coating and certified at 150% of rated capacity, the Olympic 2PCFXL-10 is backed by an industry-leading 10-year warranty, making it a dependable choice for high-demand service shops.

2 Post Lift 2PCFXL-10 Specification

• Lift Type: 2-Post Clear Floor Lift

• Lifting Capacity: 10,000 lbs

• Overall Height: 153″

• Overall Width: 135.31″

• Width Between Posts: 114.17″

• Drive-Through Width: 100.39″

• Minimum Lift Height: 3.94″

• Maximum Lift Height: 70.87″

• Front Arm Reach: 29.52″ – 59.05″

• Rear Arm Reach: 29.52″ – 59.05″

• Speed of Rise: 50 seconds

• Speed of Lowering: 50 seconds

• Motor / Power Unit: 3 HP / 2.2 kW, Single Phase

• Voltage: 110V standard (220V option available)

• Minimum Ceiling Height Required: 153″

2PCFXL-10 10,000 lb. 2-Post Clear Floor Lift Special Features

• 10,000 lb lifting capacity for professional-grade service

• Clear floor design for unobstructed under-vehicle access

• High-strength Q235 structural steel construction

• Proven, reengineered bulletproof design

• Large-diameter hydraulic cylinder in each column

• Synchronized hydraulic system for smooth, even lifting

• Convenient single-point manual lock release

• Automatic stop at maximum lifting height

• Three-stage symmetrical long-reach extension arms

• Three-stage screw-on adjustable height foot adapters

• Swing arm supports with high-quality lifting pads

• Door anti-crush rubber protection

• Durable powder-coated finish for corrosion resistance

• Includes four 3.5″ truck adapters and mounting hardware

• Certified and tested at 150% of rated capacity

• Backed by an Olympic 10-year warranty

2PCFXL-10 Manual

  Olympic 2PCFXL-10 Spec Sheet
