2PDDA-10 10,000lb 2 Post Lift - Direct Drive

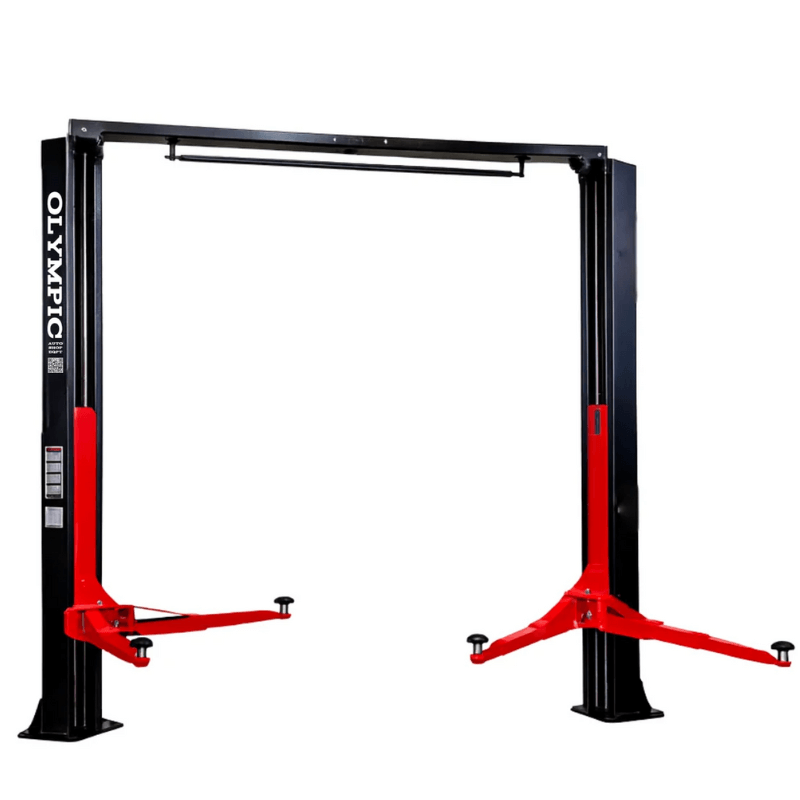

Olympic 2PDDA-10 10,000 lb. Direct-Drive Symmetric-Asymmetric 2 Post Lift

The Olympic 2PDDA-10 Direct-Drive Two-Post Lift is a premium Gold Series lifting solution engineered for professional automotive service environments that demand performance, reliability, and flexibility. With a 10,000 lb lifting capacity, this lift is designed to safely handle a wide range of passenger vehicles and light-duty trucks while offering both symmetric and asymmetric configurations to suit different shop layouts and vehicle types.

Built from high-quality Q235 structural steel, the 2PDDA-10 features advanced direct-drive hydraulic technology that reduces moving parts, lowering maintenance requirements while improving long-term reliability. Large-diameter hydraulic cylinders mounted in each column work with a synchronized hydraulic system to deliver smooth, balanced lifting and lowering. A convenient single-point lock release, automatic stop at maximum height, and door anti-crush rubber protection further enhance operational safety.

Ideal for busy commercial repair shops, dealerships, and professional garages, this clear-floor two-post lift maximizes drive-through width and technician efficiency. Three-stage long-reach arms and adjustable screw-on foot adapters provide excellent vehicle positioning flexibility, while the durable powder-coated finish ensures lasting corrosion resistance. Certified and tested at 150% of rated capacity and backed by an Olympic 10-year warranty, the 2PDDA-10 is built for confidence and daily use.

2 Post Lift 2PDDA-10 Specification

• Lift Type: 2-Post Clear Floor Symmetric/Asymmetric

• Lifting Capacity: 10,000 lbs

• Overall Height: 152.75″

• Overall Width: 140.59″ (Symmetric) / 144.96″ (Asymmetric)

• Drive-Through Width: 106.57″ (Symmetric) / 101.18″ (Asymmetric)

• Width Between Posts: 106.57″ (Symmetric) / 101.18″ (Asymmetric)

• Minimum Foot Height: 3.54″

• Maximum Lift Height: 74.8″

• Speed of Rise: 50 seconds

• Speed of Lowering: 50 seconds

• Voltage: 110V (220V option available)

• Power Unit: 3 HP / 2.2 kW, Single Phase

• Minimum Ceiling Height Required: 152″

2PDDA-10 10,000 lb. Direct-Drive Symmetric-Asymmetric 2 Post Lift Special Features

• 10,000 lb lifting capacity for professional-grade vehicle service

• Direct-drive hydraulic technology with reduced moving parts

• Flexible symmetric or asymmetric post configuration

• High-strength Q235 structural steel construction

• Large-diameter hydraulic cylinders in each column

• Clear floor design for improved shop efficiency

• Deluxe pin-on carriages for secure vehicle support

• Convenient single-point lock release system

• Three-stage long-reach extension arms

• Three-stage screw-on adjustable height foot adapters

• Synchronized hydraulic system for smooth, balanced operation

• Automatic stop at maximum lifting height

• Door anti-crush rubber protection

• Swing arm supports with high-quality lifting pads

• Durable powder-coated finish for corrosion resistance

• Includes four 3.5″ truck adapters and mounting hardware

• Certified and tested at 150% of rated capacity

• Backed by an Olympic 10-year warranty

2PDDA-10 Manual

   Olympic 2PDDA-10 Spec Sheet
