4P-4032XL 16,000lb 3 Car Lift - Triple Stacker

Olympic 4P-4032XL 16,000 lb. Three Level 3-Car Stacking 4 Post Lift

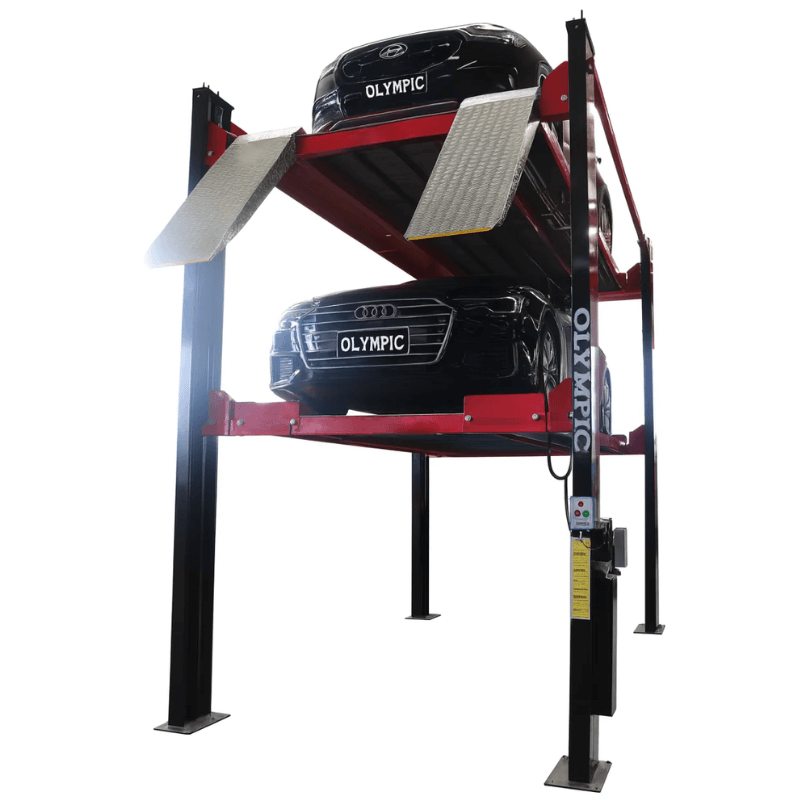

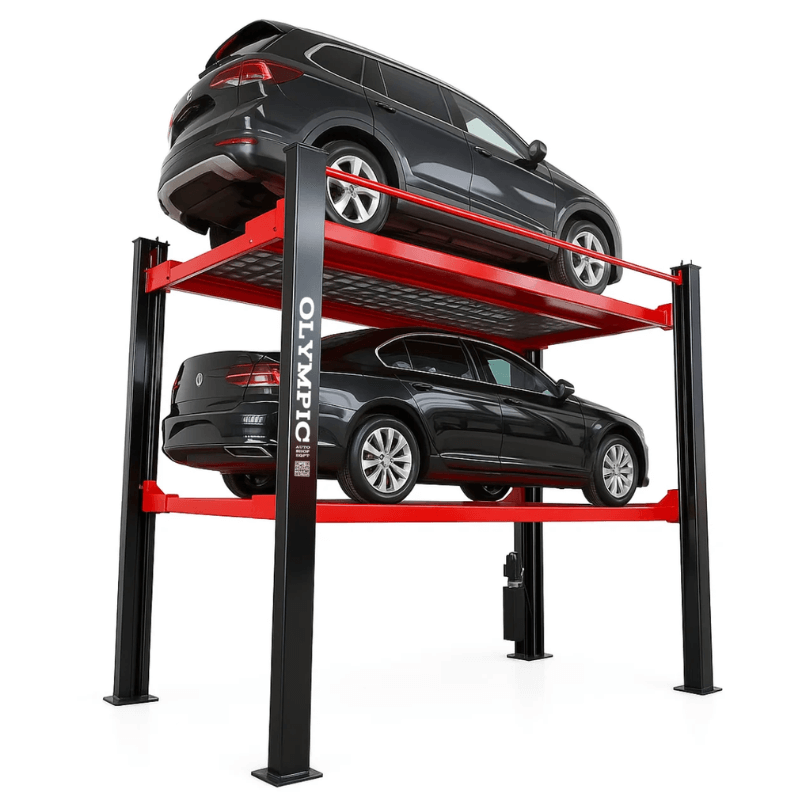

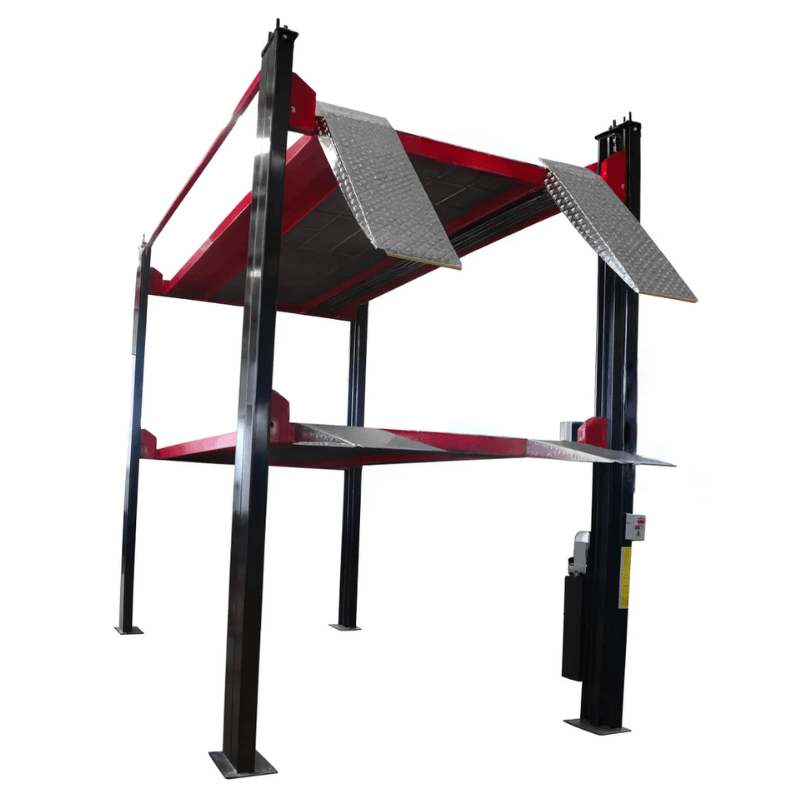

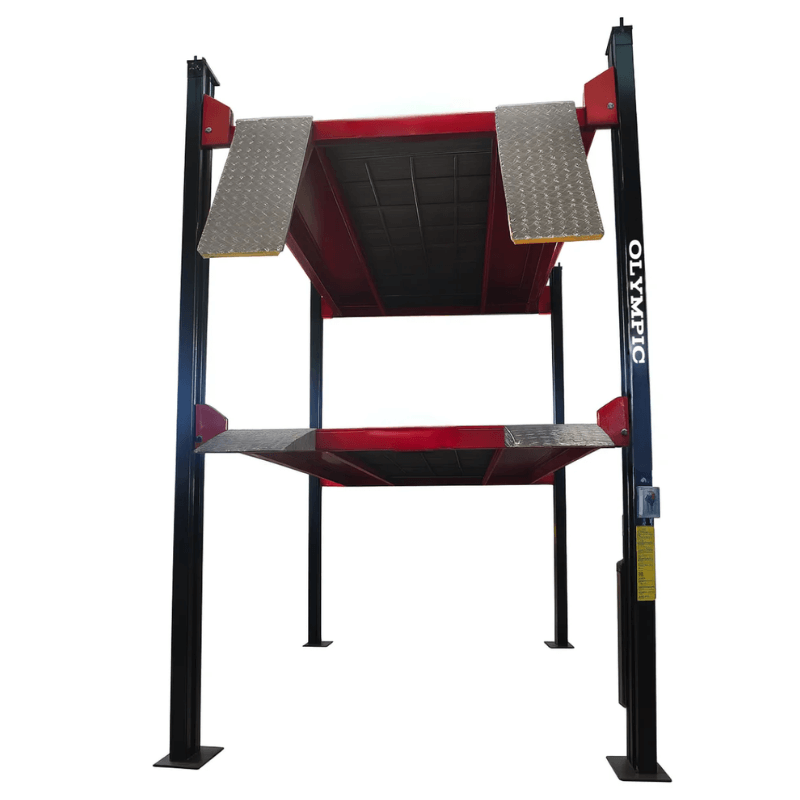

The Olympic 4P-4032XL “Triple Stacker” is a premium three-level 4-post storage lift engineered for serious car collectors, museums, dealerships, and high-capacity garages that demand maximum vertical storage. Designed to safely stack three full-size vehicles in a single parking space, this heavy-duty system delivers unmatched strength, height, and reliability large enough to accommodate classic full-size vehicles, including vintage Cadillacs.

With a massive 16,000 lb total lifting capacity (9,000 lbs on the lower deck and 7,000 lbs on the upper deck), extra-wide spacing, and an impressive 156.5-inch maximum lifting height, the Triple Stacker dramatically increases storage efficiency without compromising safety. Built from high-quality Q235 structural steel, this lift features a cable-driven lifting system with anti-failure protection, adjustable locking at any height, and heavy-duty hydraulic cylinders for smooth, controlled operation.

Aluminum ramps for both top and bottom decks, steel drip trays, a 24V electric lock release, and a foldaway top ramp are included for convenience and safety. Certified and tested at 150% of rated capacity and protected by an industry-leading 10-year warranty, the Olympic 4P-4032XL stands as the ultimate solution for vertical vehicle storage.

4 Post Lift 4P-4032XL Specification

Top Deck

• Lift Style: 4-Post Three-Level Storage Lift

• Total Capacity: 16,000 lbs (Upper 7,000 lbs / Lower 9,000 lbs)

• Overall Width: 113.7″

• Overall Length: 256.1″

• Overall Height: 174″

• Drive-Through Clearance: 86.6″

• Maximum Rise: 151.4″

• Maximum Lifting Height: 156.5″

• Distance Between Columns: 100″

• Runway Width: 18.6″

• Width Between Runways: 44.5″

• Runway Length: 199″

Lower Deck

• Overall Width: 113.7″

• Overall Length: 229.4″

• Drive-Through Clearance: 86.6″

• Maximum Rise: 82.1″

• Maximum Lifting Height: 87.2″

• Distance Between Columns: 100″

• Runway Width: 18.6″

• Width Between Runways: 44.5″

• Runway Length: 185.35″

Power Requirements

• Voltage: 220V

• Included Power Unit: 2.2 kW, 60 Hz, Single Phase

4P-4032XL 16,000 lb. 4 Post Lift Special Features

• 16,000 lb total lifting capacity for three-vehicle stacking

• Instantly triples parking capacity in a single footprint

• Designed for full-size and classic vehicles

• Over 156″ of maximum lift height

• Heavy-duty Q235 structural steel construction

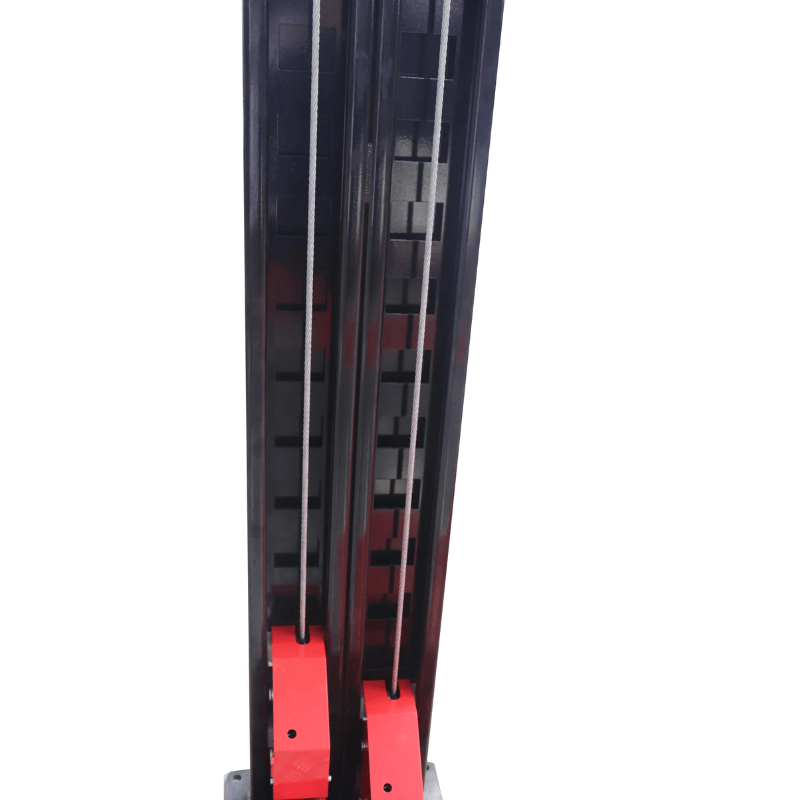

• Cable-driven lifting system with 10-gauge aircraft cables

• Cable anti-failure safety system

• Adjustable locking system locks at any height

• Heavy-duty hydraulic cylinders for smooth lifting

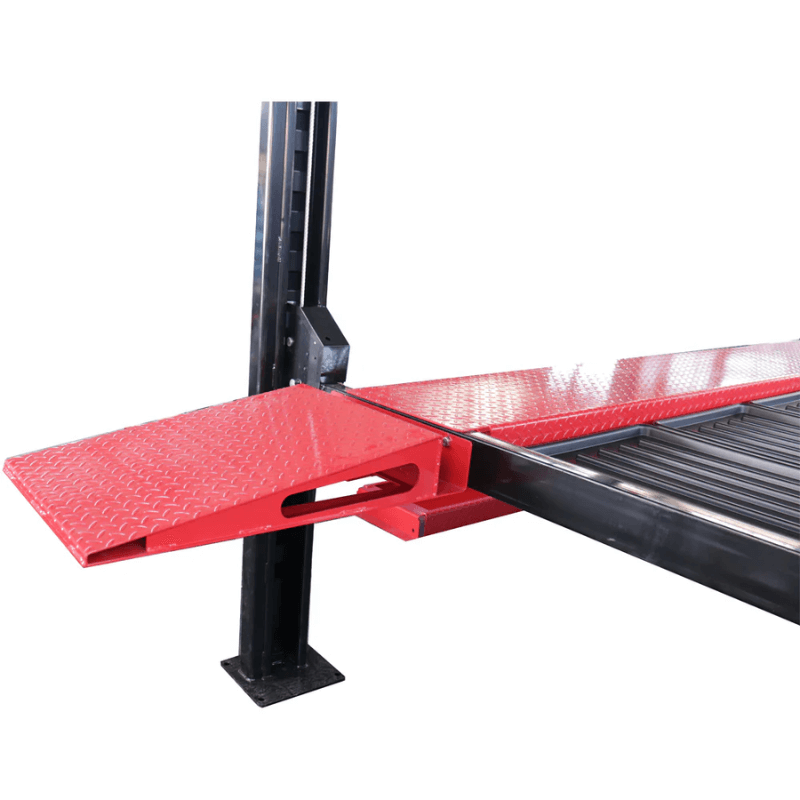

• Foldaway top ramp for easy access

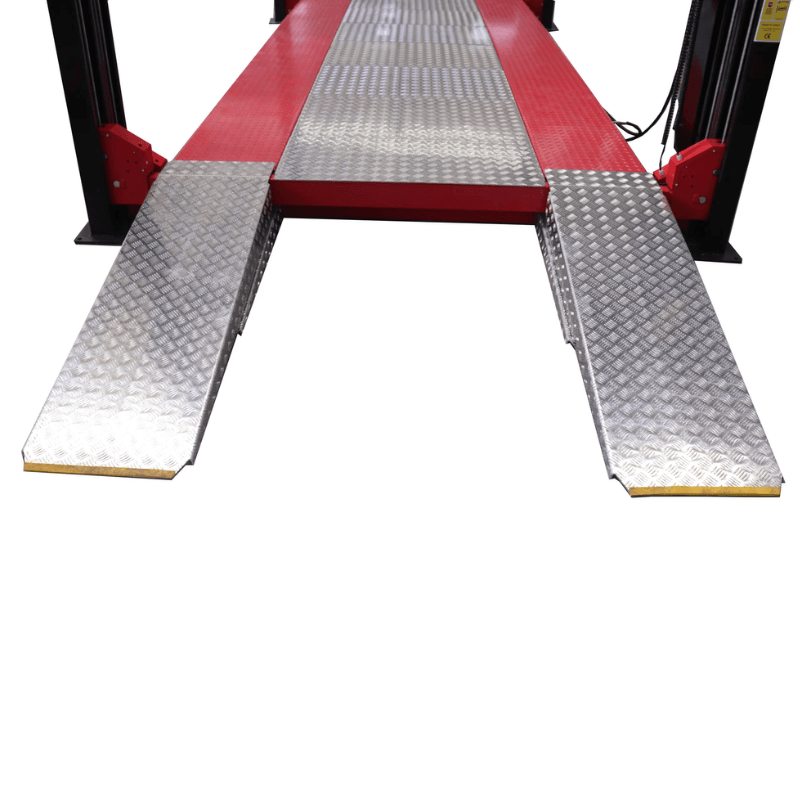

• Aluminum ramps included for top and bottom decks

• Steel drip trays included

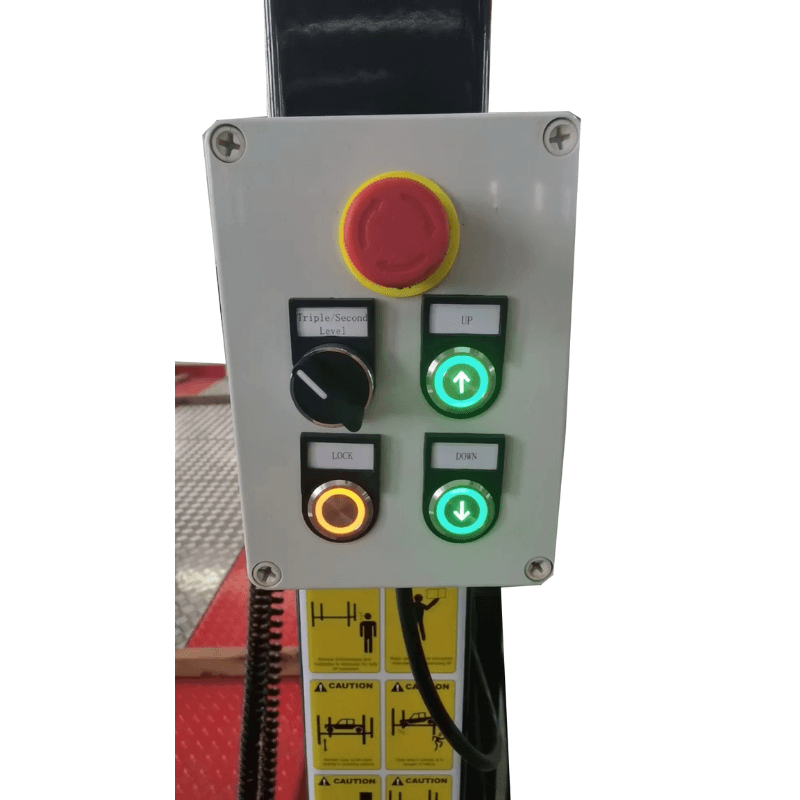

• 24V electric lock release system

• Mounting hardware included

• Optional aluminum center platforms (15 inserts required)

• Optional 6,000 lb bridge jack (HLCJ-6)

• Certified and tested at 150% of rated capacity

• Backed by an industry-best 10-year warranty

4P-4032XL Manual

  Olympic 4P-4032XL Installation and Operations Manual

  Olympic 4P-4032XL Spec Sheet
