4PHDXL-12 12,000lb 4 Post Lift

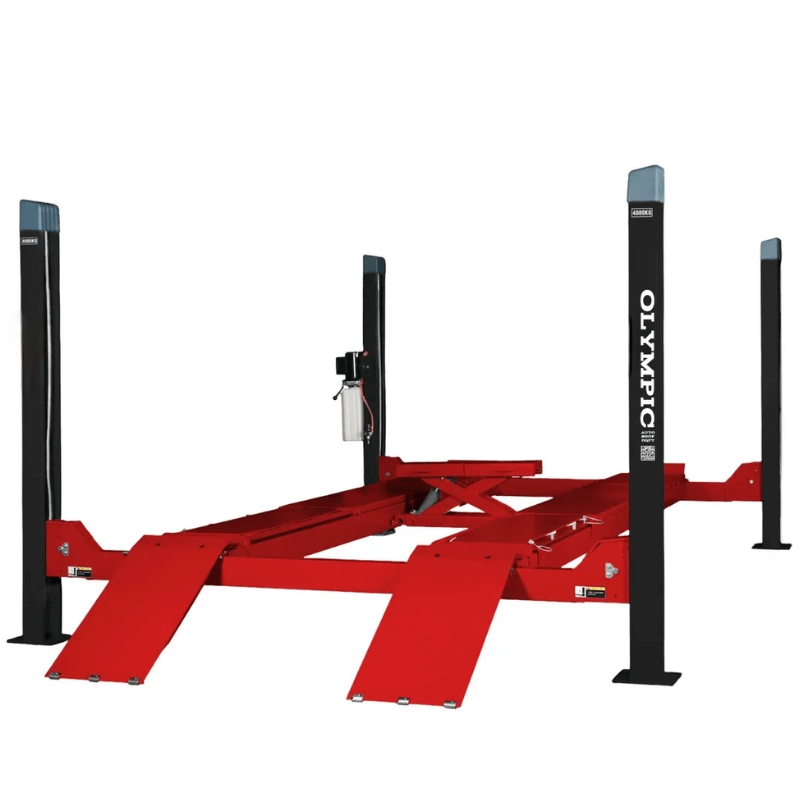

Olympic 4PHDXL-12 12,000 lb. Storage & Maintenance 4 Post Lift

The Olympic 4PHDXL-12 is a heavy-duty 4-post storage and maintenance lift engineered for shops and garages that demand uncompromising strength and reliability. With a massive 12,000 lb lifting capacity, this lift is purpose-built to handle trucks, vans, and low-clearance vehicles with confidence. Its extended platform length and wide runway design make it an ideal solution for both professional service work and long-term vehicle storage.

Constructed from high-quality Q235 structural steel, the 4PHDXL-12 is built for durability and stability under continuous use. A cable-driven lifting system with heavy-duty cable sheaves, ladder locks, and aircraft-grade cables rated at 16,000 lbs ensures smooth, secure operation at any height. Italian-engineered oil seals and hydraulic components enhance reliability while reducing maintenance requirements, and the adjustable locking system allows precise height positioning throughout the lift range.

Designed for commercial shops, fleet facilities, and serious enthusiasts, this lift combines safety, performance, and ease of use. Extra-wide 21.6-inch runways provide improved tire support and vehicle stability, while the included 220V power unit delivers consistent lifting power. Certified and tested at 150% of rated capacity and backed by a 10-year warranty, the Olympic 4PHDXL-12 is a dependable investment for demanding storage and service applications.

4 Post Lift 4PHDXL-12 Specification

• Lift Type: 4-Post Storage & Maintenance Lift

• Load Capacity: 12,000 lbs

• Overall Height: 87.40″

• Overall Width: 132.40″

• Overall Length: 245.47″

• Width Between Posts: 114.37″

• Runway Length: 196.85″

• Runway Width: 21.65″

• Width Between Tracks: 39″

• Maximum Lifting Height: 70.86″

• Shipping Weight: 3,880 lbs

• Power Unit: 220V, 3 kW, 4 HP, Single Phase

4PHDXL-12 12,000 lb. 4 Post Lift Special Features

• Heavy-duty 12,000 lb lifting capacity for trucks and vans

• Extra-wide 21.6″ runways for improved vehicle stability

• High-strength Q235 structural steel construction

• Cable-driven lifting system with ladder lock safety design

• Adjustable locking system locks securely at any height

• Aircraft-grade cables rated at 16,000 lbs

• Cable anti-failure safety system for added protection

• Italian oil seals and hydraulic components for long service life

• Manual lock release system for controlled operation

• Durable powder-coated finish for corrosion resistance

• Includes 220V power unit for reliable performance

• Optional 6,000 lb bridge jacks available

• Certified and tested at 150% of rated capacity

• Backed by an Olympic 10-year warranty

4PHDXL-12 Manual

   Coming Soon
