4PHDXL-22 22,000lb 4 Post Lift - Gold Series

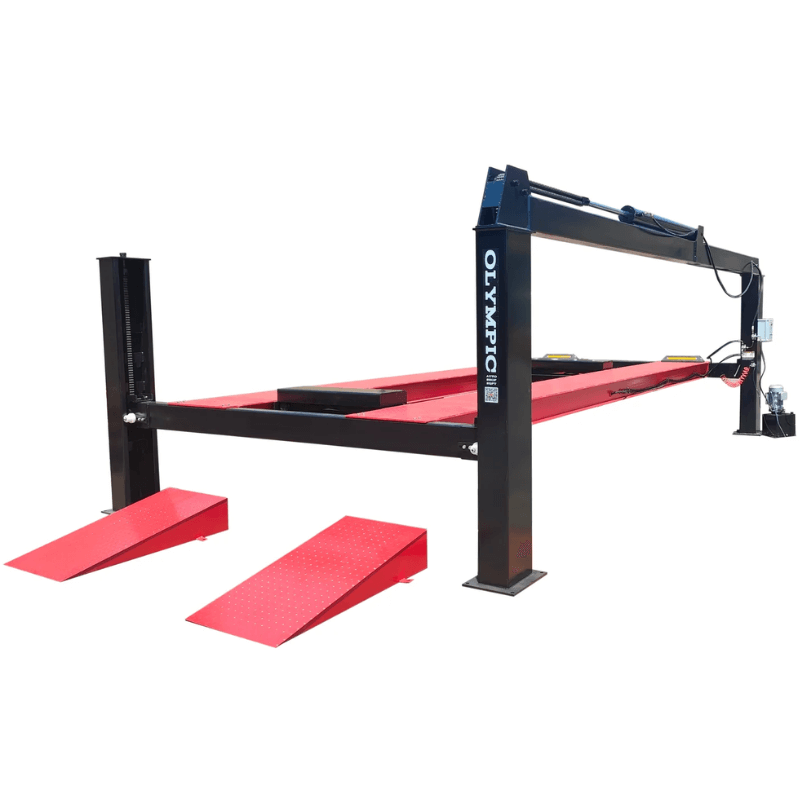

Olympic 4PHDXL-22 22,000-lb. Gold Series Heavy-Duty Truck & Equipment 4 Post Lift

The Olympic 4PHDXL-22 Gold Series is a commercial-grade 4-post maintenance lift engineered for extreme-duty applications, including semis, dump trucks, utility vehicles, buses, and heavy equipment. Built to thrive in demanding service environments, this powerhouse delivers a 22,000 lb lifting capacity, extra-long 275.6-inch slip-resistant runways, and Italian-engineered hydraulic components designed for smooth, reliable performance under heavy loads.

Designed with safety and versatility in mind, the lift features galvanized aircraft-grade cables, a secondary locking system to guard against cable failure, spring-loaded automatic safety locks, and adjustable ladder locks for precise leveling. Movable runways allow flexible vehicle positioning, while the included 9,000 lb rolling bridge jack expands service capabilities for wheel, brake, and suspension work.

Powered by a maintenance-free 380V three-phase hydraulic power unit, the Olympic 4PHDXL-22 is suitable for indoor or outdoor use (with protected power unit installation). Certified and tested at 150% of rated capacity and backed by an industry-leading 10-year warranty, this Gold Series lift is built for shops that refuse to compromise on strength, safety, or durability.

4 Post Lift 44PHDXL-22 Specification

• Lift Style: 4-Post Heavy-Duty Maintenance Lift

• Weight Capacity: 22,000 lbs

• Overall Lift Length: 289.4″

• Overall Width: 152.4″

• Overall Height: 94.9″

• Minimum Lift Height: 7.88″

• Maximum Lifting Height: 67″

• Runway Width: 25.6″

• Runway Length: 275.6″

• Runway Height: 7.9″

• Width Between Tracks: 47.24″

• Width Between Posts: 129″

• Speed of Rise: 60 seconds

• Speed of Lowering: 60 seconds

• Included Bridge Jack Capacity: 9,000 lbs

Power Requirements

• Voltage: 220V / 380V

• Motor Output: 3 KW

• Frequency: 60 Hz

• Phase: 3-Phase

• Amperage: 15A (220V) / 8.8A (380V)

4PHDXL-22 22,000 lb. 4 Post Lift Special Features

• 22,000 lb heavy-duty lifting capacity

• Gold Series commercial-grade construction

• Designed for semis, dump trucks, buses, and heavy equipment

• Extra-long 275.6″ slip-resistant runways

• Includes one 9,000 lb rolling bridge jack (Part No. 4HRJ-9)

• Movable runways for maximum service flexibility

• Aircraft-quality stainless steel hydraulic cylinders

• Galvanized abrasion-resistant aircraft-grade lifting cables

• Secondary locking system protects against cable failure

• Spring-loaded safety locks engage automatically

• Adjustable ladder locks for precise leveling

• Built-in grease fittings for simplified maintenance

• Special chain drive system prevents over-extension

• Outdoor-use capable (power unit must be protected)

• Maintenance-free three-phase hydraulic power unit

• Certified and tested at 150% of rated capacity

• Backed by an industry-best 10-year warranty
