4PHDXLA-11 11,000lb 4 Post Alignment Lift - Open Front

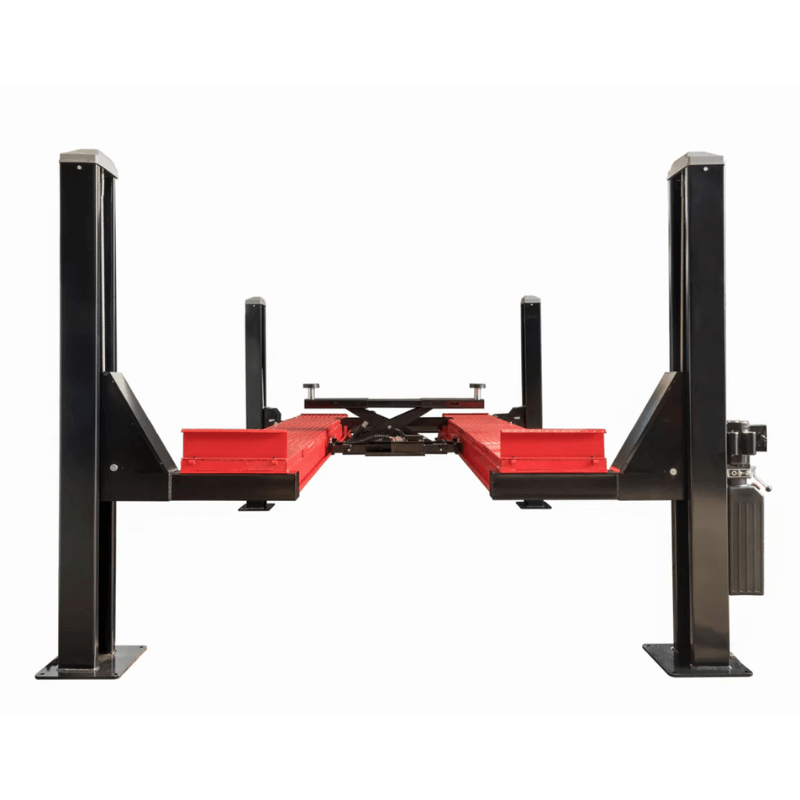

Olympic 4PHDXLA-11 11,000 lb. Open Front Alignment Lift

The Olympic 4PHDXLA-11 is a professional-grade open front alignment and service lift engineered to meet the demands of modern repair and alignment shops. With an 11,000 lb lifting capacity, this lift is designed to support cars, SUVs, and large trucks while delivering precise wheel alignment and efficient service access. Its open-front configuration significantly improves technician workflow, making loading, alignment adjustments, and service tasks faster and more accessible.

Built from high-quality Q235 structural steel, the 4PHDXLA-11 integrates heavy-duty slip plates and turntables directly into the runways, allowing wheels to move freely during alignment procedures. The cable-driven lifting system, air lock release, and adjustable locking positions ensure smooth operation and secure lifting at any height. Italian oil seals and a robust hydraulic system contribute to long-term reliability in high-volume environments.

Ideal for alignment specialists, commercial repair shops, and fleet service centers, this lift combines alignment precision with everyday service versatility. The longer approach ramps simplify vehicle loading, while optional bridge jacks expand service capabilities for wheel, brake, and suspension work making the 4PHDXLA-11 a smart, high-value investment for professional operations.

4 Post Lift 4PHDXLA-11 Specification

• Lift Type: Open Front 4-Post Alignment & Service Lift

• Load Capacity: 11,000 lbs

• Maximum Lift Height: 70.86″

• Overall Width: 137.8″

• Overall Height: 87.40″

• Overall Length: 246.06″

• Drive-Through Width: 99.60″

• Width Between Posts: 116.65″

• Runway Width: 21.65″

• Runway Length: 196.85″

• Width Between Tracks: 39″

• Shipping Weight: 3,880 lbs

• Construction Material: Q235 structural steel

Power Requirements

• Voltage: 220V

• Motor Output: 4 HP / 3 KW

• Frequency: 60 Hz

• Phase: Single Phase (1PH)

4PHDXLA-11 11,000 lb. Alignment Lift Special Features

• 11,000 lb lifting capacity for cars, SUVs, and trucks

• Open-front design for improved access and technician efficiency

• Integrated turntables and slip plates for accurate wheel alignment

• Cable-driven lifting system for smooth and stable operation

• Air lock release system for controlled and secure lowering

• Adjustable lock system allows locking at any height

• Adjustable runways accommodate various tread widths

• Cable anti-failure safety system enhances operational security

• Italian oil seals for dependable hydraulic performance

• Durable powder-coated finish for long-term corrosion resistance

• Optional 7,000 lb bridge jack (Model YZ-4PHDA-RJ) for full vehicle service

• Internationally certified and tested to 150% of rated capacity

• Backed by the Industry Best 10-Year Olympic Warranty

4PHDXLA-11 Manual

  Olympic 4PHDXLA-11 Spec Sheet
