4PHDXLA-15 15,000lb 4 Post Alignment Lift - Open Front

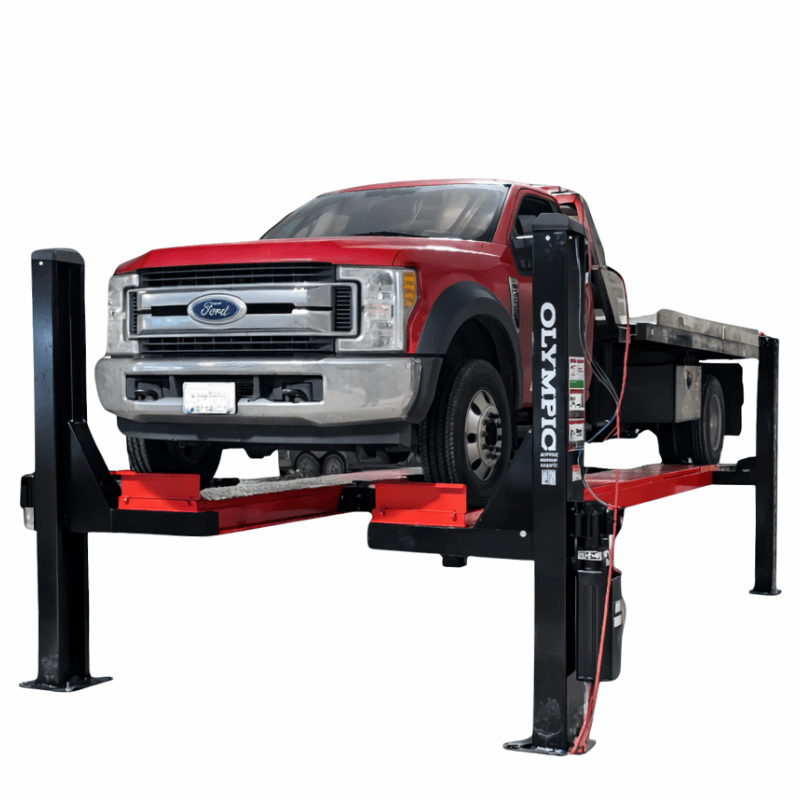

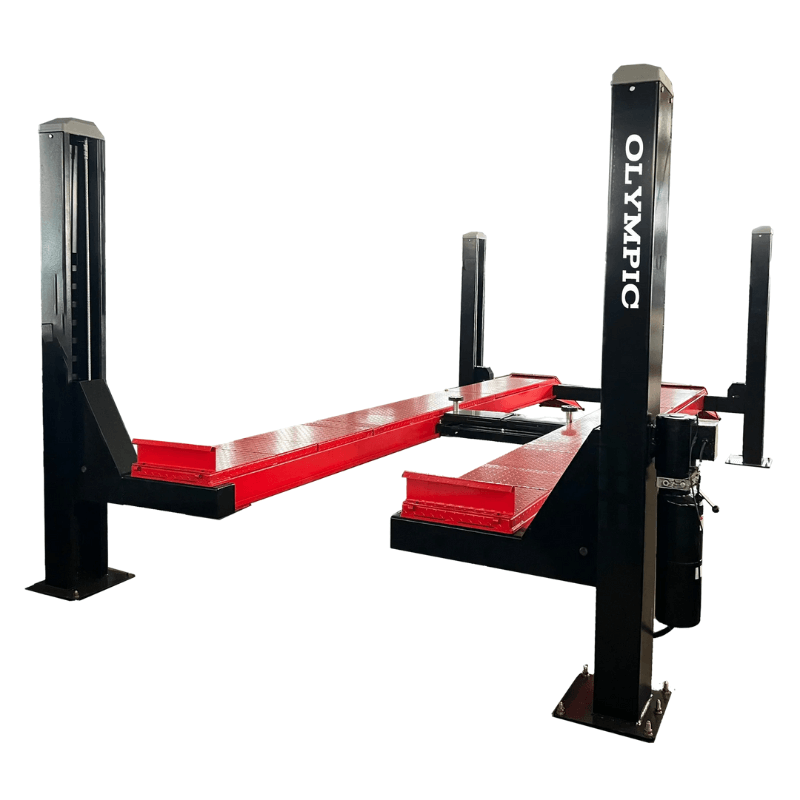

Olympic 4PHDXLA-15 15,000 lb. Open Front Alignment Lift

The Olympic 4PHDXLA-15 is a heavy-duty open front alignment and maintenance lift engineered for professional service centers handling large trucks, vans, and commercial vehicles. With a 15,000 lb lifting capacity, this lift functions as both a high-precision wheel alignment system and a robust vehicle service platform. Its open-front design maximizes technician access, improves workflow efficiency, and reduces service time in busy shop environments.

Constructed from high-quality Q235 structural steel, the 4PHDXLA-15 features integrated heavy-duty slip plates and turntables built directly into the runways, allowing wheels to move freely for smooth, accurate alignments. The cable-driven lifting system, air lock release, adjustable locking positions, and Italian oil seals ensure stable lifting, controlled operation, and long-term durability. Longer approach ramps make loading and unloading large vehicles effortless.

Ideal for commercial repair shops, alignment specialists, fleet service facilities, and truck-focused service centers, this lift supports precision alignments, inspections, repairs, and routine maintenance. Optional 7,000 lb bridge jacks expand service capability by allowing full wheel and brake access, making the Olympic 4PHDXLA-15 a dependable, high-value solution for demanding professional use.

4 Post Lift 4PHDXLA-15 Specification

• Lift Type: Open Front 4-Post Alignment & Service Lift

• Load Capacity: 15,000 lbs

• Maximum Lift Height: 70.86″

• Overall Width: 137.8″

• Overall Height: 87.40″

• Overall Length: 246.06″

• Drive-Through Width: 99.60″

• Width Between Posts: 116.65″

• Runway Width: 21.65″

• Runway Length: 196.85″

• Width Between Tracks: 39″

• Shipping Weight: 3,880 lbs

• Construction: Q235 structural steel

Power Requirements

• Voltage: 220V

• Motor Output: 4 HP / 3 KW

• Frequency: 60 Hz

• Phase: Single Phase (1PH)

4PHDXLA-15 15,000 lb. Alignment Lift Special Features

• 15,000 lb lifting capacity for trucks and commercial vehicles

• Open-front design improves access and technician productivity

• Integrated turntables and slip plates for precise wheel alignment

• Cable-driven lifting system for smooth, stable operation

• Air lock release system for controlled lowering

• Adjustable locking system secures lift at any height

• Adjustable runways support varying tread widths

• Cable anti-failure safety system enhances protection

• Italian oil seals for reliable hydraulic performance

• Durable powder-coated finish for corrosion resistance

• Optional 7,000 lb bridge jack for wheel and brake service

• Internationally certified and tested to 150% of rated capacity

• Backed by the Industry Best 10-Year Olympic Warranty

4PHDXLA-15 Manual

  Olympic 4PHDXLA-15 Spec Sheet
