4PHDXLA-27 27,000lb 4 Post Alignment Lift - Heavy Duty

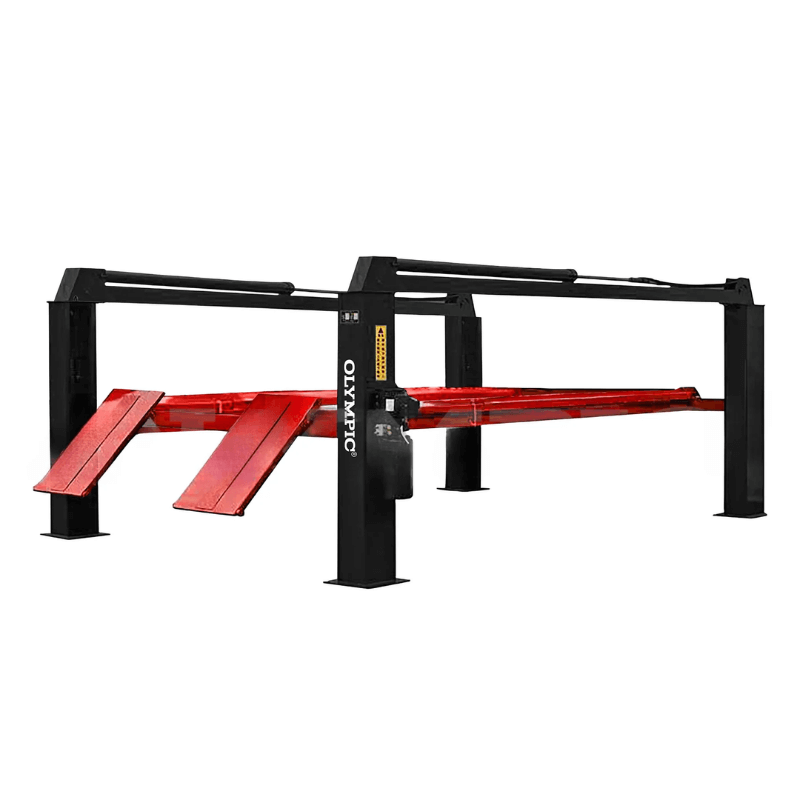

Olympic 4PHDXLA-27 27,000-lb. Heavy-Duty 4 Post Alignment Lift

The Olympic 4PHDXLA-27 is a commercial-grade 4-post alignment lift engineered for extreme-duty applications, making it ideal for servicing semi-tractors, dump trucks, heavy equipment, fleet vehicles, and large commercial trucks—while remaining versatile enough for cars and light-duty vehicles. With a massive 27,000 lb load capacity, this lift is built to deliver unmatched strength, precision, and long-term reliability in the most demanding shop environments.

Constructed from Q235 specification structural steel, the 4PHDXLA-27 features extra-long 275.6″ slip-resistant runways, integrated turntables and slip plates, and independent hydraulic cylinders with Italian-engineered components for smooth, dependable lifting and simplified maintenance. A 9,000 lb rolling bridge jack is included, allowing axles to be raised off the runways for efficient brake, tire, and suspension service.

Advanced safety systems including heavy-duty galvanized aircraft cables, spring-loaded automatic safety locks, adjustable ladder locks, and a secondary cable-failure protection system ensure confidence at every lifting height. Certified and tested at 150% of rated capacity and backed by the industry-best 10-year warranty, the Olympic 4PHDXLA-27 is a long-term investment for professional alignment and service facilities that refuse to compromise.

4 Post Lift 4PHDXLA-27 Specification

• Lift Type: 4-Post Alignment Lift

• Load Capacity: 27,000 lbs

• Overall Lift Length: 289.4″

• Overall Width: 152.4″

• Overall Height: 94.9″

• Minimum Lift Height: 7.88″

• Maximum Lifting Height: 67″

• Runway Width: 25.6″

• Runway Length: 275.6″

• Runway Height: 7.9″

• Width Between Tracks: 47.24″

• Width Between Posts: 129″

• Speed of Rise: 60 seconds

• Speed of Lowering: 60 seconds

• Bridge Jack Capacity: 9,000 lbs

• Construction Material: Q235 structural steel

Electrical Requirements

• Voltage: 220 / 380V

• Motor Output: 3 KW

• Frequency: 60 Hz

• Phase: 3-Phase

• Amperage: 15A / 8.8A

4PHDXLA-27 27,000 lb. Alignment Lift Special Features

• Heavy-duty 27,000 lb lifting capacity for commercial and fleet service

• Extra-long 275.6″ slip-resistant runways for long wheelbases

• Includes 9,000 lb rolling bridge jack for axle-free service

• Built-in turntables and slip plates for precision 4-wheel alignment

• Aircraft-quality stainless steel hydraulic cylinders

• Independent hydraulic system with Italian-engineered components

• Heavy-duty galvanized, abrasion-resistant aircraft-grade cables

• Secondary locking system protects against cable failure

• Spring-loaded safety locks engage automatically

• Adjustable ladder locks for precise runway leveling

• Movable runway design increases service flexibility

• Chain-drive system prevents over-extension

• Built-in grease fittings for simplified maintenance

• Outdoor-use capable (power unit protection required)

• Certified and tested to 150% of rated capacity

• Backed by the Industry Best 10-Year Warranty

4PHDXLA-27 Manual

Coming Soon
