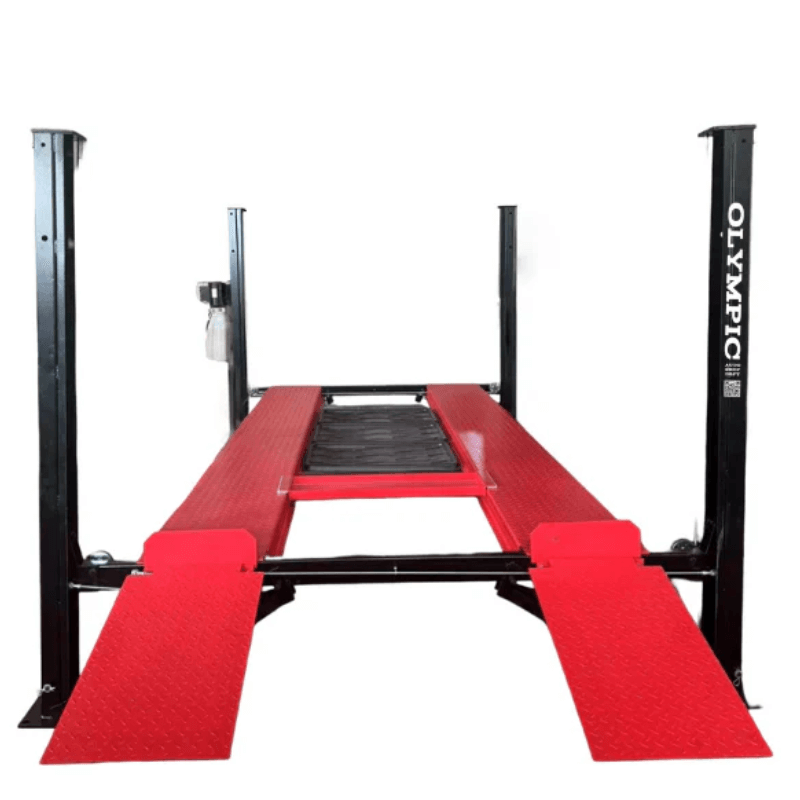

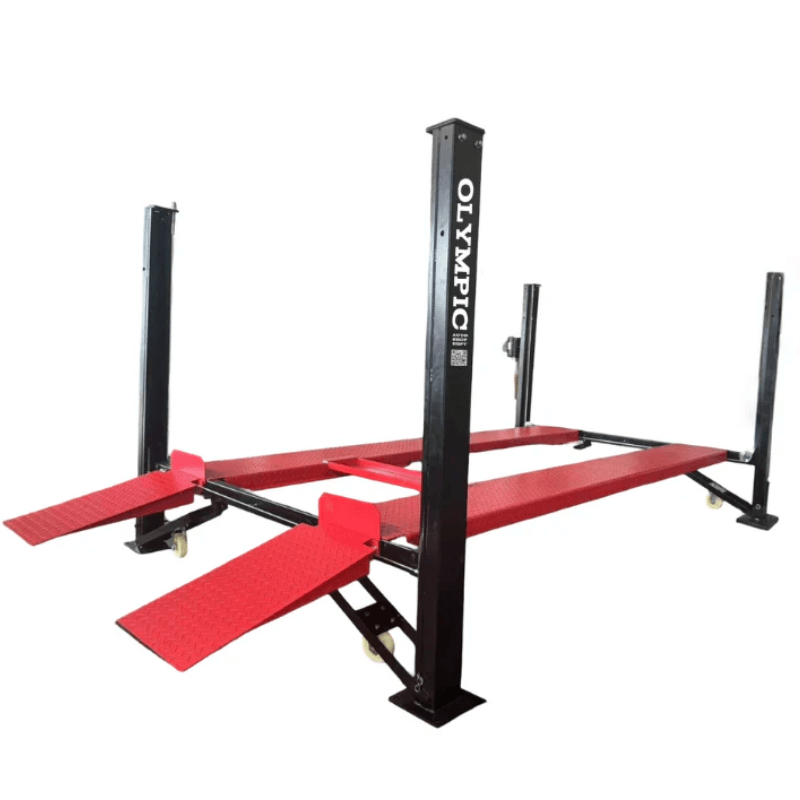

4PHR-9X 9,000lb 4 Post Lift - Extra Tall

Olympic 4PHR-9X 9,000 lb. High-Rise Car Storage 4 Post Lift

The Olympic 4PHR-9X High-Rise Car Storage 4-Post Lift is a premium solution designed to maximize vertical storage while maintaining safe, stable vehicle lifting. With a 9,000 lb capacity and a true high-rise design, this lift allows users to stack vehicles efficiently, making it ideal for garages where space optimization is critical. Its wide drive-through access and extended lifting range make daily parking, storage, and service tasks effortless.

Built from high-quality Q235 structural steel, the 4PHR-9X delivers exceptional strength and long-term durability. A heavy-duty hydraulic cylinder, aircraft-quality cables rated at 14,000 lbs, and large slider blocks ensure smooth, controlled lifting and reliable load support. Ten locking positions and a single-point lock release enhance operational safety, while the high-rise configuration provides up to 78 inches of usable clearance beneath the runways for true double-vehicle storage.

Perfect for home garages, car collectors, dealerships, and professional service shops, the Olympic 4PHR-9X offers unmatched versatility. Its portable design with pin-on caster arms, included ramps, and drip trays make it adaptable for both storage and maintenance applications. Backed by an industry-best 10-year warranty and certified at 150% of rated capacity, this lift is engineered for confidence, convenience, and performance.

4 Post Lift 4PHR-9X Specification

• Lift Type: 4-Post High-Rise Storage Lift

• Lifting Capacity: 9,000 lbs

• Overall Lift Length: 219.2″

• Overall Width: 112.3″

• Overall Height: 91.7″

• Runway Length: 180.07″

• Runway Width: 18.9″

• Drive-Through Width: 87.67″

• Width Between Posts: 95.2″

• Width Between Tracks: 38.6″

• Lifting Range: 4.35″ – 82.3″

• Maximum Clearance Under Tracks: 78″

• Speed of Rise: 50 seconds

• Speed of Lowering: 50 seconds

• Voltage Options: 110V / 220V

• Recommended Power Unit: HPU2203, 3 HP, 2.2 kW, 60Hz, Single Phase

4PHR-9X 9,000 lb. 4 Post Lift Special Features

• High-rise design providing 78″ of storage clearance under runways

• 9,000 lb lifting capacity for cars, trucks, and SUVs

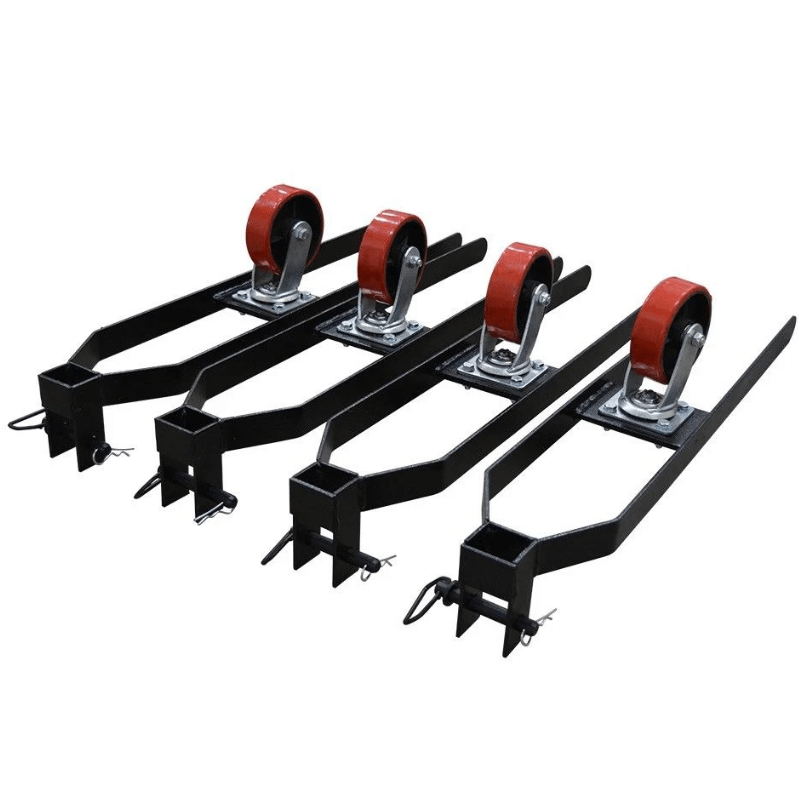

• Portable 4-post design with pin-on caster arms

• Wide drive-through access for easy vehicle positioning

• Heavy-duty hydraulic lifting cylinder

• Aircraft-quality lifting cables rated at 14,000 lbs

• Ten locking positions for secure height selection

• Single-point lock release for fast operation

• Large slider blocks for added stability

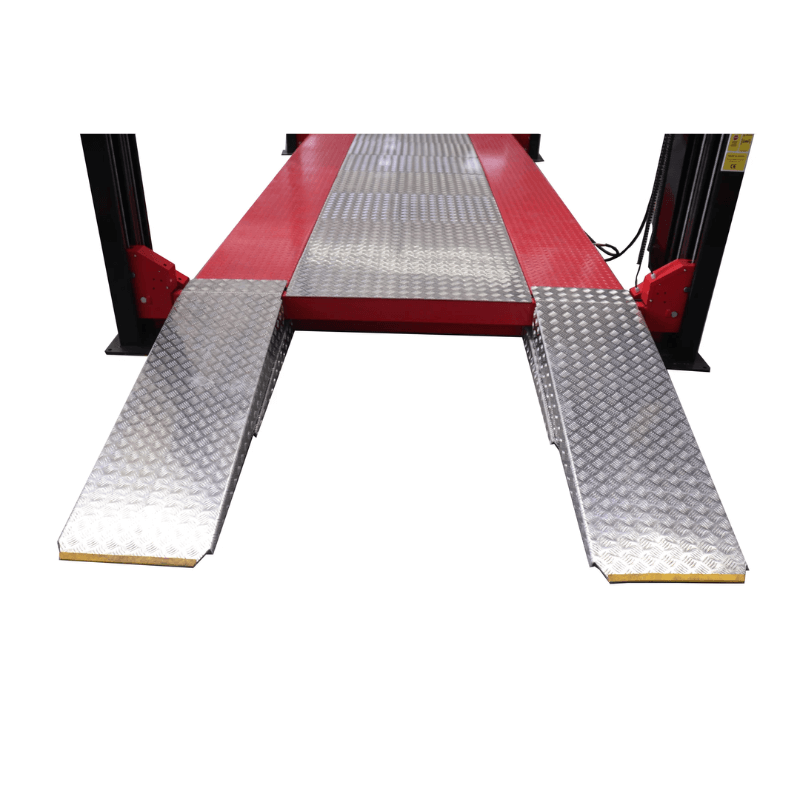

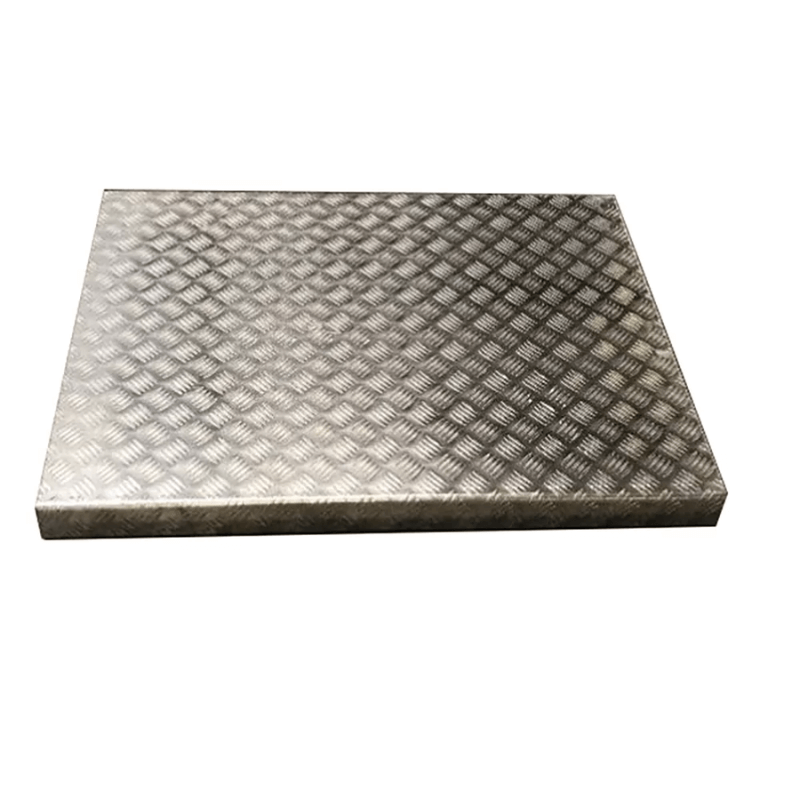

• Includes 31″ detachable steel ramps and detachable stops

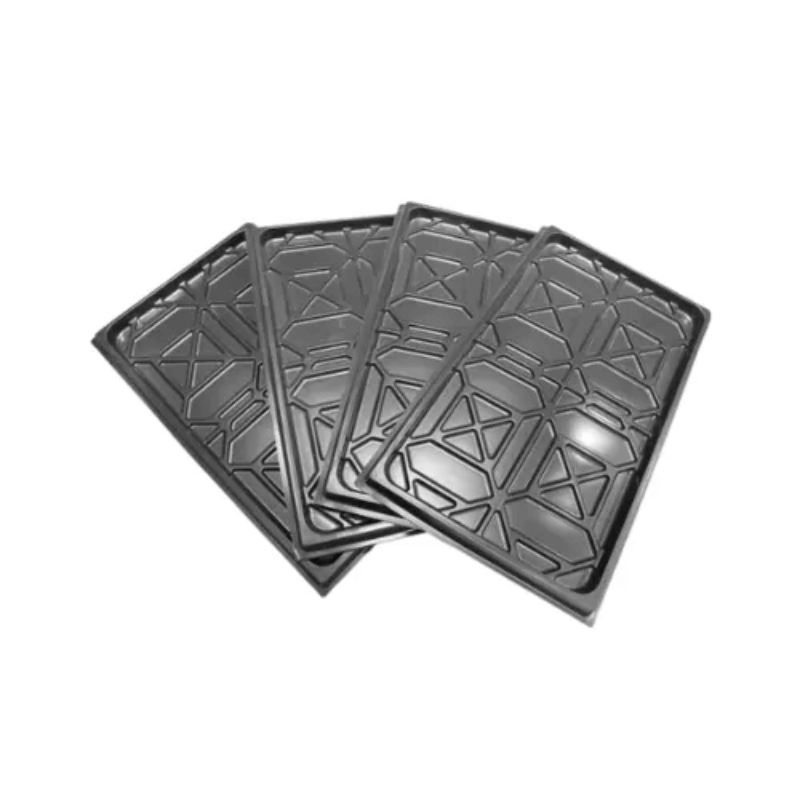

• Drip trays and portability package included

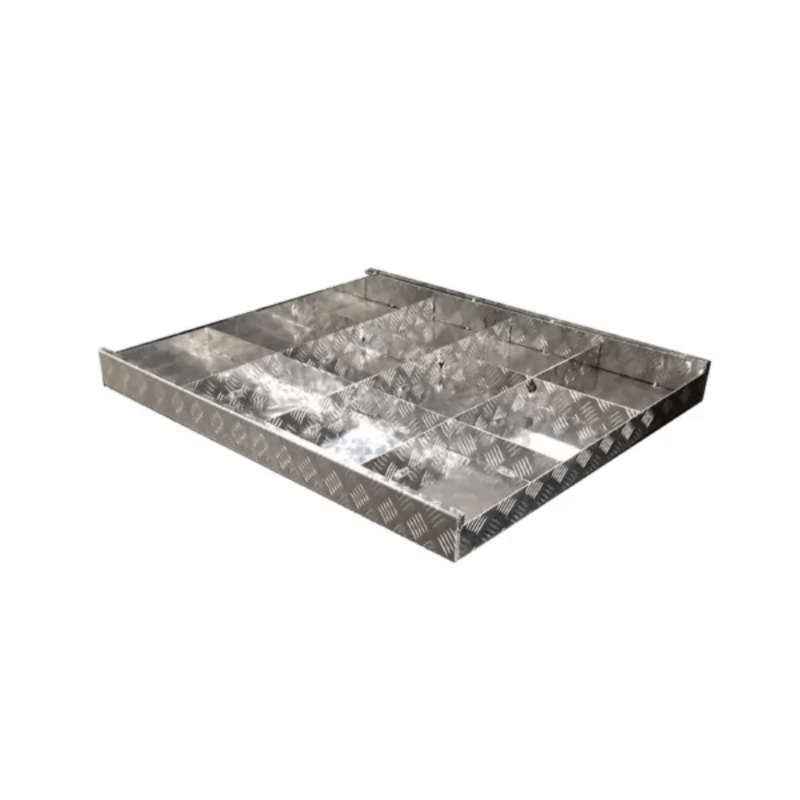

• Optional bridge jack, aluminum ramps, tool tray, and center platforms

• Certified and tested at 150% of rated capacity

• Backed by an industry-best 10-year warranty

4PHR-9X Manual

   Olympic 4PHR-9X Spec Sheet
