4PML-9 9,000lb 4 Post Lift

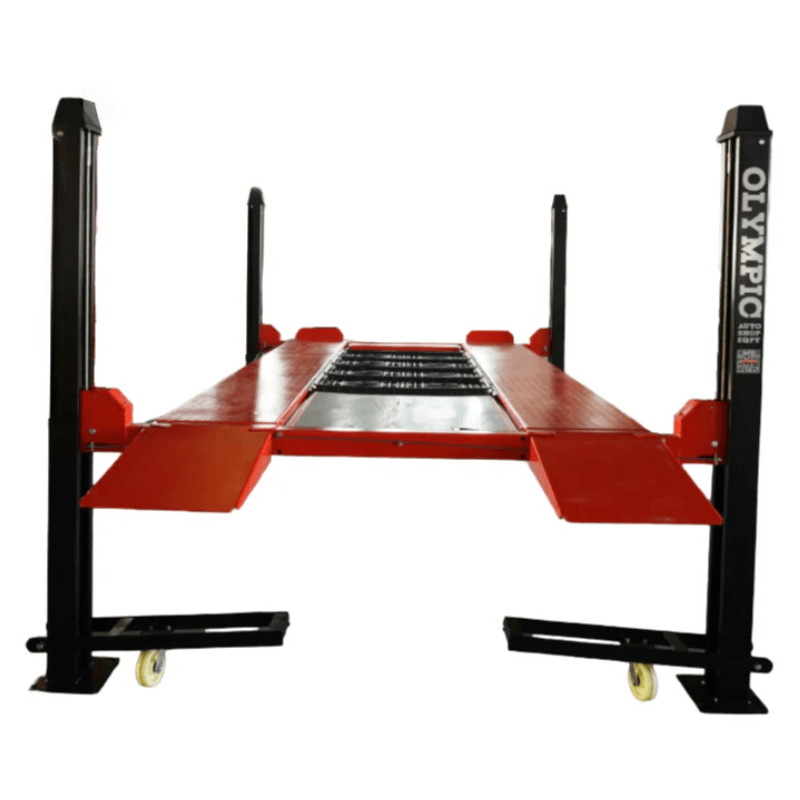

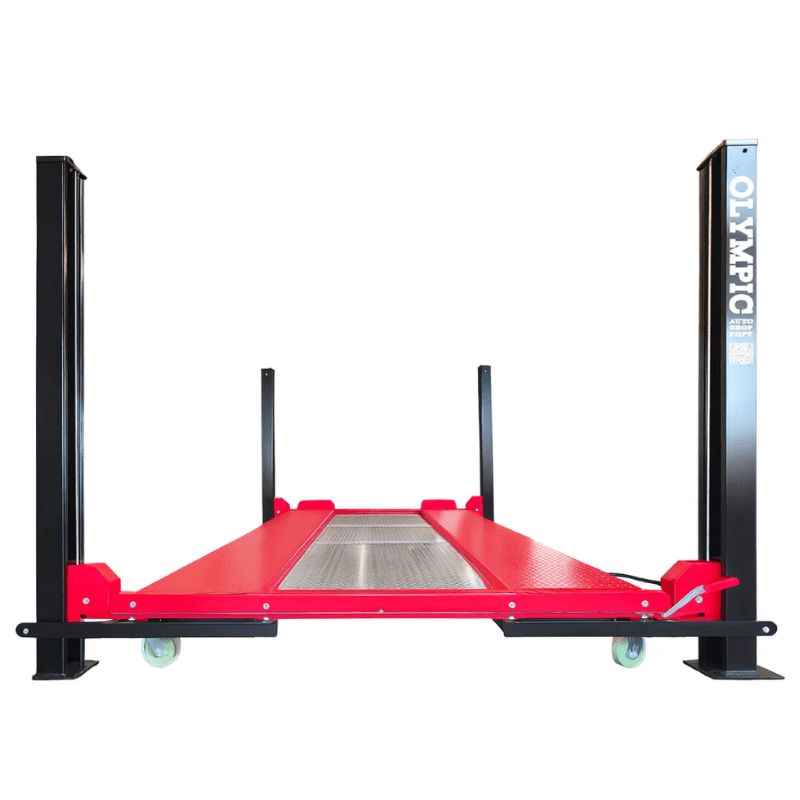

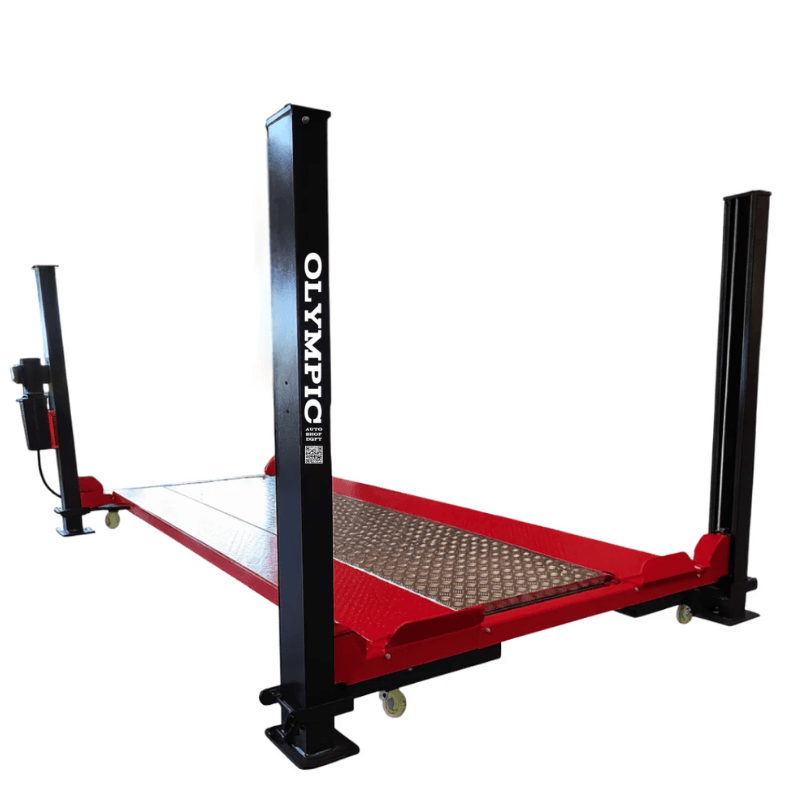

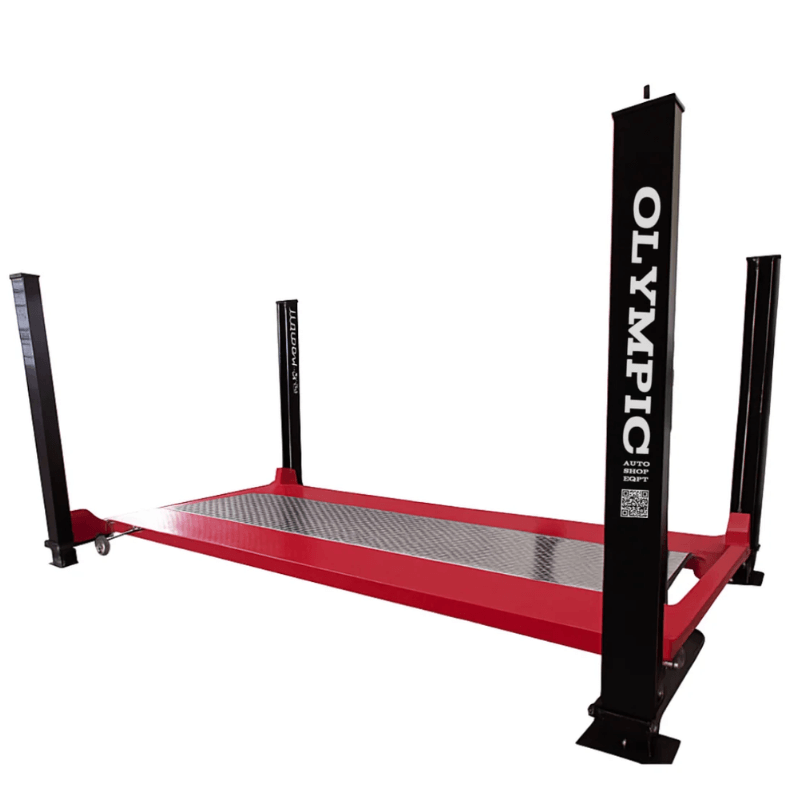

Olympic 4PML-9 9,000 lb. Portable Car Storage & Maintenance 4 Post Lift

The Olympic 4PML-9 Portable Car Storage and Maintenance 4-Post Lift is a versatile, professional-grade solution designed for both vehicle storage and service applications. Recently upgraded to a 9,000 lb lifting capacity, this lift combines portability, safety, and convenience, making it ideal for workshops, car collectors, and motorsports environments. Its drive-through design allows effortless vehicle positioning while maximizing usable space.

Built from high-quality Q235 structural steel, the 4PML-9 delivers exceptional durability and long-term reliability. A large-diameter heavy-duty hydraulic cylinder works in harmony with aircraft-quality cables rated at 14,000 lbs to provide stable, synchronized lifting. Ten locking positions, large slider blocks, and a single-point lock release enhance operational safety, while the portable pin-on caster arms allow the lift to be easily repositioned when needed.

This lift is perfectly suited for service centers, private garages, race teams, and collectors seeking a dependable storage and maintenance platform without permanent installation. With included ramps, drip trays, and a full portability package plus multiple optional accessories the Olympic 4PML-9 offers flexibility and performance backed by an industry-leading 10-year warranty and certification at 150% of rated capacity.

4 Post Lift 4PML-9 Specification

• Lift Type: 4-Post Maintenance / Storage Lift

• Lifting Capacity: 9,000 lbs

• Overall Lift Length: 198.42″

• Overall Width: 107.95″

• Overall Height: 85.31″

• Drive-Through Width: 81.49″

• Lift Range: 4.92″ – 70.86″

• Maximum Clearance Under Tracks: 66.93″

• Width Between Posts: 94.72″

• Runway Length: 163.77″

• Runway Width: 18.72″

• Speed of Rise / Lowering: 50 seconds

• Optional Bridge Jack Capacity: 6,000 lbs

• Voltage Options: 110V / 220V

• Recommended Power Unit: HPU2203, 3 HP, 2.2 kW, Single Phase

4PML-9 9,000 lb. Portable Car 4 Post Lift Special Features

• 9,000 lb lifting capacity for vehicle storage and maintenance

• Portable design with pin-on caster arms and portability package

• Drive-through configuration for easy vehicle loading

• High-strength Q235 structural steel construction

• Large-diameter heavy-duty hydraulic cylinder

• Aircraft-quality lifting cables rated at 14,000 lbs

• Ten mechanical locking positions for enhanced safety

• Single-point lock release for efficient operation

• Large slider blocks for added stability

• Includes 31″ detachable steel ramps and detachable stops

• Drip trays included for clean vehicle storage

• Optional aluminum ramps, tool tray, and center platforms

• Optional 6,000 lb bridge jack compatibility

• Certified and tested at 150% of rated capacity

• Backed by an industry-best Olympic 10-year warranty

4PML-9 Manual

  Olympic 4PML-9 Spec Sheet
