4PXL-10 10,000lb 4 Post Lift - The Dually

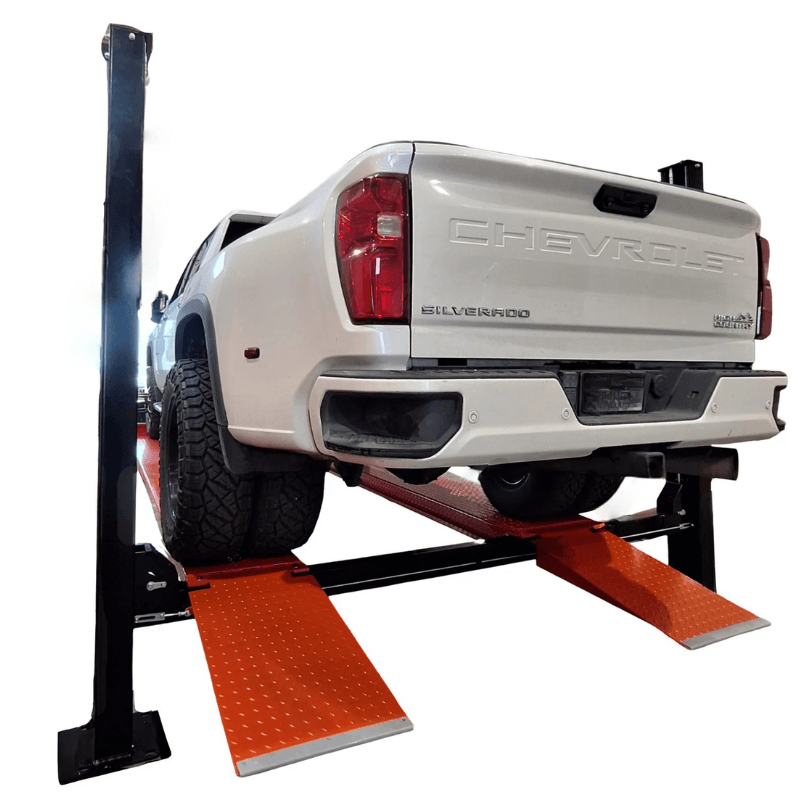

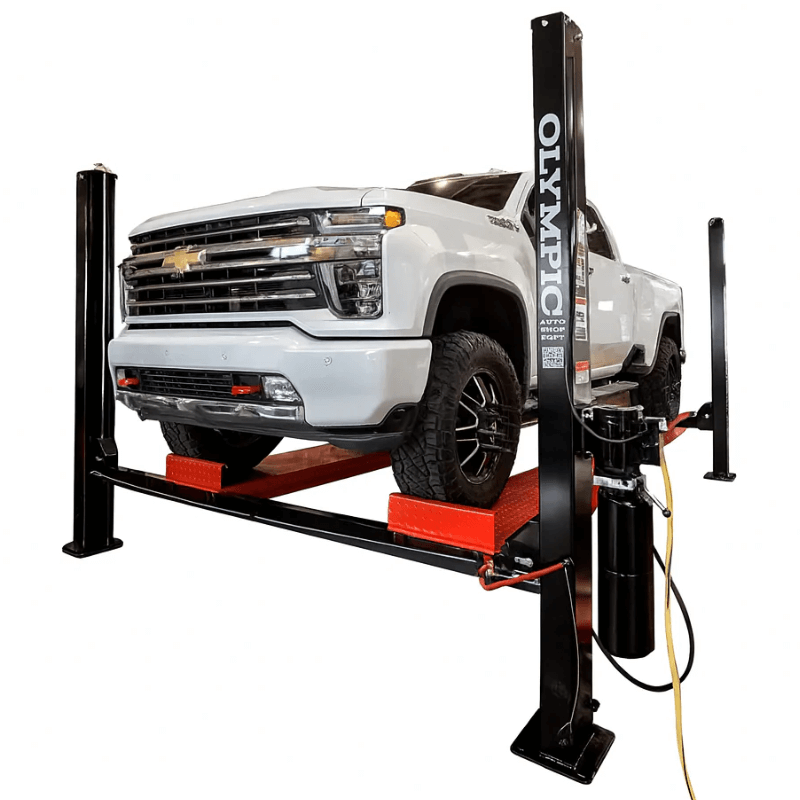

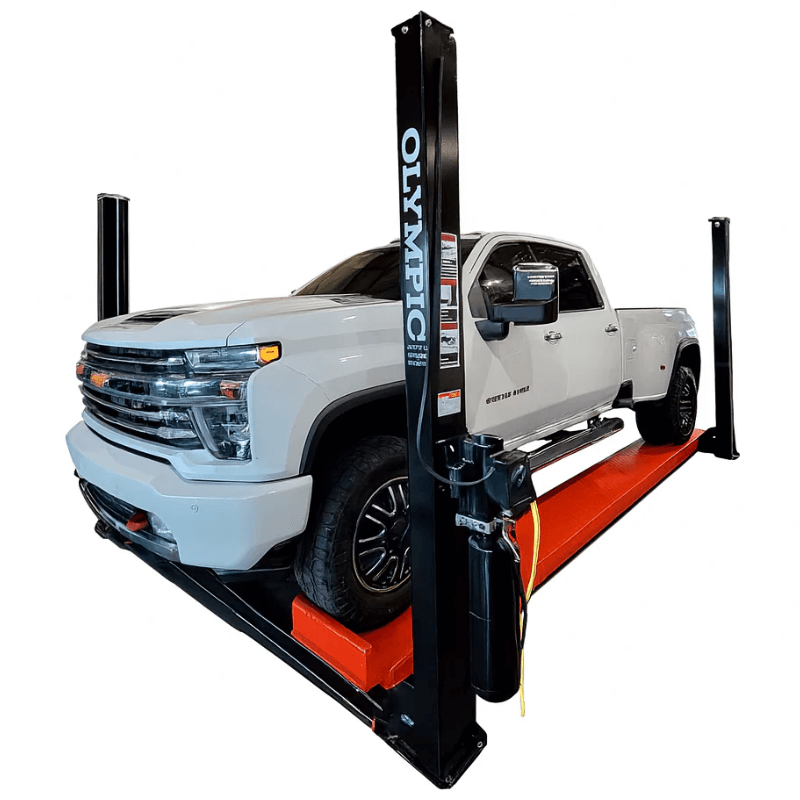

Olympic 4PXL-10 10,000 lb. “The Dually” Maintenance & Storage 4 Post Lift

The Olympic 4PXL-10 “The Dually” is a heavy-duty, extra-wide 4-post lift engineered specifically for dual-wheel trucks, service vehicles, and oversized cars. With a robust 10,000 lb lifting capacity and an expansive drive-through design, this lift delivers exceptional strength and versatility for both vehicle maintenance and long-term storage. Its portable construction and extended platforms make it a reliable solution for demanding garage and shop environments.

Built from high-quality Q235 structural steel, the 4PXL-10 is designed for durability, stability, and long-term performance. Extra-long 195-inch platforms, adjustable runways, and a massive 125-inch width between posts allow it to safely accommodate wide-track vehicles and trailers. Nineteen ladder-style locking positions enhance safety and precision, while the powder-coated finish provides lasting protection against wear and corrosion.

Ideal for commercial shops, fleet maintenance facilities, car collectors, and serious enthusiasts, “The Dually” maximizes vertical space with over 84 inches of clearance beneath the runways. Included ramps, drip trays, and a portability package ensure ease of use, while optional accessories expand functionality even further. Certified and tested at 150% of rated capacity and backed by an industry-best 10-year warranty, this lift is built for confidence and capability.

4 Post Lift 4PXL-10 Specification

• Lift Type: 4-Post Dually Maintenance & Storage Lift

• Lifting Capacity: 10,000 lbs

• Overall Lift Length: 239.76″

• Overall Width: 140.35″

• Overall Height: 104.33″

• Drive-Through Width: 112″

• Width Between Posts: 125″

• Runway Width Range: 86″ – 106″

• Width Between Tracks: 46″

• Lifting Range: 5.71″ – 88.74″

• Maximum Clearance Under Tracks: 84.02″

• Speed of Rise: 50 seconds

• Speed of Lowering: 50 seconds

• Voltage Options: 110V / 220V

• Recommended Power Unit: HPU2203, 3 HP, 2.2 kW, Single Phase

4PXL-10 9,000 lb. 4 Post Lift Special Features

• Designed for dual-wheel trucks, long-bed pickups, and service vehicles

• Heavy-duty 10,000 lb lifting capacity

• Extra-wide 112″ drive-through clearance

• Massive 125″ width between posts for oversized vehicles

• Extra-long 195″ platforms for full-size trucks and trailers

• Adjustable runways for trailer width flexibility

• Provides over 84″ of usable storage clearance

• Portable drive-through design with included portability package

• 19 ladder-style locking positions for enhanced safety

• Durable powder-coated finish for long-term protection

• Includes removable ramps, removable stops, and drip trays

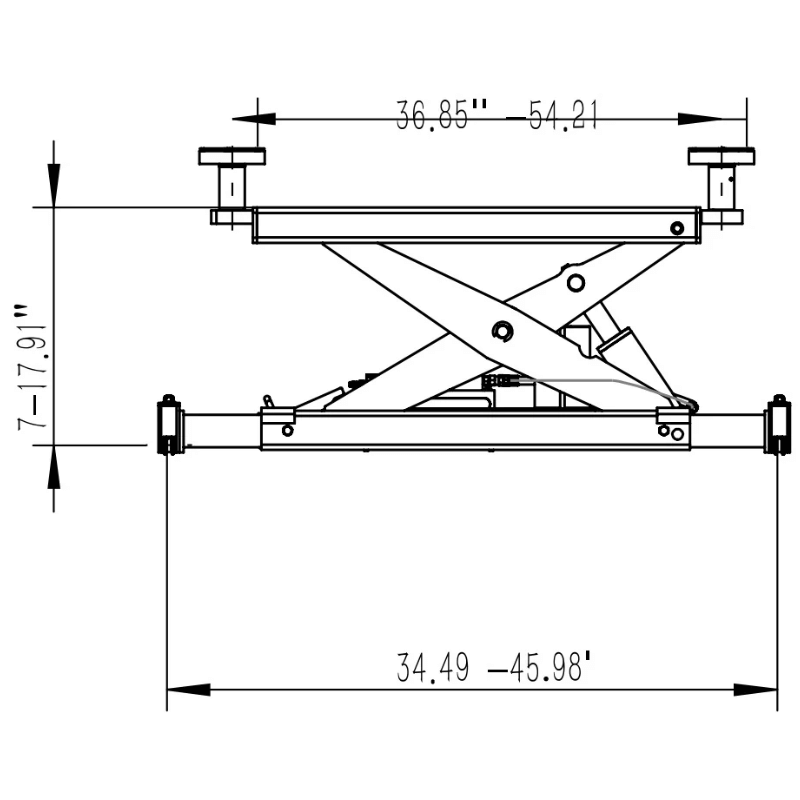

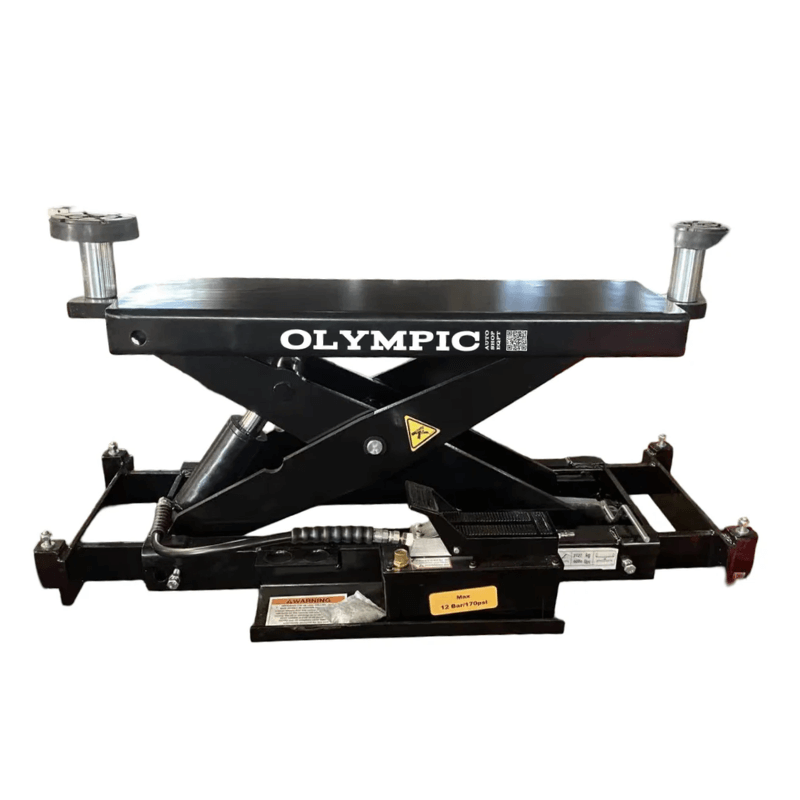

• Optional bridge jack, aluminum ramps, tool tray, and center platforms

• Certified and tested at 150% of rated capacity

• Backed by an industry-best 10-year warranty

4PXL-10 Manual

  Olympic 4PXL-10 Spec Sheet
