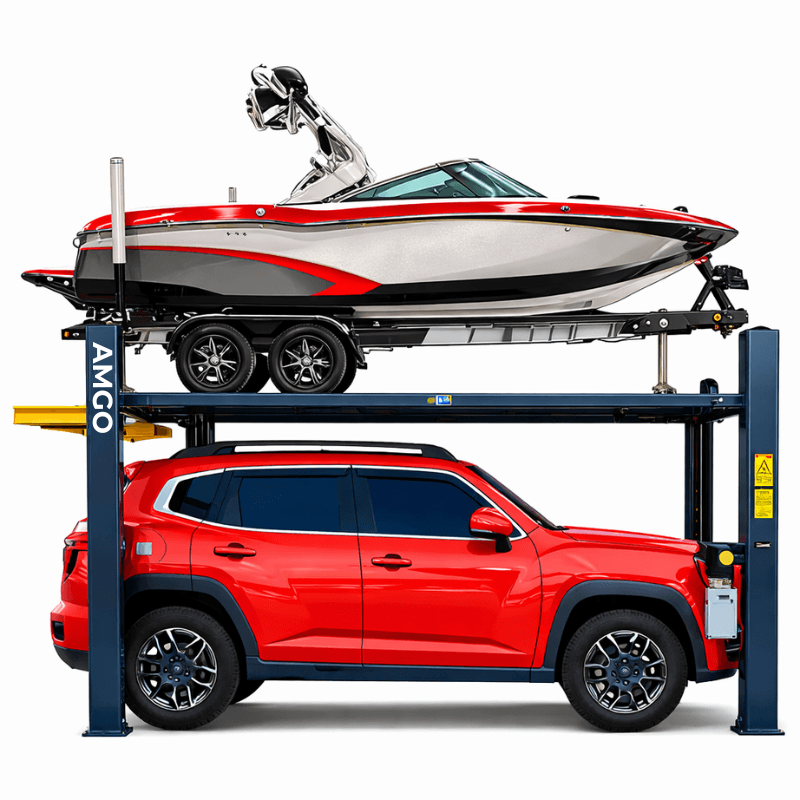

Amgo 408-HPX Four Post Boat Storage Lift - Adjustable Width

by Amgo
| SKU 408-HPX-110v
$3,780.00

Delivery Options

Notify me when back in stock

  • Family-Run Support - Right here in the USA. No Call Centers
  • 5-3-2 Warranty: 5-Year Structure, 3-Year Hydraulic parts, & 2-Year Electrical
  • Ships in 3-5 business days
  • FREE Warehouse Pickup Options
HeavyLift Direct is Better Business Bureau Accredited
Authorized Amgo Distributor
Family Owned & Operated
 American-Based Support

More Details About the Amgo 408-HPX Four Post Boat Storage Lift - Adjustable Width

Description & Specifications

Amgo 408-HPX Four Post Boat Storage Lift by Amgo

The AMGO 408-HPX is engineered to redefine how recreational boats are stored, delivering a smart, secure, and space-efficient solution for marine facilities and private owners alike. Designed with generous drive-in clearance exceeding 110 inches and adjustable platform widths, this four-post boat storage lift easily accommodates a wide range of trailers while maximizing vertical storage efficiency. Whether for marinas, warehouses, or residential applications, the 408-HPX provides dependable performance with refined engineering.

Built around AMGO’s proprietary concealed lock-control system, the 408-HPX offers smooth, reliable operation with a manual single-point lock release—no external air source required. Dual safety locks, non-skid diamond platforms, and flexible power-unit placement ensure safe handling and installation versatility. With multiple optional upgrades available, this lift adapts seamlessly to evolving storage needs while delivering long-term durability and confidence.

 408-HPX Amgo Lift Specifications:

  • Model: 408-HPX

  • Lift Type: Four Post Boat Storage Lift

  • Lifting Capacity: 8,000 lbs

  • Lifting Time: 46 seconds

  • Overall Length (Including Ramps): 222 1/8"

  • Outside Edge of Crossbeams: 181 1/16"

  • Overall Width: 131 5/8"

  • Width Between Posts: 122"

  • Max. Lifting Height: 87 1/16"

  • Max. Locking Height: 84 1/2"

  • Overall Height: 96 5/8"

  • Minimum Height: 5 11/16"

  • Max. Underneath Height: 82 11/16"

  • Max. Lock Underneath Runway: 79 13/16"

  • Drive-Thru Clearance: 110 13/16"

  • Width Between Runways: 46 1/2" – 66 3/16"

  • Outside Edge of Runways: 83 7/8" – 103 3/4"

  • Gross Weight: 1,585 lbs

  • Motor Power: 2.0HP, 220V

Amgo 408-HPX 8000lb 4 Post Lift Special Features

  • 8,000 lbs lifting capacity for reliable boat storage

  • Proprietary concealed lock-control system (patent no. 2023232158140)

  • Manual single-point lock release with no air source required

  • Dual safety protection with primary safety locks and cable-slack protection

  • Integrated non-skid diamond platforms for secure trailer positioning

  • Adjustable trailer platform included as standard (42 3/8" to 66 3/16")

  • Two-width platform settings to accommodate various trailer sizes

  • Flexible installation with power unit mountable on any corner

  • Standard foldable drive-on ramps (2 per lift)

  • ETL-certified power unit for dependable operation

Optional Accessories

  • Motor protective cover for outdoor installation with emergency stop switch (Kits No.: 40810)

  • Trailer extended platform adding 24" length (Kits No.: 40818)

  • Extended aluminum alloy drive-in ramps (Kits No.: 40814)

  • Rubber wheel chock (P/N: 40811)

408-HPX Manual

Amgo 408-HPX Installation and Service Manual   Amgo 408-HPX Installation and Service Manual

Amgo 408-HPX Product Brochure   Amgo 408-HPX Product Brochure

  • Caster Kit: No. 40801
  • 90 Degree Installation Plate: No. 40802
  • Aluminum Drive In Ramps: No. 40803
  • Drip Trays: No. 40806
  • Jack Tray: No. 40808

Warehouse Pickup locations (No shipping charge):

  • Dallas, TX 75211
  • Manning, SC 29102

Amgo 408-HPX Four Post Boat Storage Lift Diagram 1

408-HPX Four Post Boat Storage Lift Diagram 2



Amgo 408-HPX Four Post Boat Storage Lift Diagram 1
