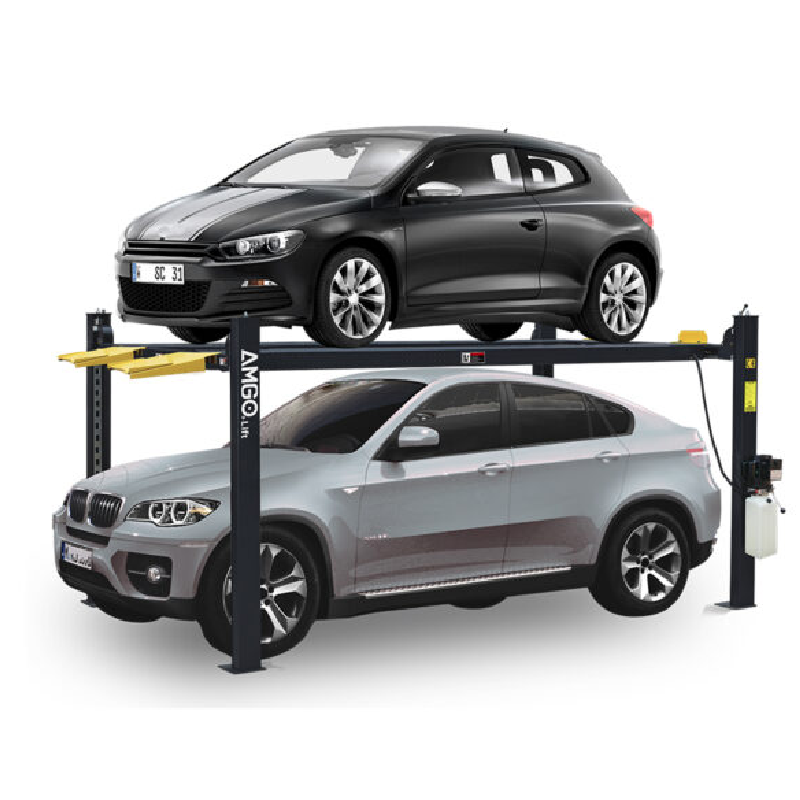

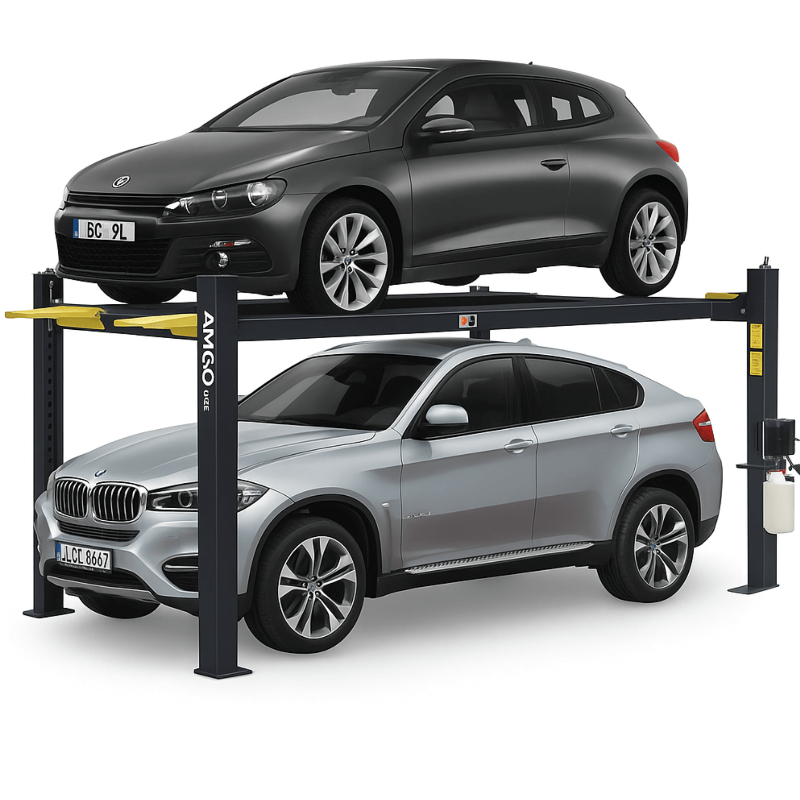

Amgo 408 P 8000lb Vehicle Storage Lift

Amgo 408P Vehicle Storage Lift

Designed to deliver comfortable, stress-free parking for vehicles up to 8,000 lbs, this deluxe four-post vehicle storage lift offers a wider entrance, longer platforms, and a space-efficient footprint. Ideal for both residential garages and commercial environments, the lift allows easy drive-on access while maximizing vertical storage. Its freestanding design eliminates the need for anchoring to concrete, making installation simpler and more flexible.

Built with commercial-grade strength, this lift features reinforced double-shaped columns, a concealed single-point safety lock system, and high-quality hydraulic components for dependable long-term use. ETL-certified power units, foldable drive-in ramps, and support for back-to-back installation enhance safety and efficiency. When paired with optional caster kits, the lift can be easily repositioned, making it a versatile and practical parking solution.

Plus, with AMGO’s robust 5-3-2 warranty, you can rest easy knowing your investment is protected for years to come.

• Model: 408-P

• Lift Type: Four-Post Parking / Storage Lift

• Lifting Capacity: 8,000 lbs

• Overall Length (Including Ramps): 208 1/16″

• Outside Edge of Crossbeams: 167 5/8″

• Overall Width: 102 1/2″

• Width Between Posts: 92 13/16″

• Drive-Thru Clearance: 81 5/8″

• Maximum Lifting Height: 73 11/16″

• Maximum Locking Height: 70 15/16″

• Overall Height: 82 7/8″

• Minimum Height: 5 11/16″

• Maximum Underneath Height: 69″

• Maximum Lock Underneath Runway: 66 1/4″

• Width Between Runways: 37″

• Outside Edge of Runways: 74 7/16″

• Lifting Time:

  • 98 seconds (110V)

  • 40 seconds (220V)

• Motor:

  • 1.0 HP (110V)

  • 2.0 HP (220V)

• Gross Weight: 1,563 lbs

• Pallet Dimension: 168"L 21"W 30"H

408P Special Features:

• Heavy-duty 8,000 lb lifting capacity

• Deluxe four-post design for residential and commercial use

• ETL-certified power unit included

• Concealed single-point manual safety lock release

• Dual safety lock system for added protection

• Reinforced double-shaped columns for superior strength

• High-quality hydraulic cylinder for smooth operation

• Non-slip runways with foldable drive-on ramps

• Supports back-to-back installation to save space

• Power-side column installable at any corner

• Aero-standard lifting cables included

• Freestanding design does not require anchoring

• Compatible with optional caster kits for mobility

• Low-maintenance, commercial-grade construction

• When Ordering the Combo, it includes the following:

  • 1 set 40801 Caster Kit
  • 1 set 40806 Plastic Drip Tray
  • 1 Unit 40808 Jack Tray

408-P Manual

    Amgo 408-P Manual

    Amgo 408-P Installation Instruction

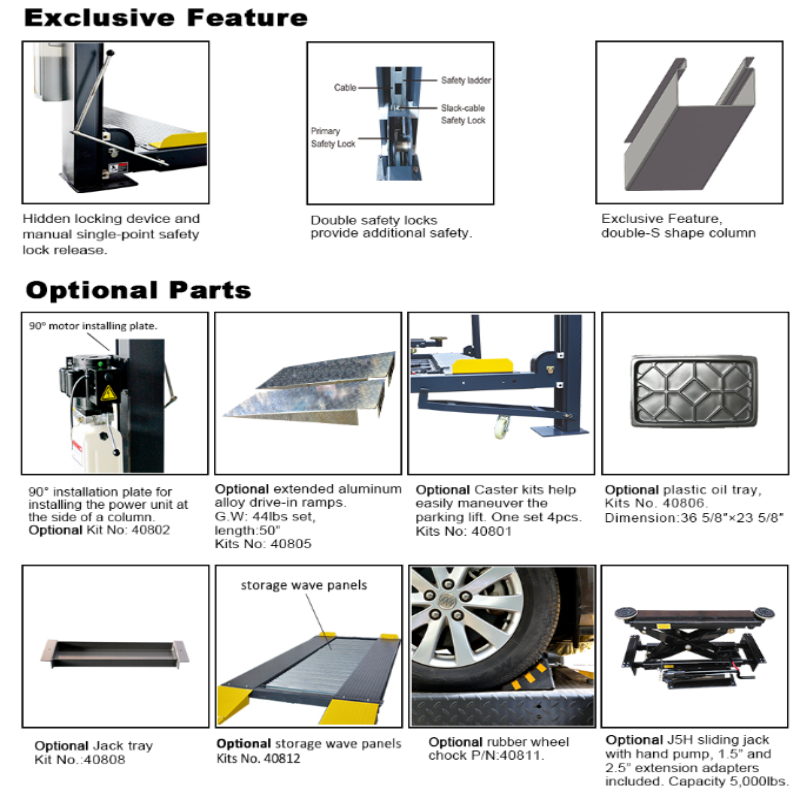

Amgo 408-P Optional Items (sold separately):

• J5H Rollng Jack
• Caster Kit: No. 40801 (included with combo kit)
• 90 Degree Installation Plate: No. 40802
• Extended Aluminum Ramps: No. 40805
• Drip Tray: No. 40806 (included with combo kit)
• Jack Tray: No. 40808 (included with combo kit)
• Rubber Wheel Chock: No. 40811
• Storage Wave Panels: No. 40812
• Motor Cover: No. 40810 - For Outdoor Use
