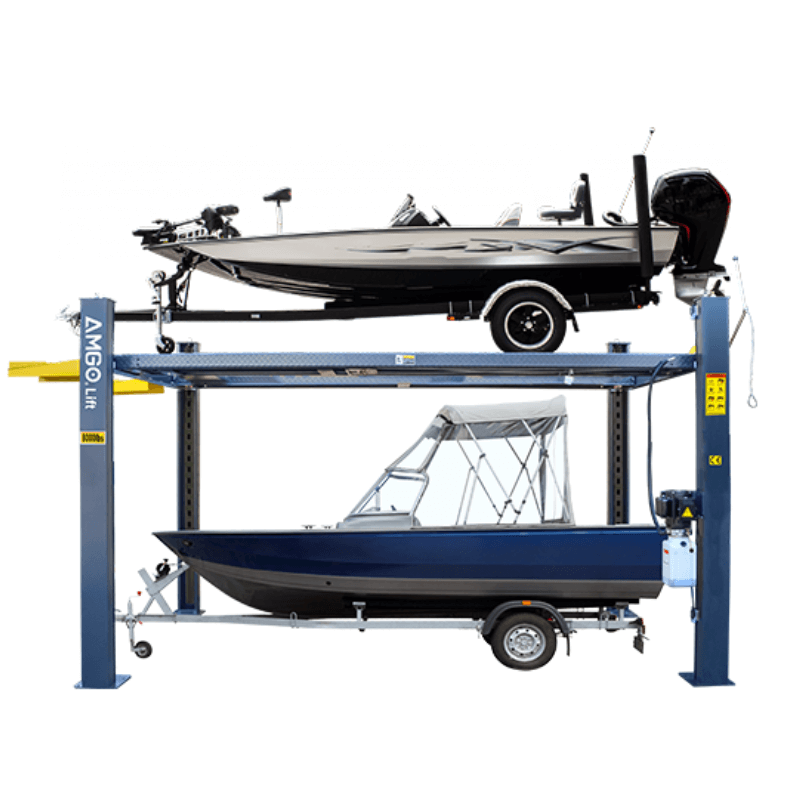

Amgo 408-HLX Four Post Boat Storage Lift - Adjustable Width

408-HLX Four Post Boat Storage Lift by Amgo

Designed specifically for over-height boats, the AMGO 408HLX takes everything you love about the 408-HPX and elevates it—literally. With an extended-height design providing an additional 15 3/4 inches of lifting height, this lift delivers the extra clearance needed to safely store tall boats, wakeboard towers, and oversized trailers without compromise. It’s the ideal solution for marine facilities, storage warehouses, and private boat owners who need maximum vertical clearance with dependable performance.

Built for long-term reliability and ease of use, the 408HLX features AMGO’s proprietary concealed lock-control system with a manual single-point release—no air source required. Dual safety locks, non-skid diamond platforms, and flexible power-unit mounting ensure safe operation and versatile installation in a wide range of environments. Whether for indoor or outdoor storage, this lift offers strength, safety, and smart engineering tailored to marine applications.

 408 HLX Amgo Lift Specifications:

• Model: 408HLX

• Lift Type: Boat Storage Lift

• Lifting Capacity: 8,000 lbs

• Lifting Time: 54 seconds

• Overall Length (Including Ramps): 222 1/8"

• Overall Length (Without Ramps): 188 9/16"

• Overall Width: 131 7/8"

• Width Between Posts: 122 3/16"

• Max. Lifting Height: 104 11/16"

• Max. Locking Height: 101 15/16"

• Overall Height: 113"

• Minimum Height: 5 11/16"

• Max. Underneath Height: 99 15/16"

• Max. Lock Underneath Runway: 97 3/16"

• Drive-Thru Clearance: 111"

• Width Between Runways: 46 1/2" – 66 3/8"

• Outside Edge of Runways: 83 7/8" – 103 3/4"


• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker

• Includes:  Adjustable trailer platform for Trailer Jack Wheel (42 3/8" to 66 3/16")


• Concrete Requirements: Minimum of 4"-3000psi

• Shipping Dimensions: 168" x 21" x 30" - 1,726lbs

408 HLX 8000lb 4 Post Lift Special Features

• 8,000 lbs lifting capacity for over-height boats and trailers

• Extended-height design offering 15 3/4" more clearance than 408-HPX

• AMGO proprietary concealed lock-control device with manual single-point release (no air source required)

• Dual safety protection with primary safety locks and cable-slack protection

• Integrated non-skid diamond platforms for secure trailer positioning

• Flexible installation with power unit mountable on any corner

• Two-width platform settings to accommodate various trailer sizes

• Standard foldable drive-in ramps for easy loading

• ETL-certified AMGO power unit for reliable performance

Optional Accessories

• Extended aluminum alloy drive-in ramps (Kits No.: 40815, 2 required)

• Motor protective cover for outdoor installation with emergency stop (Kits No.: 40810)

• Rubber wheel chock (P/N: 40811)

• Trailer extended platform adding 24" length (Kits No.: 40818)

408HLX Manual

  Amgo 408HLX Brochure
