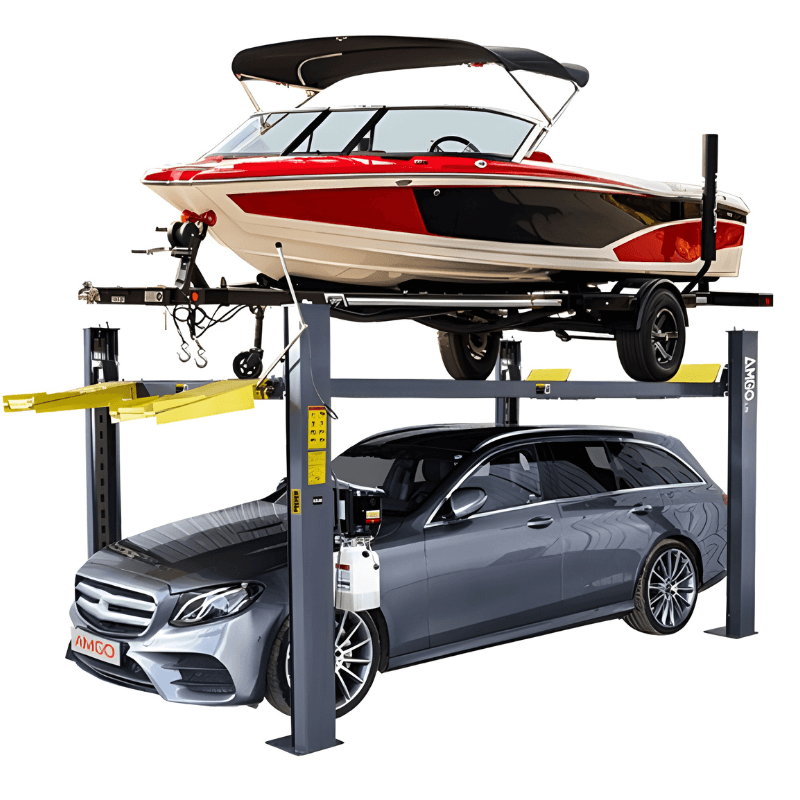

Amgo 409-HPX 9,000lb 4 Post Lift Boat Lift - Extra Wide & Extra Tall

409-HPX 4 Post Lift

The Amgo 409-HPX 4 Post Lift – Extra Wide, Extra Tall is built for versatility, strength, and reliability. Designed to accommodate a wide range of vehicles from compact cars to full-sized trucks and SUVs, this lift provides a massive 9,000 lb lifting capacity

Safety is at the forefront of the 409-HPX’s design. It comes equipped with hidden safety locks, multiple column locks, and redundant anti-fall devices, giving you peace of mind when your vehicles are elevated. The non-slip runway surface ensures stable footing, while its extra wide structure makes it an excellent fit for oversized vehicles without compromise.

Convenience and reliability make this lift stand out. Its optional caster kit allows for easy portability, while the flexible pump installation offers versatile setup. Backed by AMGO’s 5-3-2 warranty, the 409-HPX is a long-term investment for garages, shops, or personal use that need a heavy-duty, space-saving, and dependable lift.

409 HPX Specifications:

• Lifting Capacity: 9,000 lbs

• Lifting Time:  57 s

• Overall Length (Inc. Ramps): 238 1/8" (19.84 ft)

• Overall Length (w/o Ramps): 204-11/16"

• Overall Width: 131-7/8"

• Width Between Posts: 122-3/16"

• Lifting Height: 88-1/16"


• Overall Height: 96 5/8" (8.05 ft)

• Minimum Height: 6 1/8"

• Max. Underneath Height: 82 9/16"

• Max. Lock Underneath Height (Runway): 79 13/16"

• Drive-Thru Clearance: 111"

• Width Between Runways: 46-1/2" to 64-15/16"

• Outside Edge of Runways: 86-1/2"" - 104-15/16"

• Motor Power: 2.0 HP, 220v/60Hz

• Pallet Dimensions: 203" x 22" x 29" - 2,057 lbs

409HPX 4 Post Lift Special Features:

• Extra Wide & Extra Tall design for oversized vehicles

• 9,000 lb lifting capacity for cars, SUVs, boats and small trucks

• Hidden safety locks and multiple column locks for security

• Automatic redundant anti-fall devices for added safety

• Double-S shaped columns for increased strength

• Non-slip runway surface for stable footing

• Flexible pump installation on any corner

• Powered by 110V or 220V single-phase motor

• Protected by AMGO’s 5-3-2 warranty

• Includes:  Adjustable trailer platform for Trailer Jack Wheel (42 3/8" to 66 3/16")

409-HPX Manual

  Amgo 409-HPX Spec Sheet

Amgo 9000lb Lift Optional Items (sold separately):

• J6H - Rolling Jack

• Caster Kit: No. 40801

• 90 Degree Installation Plate: No. 40802

• Aluminum Drive In Ramps: No. 40803

• Drip Trays: No. 40807

• Jack Tray Kit: No. 40809
