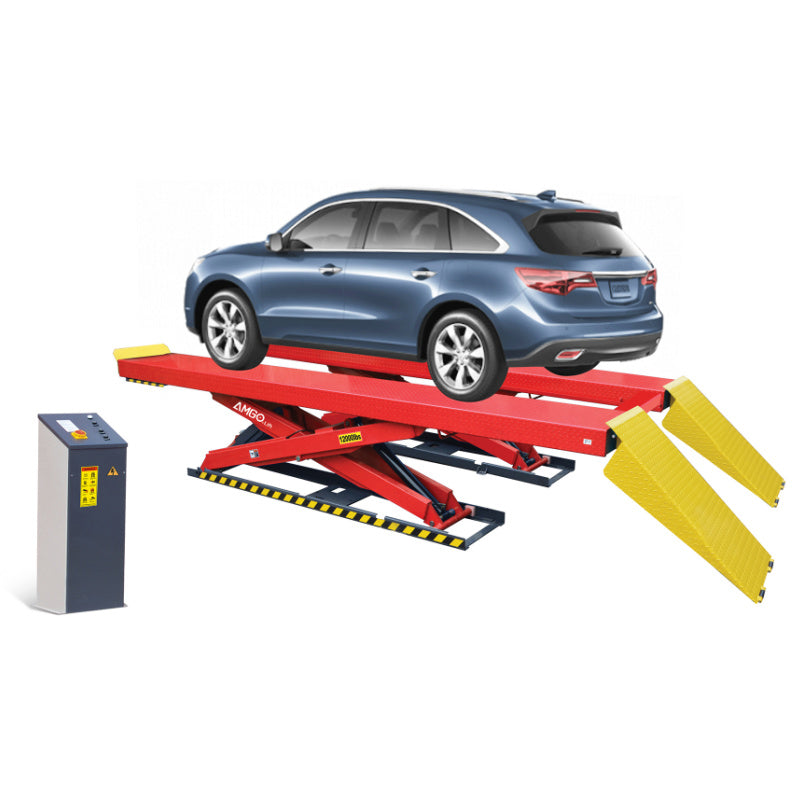

Amgo AX-12 12,000lb Scissor Lift

AX-12 Scissor Lift by Amgo

Take your shop’s service capabilities to the next level with the AMGO AX-12 Scissor Lift, a heavy-duty lift engineered for strength, safety, and versatility. With a 12,000 lb lifting capacity, the AX-12 is built to handle a wide range of vehicles, offering superior performance for general service, maintenance, and alignment tasks. Its robust Robot X scissor structure ensures long-term durability, while the full-rise design provides excellent under-vehicle access, allowing technicians to work comfortably and efficiently.

Safety and precision are at the core of the AX-12’s design. It features dual safety systems with hydraulic locks and self-locking mechanical locks, complemented by an air-lock release for controlled lowering. Two sets of hydraulic cylinders maintain precise platform equalization for safe and stable lifting. Non-skid, long, and wide platforms accommodate varying vehicle sizes, while a convenient pull-out service tray adds usability for tools and parts. Powered by an ETL-certified electric-hydraulic unit, the AX-12 combines reliability and performance for any busy service shop.

Scissor Lift AX 12 Specifications:

• Model: AX-12

• Lifting Capacity: 12,000 lbs

• Lifting Time: 75 seconds

• Max. Lifting Height (A): 72 13/16"

• Max. Lock Height: 71 1/16"

• Minimum Height: 12"

• Runway Length (B): 197 9/16"

• Overall Width (C): 90 3/16"

• Width Between Runways (D): 40 15/16"

• Overall Length (Including Ramps) (E): 267 1/16"

• Motor: 2HP

• Shipping Dimensions:

  • Pallet 1 19" x 17" x 49"

  •

    Pallet 2: 204" x 30" x 40"

  •

    Combined Weight: 4,934lbs

AX-12 12,000lb Scissor Lift Special features

• 12,000 lb lifting capacity for a variety of vehicles

• Robot X scissor structure with heavy-duty steel tubes for superior durability

• Full-rise design for comfortable under-vehicle access

• Two groups of four hydraulic cylinders ensure precise platform equalization and safety

• Dual safety system with hydraulic and self-locking mechanical locks, air-lock release included

• Electric-hydraulic power system with centralized control unit

• Non-skid long and wide platforms accommodate different vehicle sizes

• Automatic safety stop device included as standard

• Pull-out service/tool tray for enhanced usability

• ETL-certified AMGO power unit

• Optional accessories: extension platforms, air line kits, RJ-6A sliding jack with 6,000 lb capacity

AX-12 Manual

Amgo AX-12 Manual

Amgo AX-12 Installation Instruction

Amgo AX12, 6 Ton Scissor Lift Optional Items (sold separately):

• J6H - Pump Rolling Jack

• J6A - Pneumatic Rolling Jack

• Led lights: No. PX010

• Extension kit: No. PX002

• Air line kit: No. PX004
