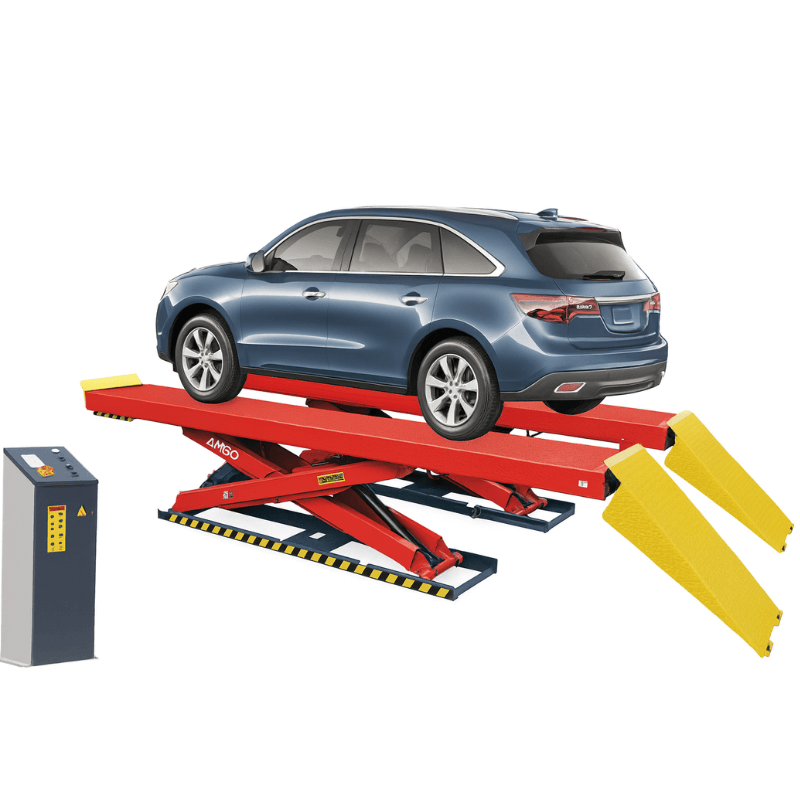

Amgo AX-12A 12,000lb Alignment Scissor Lift

Amgo 12k Scissor Lift - Alignment

Enhance your shop’s productivity with the AMGO AX-12A Alignment Scissor Lift, a versatile solution engineered for both alignment and general automotive services. With a 12,000 lb lifting capacity, the AX-12A easily accommodates larger vehicles and heavier workloads, providing a reliable, high-performance lift for busy service bays. Its full-rise Robot X scissor structure ensures durable operation, while wide, non-slip platforms make working underneath vehicles safer and more comfortable.

Designed with safety and precision in mind, the AX-12A features dual safety systems with hydraulic locks and self-locking mechanical locks, complemented by an air-lock release for controlled lowering. Two groups of four hydraulic cylinders provide precise platform equalization, ensuring stable lifting for all vehicles. A convenient pull-out tool tray adds functionality, while the ETL-certified electric-hydraulic power unit guarantees consistent performance for demanding daily operations. Optional accessories, such as extension platforms, turnplates, rolling jacks, and air line kits, make the AX-12A highly adaptable to your shop’s specific needs.

AX 12A Specification:

• Model: AX-12A

• Lifting Capacity: 12,000 lbs

• Lifting Time: 75 seconds

• Max. Lifting Height (A): 72 13/16"

• Max. Lock Height: 71 1/16"

• Minimum Height: 12"

• Runway Length (B): 197 9/16"

• Overall Width (C): 90 3/16"

• Width Between Runways (D): 40 15/16"

• Overall Length (Including Ramps) (E): 258"

• Min. Four-Wheel Alignment (F): 81 15/16"

• Max. Four-Wheel Alignment (G): 167 15/16"

• Max. Two-Wheel Alignment (H): 170 1/2"


• Motor: 2.0 HP, 220V/60Hz, single phase

• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker


• Concrete Requirements: Minimum of 4"-3000psi

• Shipping Weight: 5,803 lbs

  • 204" L x 30" W x 40" Tall (Pallet 1)


  • 19" L x 17" W x 49" Tall (Pallet 2)

AX12A, 6 Ton Alignment Scissor Lift Special Features:

• 12,000 lb lifting capacity for a variety of vehicles

• Alignment service design ideal for general service and alignment tasks

• Robot X scissor structure made from heavy-duty steel tubes for durability

• Full-rise design for comfortable under-vehicle access

• Two groups of four hydraulic cylinders ensure platform equalization and safety

• Dual safety system with hydraulic and self-locking mechanical locks, air-lock release included

• Electric-hydraulic power unit with centralized control

• Non-slip long and wide platforms accommodate different vehicle sizes

• Automatic safety stop device included

• Pull-out tool tray for added convenience

• ETL-certified AMGO power unit

• Optional accessories: extension platforms, turnplates, rolling jacks (6,000 lb capacity), and air line kits

AX-12A Manual

    Amgo AX-12A Manual

    Amgo AX-12A Installation Instruction

AX-12A, 6 Ton Alignment Scissor Lift Optional Items (sold separately):

• J6H - 6,000lb Manual Rolling Jack

• J6A - 6,000lb Pneumatic Rolling Jack

• RJ-8A - 8,000lb Rolling Jack Pneumatic
• Turn Plate Kit: No. 40101 (Alignment Lift requires 2 units)

• Led lights: No. PX010

• Extension kit: No. PX002

• Airline kit: No. PX004

Warehouse Pickup locations (No shipping charge):

• Dallas, TX 75211
• Manning, SC 29102


*Due to Extra Large Size, product cannot be delivered to a freight terminal.
