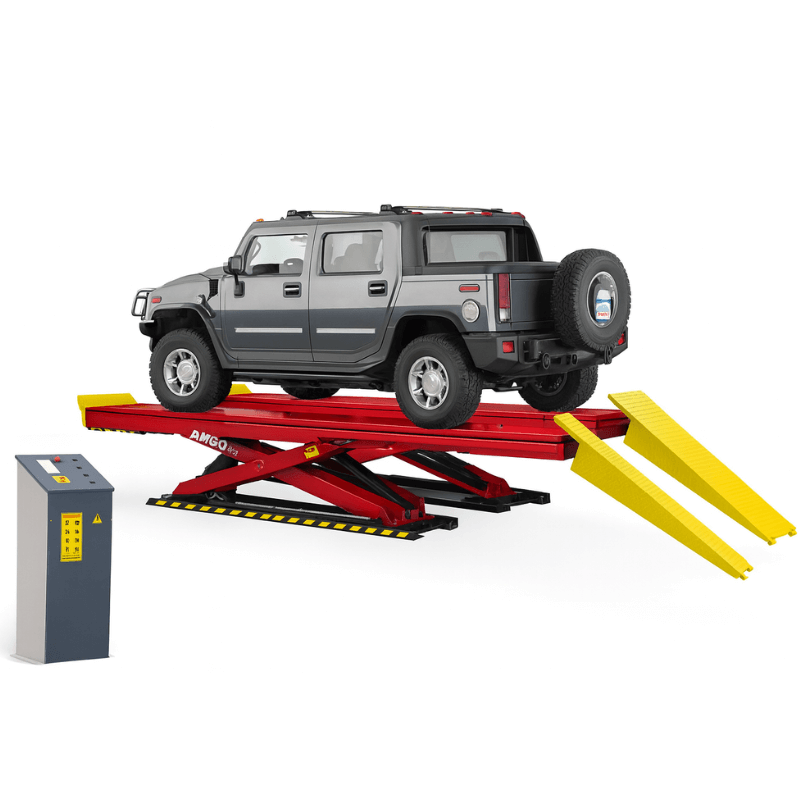

Amgo AX-16A 16,000lb Alignment Scissor Lift

AX-16A Alignment Scissor Lift by Amgo

Take your shop’s performance to the next level with the AMGO AX-16A Alignment Scissor Lift—engineered for strength, precision, and reliability. With a massive 16,000 lb lifting capacity, this powerhouse handles everything from passenger cars to long-wheelbase vans and trucks with ease. Its full-rise scissor design provides unmatched under-vehicle access, allowing your technicians to work comfortably, efficiently, and safely, even during the most demanding alignment jobs.

Built for professionals who demand durability, the AX-16A features Robot X heavy-duty scissor construction reinforced with large steel tubing, ensuring years of trouble-free performance. The dual safety locking system combining hydraulic locks with self-locking mechanical locks keeps every lift operation secure. Wide, non-slip platforms, precision platform equalization with four hydraulic cylinders, and a reliable electric-hydraulic power system make the AX-16A the ultimate solution for high-volume alignment shops looking to maximize productivity and safety.

AX 16A Specifications:

• Model: AX-16A

• Lift Type: Alignment Scissor Lift

• Lifting Capacity: 16,000 lbs

• Lifting Time: 110 seconds

• Max. Lifting Height: 72 13/16"

• Max. Lock Height: 71 1/16"

• Minimum Height: 13"

• Runway Length: 213 11/16"

• Overall Width: 94 1/16"

• Width Between Runways: 44 7/8"

• Overall Length (Including Ramps): 274 3/16"

• Min. Four-Wheel Alignment Length: 98"

• Max. Four-Wheel Alignment Length: 184 1/16"

• Max. Two-Wheel Alignment Length: 186 5/8"


• Gross Weight: 6,283 lbs

• Motor: 2.0 HP, 220V/60Hz, single phase


• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker

• Concrete Requirements: Minimum of 4"-3000psi

• Shipping Specs - Total Weight: 6,371

  • 218" x 30" x 40"

  • 19" x 17" x 49"

AX-16A 16,000lb Alignment Scissor Lift Special Features

• Heavy-duty 16,000 lb lifting capacity for cars, vans, and long-wheelbase vehicles

• Alignment service design optimized for professional shops

• Robot X scissor structure built from large steel tubes for extreme durability

• Full-rise lifting design for comfortable under-vehicle access

• Four integrated hydraulic cylinders ensure precise platform equalization and safety

• Dual safety system with hydraulic lock and self-locking mechanical lock

• Air lock release system for safe and controlled lowering

• Electric-hydraulic power unit with centralized control

• Wide, non-slip platforms accommodate a variety of vehicles

• Automatic safety stop device included as standard

• ETL-certified AMGO power unit

AX-16A Manual

  Amgo AX-16A Manual

Amgo AX-16A Installation Instruction

AX16A Alignment Scissor Lift Optional Items (sold separately):

• RJ-8A - 8,000lb Rolling Jack - Pneumatic

• Turn Plate Kit: No. 40101 (Alignment Lift requires 2 units)

• Led lights: No. PX010

• Extension kit: No. PX003

• Air line kit: No. PX004
