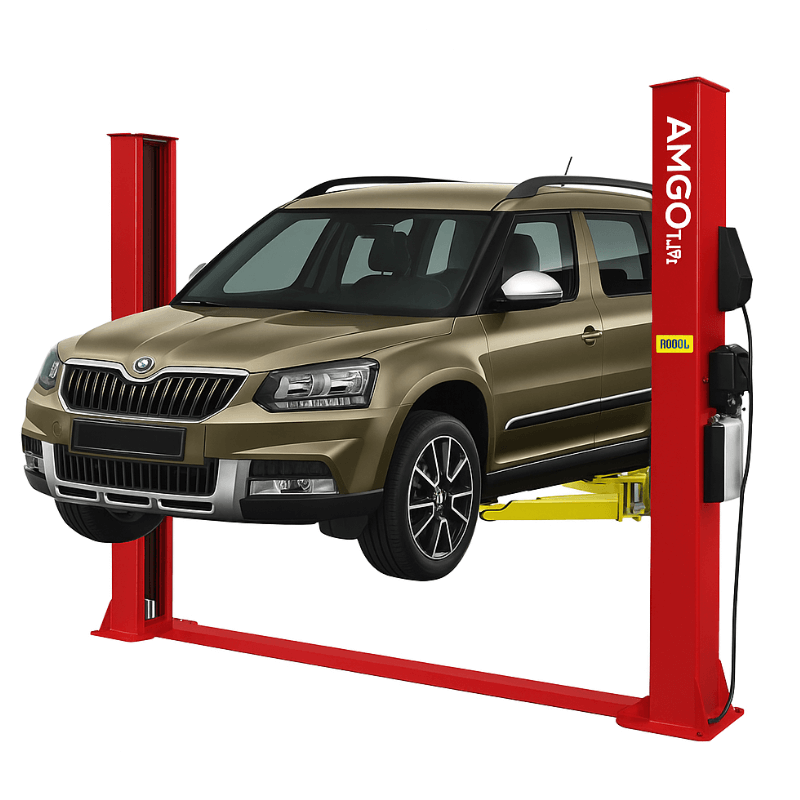

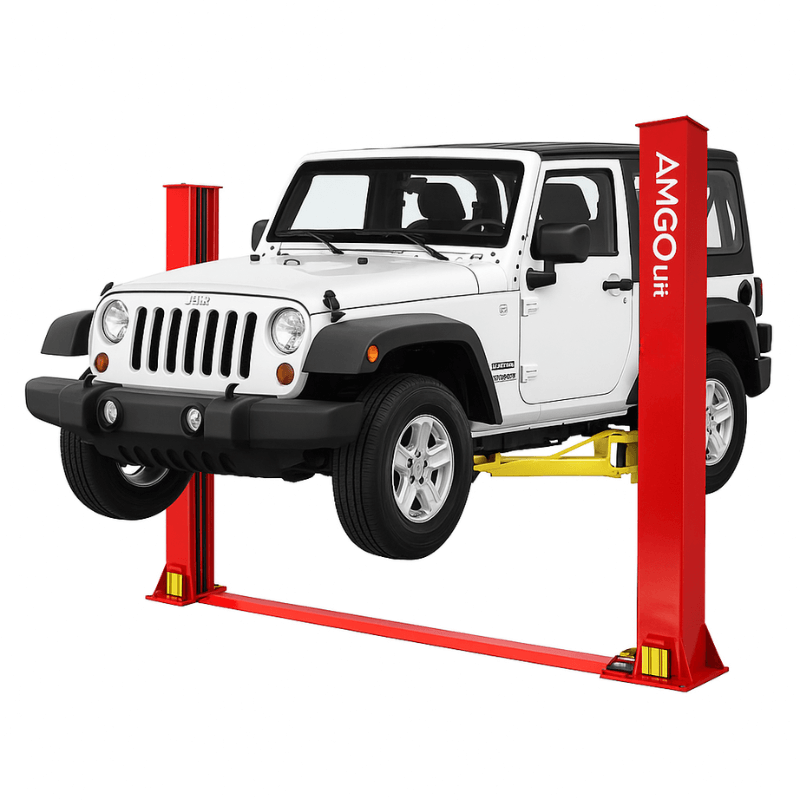

Amgo BP-9X, 9000 lb 2 Post Car Lift - Low Ceiling

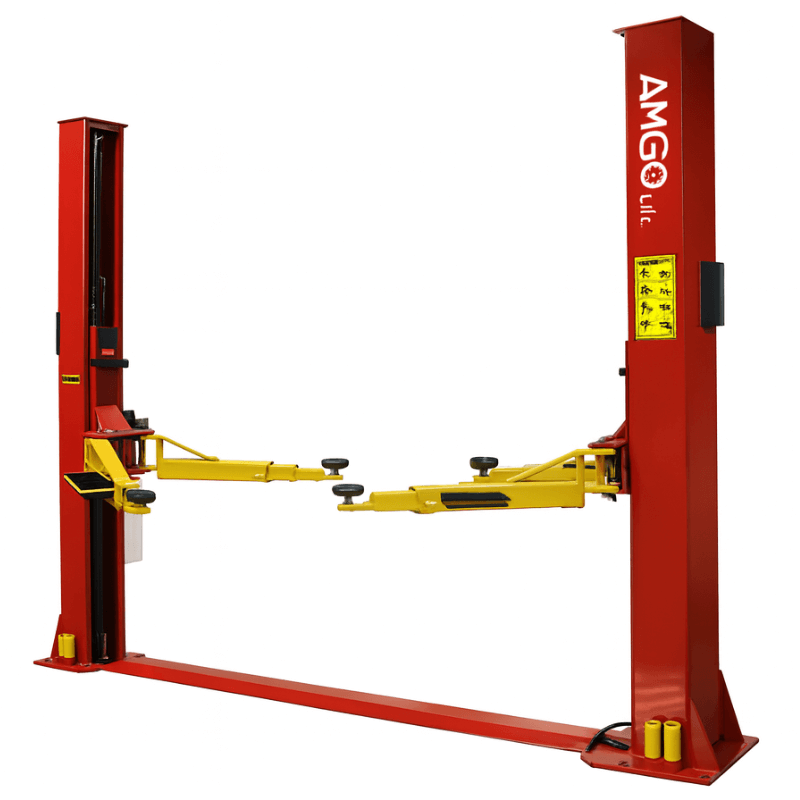

BP-9X 2 Post Lift by Amgo

Looking for a low-ceiling, base-plate lift that delivers extra strength and wider vehicle coverage? The AMGO BP-9X 9,000lb 2 Post Car Lift is an upgraded solution designed for shops and garages that need more structural reinforcement without sacrificing ceiling clearance. Building on the proven BP-9 platform, the BP-9X features a wider, taller, and stronger construction that improves lifting stability and reliability across a broad range of vehicles.

Its commercial-grade base plate design allows installation in spaces with ceiling heights just over 9.5 feet, making it ideal for professional workshops and home garages alike. With advanced safety systems, smooth operation, and versatile arm configurations, the BP-9X is engineered for dependable daily use.

9000lb 2 Post Lift Specifications:

• Lifting Capacity: 9,000 lbs

• Lifting Time: 49 seconds

• Max Lifting Height (Without Extension Adapter): 76 3/8" – 78 1/4"

• Max Lifting Height (With Extension Adapter): 79 3/8" – 81 1/4"

• Max Lock Height (Without Extension Adapter): 74 13/16" – 76 11/16"

• Max Lock Height (With Extension Adapter): 77 13/16" – 79 11/16"

• Overall Height: 111 7/8"

• Overall Width: 136 1/4"

• Drive-Thru Clearance: 100 13/16"

• Width Between Columns: 112 1/4"

• Minimum Pad Height: 3 9/16"

• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker

• Gross Weight: 1,563 lbs

• Installation Type: Base Plate Two Post Lift

• Concrete Requirements: Minimum of 4"-3000psi

• Pallet Dimension: 116"L 21"W 30"H

BP-9X, 9000 lb 2 Post Car Lift Special Features

• 9,000-lb lifting capacity for a wide range of passenger vehicles

• Reinforced commercial-grade structure for improved strength and durability

• Base plate design suitable for low-ceiling garages and workshops over 9.5 ft

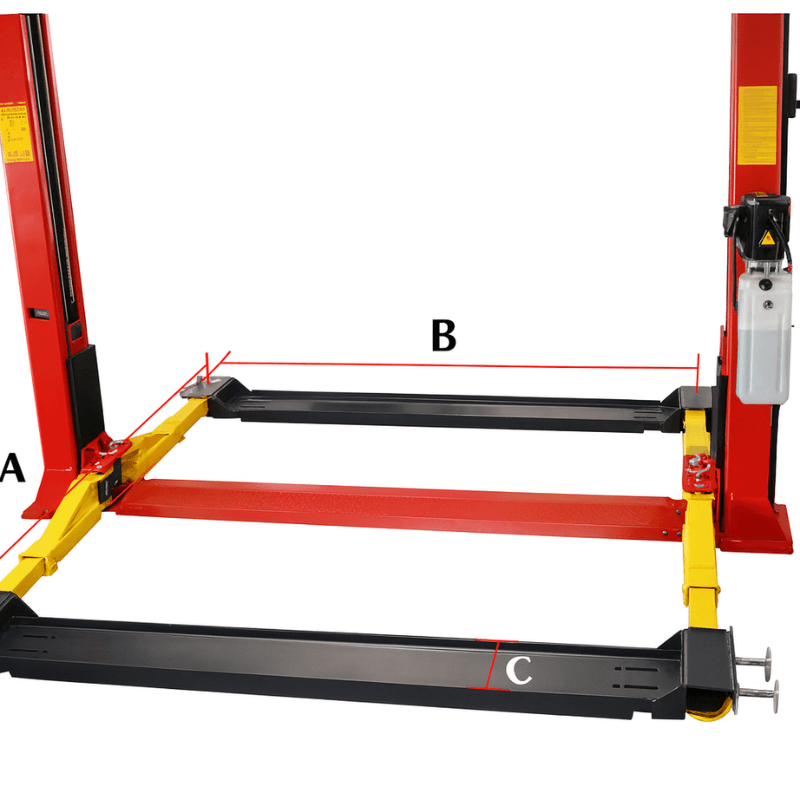

• Symmetric four 3-stage retractable arms for flexible vehicle positioning

• Automatic arm restraints for secure lifting operation

• Single-point manual safety lock release unlocks both columns from one side

• AMGO exclusive dual-safety lock structure for enhanced protection

• Self-lubricating UHMW polyethylene sliders for smooth movement and reduced wear

• Aero-grade synchronization cables included as standard

• ETL-certified AMGO power unit for reliable performance

• Detachable toe guards and integrated tool trays included

• Double-screw rubber pads with 2" pin diameter and 3" extension adapters

• Optional saddle adapters, 6" extension adapters, and base plate extension kits available

• Amgo 5-3-2 Warranty (5 year steel structure, 3 year hydraulic parts, and 2 year electrical components)

BP-9X Manual

  Amgo BP-9X Manual

  Amgo BP-9X Installation Instruction

BP9X 2 Post Car Optional Items (sold separately):

• Saddle Adapter - Light Truck: No. 20802

• Saddle Adapter - Heavy Duty Truck: No. 21103

• Base Plate Extension - No. 20903
• Golf Cart/ATV/Vehicle Add-On - No. 20805
  • Capacity: 9,000lb (4 wheels); 6,000lb (3 wheels)
