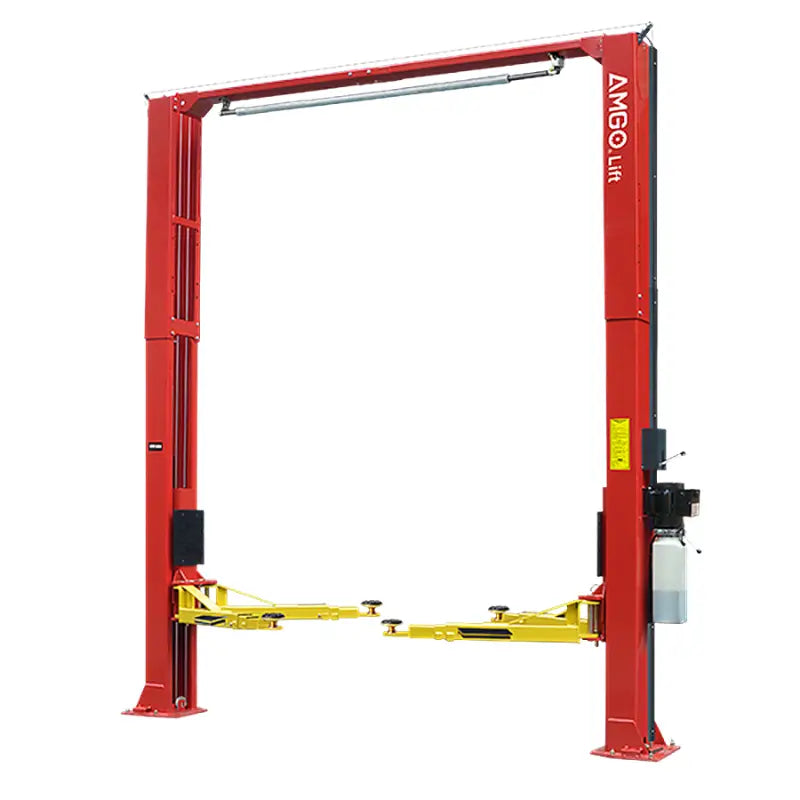

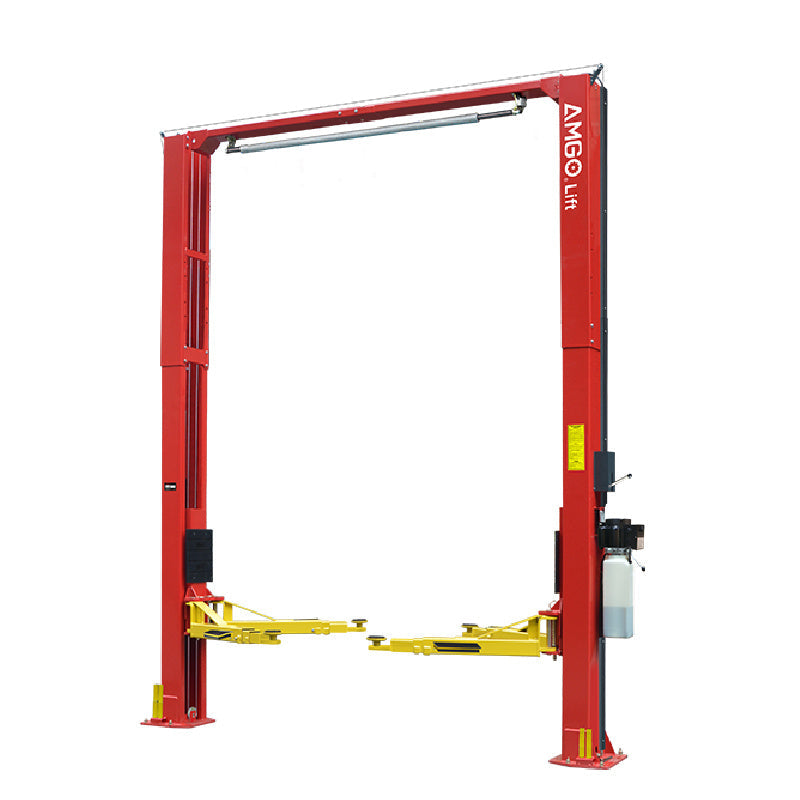

Amgo OH-12S 12,000lb 2 Post Car Lift - Low Ceiling

OH-12S 2 Post Car Lift by Amgo

Looking for a two-post lift that works perfectly in low-ceiling garages without sacrificing lifting power? The AMGO OH-12S 12,000-lb Low Ceiling Two Post Lift is designed to deliver heavy-duty performance while maintaining full functionality in tighter spaces. With a strong steel construction and dual hydraulic direct-drive cylinders, this lift easily handles a wide range of vehicles, from cars and SUVs to light and heavy-duty trucks. Its low-profile design, combined with adjustable three-height settings, ensures maximum clearance while providing safe and efficient lifting for daily shop operations.

Built for reliability and convenience, the OH-12S comes with automatic arm restraints, a single-point safety release, and a detachable foot guard and tool tray for added versatility. Self-lubricating UHMW polyethylene sliders and bronze bushings enhance smooth operation, while optional saddle adapters allow for safe lifting of SUVs, light trucks, and larger vehicles. Backed by AMGO’s robust warranty coverage, this lift is a long-term investment in safety, performance, and shop productivity.

OH 12S Specifications:

• Lift Type: Low Ceiling Two Post Lift

• Lifting Capacity: 12,000 lbs

• Lifting Time: 69 seconds

• Max Lifting Height (w/o Extension Adapter): 72 17/32″

• Max Lifting Height (w/ Extension Adapter): 81 17/32″

• Max Lock Height (w/o Extension Adapter): 70 9/16″

• Max Lock Height (w/ Extension Adapter): 79 9/16″

• Overall Height – Low Setting: 143 1/8″

• Overall Height – Medium Setting: 155 1/8″

• Overall Height – High Setting: 167 1/8″

• Overall Width: 150 3/4″

• Drive-Thru Clearance: 109 3/4″

• Width Between Columns: 123 1/2″

• Minimum Pad Height: 4 1/2″

• Gross Weight: 2,202 lbs

• Motor: 2.0 HP, 220V/60Hz, Single Phase

• Pallet Dimension: 114"21"30

OH-12S 12,000lb 2 Post Car Lift Special Features

• 12,000-lb lifting capacity

• Single-point safety release for easier operation

• Automatic arm restraints for enhanced safety

• Overhead safety stop device to prevent vehicle damage

• Direct-drive dual hydraulic cylinders for reliable lifting

• Self-lubricating UHMW polyethylene sliders and bronze bushings

• Adjustable three-height settings for low, medium, or high ceiling clearance

• Detachable foot guard and tool tray for convenience

• Optional saddle adapters for SUVs, light trucks, and heavy-duty trucks

Warranty

• 5-Year: Steel construction

• 3-Year: Hydraulic parts

• 2-Year: Electrical components

OH-12S Manual

   Amgo OH 12S Manual

   OH12S Installation Instruction

OH12S 2 Post Car Lift - Low Profile Optional Items (sold separately):

• Saddle Adapter - Light Truck: No. 20804

• Saddle Adapter - Heavy Duty Truck: No. 21103

• Single Screw-up rubber Pad Assembly: No. 20803
