Amgo OH-9, 9000 lb 2 Post Car Lift

OH-9 2 Post Car Lift by Amgo

Need a dependable two-post lift that adapts easily to different shop layouts and vehicle types? The AMGO OH-9 Clear Floor Two Post Lift is built to maximize space while delivering solid, everyday lifting performance. With a 9,000-lb capacity and two standard height settings, it fits comfortably in both professional shops and home garages with varying ceiling heights, without sacrificing strength or stability.

Engineered with AMGO’s Super Asymmetric technology, the OH-9 supports both symmetric and asymmetric loading for better door clearance and easier vehicle positioning. Dual hydraulic direct-drive cylinders provide smooth, balanced lifting, while the clear-floor design keeps your workspace open and efficient. Optional width and height extensions further expand its versatility, making the OH-9 a practical, scalable solution for growing service needs.

A generous warranty on steel components (5 years!), hydraulics (3 years), and electrics (2 years). Stop wishing for a better solution and elevate your garage game.

9000lb 2 Post Specifications:

• Model: OH-9

• Lift Type: Clear Floor Two Post Lift

• Lifting Capacity: 9,000 lbs

• Lifting Time: 57 seconds

• Max Lifting Height (w/o Extension Adapter): 71 7/16″ – 73 3/8″

• Max Lifting Height (w/ Extension Adapter): 74 7/16″ – 76 5/16″

• Max Lock Height (w/o Extension Adapter): 69 5/8″ – 71 1/2″

• Max Lock Height (w/ Extension Adapter): 72 5/8″ – 74 1/2″

• Overall Height: 143 1/8″ (151″ with alternate setting)

• Overall Width: 135″

• Drive-Thru Clearance: 99 1/2″

• Width Between Columns: 112 3/16″

• Minimum Pad Height: 3 9/16″

• Gross Weight: 1,493 lbs

• Motor: 2.0 HP

• Container Quantity: 25 units / 20′ GP

• Pallet Dimensions: 111"18"31

OH-9, 9000 lb 2 Post Car Lift Special Features

• 9,000-lb lifting capacity

• Dual hydraulic direct-drive cylinders built to high standards

• Super Asymmetric arms allow symmetric or asymmetric loading

• Single-point manual safety lock release unlocks both columns from one side

• Clear-floor design for unobstructed floor use

• Overhead safety shut-off device for maximum vehicle protection

• Two standard height settings to accommodate different ceiling heights

• Self-lubricating UHMW polyethylene sliders

• Automatic arm restraints for added safety

• Aero synchronization cables come standard

• Detachable toe guards and tool trays included

• Standard double-screw rubber pads (2″ pin diameter)

• 3″ extension adapters included

• Optional saddle adapters available (Kits No. 21108)

• Optional 6″ extension adapters available (P/N: 1102504001-01)

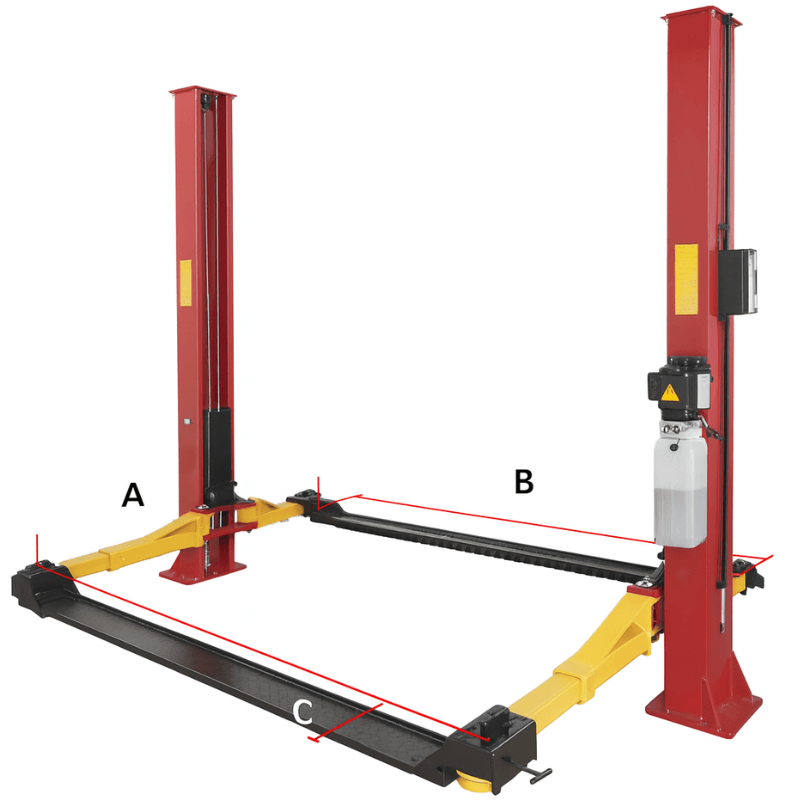

• Optional width extension kits expand column spacing from 112 3/16″ to 118 1/8″ (Kits No. 20906)

• Optional height extension kits increase overall height up to 174 7/16″ (Kits No. 20902)

• Amgo 5-3-2 Warranty (5 year steel structure, 3 year hydraulic parts, and 2 year electrical components)

OH-9 Manual

    Amgo OH-9 Manual

    Amgo OH-9 Installation Instruction

OH-9 2 Post Car Lift Optional Items (sold separately):

• Saddle Adapter - Light Truck: No. 20802
• Height Extension Kit: No. 20902 (Adds 24")

• Width Extension Kit: No. 20906 (Adds 3.875")

• Led Light System: No. 20101 (plus extension cable 20103)

• Golf Cart/ATV/Vehicle Add-On - No. 20805
  • Capacity: 9,000lb (4 wheels); 6,000lb (3 wheels)
