Amgo OHX 10 10,000lb 2 Post Car Lift

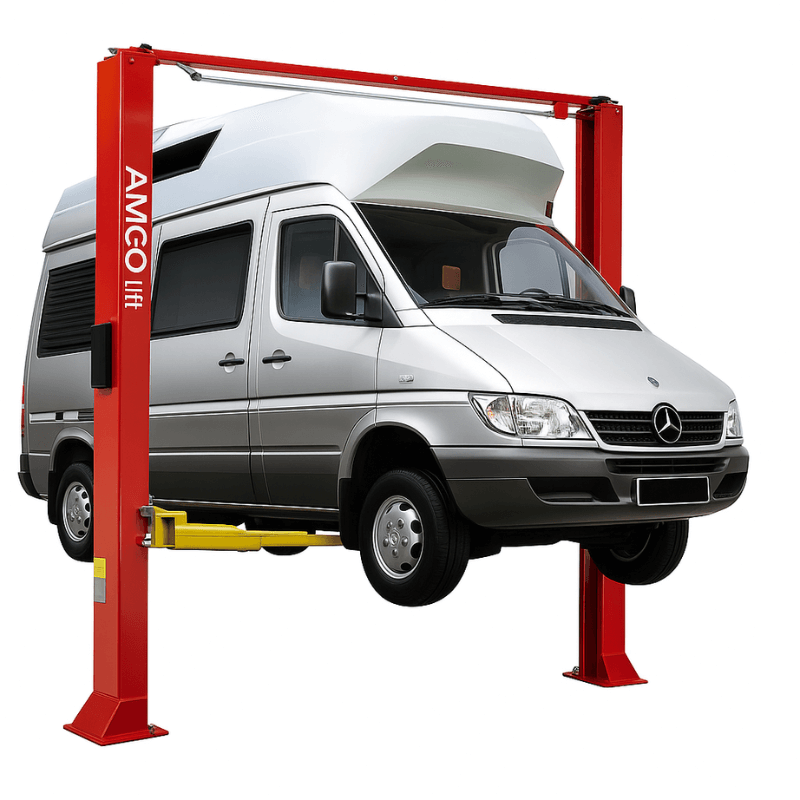

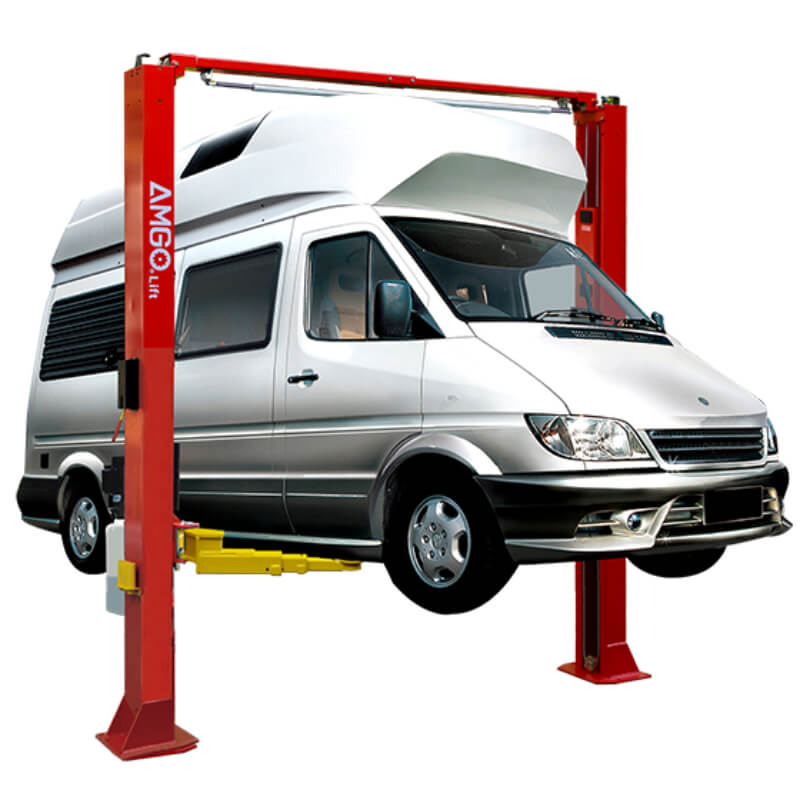

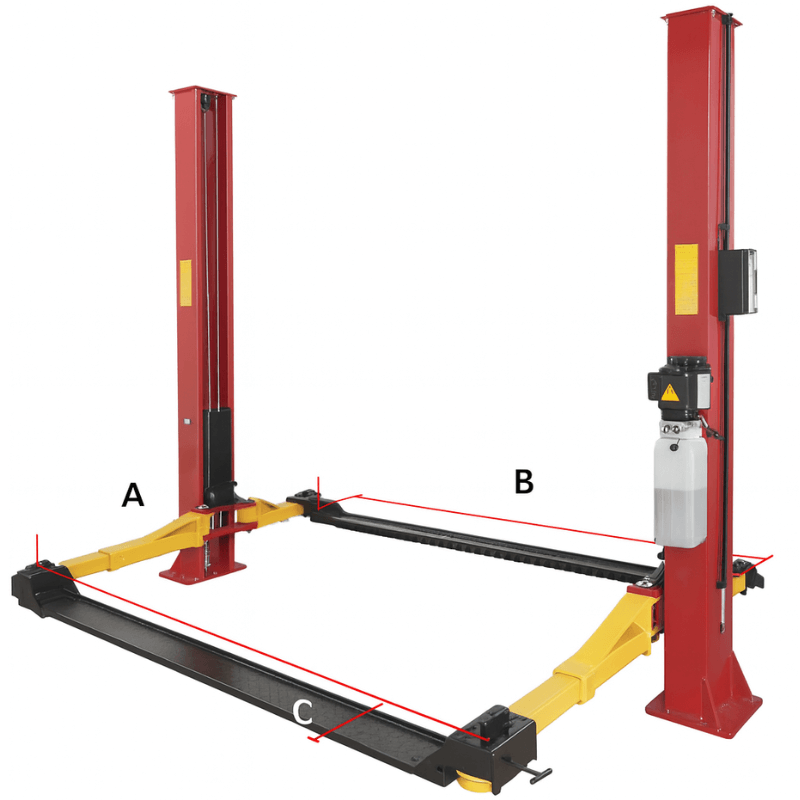

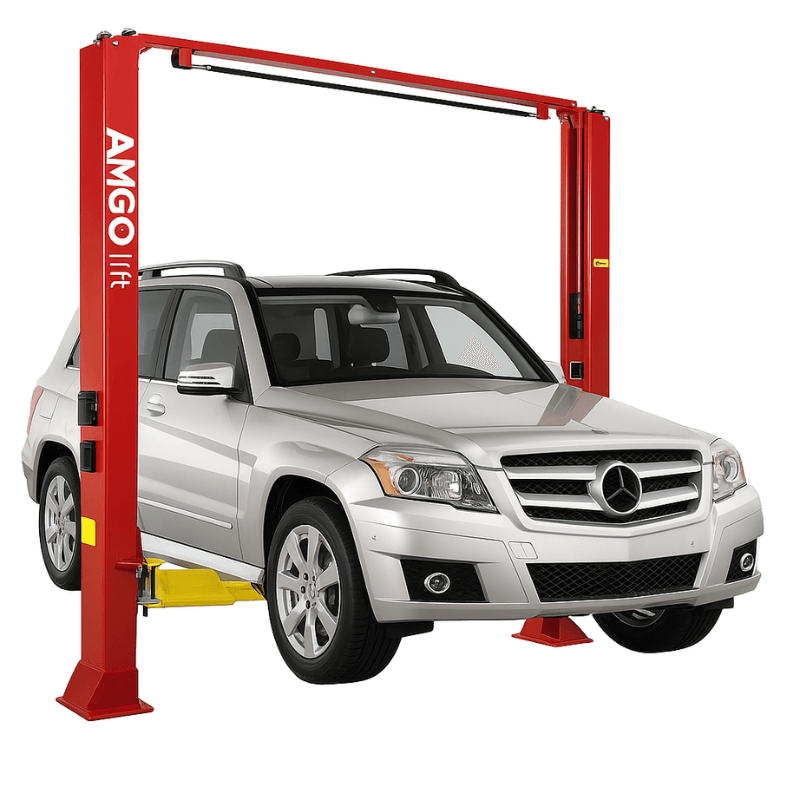

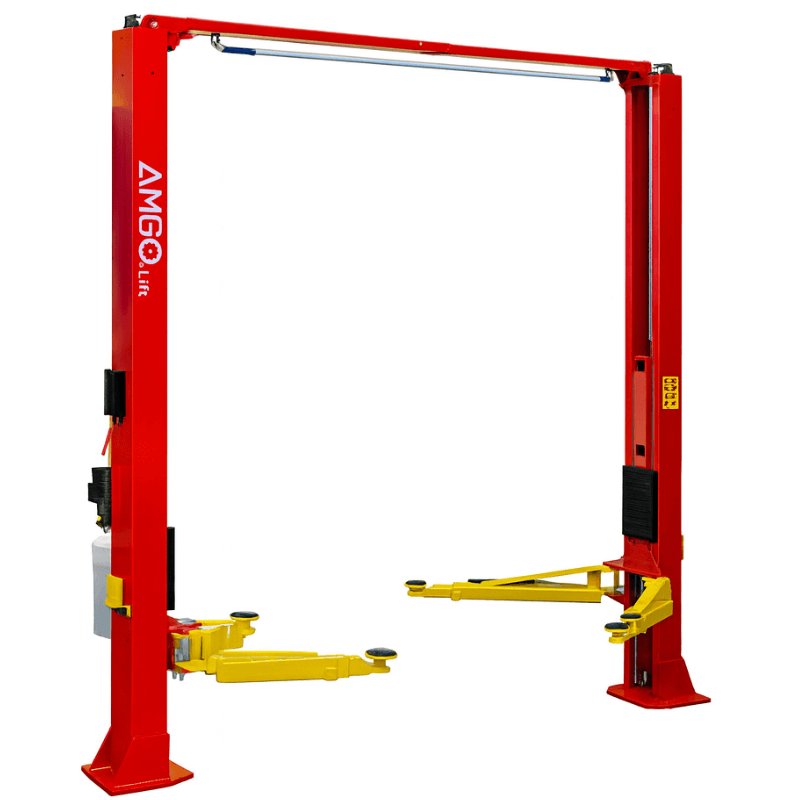

OHX-10 2 Post Car Lift by Amgo

Looking for a versatile two-post lift that’s easy to install, easy to maintain, and built for everyday shop use? The AMGO OHX-10 Clear Floor Two Post Lift delivers reliable 10,000-lb lifting power with a thoughtfully engineered structure designed to simplify ownership from day one. Built with single-piece columns, a split-structure top beam, and extra-long carriages, this lift reduces installation complexity while improving long-term serviceability. Ideal for workshops and garages with ceiling heights over 12 ft, the OHX-10 also supports optional width extensions for added flexibility.

Designed with AMGO’s Super Asymmetric technology, the OHX-10 allows both symmetric and asymmetric loading, giving technicians better door clearance and easier vehicle entry. Dual hydraulic direct-drive cylinders provide smooth, balanced lifting, while the clear-floor design keeps the workspace open and obstruction-free. Standard safety features like automatic arm restraints, an overhead safety shut-off device, and a single-point safety lock release ensure confident operation, making this lift a dependable choice for busy service bays.

Amgo OHX-10 Specifications:

• Model: OHX-10

• Lift Type: Clear Floor Two Post Lift

• Lifting Capacity: 10,000 lbs

• Lifting Time: 57s

• Max Lifting Height (w/o Extension Adapter): 71 7/16″ – 73 3/8″

• Max Lifting Height (w/ Extension Adapter): 74 7/16″ – 76 5/16″

• Max Lock Height (w/o Extension Adapter): 69 5/8″ – 71 1/2″

• Max Lock Height (w/ Extension Adapter): 72 5/8″ – 74 1/2″

• Overall Height: 144″

• Overall Width: 134 15/16″ (140 7/8″ with width extension)

• Drive-Thru Clearance: 99 13/16″ (105 11/16″ with width extension)

• Width Between Columns: 112 1/4″ (118 1/8″ optional)

• Minimum Pad Height: 3 9/16″

• Gross Weight: 1,592 lbs

• Motor: 2.0 HP

• Container Quantity: 15 units / 20′ GP

Amgo OHX10 Special Features:

• 10,000-lb lifting capacity

• Dual hydraulic direct-drive cylinders built to high standards

• Super Asymmetric arms allow symmetric or asymmetric loading for better door clearance

• Single-point manual safety lock release unlocks both columns from one side

• Clear-floor design provides unobstructed floor use

• Overhead safety shut-off device for maximum vehicle protection

• Single-piece column design for easier installation

• Self-lubricating UHMW polyethylene sliders

• Automatic arm restraints for added safety

• Aero sync cables come standard

• Detachable toe guard and tool tray included

• Standard double-screw rubber pads (2″ pin diameter)

• 3″ extension adapters included

• Optional saddle adapter available (Kits No.: 21108)

• Optional 6″ extension adapters available (P/N: 1102504001-01)

• Optional width extension kits increase column spacing from 112 1/4″ to 118 1/8″ (Kits No.: 21004)

• Amgo 5-3-2 Warranty (5 year steel structure, 3 year hydraulic parts, and 2 year electrical components)

OHX-10 Manual

   Amgo OHX-10 Manual

   Amgo OHX-10 Installation Instruction

OHX10 2 Post Car Lift Optional Items (sold separately):

• Saddle Adapter - Ideal for SUV's & Light Trucks: No. 20802

• LED Lights: No. 20101 (plus extension cable 20103)

• Width Extension Kit: No. 21004 (Adds 5-7/8" in width)
• Golf Cart/ATV/Vehicle Add-On - No. 20805
  • Capacity: 9,000lb (4 wheels); 6,000lb (3 wheels)
