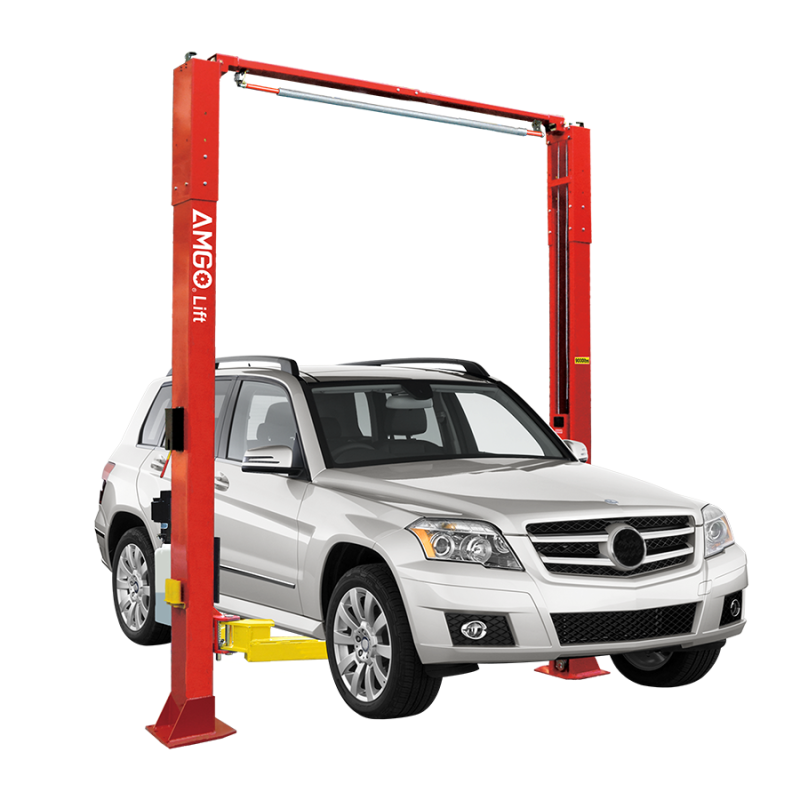

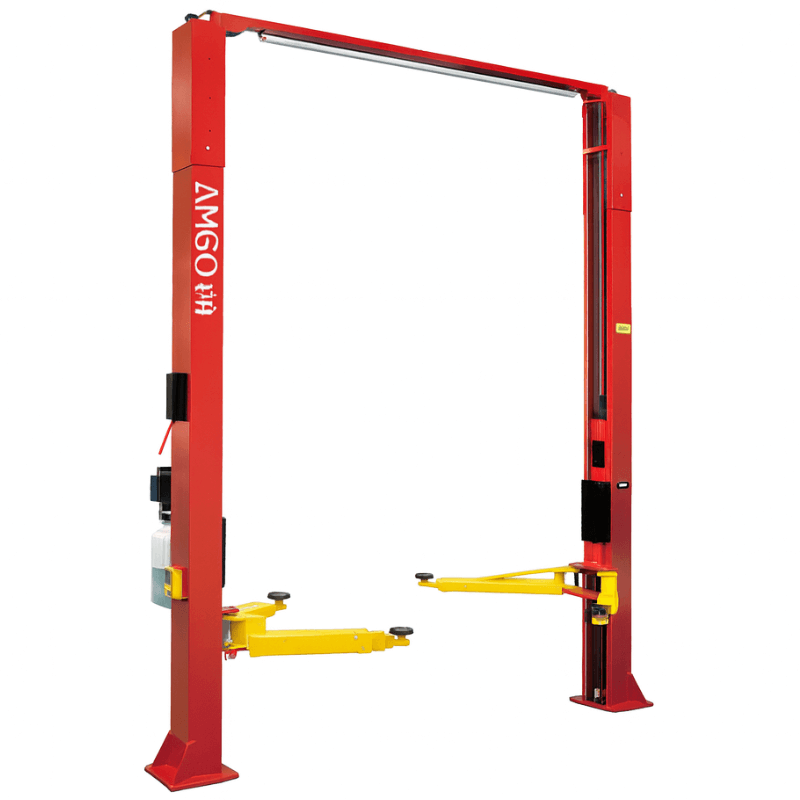

Amgo OHX 10H 10,000lb 2 Post Car Lift - Extra Tall; Adjustable Width

OHX-10H 2 Post Car Lift by Amgo

Take your shop to new heights with the AMGO OHX-10H Extra Tall 2 Post Lift, engineered for professionals who demand strength, stability, and versatility. With a 10,000 lb lifting capacity and a maximum lift height of 87 3/4", the AMGO OHX 10H provides ample clearance for technicians to work comfortably under vehicles of all sizes.

Its clear-floor design and extremely long carriages ensure stability, minimal maintenance, and maximum floor access, making it the ideal choice for general service, tire, and alignment operations.

Built for safety and efficiency, the AMGO OHX 10H features dual hydraulic direct-drive cylinders, with high-quality seals, aircraft-quality cable components, automatic arm restraints, and super asymmetric arms that allow for asymmetric or symmetric configuration vehicle loading.

A single-point safety release that enables operators to unlock both columns from one side. The overhead safety stop devices and ETL-certified components provide maximum vehicle protection and personnel safety.

Optional kits extend both height and width, making this lift adaptable to a wide variety of service requirements with extremely high lifting capabilities.

Amgo OHX-10h 2 Post Lift Specifications:

• Model: OHX-10H
• Lift Type: Clear Floor Two Post Lift
• Lifting Capacity: 10,000 lbs
• Lifting Time: 63 seconds
• Max. Lifting Height (w/o extension adapter) (A): 78 3/4"–80 5/8"
• Max. Lifting Height (w/ extension adapter): 81 3/4"–83 5/8"
• Max. Lock Height (w/o extension adapter): 77 3/16"–79 1/16"
• Max. Lock Height (w/ extension adapter): 80 3/16"–82 1/16"
• Overall Height (B): 157"–167 3/16"
• Overall Width (C): 134 15/16" (140 7/8" optional)
• Drive-Thru Clearance (D): 99 13/16" (105 11/16" optional)
• Width Between Columns (E): 112 1/4" (118 1/8" optional)
• Minimum Pad Height (F): 3 9/16"
• Motor: 2.0 HP / 220V / 60Hz, Single Phase
• Pallet Dimensions: 146" × 18" × 31" - 1,612 lbs

Amgo Hydraulics OHX 10h Special Features:

• 10,000 lb lifting capacity for cars, trucks, and SUVs
• Extra tall design with maximum lift height up to 87 3/4"
• Dual hydraulic direct-drive cylinders for smooth and powerful lifting
• Super asymmetric arms allow symmetric or asymmetric vehicle loading
• Single-point manual safety lock release unlocks both columns from one side
• Clear-floor design provides unobstructed floor use
• Automatic arm restraints for enhanced safety
• Self-lubricating UHMW polyethylene sliders provide a superior lifting surface for smooth operation
• Overhead safety shut-off device protects vehicles during lifting
• Detachable toe guard and tool tray for convenience
• Standard double-screw rubber pad (pin dia 2") with 3" extension adapters delivers a secure lifting surface
• Optional accessories: saddle adapters, 6" extension adapters, optional width extension kit
• ETL-certified AMGO power unit

AMGO 5-3-2 Warranty:

• 5 years for the steel structure
• 3 years for hydraulic parts
• 2 years for electrical components

OHX-10H Manual

Amgo OHX-10H Manual

Amgo OHX-10H Installation Instruction

OHX-10H 2 Post Car Lift - High Lift Optional Items (sold separately):

• Saddle Adapter - Ideal for SUVs & Light Trucks: No. 20804
• LED Lights: No. 20103 (plus extension cable 20103)
• Width Extension Kit: No. 21005 (Adds 5-7/8" in width)
• Golf Cart/ATV/Vehicle Add-On - No. 20805
• Capacity: 9,000lb (4 wheels); 6,000lb (3 wheels)
