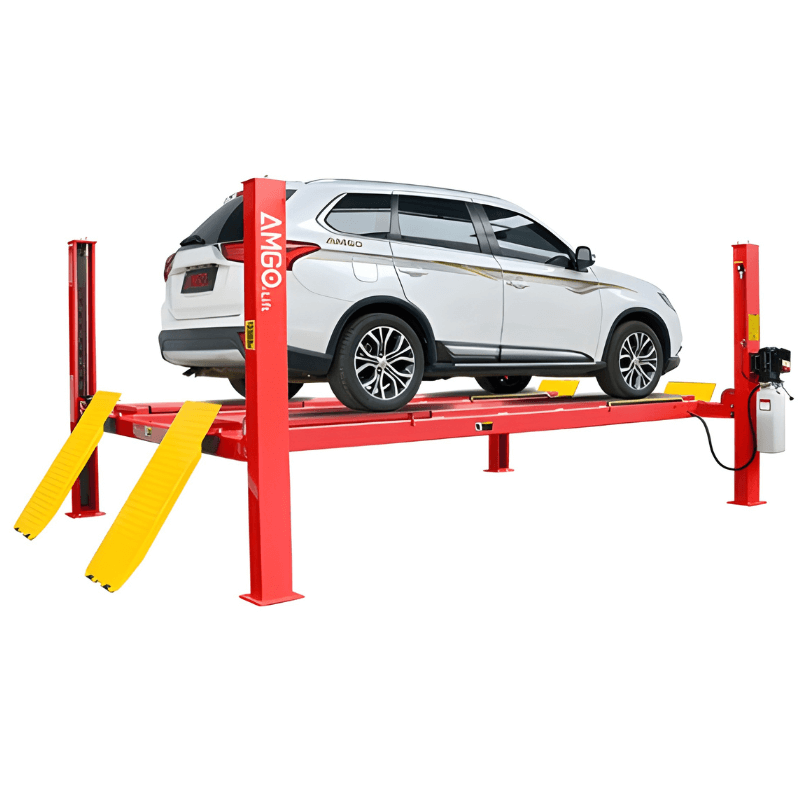

Amgo PRO-12ASX 12,000lb 4 Post Alignment Lift

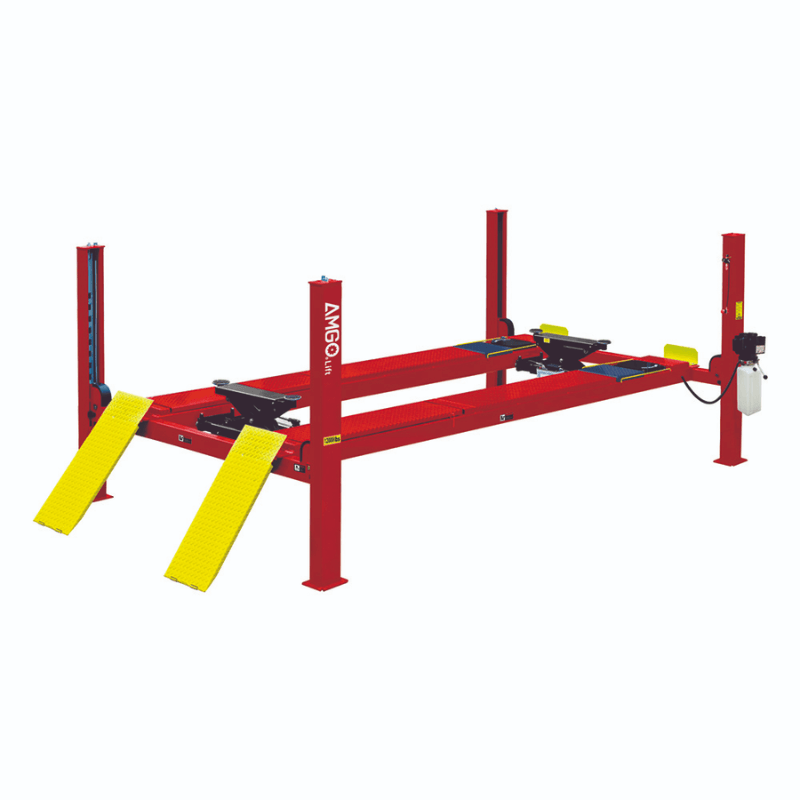

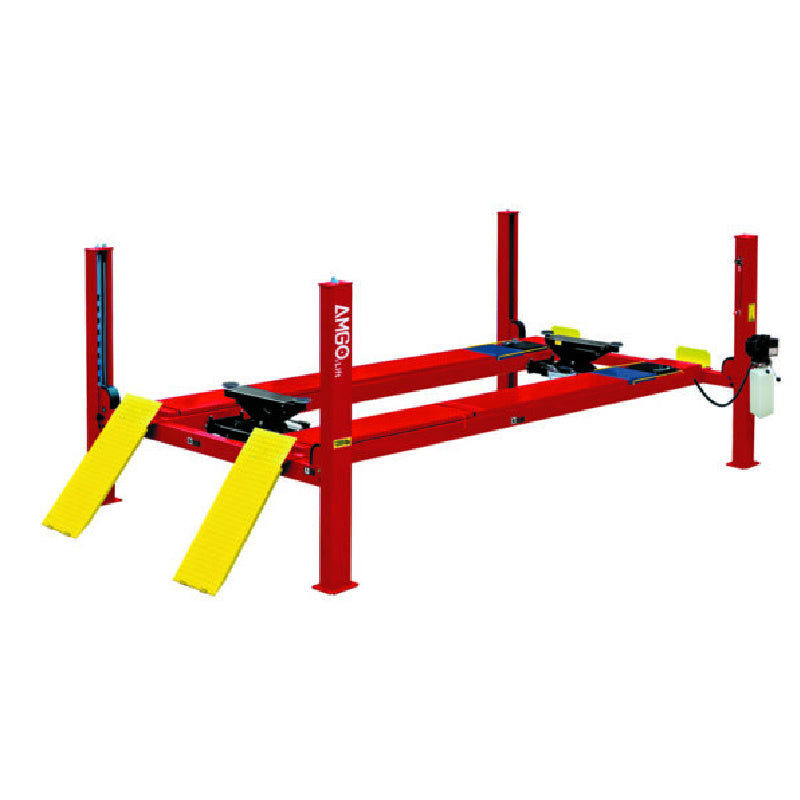

PRO-12ASX 4 Post Alignment Lift by Amgo

Take your alignment services to the next level with the PRO-12ASX 12,000-lb Alignment Service Lift. Designed specifically for shops that demand extra width and flexibility, this advanced model builds on the PRO-12SX by adding integrated alignment functionality. With an exceptional 118 1/8″ clearance between columns and adjustable turnplate pockets, the PRO-12ASX easily accommodates wider vehicles and varying wheelbases, making it ideal for modern cars, SUVs, and light-duty trucks.

Built for speed, safety, and long-term reliability, the PRO-12ASX features an ETL-certified AMGO power unit, aircraft-quality cables, and a mechanically self-locking safety system with air-released locks. Its fast 45-second lift time maximizes shop productivity, while stepless adjustable runway widths allow technicians to adapt instantly to different vehicle track widths. Backed by AMGO’s 5-3-2 warranty, this lift delivers professional alignment performance, durability, and confidence for high-volume commercial environments.

Pro 12ASX Specifications:

• Model: PRO-12ASX

• Lifting capacity: 12,000 lbs

• Lifting time: 45 seconds

• Overall length (including ramps): 232 5/8″

• Runway length: 182 11/16″

• Overall width: 132 1/8″

• Width between columns: 118 1/8″

• Maximum lifting height: 76 3/8″

• Maximum lock height to top of runway: 73 1/4″

• Overall height: 86″

• Minimum height: 8 11/16″

• Maximum underneath height: 68 7/8″

• Maximum lock underneath runway: 65 3/4″

• Drive-thru clearance: 104 3/16″

• Width between runways: 35 7/16″ – 53 3/4″

• Outside edge of runways: 75 7/16″ – 93 3/4″

• Minimum four-wheel alignment: 81 3/4″

• Maximum four-wheel alignment: 159 7/16″

• Maximum two-wheel alignment: 160 3/4″

• Motor: 2.0 HP, 220V / 60Hz / Single Phase

• Gross weight: 2,773 lbs

• Unit weight: 2,798 lbs

• Pallet dimensions (1 unit/package): 199 5/8″ L × 22 1/16″ W × 28 1/2″ H

PRO-12ASX 12,000lb 4 Post Alignment Lift Special Features

• 12,000 lb capacity with extreme wide-column design

• 118 1/8″ clearance between columns for wider vehicles

• Integrated slip plates and adjustable turnplate pockets for precise alignments

• ETL-certified AMGO power unit included

• Mechanical self-locking safety system with air-released lock

• Multiple safety locks with cable-slack protection

• Aircraft-quality 3/8″ cable-driven lifting system

• High-quality hydraulic cylinder with flow restrictor for smooth operation

• Stepless adjustable runway width to fit various wheel tracks

• Non-skid diamond plate runways for secure vehicle positioning

• Oil-water separator and solenoid air valve installed on power side column

• AMGO 5-3-2 warranty: 5-year steel, 3-year hydraulics, 2-year electrical

Pro-12ASX Manual

  Amgo PRO-12ASX Manual

  Amgo PRO-12ASX Installation Instruction

PRO12ASX 4 Post Alignment Lift Optional Items (sold separately):

• J6H - Rolling Jack Manual

• J6A - Rolling Jack Pneumatic

• Led lights: No. 40103

• Extension kit: No. 40203 (Adds 26" to platform)

• Airline kit: No. 40102

• Turnplate Blocks: No. 40101 (Alignment Lift requires 2 units)
