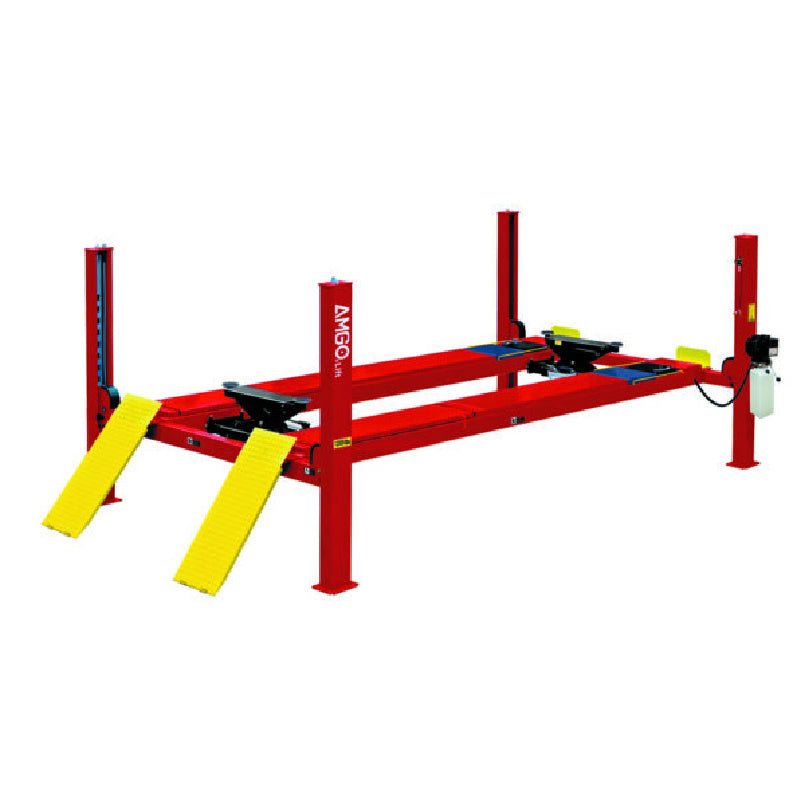

Amgo PRO-14A, 7 Ton 4 Post Alignment Lift

PRO-14A, 4 Post Alignment Lift by Amgo

Take your shop’s alignment capabilities to the next level with the PRO-14A 14,000-lb Alignment Service Lift. Designed for high-volume commercial environments, this upgraded model builds on the proven PRO-14 platform by adding integrated slip plates and turnplate pockets for precise, professional wheel alignments. With extended runways and a heavy-duty structure, the PRO-14A confidently handles long wheelbase vehicles such as trucks, RVs, and commercial fleets with ease.

Built for performance, safety, and long-term reliability, the PRO-14A delivers smooth, stable lifting backed by aircraft-quality cables and a mechanically self-locking safety system. An ETL-certified power unit, non-skid diamond plate runways, and multiple redundant safety locks ensure dependable operation day after day. Whether you’re expanding alignment services or upgrading your shop’s core equipment, the PRO-14A is a smart investment that boosts efficiency, accuracy, and revenue potential.

Alignment Lift PRO-14A Specifications:

• Model: PRO-14A

• Lifting capacity: 14,000 lbs

• Lifting time: 81 seconds

• Overall length (including ramps): 257 1/2″

• Runway length: 200 1/2″

• Overall width: 130 7/8″

• Width between columns: 116″

• Maximum lifting height: 77 9/16″

• Maximum lock height to top of runway: 74 7/16″

• Overall height: 86 3/16″

• Minimum height: 9 13/16″

• Maximum underneath height: 68 7/8″

• Maximum lock underneath runway: 65 3/4″

• Drive-thru clearance: 102 1/16″

• Width between runways: 46″

• Outside edge of runways: 86″

• Minimum four-wheel alignment: 92 5/8″

• Maximum four-wheel alignment: 177 3/16″

• Maximum two-wheel alignment: 178 9/16″


• Motor: 2.0 HP

• Pallet Dimension: 218" x 23" x 31" - 3,560 lbs


PRO-14A, 7 Ton 4 Post Alignment Lift Special Features

• Rolling Jacks and Turnplates sold separatey - See Below for Part #'s

• 14,000 lb capacity designed for trucks, RVs, and commercial vehicles

• Integrated slip plates and adjustable turnplate pockets for accurate alignments

• Extended runway design supports long wheelbase vehicles

• ETL-certified power unit included as standard equipment

• Mechanical self-locking safety system with air-released locks

• Multiple safety locks with cable-slack protection for added security

• Aircraft-quality cable-driven lifting system for smooth, stable operation

• High-performance hydraulic cylinder with premium seals and compensation valve

• Non-skid diamond plate runways for safe vehicle positioning

Pro-14A Manual

  Amgo PRO-14A Manual

  Amgo PRO-14A Installation Instruction

PRO-14E 4 Post Alignment Lift Optional Items (sold separately):

• RJ-8A Rolling Jack
• Adjustable Turnplate Blocks: No. 40101 (Alignment Lift requires 2 units)

• LED Light Kit: No. 40103

• Air Line Kit: No. 40102

• Length Extension Kit: No. 41801-01 (Adds 26" to runway)
