Amgo PRO-14AE 14,000lb 4 Post Alignment Lift - Extra Long

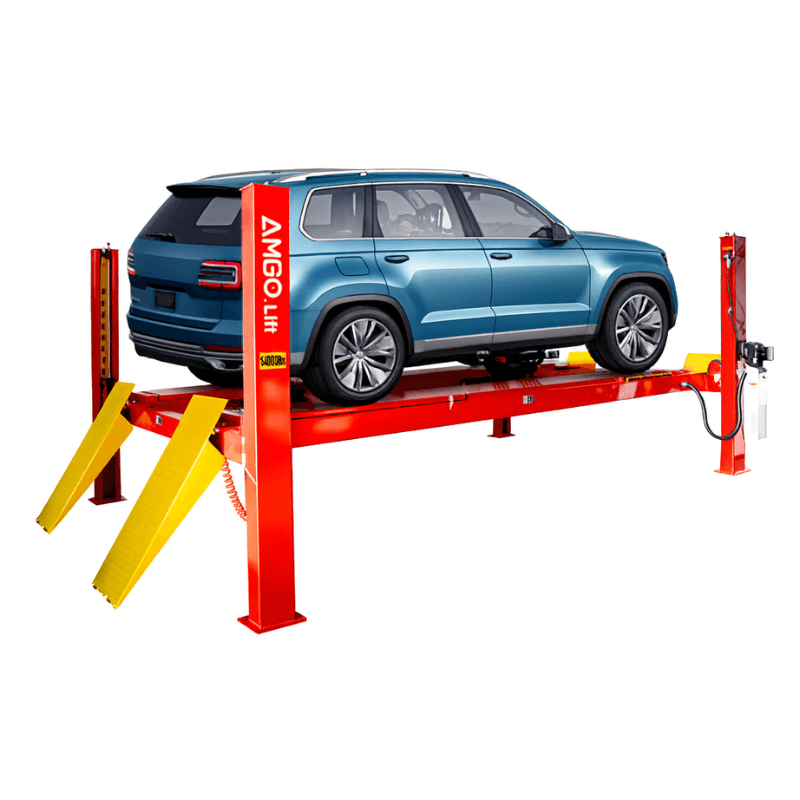

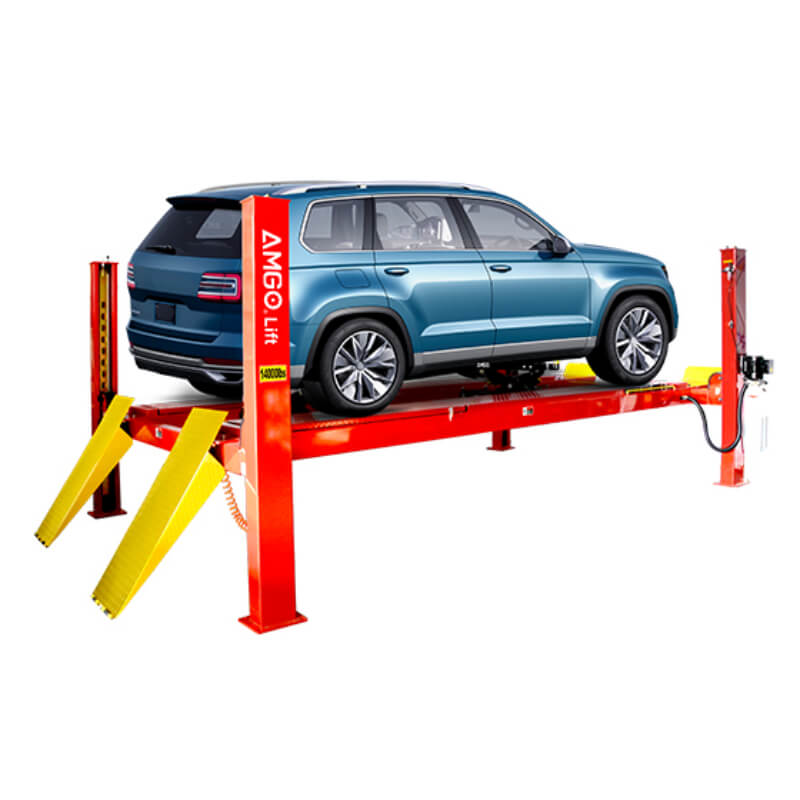

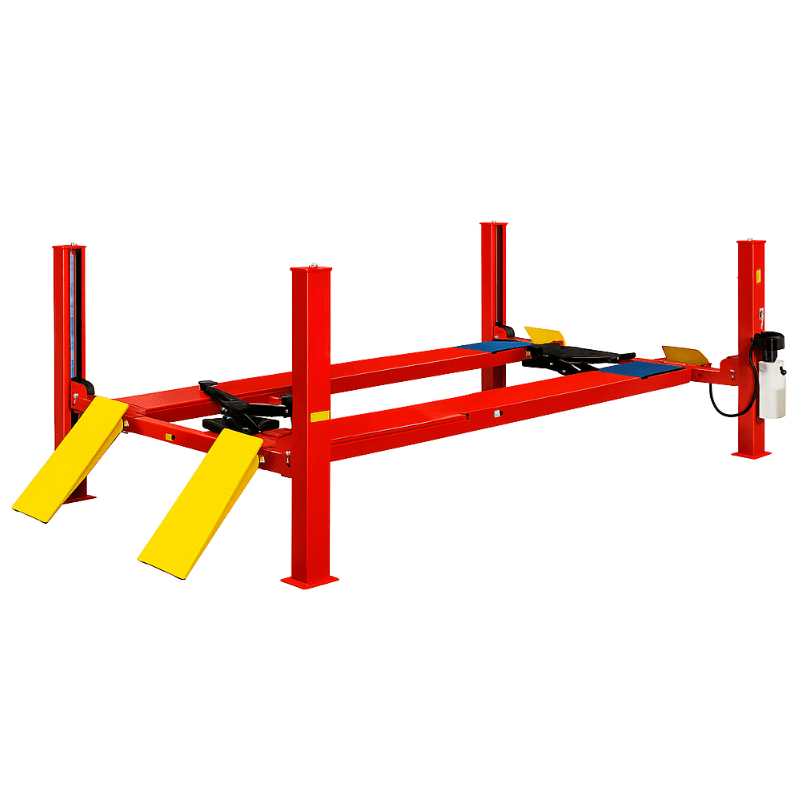

PRO-14AE, 4 Post Alignment Lift by Amgo

Does your current alignment lift leave you feeling like a clown car, squeezing in vehicles with lengthy wheelbases? Fear not, space-saving superhero! The Amgo PRO-14AE boasts extra-long runways (an impressive 245 inches!), accommodating a wider range of vehicles than your standard lift. This lift packs a punch, boasting a 14,000 lb lifting capacity. Worried about stability? A powerful 2.0HP motor and meticulous quality control ensure a smooth and reliable lifting experience.

Safety first, as always! This bad boy features an aircraft-grade cable for maximum strength, an adjustable post width for a variety of vehicles, and a trusty anti-slip diamond plate runway. Plus, the Amgo 5-3-2 warranty guarantees peace of mind, covering steel structure, hydraulics, and electrical components. Stop playing Tetris with your alignment needs. The Amgo PRO-14AE offers the extra length and peace of mind you deserve.

PRO 14AE Specifications:

• Lifting capacity: 14,000 lbs

• Lifting time: 81 seconds

• Overall length (including ramps): 286″

• Runway length: 229″

• Overall width: 130 7/8″

• Width between columns: 116″

• Maximum lifting height: 77 9/16″

• Maximum lock height to top of runway: 74 7/16″

• Overall height: 86 3/16″

• Minimum height: 9 13/16″

• Maximum underneath height: 68 7/8″

• Maximum lock underneath runway: 65 3/4″

• Drive-thru clearance: 102 1/16″

• Width between runways: 46″

• Outside edge of runways: 86″

• Minimum four-wheel alignment: 92 5/8″

• Maximum four-wheel alignment: 177 3/16″

• Maximum two-wheel alignment: 207 1/16″


• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker

• Net weight: 3,576 lbs

• Pallet dimensions: 247″ L × 23″ W × 31″ H

PRO-14AE 14,000lb 4 Post Alignment Lift Special Features

• Warranty: Amgo 5-3-2 warranty (5-year steel structure, 3-year hydraulic parts, 2-year electrical components)

• Motor: 2.0 HP, 220V / 60Hz, single phase

• Cylinder quality control with built-in flow restrictor for stable and smooth operating speed

• Mechanical self-lock system with air-released safety locks

• Cable wire thickness: 1/2″ (aircraft-quality cable)

• Anti-slip diamond plate runways

Pro-14AE Manual

Amgo PRO-14AE Manual

Amgo PRO-14AE Installation Instruction

PRO14AE 4 Post Alignment Lift Optional Items (sold separately):

• RJ-8A Rolling Jack

• Adjustable Turnplate Blocks: No. 40101 (Alignment Lift requires 2 units)

• LED Light Kit: No. 40103

• Air Line Kit: No. 40102

• Length Extension Kit: No. 41801-01 (Adds 26" to runway)
