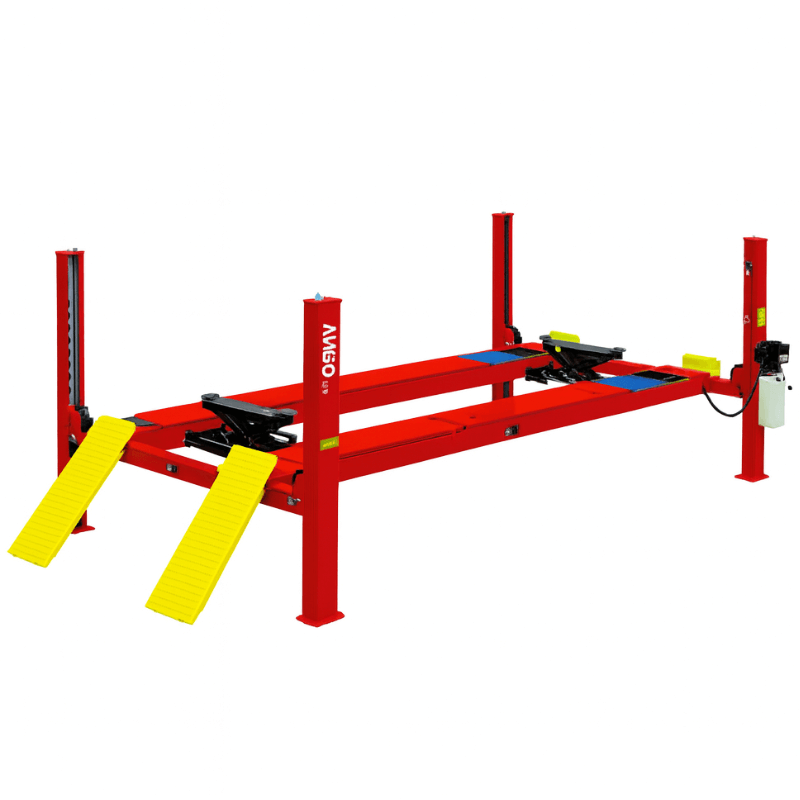

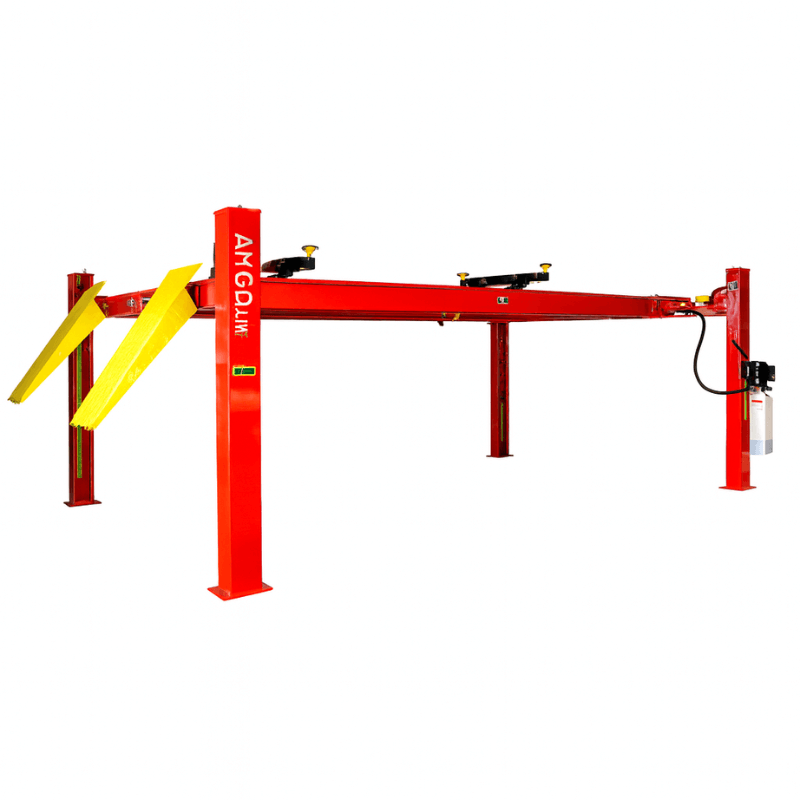

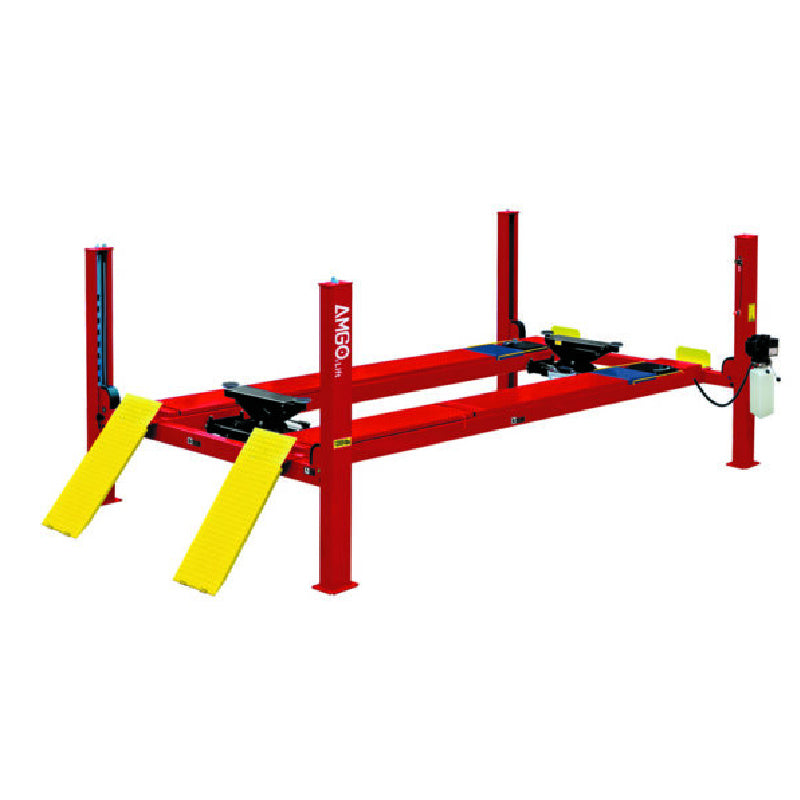

Amgo PRO-18A 18,000lb 4 Post Alignment Lift

PRO-18A, 4 Post Alignment Lift by Amgo

Need a Heavy-Duty Alignment Lift That Does It All? The Amgo PRO-18A 18,000-lb 4 Post Alignment Lift is built to handle the toughest alignment jobs with precision and ease. Featuring non-skid diamond platforms and integrated slip plates, this lift ensures smooth, accurate alignments for vehicles of various wheelbases. The PRO-18A includes adjustable turnplate pockets and boasts advanced features like cable-driven operation with high-quality aircraft standard cables and a mechanical self-locking safety device with air-driven lock release, making it the go-to solution for any automotive shop.

With a lifting capacity of 18,000 lbs, the PRO-18A is engineered for both high performance and safety. The primary safety locks, cable-slack protection system, and ETL-certified AMGO power unit come standard. The lift’s hydraulic cylinders are designed with high-quality oil seals and compensation valves, ensuring durability and long-lasting service. If you're looking for versatility, the PRO-18A also offers optional extension platform kits and rolling jacks for added convenience and flexibility.

Alignment Lift Pro-18A Specifications:

• Model: PRO-18A

• Lifting Capacity: 18,000 lbs

• Lifting Time: 81s

• Overall Length (Incl. Ramps) (A): 293 1/4"

• Runway Length (B): 236 1/4"

• Overall Width (C): 137 1/16"

• Width Between Columns (D): 122 3/8"

• Max. Lifting Height (E): 77 9/16"

• Max. Lock Height to Top of Runway: 74 7/16"

• Overall Height (F): 86 13/16"

• Minimum Height (G): 9 13/16"

• Max. Underneath Height (H): 68 7/8"

• Max. Lock Underneath Runway (I): 65 3/4"

• Drive-Thru Clearance (J): 108 1/4"

• Width Between Runways (K): 46"

• Outside Edge of Runways (L): 89 15/16"

• Min. Four Wheel Align (M): 99 13/16"

• Max. Four Wheel Align (N): 190 3/8"

• Max. Two Wheel Align (O): 191 3/4"

• Gross Weight: 4,367 lbs

• Motor: 2.0 HP

• Pallet Dimension: 255" x 24" x 35"

PRO-18A 18,000lb 4 Post Alignment Lift Special Features

• Non-slip diamond platforms for added traction

• Integrated slip plates and adjustable turnplate pockets for precise alignment

• Mechanical self-locking safety device with air-driven lock release

• Primary multiple safety locks and cable-slack protection system

• ETL-certified AMGO power unit for reliable performance

• Cable-driven operation with high-quality aircraft standard cables

• Hydraulic cylinders with premium oil seals and compensation valve

• Optional extension platform kit (Kits No. 41801-01)

• Optional turnplates and adjustable blocks for extended vehicle compatibility

• Optional air line kits for rolling jacks (Kits No. 40102A)

• Optional pneumatic hydraulic rolling jacks (RJ-10A) with 10,000 lbs capacity

• Amgo 5-3-2 Warranty (5 year steel structure, 3 year hydraulic parts, and 2 year electrical components)

Pro-18A Manual

Amgo Pro-18A Manual

Amgo Pro-18A Installation Instruction

Pro-18A 4 Post Alignment Lift Optional Items (sold separately):

• RJ-10A Rolling Jack

• Led lights: No. 40103

• Turnplate Set: No. 40101 (Alignment Lift requires 2 units)

• Airline Kit No. 40102

• Length Extension Kit: No. 41801 (Adds 29" to runway)
