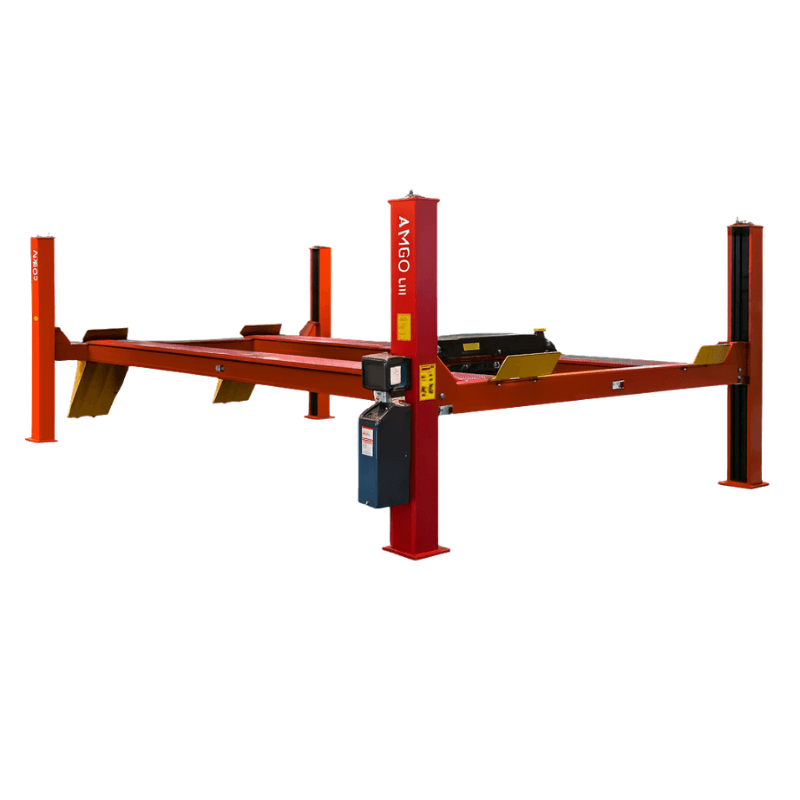

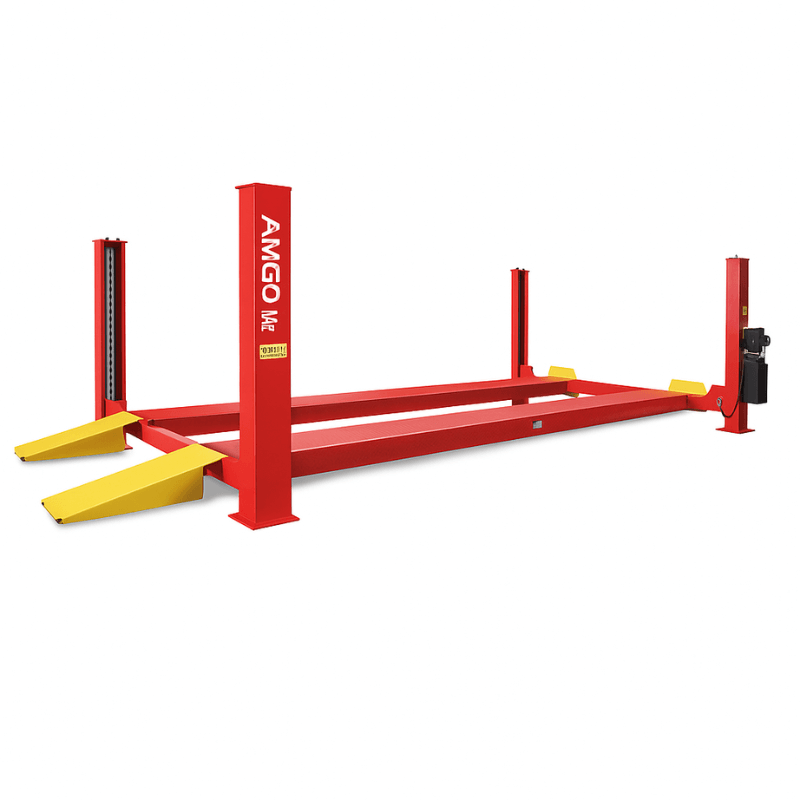

Amgo PRO-40E 40,000lb 4 Post Truck Lift - Extended Length

PRO-40E 4 Post Truck Lift by Amgo

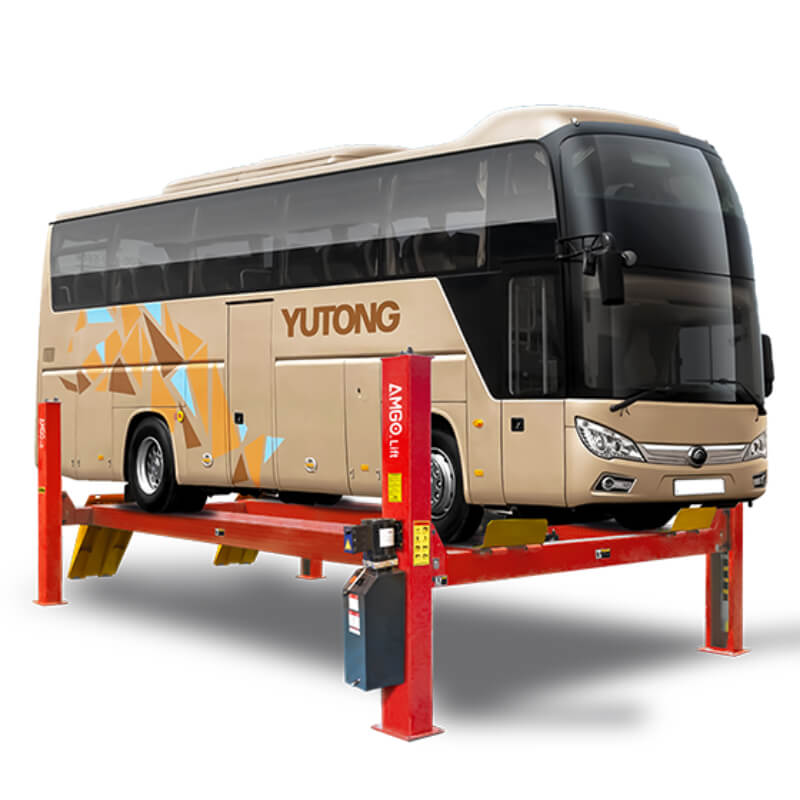

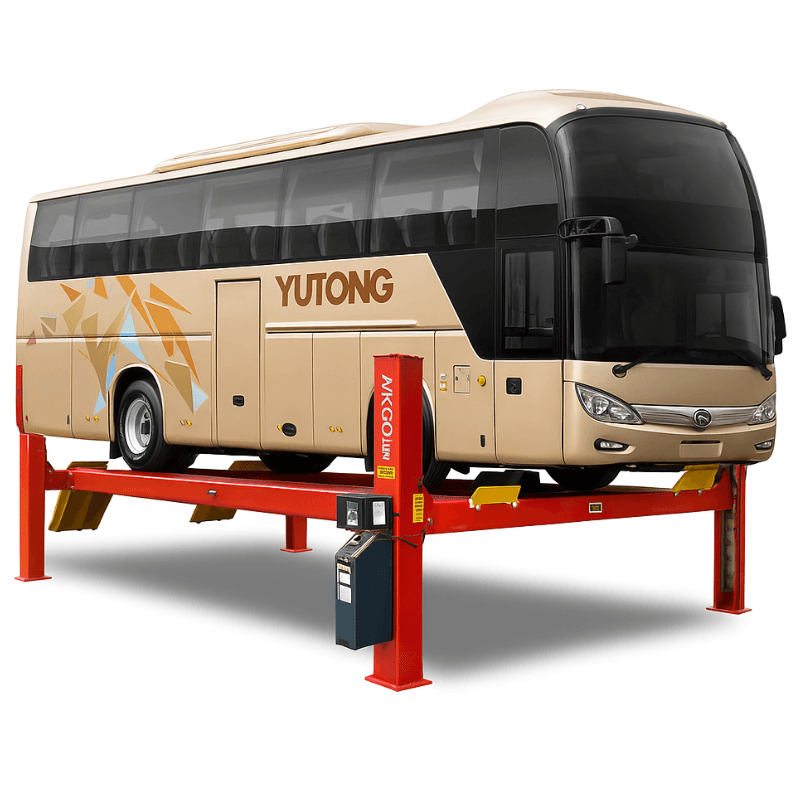

Take your commercial workshop to the next level with the PRO‑40E, a heavy-duty lift engineered for the largest vehicles and toughest service demands. Building on the proven capabilities of the PRO‑40, the PRO‑40E extends the runway by 59″, making it ideal for long trucks, buses, RVs, and industrial machinery. With its massive 40,000-lb. lifting capacity, this lift offers unmatched strength and reliability, ensuring your shop can handle even the most demanding vehicles with confidence.

Safety, precision, and efficiency are at the core of the PRO‑40E design. Equipped with ETL-certified power, aircraft-grade cables, and hydraulic cylinders built to the highest standards, this lift delivers smooth, stable operation every time. The dual-width, non-skid diamond platforms provide versatility, while mechanical self-locks, air-released safety systems, and multiple cable-slack protections keep both operator and vehicle safe. The PRO‑40E isn’t just a lift—it’s a long-term investment in productivity, reliability, and professional-grade performance for your shop.

PRO 40E Lift Specifications:

• Model: PRO-40E

• Lifting capacity: 40,000 lbs

• Lifting time: 183 seconds

• Overall length (including ramps): 425 3/16″

• Outside edge of crossbeams: 366 1/8″

• Overall width: 151 1/2″

• Width between columns: 133 15/16″

• Maximum lifting height: 75 3/8″

• Maximum lock height to top of runway: 72 3/16″

• Overall height: 92″

• Minimum height: 10 3/8″

• Maximum underneath height: 66 5/16″

• Maximum lock underneath runway: 63 3/16″

• Drive-thru clearance: 119 13/16″

• Width between runways: 46″ – 54 1/16″

• Outside edge of runways: 101 7/8″ – 110″

• Gross weight: 9,576 lbs

• Motor: 2.0 HP, 220V / 60Hz, single phase

• Pallet dimensions : 376″× 29″× 40″


PRO-40E 40,000lb 4 Post Truck Lift Special Features

• 40,000 lbs lifting capacity with 59″ longer runways for extra-long vehicles

• AMGO ETL-certified power unit included for professional-grade performance

• Mechanical self-locking safety device with air-driven lock release for operator protection

• Multiple safety locks and cable-slack protection system for stable, reliable operation

• Aircraft-quality cable-driven system for smooth and precise lifting

• Heavy-duty hydraulic cylinder with high-quality oil seals and compensation valve

• Non-skid diamond platforms with dual-width setting for versatility

• Optional Air Line Kits for use with AMGO rolling jacks

• Optional RJ-20A Rolling Jacks: pneumatic hydraulic type, 20,000 lbs capacity

• Amgo 5-3-2 Warranty: 5-year steel structure, 3-year hydraulic, 2-year electrical

PRO-40E Manual

    Amgo PRO-40E Manual

    Amgo PRO-40E Installation Instruction

PRO40E 4 Post Truck Lift Optional Items (sold separately):

• RJ-20A Rolling Jack

• Led lights: No. 40103

• Airline Kit No. 40106
