Amgo XL-10F 10,000 Full Rise Scissor Lift - In Ground

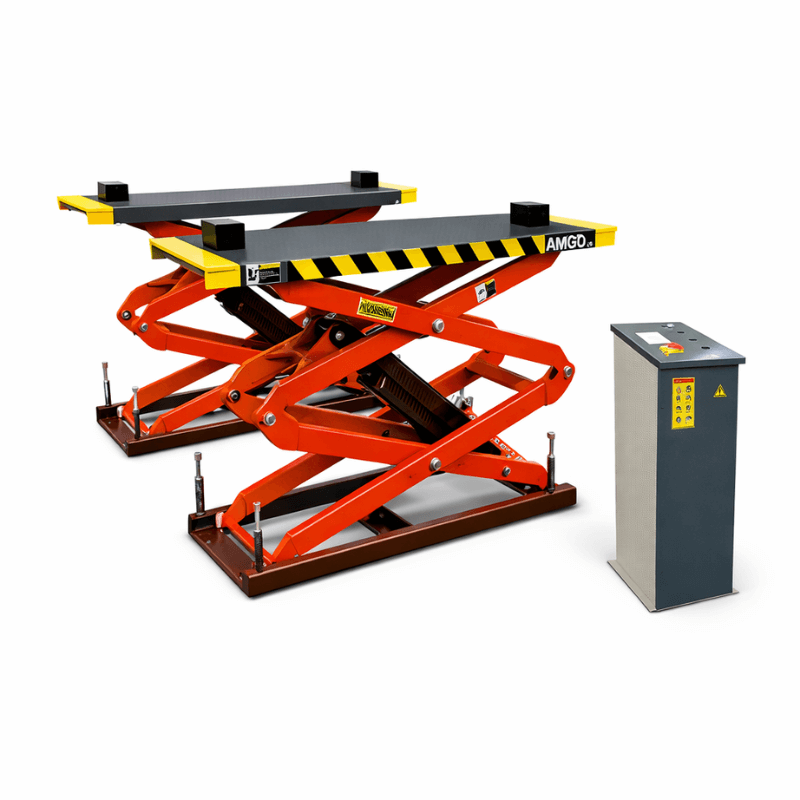

XL-10F 10,000lb Flush Mount Full Rise Scissor Lift

Amgo XL-10F 10,000 lb Flush Mount Full Rise Scissor Lift delivers heavy-duty lifting performance in a space-saving flush-mount design. Engineered for professional automotive shops, this full-rise scissor lift provides a completely clear floor surface while supporting passenger vehicles, pickup trucks, and light-duty commercial applications with confidence.

Dual extendable platforms accommodate a wide range of wheelbases, enhancing versatility for busy service bays. Equipped with a hydraulic synchronization system, photocell detection, and an automatic safety stop device, this lift ensures precise leveling and reliable protection during operation. Reinforced construction and advanced electro controls make it a dependable solution for high-volume maintenance work.

XL 10F Lift Specifications:

• Lifting Capacity: 10,000 lbs

• Lifting Time: 49 seconds

• Max. Lifting Height: 75"

• Max. Lock Height: 72 5/8"

• Minimum Height: 13 3/4"

• Runway Length: 65 1/8" – 80 5/16"

• Overall Width: 74 13/16"

• Width Between Runways: 31 1/2"

• Gross Weight: 1,903 lbs

• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker

XL-10F 10,000-lb. Capacity Full Rise Scissors Lift Special Features

• Flush-mount design for unobstructed shop floor

• Full-rise design for generous under-vehicle workspace

• Dual extendable platforms for multiple wheelbases

• Mechanical locking system with air-release

• Electric-hydraulic power system with control power unit

• Hydraulic synchronization system

• Photocell detection and protection system

• Automatic safety stop device standard

• 3" rubber pads included

• Mechanical automatic safety device

• Air-operated safety release

• Free access from either side

• Electro control system with control cabinet

• Optional Leveling Bar Kit No.: SX003

Warranty

• Steel structure: 5 years

• Hydraulic components, bronze bushings, slider blocks, plastic parts: 3 years

• Electrical components and cables: 2 years

• Rubber pads: Not covered

XL-10F Manual

  Amgo XL-10F Brochure
