Amgo XL-7, 7000lb Low Rise Scissor Lift

Amgo XL-7 Scissors Car Lift by Amgo

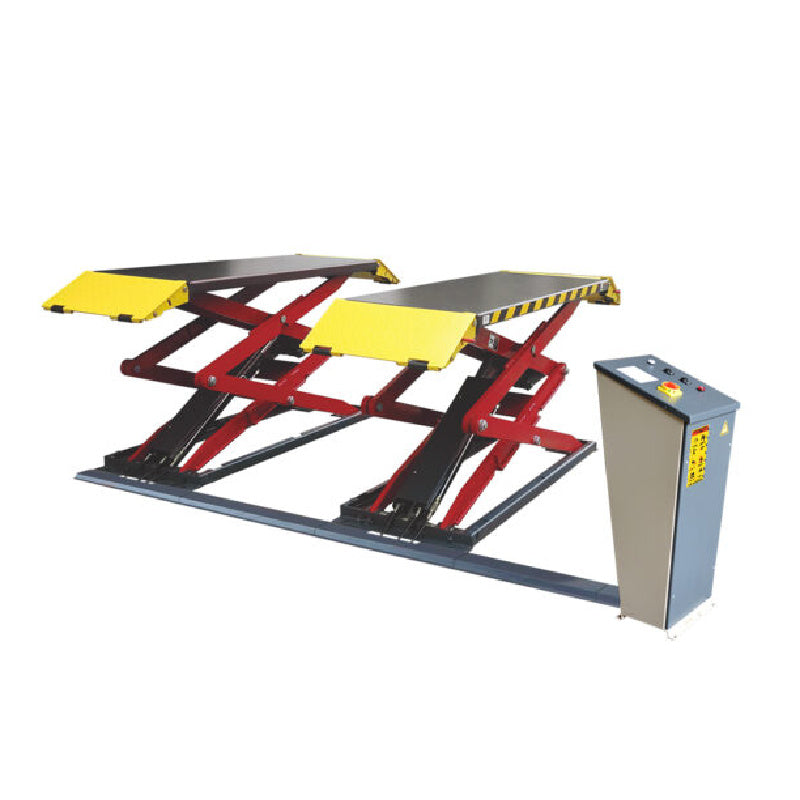

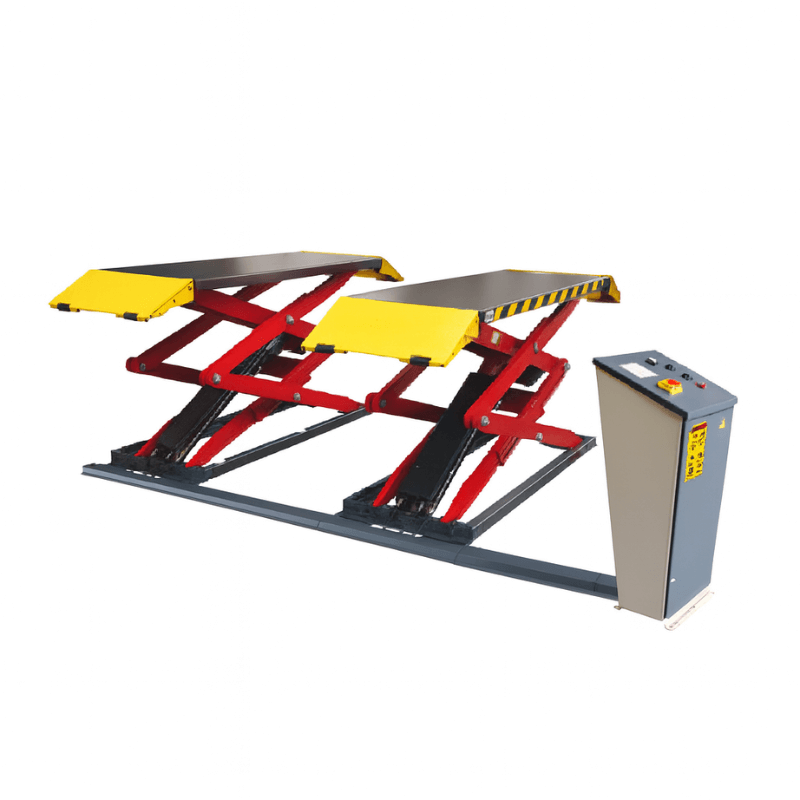

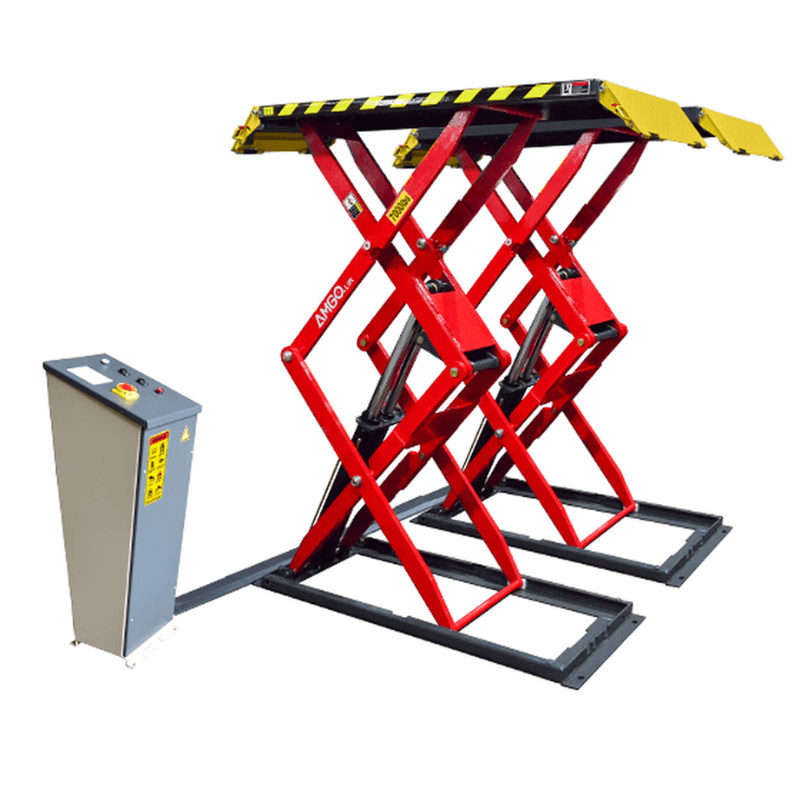

Struggling to squeeze a giant into a tiny bay? The AMGO XL-7 Scissors Lift is the superhero your workshop needs. This space-saving wonder boasts a low-profile design (think 4.5 inches!) that lets you work wonders, even when square footage is tight. But don't be fooled by its size! This mighty machine packs a serious punch, lifting a whopping 7,000 lbs. Imagine effortlessly raising vehicles to a comfortable working height – finally, enough space to walk underneath and tackle any project with ease.

The AMGO XL-7 prioritizes your well-being with a 24V control system, dual cylinders for balanced lifting, and top-notch safety features like burst valves and dual locking mechanisms. It's no wonder this lift is a champion in the safety arena. Don't wait – the AMGO XL-7 Scissors Lift is your key to maximizing space and minimizing hassle.

Scissors Car Lift XL-7 Specifications:

• Lifting Capacity: 7,000 lbs (3000 kg)
• Lifting Time: 42 seconds
• Max Lifting Height: 78 3/4" (2000 mm)
• Minimum Height: 4 1/2" (115 mm)
• Overall Length: 80" (2032 mm)
• Runway Length: 57 5/8" (1464 mm)
• Overall Width: 76 3/4" (1950 mm)
• Width Between Runways: 29 1/2" (750 mm)
• Gross Weight: 1,949 lbs (884 kg)
• Motor: 2.0 HP, 220V/60Hz, single phase
• Weight: 1982 lbs
• Pallet Dimensions:
  • 67" 28" 21"

  • 19" 17" 48"

XL-7 7000lb Scissors Car Lift Special Features:

• 24V control system for safety operation
• 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms
• Hydraulic cylinders built with hose burst valves for safety protection
• Both mechanical and hydraulic locking system. This makes it one of the safest small scissors lift in the world
• A safety stop device at the height of 11 7/8″(300mm), both control buttons are needed to lower the lift to ground, tone alarm for added safety.
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
• Power: 220V/60Hz,single phase


Amgo XL-7 Documentation:

   Amgo XL-7 Scissor Lift Product Manual

   Amgo XL-7 Scissor Lift Installation Instruction
