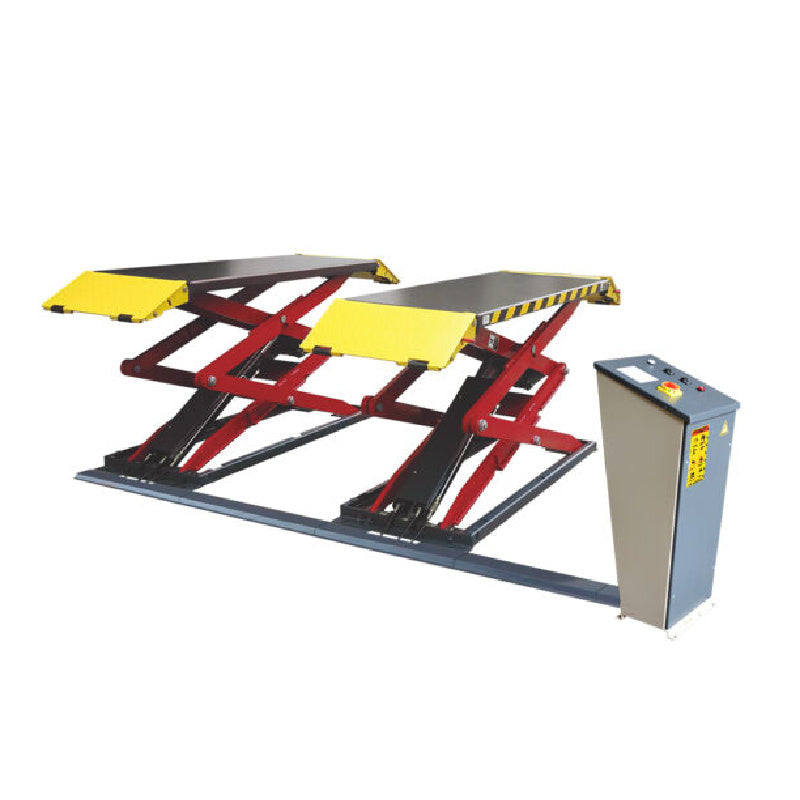

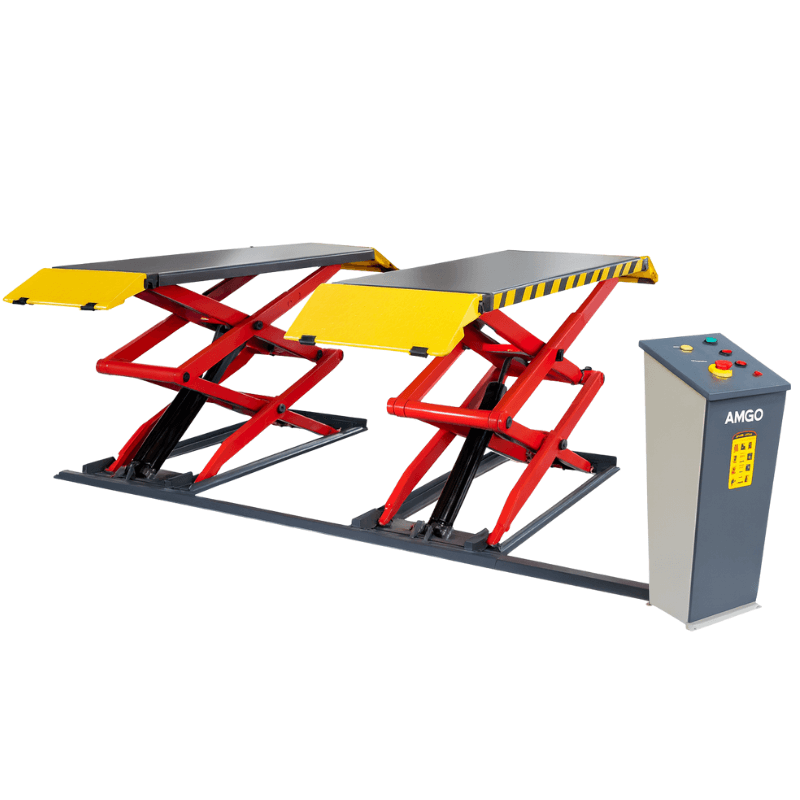

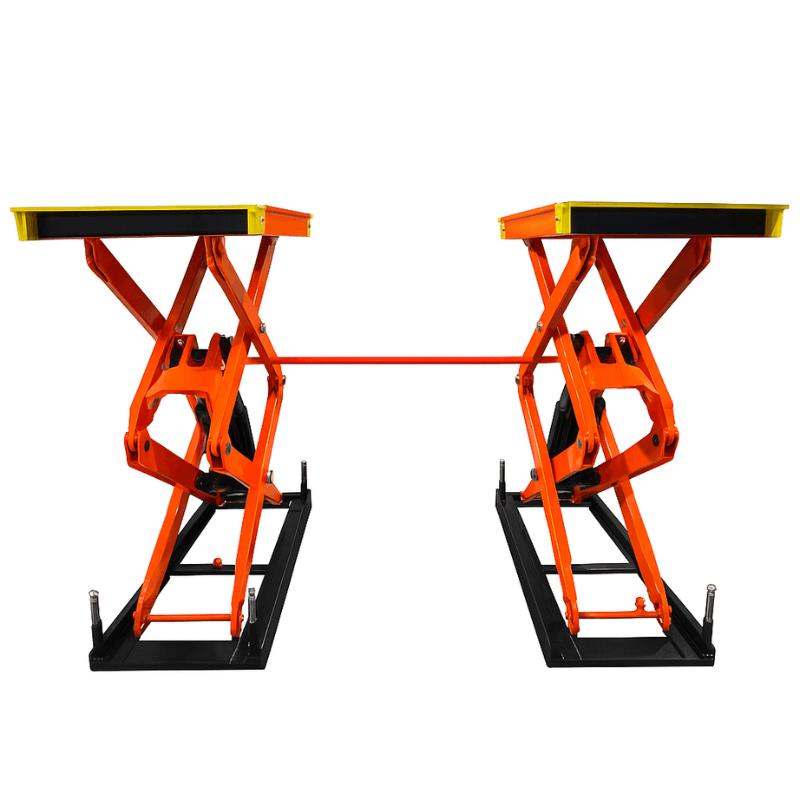

Amgo XL-9F, 9000lb In Ground Scissor Lift - Full Rise

XL-9F Scissor Lift by Amgo

Want a Full-Rise Lift Without Giving Up Valuable Floor Space? The Amgo XL-9F 9,000-lb In-Ground Scissor Lift is engineered for shops that demand maximum lifting performance while keeping a clean, open workspace. Designed as a flush-mount, full-rise scissor lift, it fits perfectly into narrow bays and disappears into the floor when not in use. With a powerful electric-hydraulic system and dual synchronous cylinders, the XL-9F delivers smooth, even lifting for a wide range of passenger vehicles.

Built for safety, strength, and flexibility, the XL-9F features extendable platforms that adjust to different vehicle types, along with an advanced electro-air control system. Hydraulic equalization eliminates the need for a torsion bar, reducing maintenance while improving reliability. From daily service work to high-volume operations, this full-rise scissor lift offers the durability and efficiency professional shops rely on.

Amgo Scissor Lift Specification:

• Model: XL-9F

• Lifting Capacity: 9,000 lbs

• Lifting Time: 49 seconds

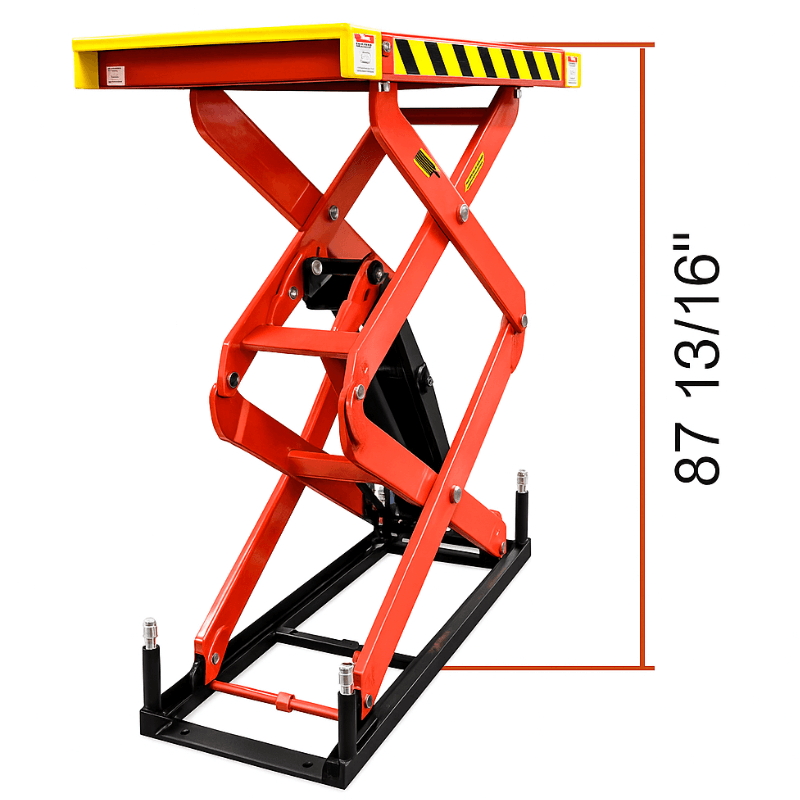

• Max. Lifting Height (A): 87 3/4" (2230 mm)

• Minimum Height (B): 13 3/4" (350 mm)

• Runway Length (C): 65 1/8" – 80 7/8" (1654–2054 mm)

• Overall Width (D): 74 3/4" (1900 mm)

• Width Between Runways (E): 31 1/2" (800 mm)

• Gross Weight: 2,028 lbs (920 kg)

• Motor: 2.0 HP, 220V / 60Hz, Single Phase

• Pallet Dimension:
  • 70"22"37"

  • 19"17"49"

XL-9F, 9000lb Full Rise Scissor Lift Special Features:

• Flush-mount, full-rise scissor lift ideal for narrow bays

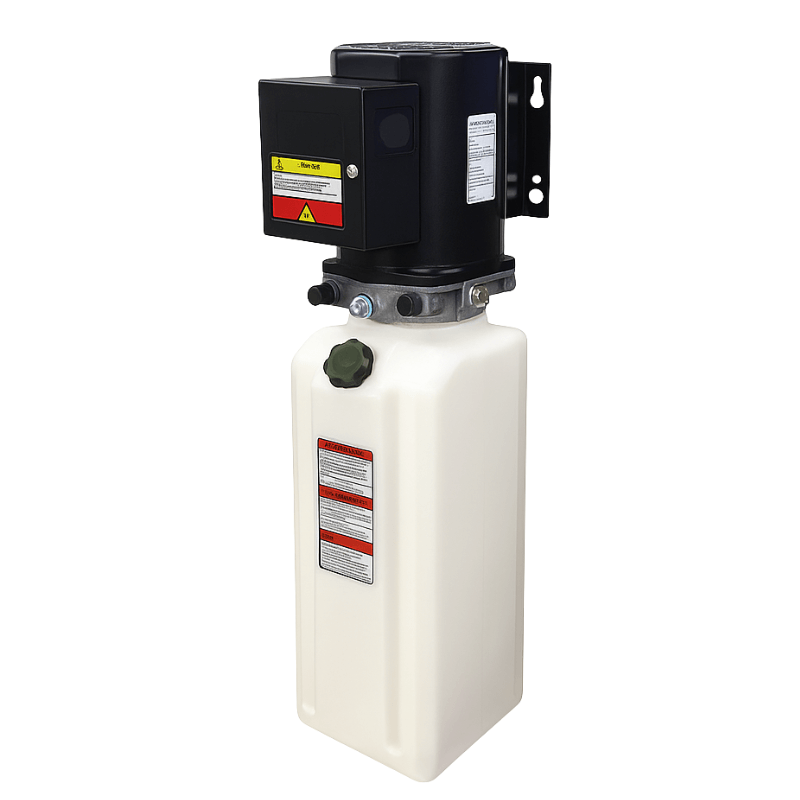

• Electric-hydraulic power system for smooth operation

• Dual synchronous cylinders for even platform lifting

• Extendable and adjustable platforms for multiple vehicle types

• Automatic safety device operated by air cylinders

• Electro-air control cabinet

• Hydraulic equalization system eliminates torsion bar

• Mechanical safety locks for secure lifting

• Automatic safety release system

• Strong tubing construction for added durability and safety

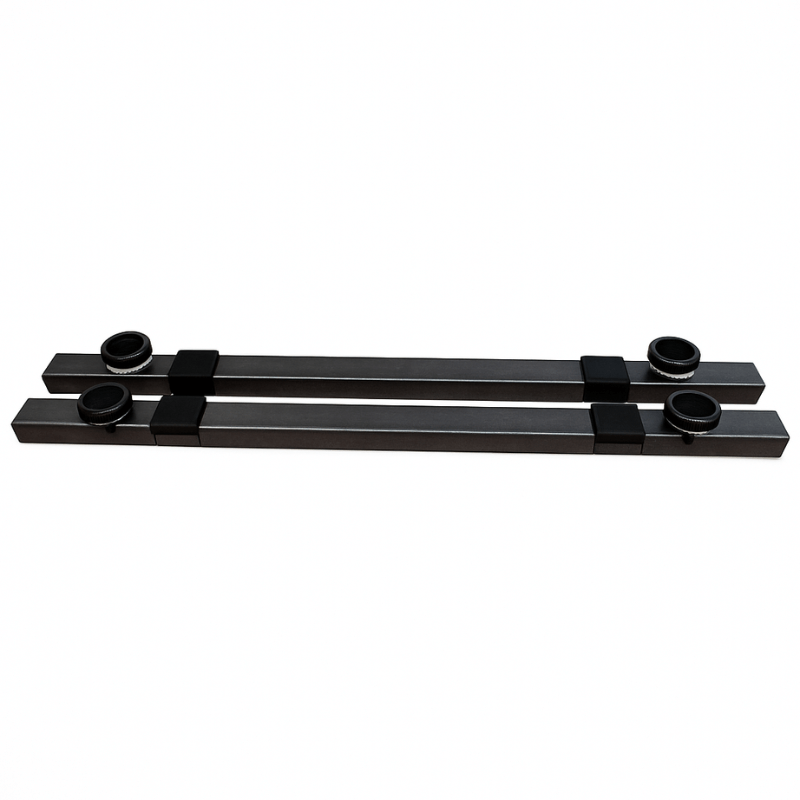

• Leveling bar kit included (No. SX003)

Warranty

• Steel structure: 5 years

• Hydraulic components, bronze bushings, slider blocks, plastic parts: 3 years

• Electrical components and cables: 2 years

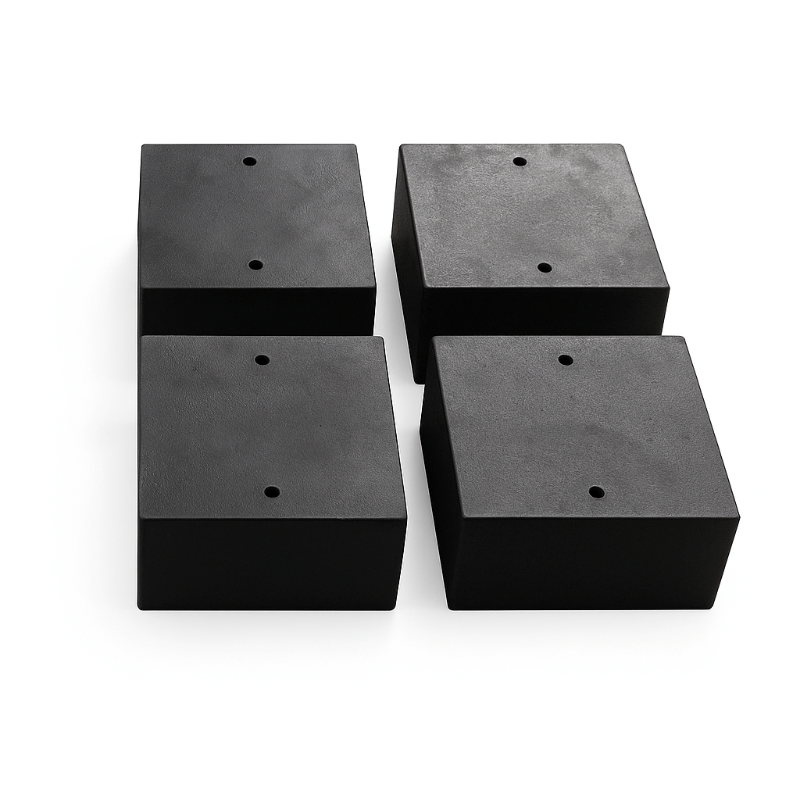

• Rubber pads: Not covered

XL-9F Manual

   Amgo XL-9F Manual

   Amgo XL-9F Installation Instruction
