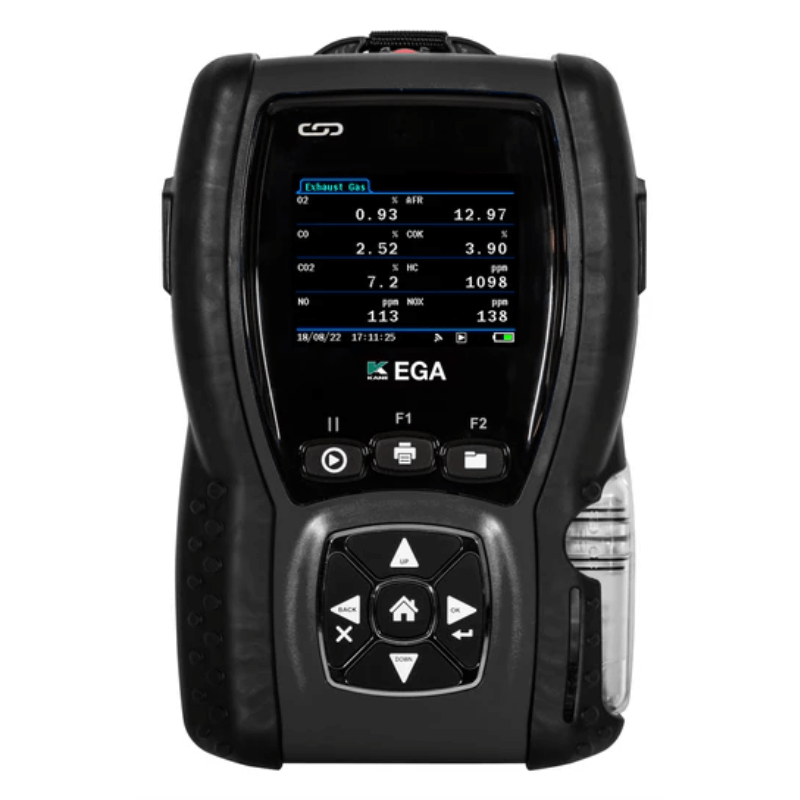

KANE-EGA5 5-GAS Automotive Exhaust Gas Analyzer Kit by Ansed
Sure, you could keep relying on those OBDII codes and hope they tell the whole story, but when they inevitably don't, the ANSED 5-Gas Diagnostic System Kit is here to save the day. This advanced, portable kit steps in where onboard diagnostics fail, measuring HC, O2, CO, CO2, and the ever-elusive NOx. It delivers live readings—except for NOx and Lambda, of course, because who doesn't love calculated values?—cutting your diagnostic time and keeping comebacks to a minimum.
Equipped with ANSED’s self-calibrating analyzer, rugged probe, and connectivity features like Bluetooth and USB, it’s like having a tool that does everything but serve you coffee. The software even interprets gas readings and tells you what’s wrong—because clearly, figuring that out is too much to ask. Compact, portable, and surprisingly low-maintenance, this is the tool you didn’t know you needed until you realize your current setup just isn’t cutting it.
Product Includes
- KANE 5-Gas EGA5 Analyzer and EP1 Heavy Duty Probe
- CU12VDC2A21 AC Charger
- CA10733/4 12V DC Charger
- Filters
- CL5 USB cable
- Manual
- ANSED Software & KANE LINK Software
- Soft Shoulder Carry Bag
Gas Analyzer Kit KANE-EGA5 Specifications
- CO (Carbon Monoxide): 0-10% range, ±5% accuracy
- Oxygen (O2): 0-25% range, ±0.3% accuracy
- Hydrocarbons (HC): 0-5000 ppm range, ±5% accuracy
- CO2 (Carbon Dioxide): 0-20% range, ±0.3% accuracy
- Nitric Oxide (NOx): 0-5000 ppm, ±5% accuracy
- Lambda: 0.8-1.2 AFR (Petrol), 11.76-17.64 AFR (LPG)
- Battery Life: 6+ hours from a full charge
- PC Connection: RS232 port
- Data-Logging: Stores up to 200 tests
- Dimensions: 240mm x 165mm x 65mm
- Weight: 1.2 kg (2.65 lbs)
- Operating Range: +5°C to +50°C
KANE-EGA5 Gas Analyzer Kit Special Features
- Portable and easy to use with a handheld design
- Tests HC, O2, CO, CO2, and NOx with live readings
- Self-calibrating—no cal-gas required
- Bluetooth and USB connectivity for easy data transfer
- Fast diagnostics without the need for a dynometer
- Compatible with KANE-IRP3 hi-speed infrared printer
- Long-lasting rechargeable battery with 6+ hours run time
- Adjustable pump speed to optimize battery life
Ansed KANE-EGA5 Documentations
No Documents
