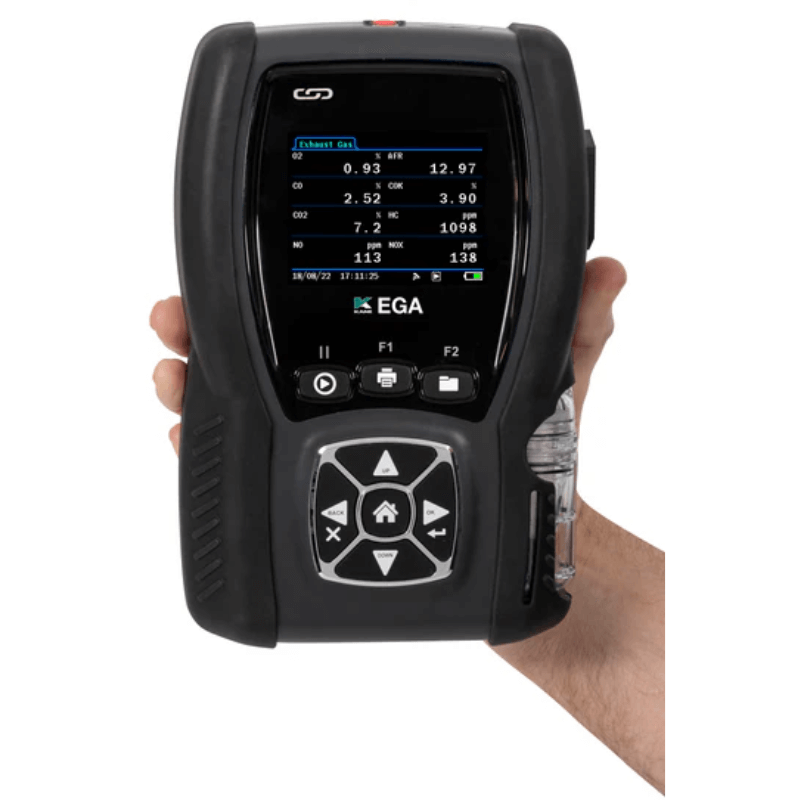

Ansed KANE-EGA5/PR 5-GAS Automotive Exhaust Gas Analyzer Kit w/ Printer

SKU KANE-EGA5/PR
by Ansed
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$4,405.00
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

KANE-EGA5/PR 5-GAS Automotive Exhaust Gas Analyzer Kit w/ Printer by Ansed

When your OBDII just shrugs at you, the ANSED KANE-EGA5/PR 5-Gas Automotive Exhaust Gas Analyzer Kit steps in like the detective your diagnostic process has been missing. It goes beyond the basics, detecting those sneaky exhaust gas issues your onboard computer couldn’t care less about. And just to make your life easier, it even comes with a KANE IRP-3 Infra-red Printer, so you can quickly spit out results for the world to see.

Not only does it save you time with its no-cal-gas-needed self-calibrating analyzer and fast diagnostics, but its software practically hands you the solutions on a silver platter. With Bluetooth connectivity, data-logging, and a hefty battery life, this analyzer is practically begging to solve all your emissions-related mysteries. Plus, it's portable, so you can take this super-sleuth tool anywhere, anytime.

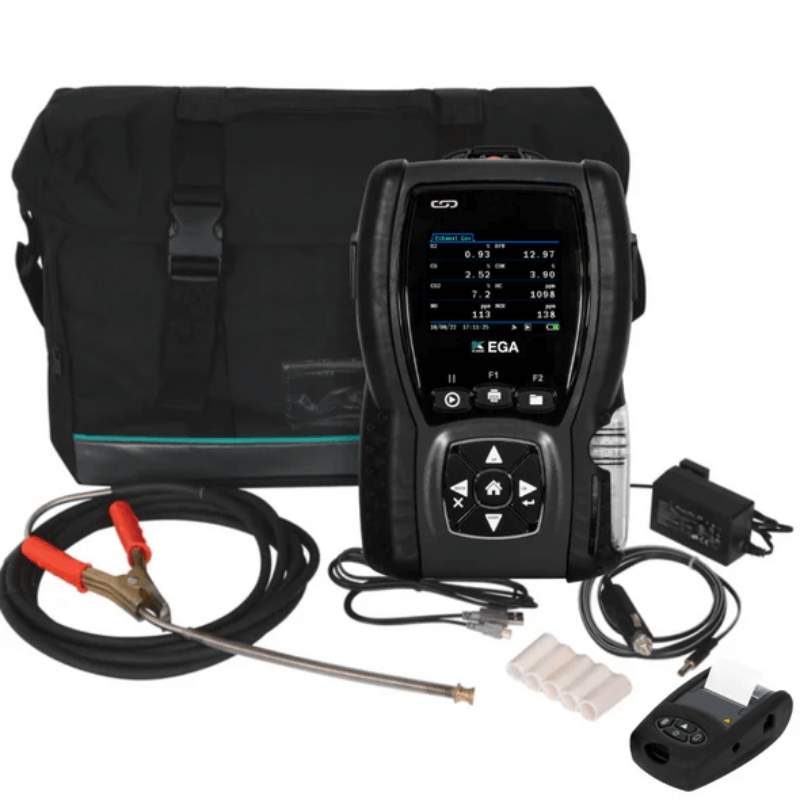

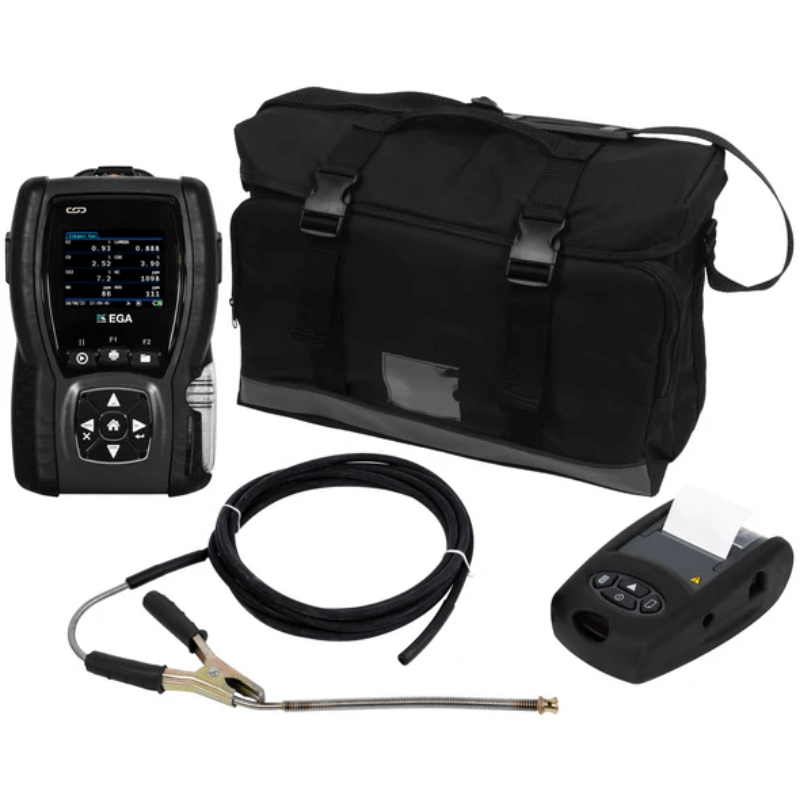

Product Includes:

  • KANE 5-Gas EGA5 Analyzer
  • EP1 Heavy Duty Probe
  • CU12VDC2A21 AC Charger
  • Filters
  • CA10733/4 12V DC Charger
  • CL5 USB Cable
  • Manual
  • ANSED Software & KANE LINK Software

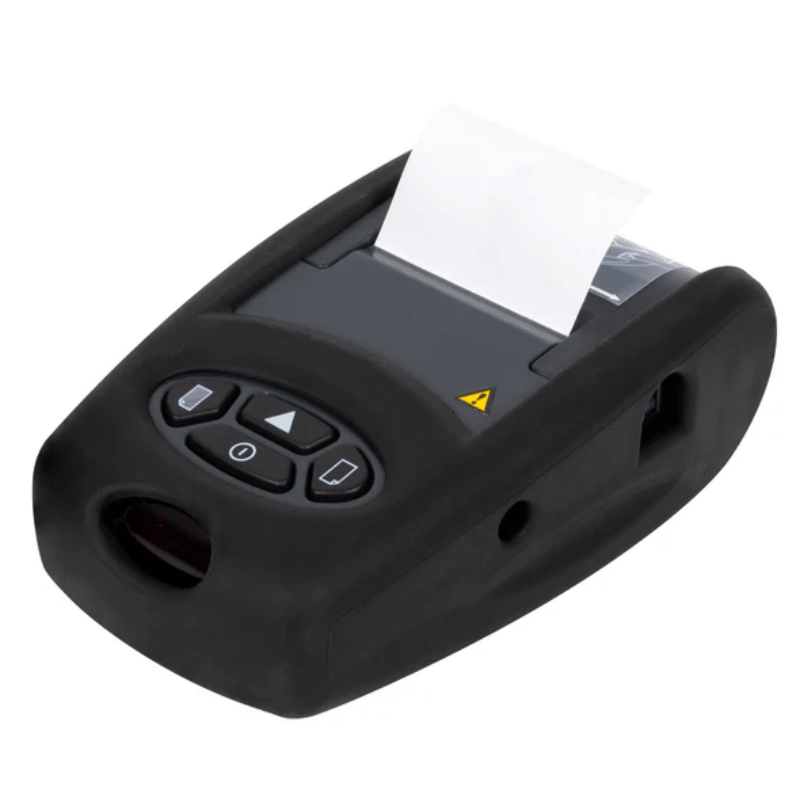

  • KANE IRP-3 Infra-red Printer with rechargeable battery
  • Soft Shoulder Carry Bag

Gas Analyzer Kit w/ Printer KANE-EGA5/PR Specification

  • Sensor Response Time: Nominal 15 seconds
  • Warm-Up Time: Less than 1 minute
  • Pre-programmed Fuels: Petrol/Gasoline, LPG, Diesel, CNG, and Ethanol
  • PC Connection: Via USB and RS 232 port
  • Data-Logging Capacity: Up to 500 tests
  • Dimensions:
    • Handset Weight: 1.5 kg (3.3 pounds)
    • Handset Dimensions: 250mm x 170mm x 70mm (9.8 x 6.7 x 2.75”)
    • Probe: 400mm insertion depth, diameter 18mm
    • Probe Hose Length: 5m long hose with clip handle for exhaust attachment
  • Operating Temperature Range: +0°C to +55°C / 10% to 90% RH non-condensing
  • Storage Temperature: Minimum: -10°C, Maximum: +50°C
  • Battery Charger:
    • Input: 100-240 V AC
    • Output: 12 V DC
  • Battery Run Time: 8+ hours from full charge

KANE-EGA5/PR Gas Analyzer Kit w/ Printer Special Features

  • Portable and easy to use with a handheld design
  • Tests HC, O2, CO, CO2, and NOx with live readings
  • Self-calibrating—no calibration gas required
  • Bluetooth and USB connectivity for easy data transfer
  • KANE IRP-3 printer included for high-speed printouts
  • Fast diagnostics without a dynometer
  • Rechargeable battery with 6+ hours of operation
  • Large graphic display for easy reading of all gases on one screen
  • Variable pump speed for optimizing battery life
