MS6050R23-ATV MemoBike6050 Diagnostic Scan Tool Kit for ATVs by Ansed

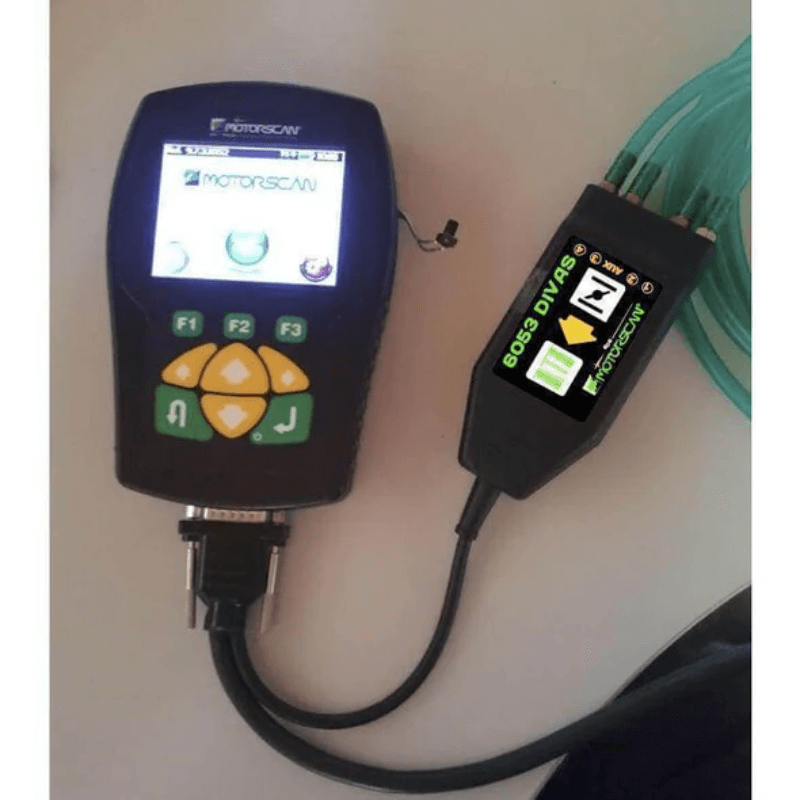

Struggling to synchronize throttle valves or pinpoint intake pressure issues on your power sports vehicles? The ANSED MS6053 DIVAS accessory takes the MS6050 scan tool to the next level, offering advanced diagnostic capabilities for motorcycles, ATVs, and more. This tool handles precise throttle valve synchronization, both for carburetor and fuel-injected systems, and delivers real-time manifold intake pressure analysis. It's designed to catch issues that could affect engine performance, all while giving you accurate RPM readings and even acoustic data, thanks to its built-in microphone.
For professional technicians who need to ensure peak engine performance, the MS6053 DIVAS is essential. This advanced accessory allows you to monitor, compare, and analyze crucial engine functions in real-time, giving you detailed graphical representations of pressure values and fault codes. The self-powered unit is compact and powerful, providing comprehensive diagnostics that help you maintain vehicles with precision and confidence.

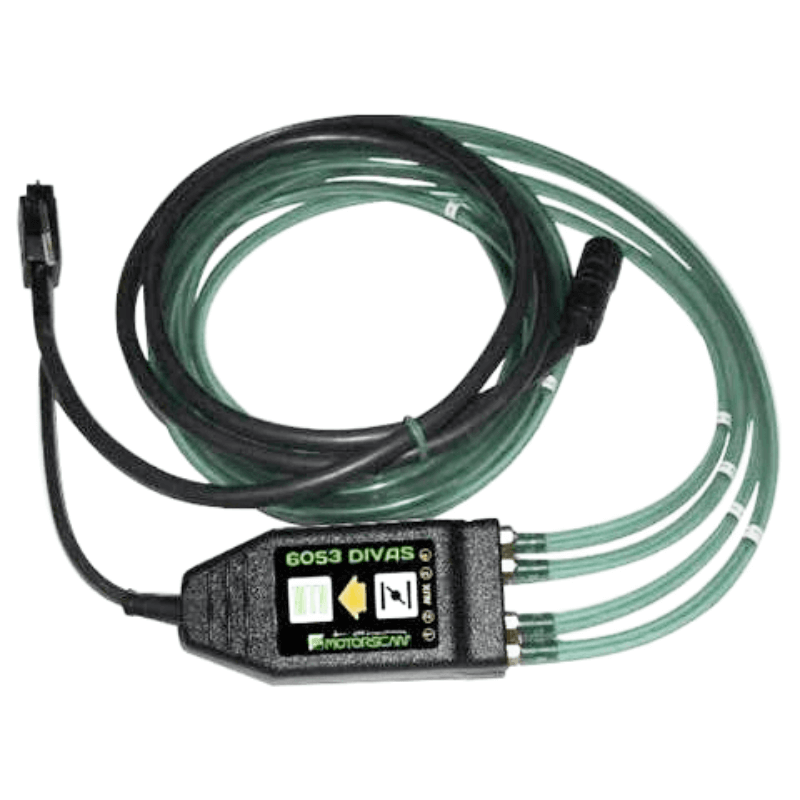

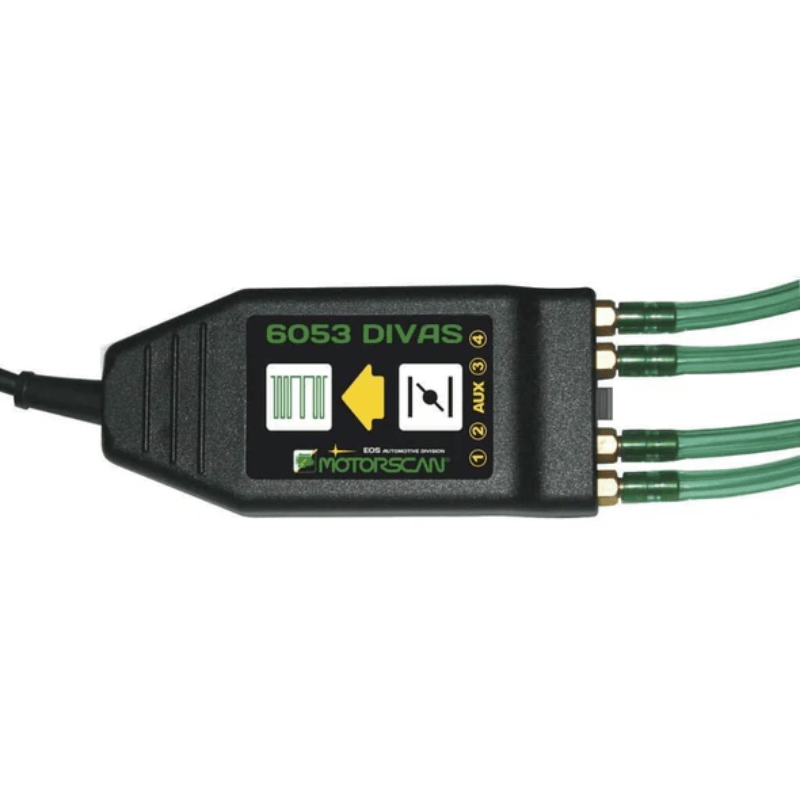

DIVAS Accessory MS6053 Specifications
- Pressure Sensor Channels: 4
- Pressure Sensor Range: 15 kPa to 115 kPa (150 mBar to 1150 mBar)
- Pressure Sensor Accuracy: ±1 mBar
- Pressure Sensor Sampling Speed: 1 ms
- Selectable Pressure Units: mBar, kPa, cmHg, A/D steps
- Analog/Digital Input (AUX): 0-5 Volt and 0-12 Volt
- Engine Speed Range: 400 to 6000 rpm
- Built-in Microphone: For acoustic analysis in decibels (dB)
- Power Supply: Self-powered by MS6050 internal battery
- Additional Features: Atmospheric pressure display, pressure sensor self-calibration, multi-language support, save and replay test functionality
MS6053 DIVAS Accessory Special Features

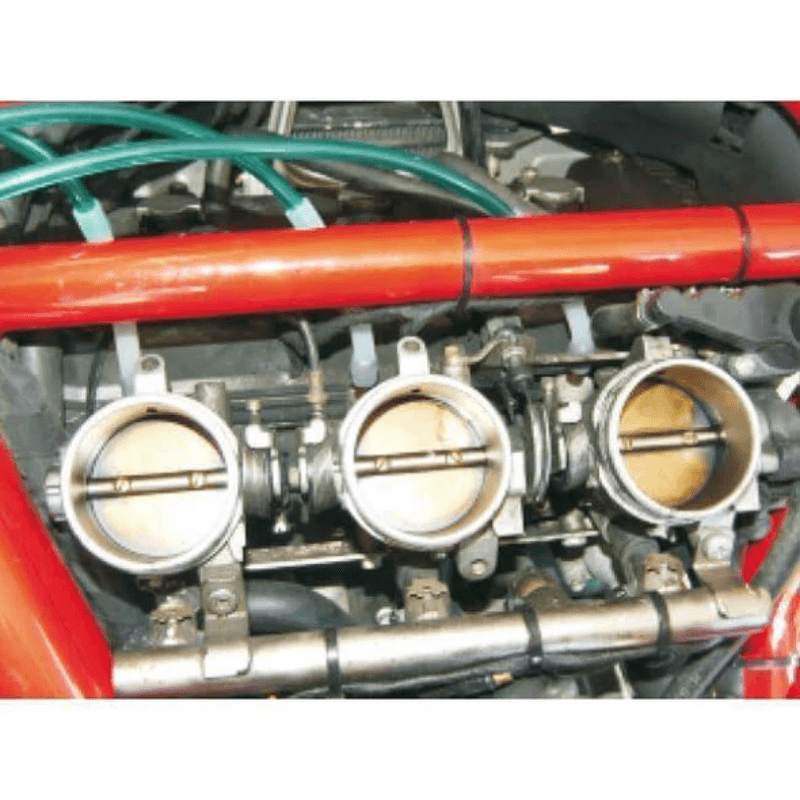

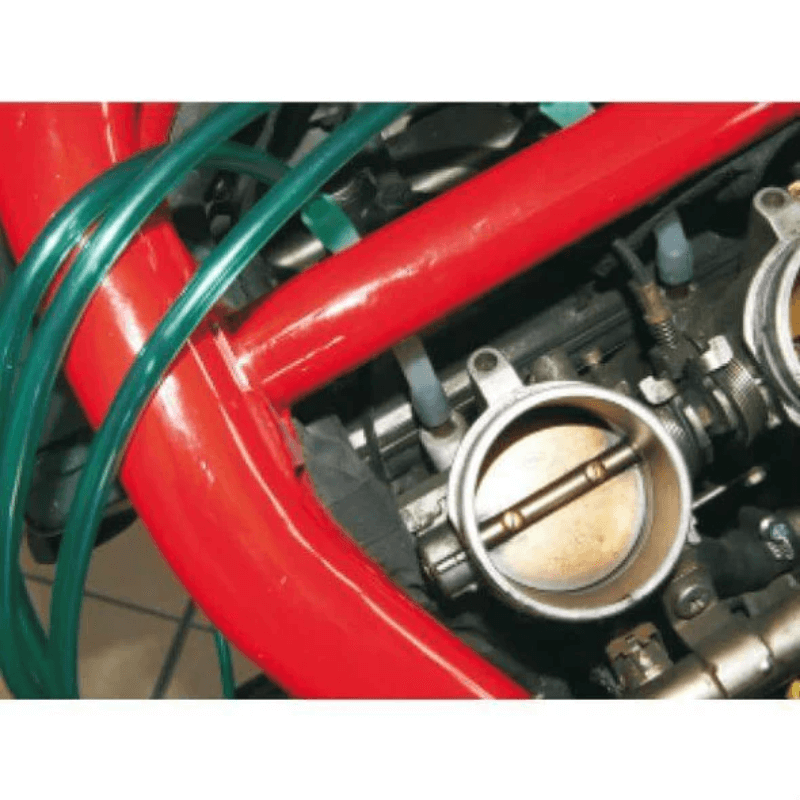

- Throttle Valve Synchronization: Synchronizes throttle valves on carbureted and fuel-injected systems according to manufacturer specifications.

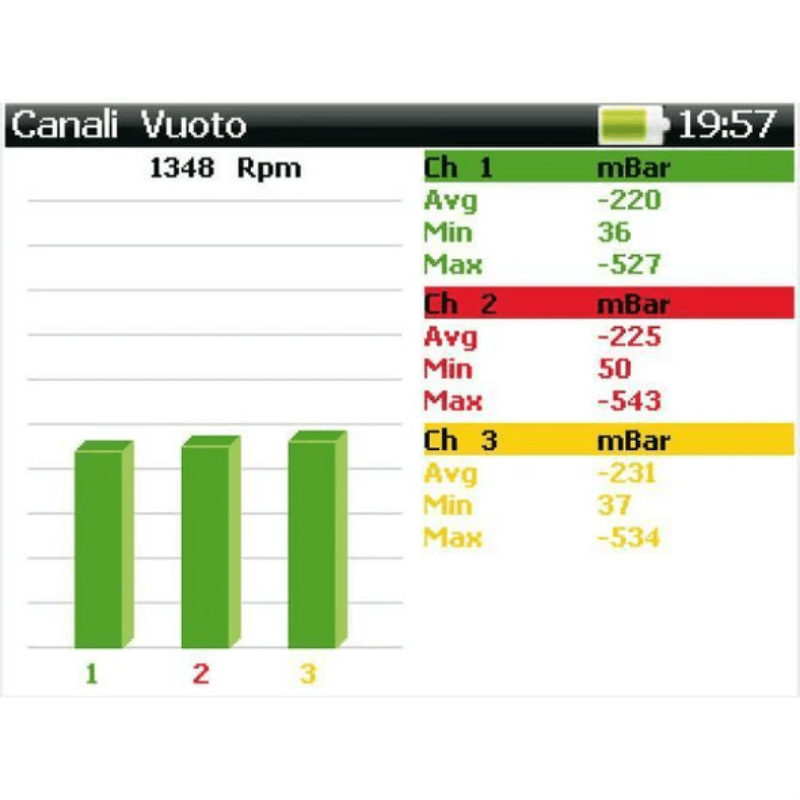

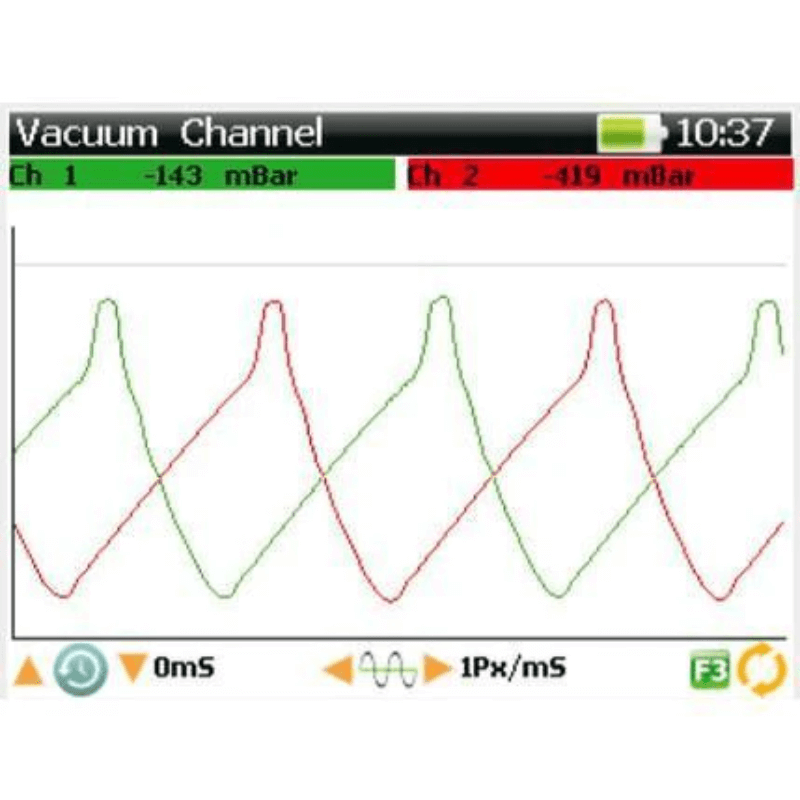

- Manifold Pressure Analysis: Performs dynamic analysis of manifold intake pressures, with detailed graphical representation of minimum, maximum, and average pressure values.
- Comprehensive Diagnostics: Integrates synchronization with engine diagnostic functionalities, allowing for idle speed control lock, TPS reset, and fault code analysis.
- Analog Input Monitoring: Features three analog inputs for real-time monitoring and data acquisition of vehicle sensors, enabling dynamic analysis and comparison with ECU data.
- Built-in Microphone: Supports acoustic analysis, particularly useful for working with silencers, allowing sound pressure readings in decibels.
- Pressure Calibration and Display: Atmospheric pressure display and pressure sensor self-calibration ensure accurate diagnostics.
