Atlas ML-6051BC, 111,000 LB. Mobile Column Lift System (6 pack)- ALI Certified

SKU ATEML-6051BC
by Atlas
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$43,999.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

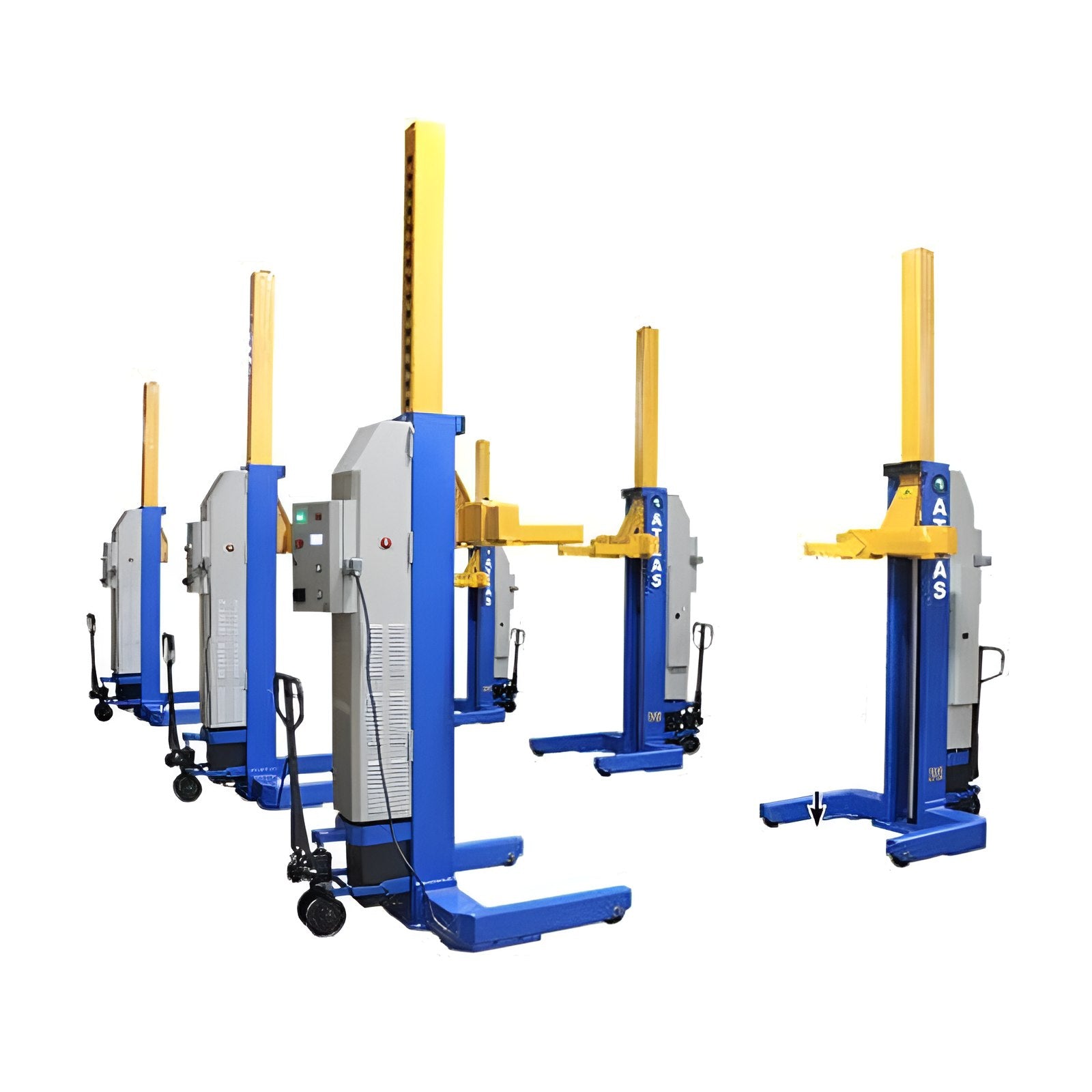

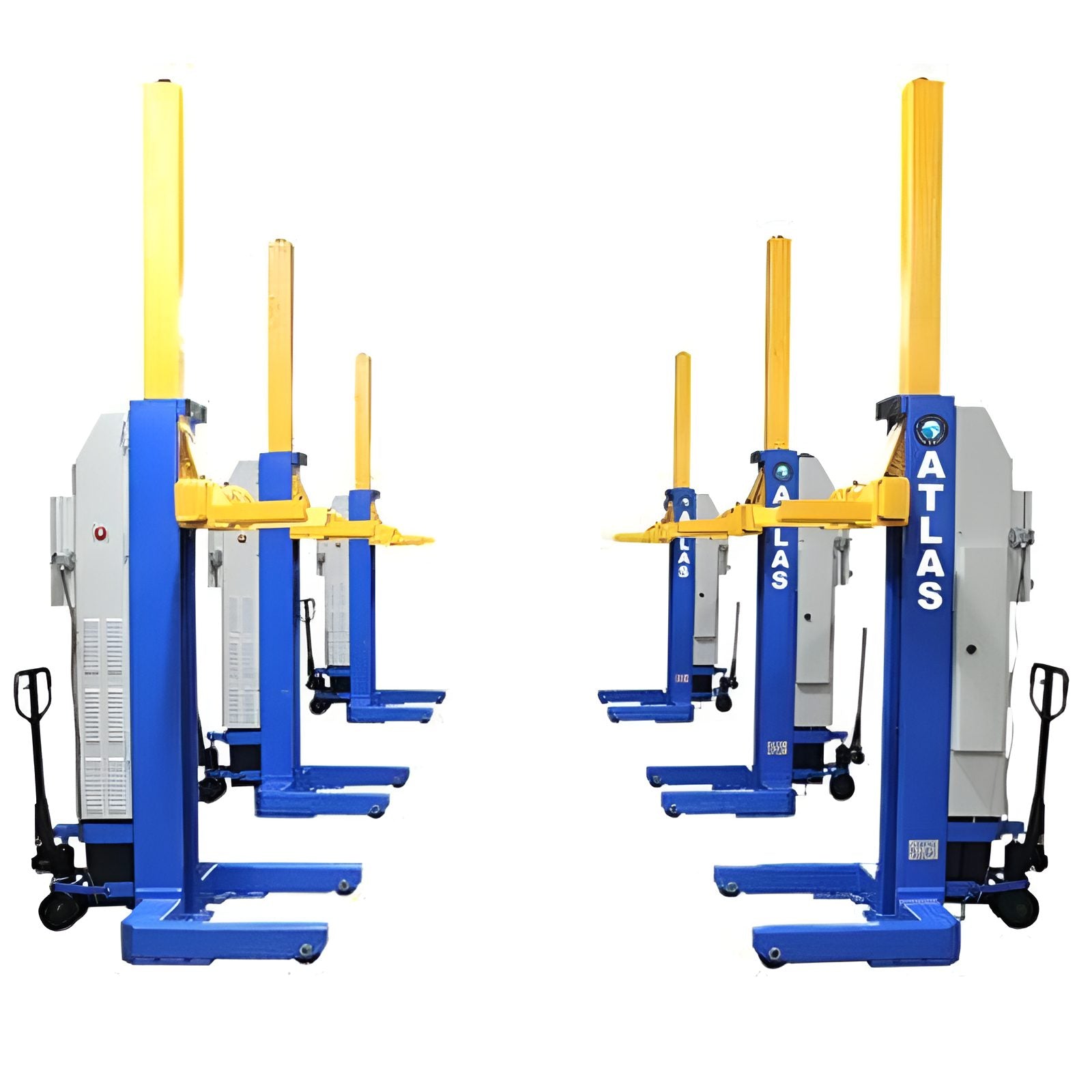

ML-6051BC Mobile Column Lift System by Atlas

Is your workshop's layout limiting the types of vehicles you can service? Are you constantly battling space constraints when working on heavy trucks? Your current lifting equipment is holding you back, forcing you to turn away jobs you're otherwise capable of handling. The Maxima® ML6051BC mobile column lift system is the solution to these challenges. This versatile system isn't just a lift; it's a game-changer for your workshop.

Tired of being confined to a single spot in your shop? These columns go wherever you need them, even outdoors on level concrete. Frustrated by lifts that can't handle diverse truck sizes? Each column supports a whopping 18,500 lbs, with adjustable forks accommodating tire diameters from 19 to 44 inches. Worried about workflow interruptions? With 10-20 lifts per battery charge and easy 110V recharging, you'll keep projects moving smoothly. With the Maxima® ML6051BC, you'll be ready to take on any heavy vehicle job, transforming your garage into a versatile shop capable of handling a wide range of repairs and maintenance tasks.

Mobile Column Lift System ML-6051BC Specifications:

  • Capacity per Column: 18,500 LB.
  • Motor: 2.2 Kw 24V DC motor with two batteries per column
  • Max. Lifting Height: 67" (5' 7")
  • Overall Height: 145" (12' 1")
  • Resting Height: 88 1/2" (7' 4 1/2")
  • Width: 43 1/2" (3' 7 1/2")
  • Length: 55 1/2" (4' 7 1/2")

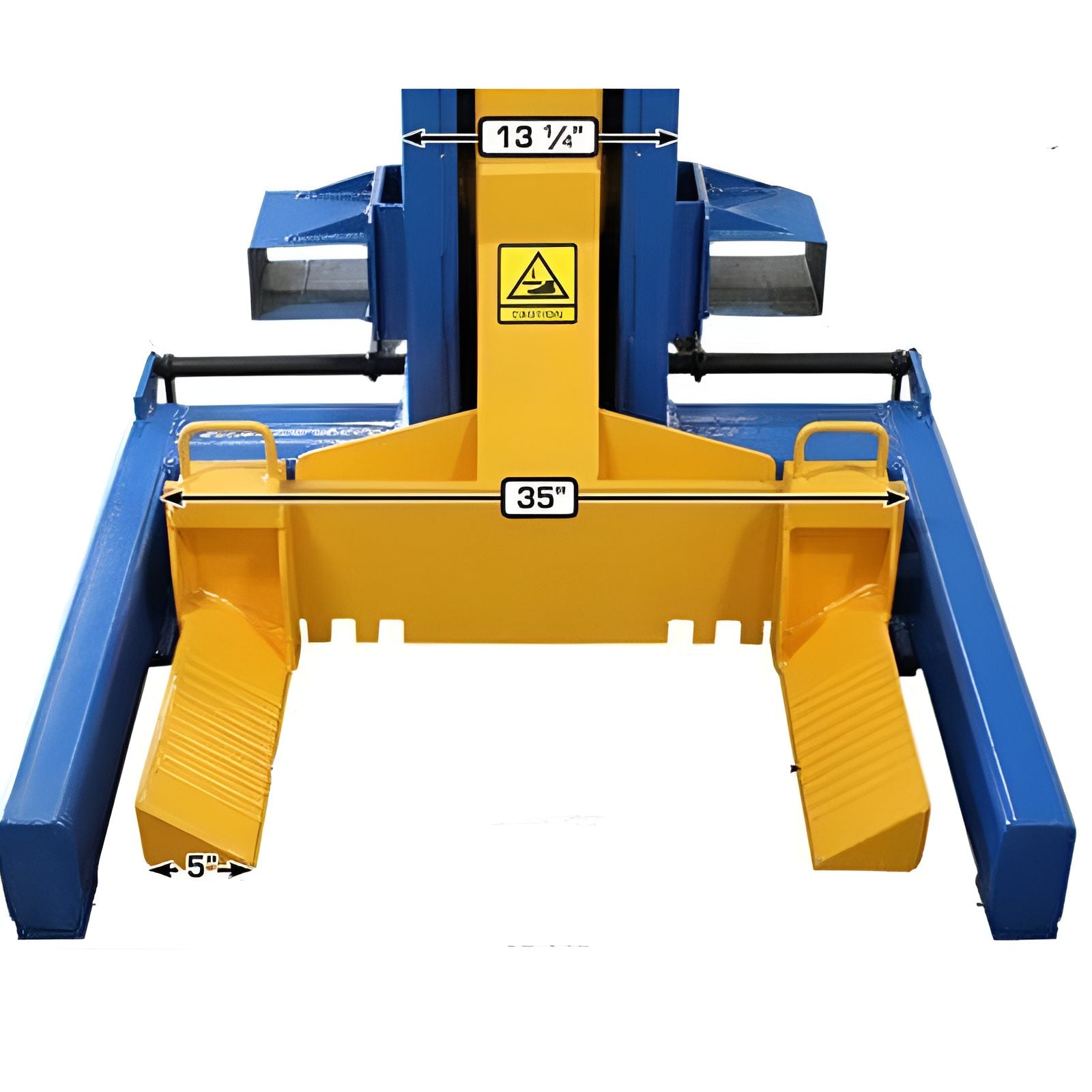

  • Column Width: 13 1/4"
  • Warranty: 2 Year Limited
  • Shipping Weight (For Six Columns): 10,200 LB. each
  • Shipping Weight Per Column: 1,700 LB. each
  • Max Tire Diameter: 44"
  • Min Tired Diameter: 19

ML-6051BC 111,000 LB. Mobile Column Lift System Special Features:

  • ALI CERTIFIED
  • Lift Qty: 6
  • Simultaneous operation of all columns
  • LCD screen shows exact lifting height of each column
  • Electronic system ensuring synchronization of all columns
  • Double-safety guaranteed by both hydraulic flow control and mechanical locks
  • Portable columns make your work easy and comfortable

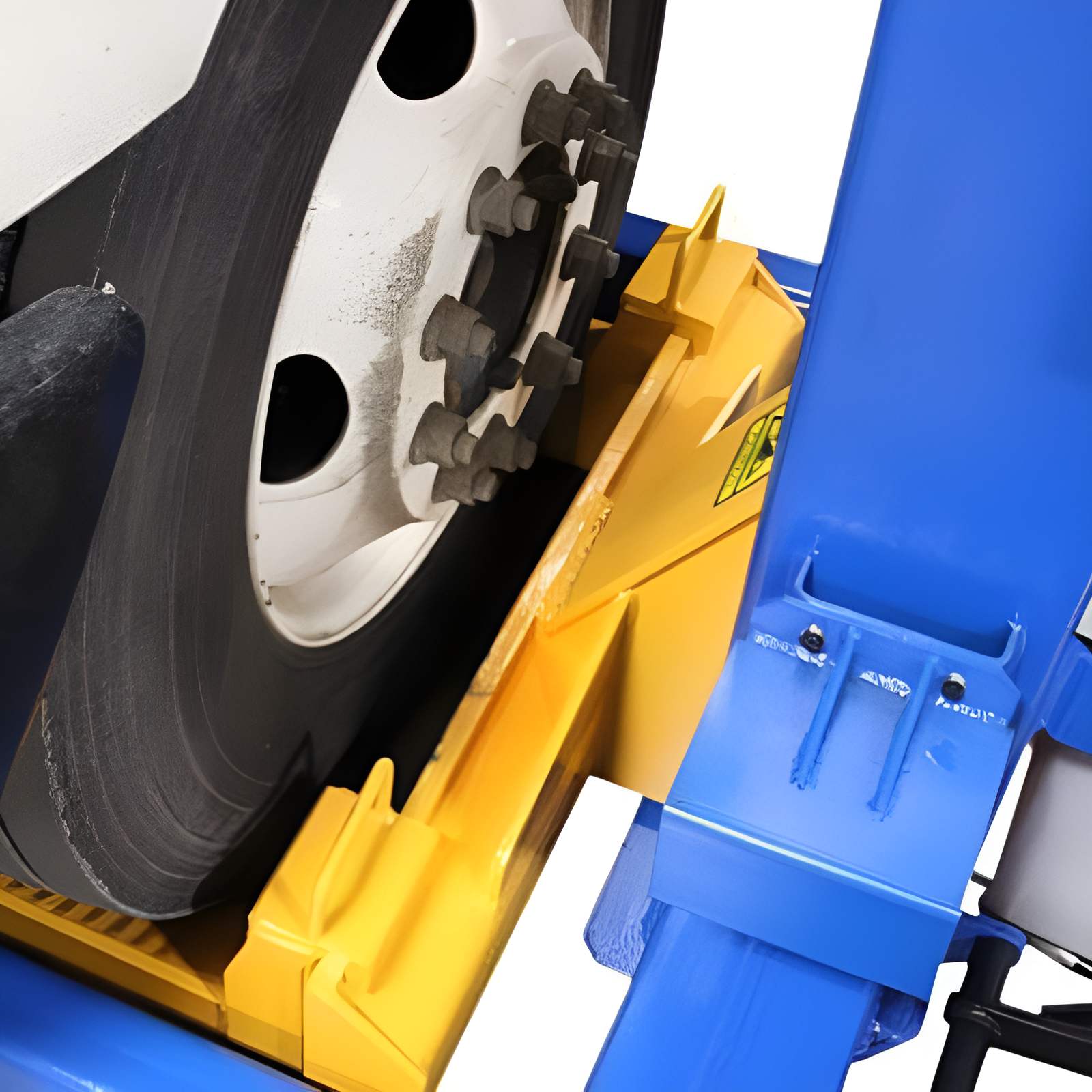

  • Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
  • Emergency stop button on every column
  • Six 32' column connecting cables included
  • 2.2 Kw 24V DC motor with two batteries per column
  • 2 Year Limited Warranty
  • Lifting capacity per column: 18,500
  • Weight per column: 1,700 lbs
  • Shipping Weight (for six columns): 10,200 lbs

Atlas ML-6051BC Product Manual:

Mobile Column Lift System ML-6051BC Lift Product Manual   Atlas ML-6051BC Column Lift System Product Manual
