6MR Mid-Rise Lift by Atlas
Body shops and wheel service specialists often require additional lifting height and accessibility for vehicle maintenance tasks. However, traditional lifting solutions may lack portability and versatility.
The Atlas® 6MR offers a solution tailored to these needs. As a free-standing portable scissor lift with a 6,000 lb. capacity, it provides extra lifting height while maintaining portability. This enables easy elevation of cars or trucks to a comfortable working height, allowing access to areas under the vehicle that are typically challenging to reach with other portable mid-rise lifts.
Stability & Safety: The large footprint of the Atlas® 6MR provides a steady platform for raised vehicles, maintaining stability at all safety lock positions with a lifting height of over 53 inches.
Important Consideration: Due to the horizontal cylinder configuration, it is essential to leave space (2-6 inches) between the lifting surface of the lift and the vehicle’s lifting points to ensure proper operation.
In summary, the Atlas® 6MR Portable Scissor Lift combines extra lifting height, portability, and versatility to meet the diverse needs of body shops and wheel service specialists, making it a popular choice across the USA.
Mid-Rise Lift 6MR Specifications:
- Capacity: 6,000 lb.
- Maximum Lifting Height With Adapters: 53 1/2" (4' 5 1/2")
- Length: 82" (6' 10")
- Structure Width: 39"
- Lowered Height: 5 3/4" (w/ Arms but not Adapters)
- Short Adapter: 1 1/2"
- Tall Truck Adapter: 5 3/4"
- Motor/Electrical Requirement: 110volt (PLUG NOT INCLUDED)
- Oil Requirement: 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 1050 lb.
6MR 6,000 lbs Mid-Rise Lift Special Features:
- Capacity: 6,000 LB.
- Grade: Commercial
- Coating: Powder Coated
- Lock Release: Single point Manual Lock Release
- Design: Free Standing, Portable
- Hydraulic System: Dual Hydraulic Cylinders
- Locking Positions: 7

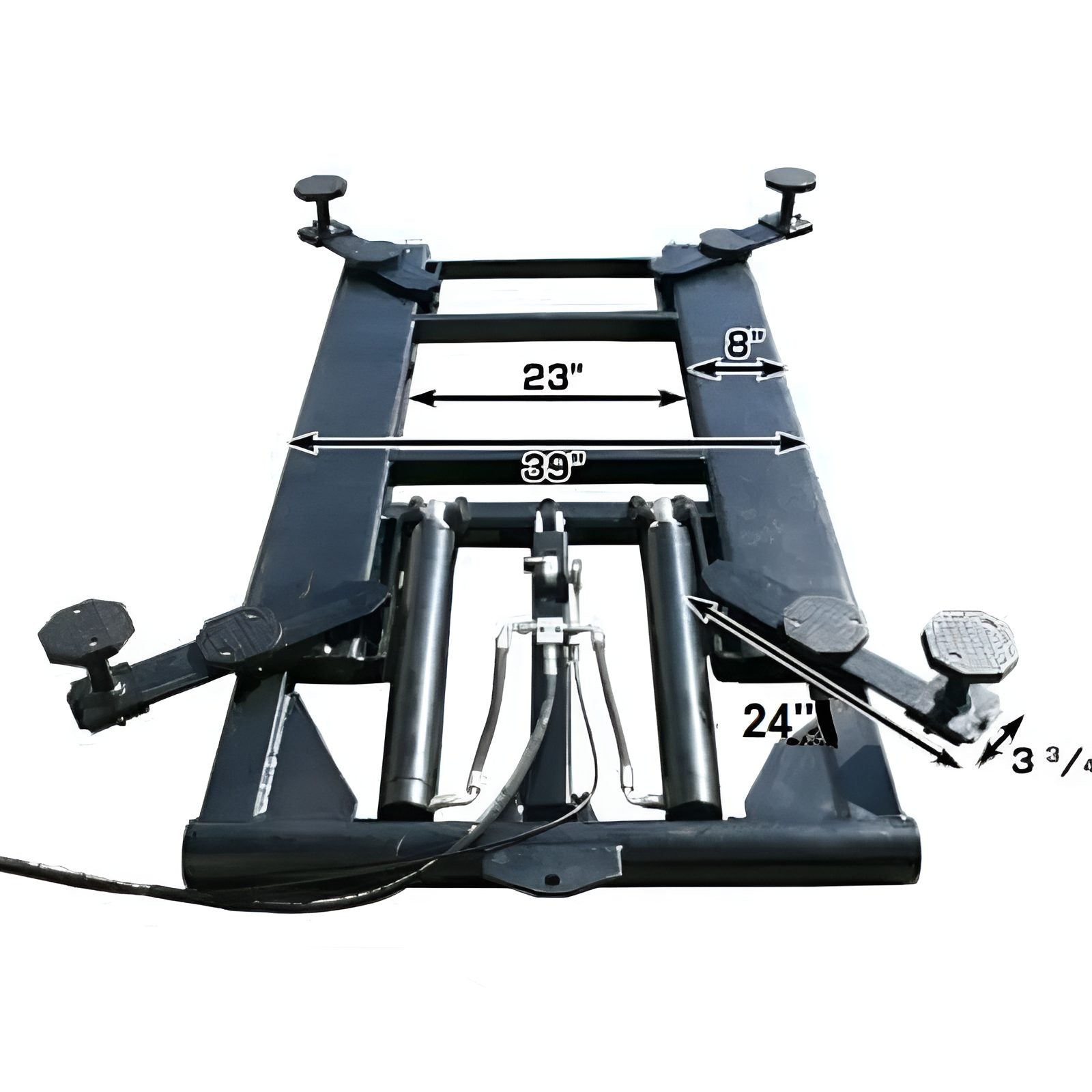

- Arm Length: NOW FEATURING LONGER ARMS (24″ EACH)
- Included: Truck Adapters
- Additional: Separate motor stand included
- Operation: 110volt Electric (PLUG NOT INCLUDED)
- Shipping Weight: 1,050 lbs.
- Warranty: 2 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Atlas 6MR Documentation:
Atlas 6MR Mid-Rise Lift Product Manual
