Atlas 6PL 6,000 lb Open Center Low Rise Lift

6PL Low Rise Lift by Atlas

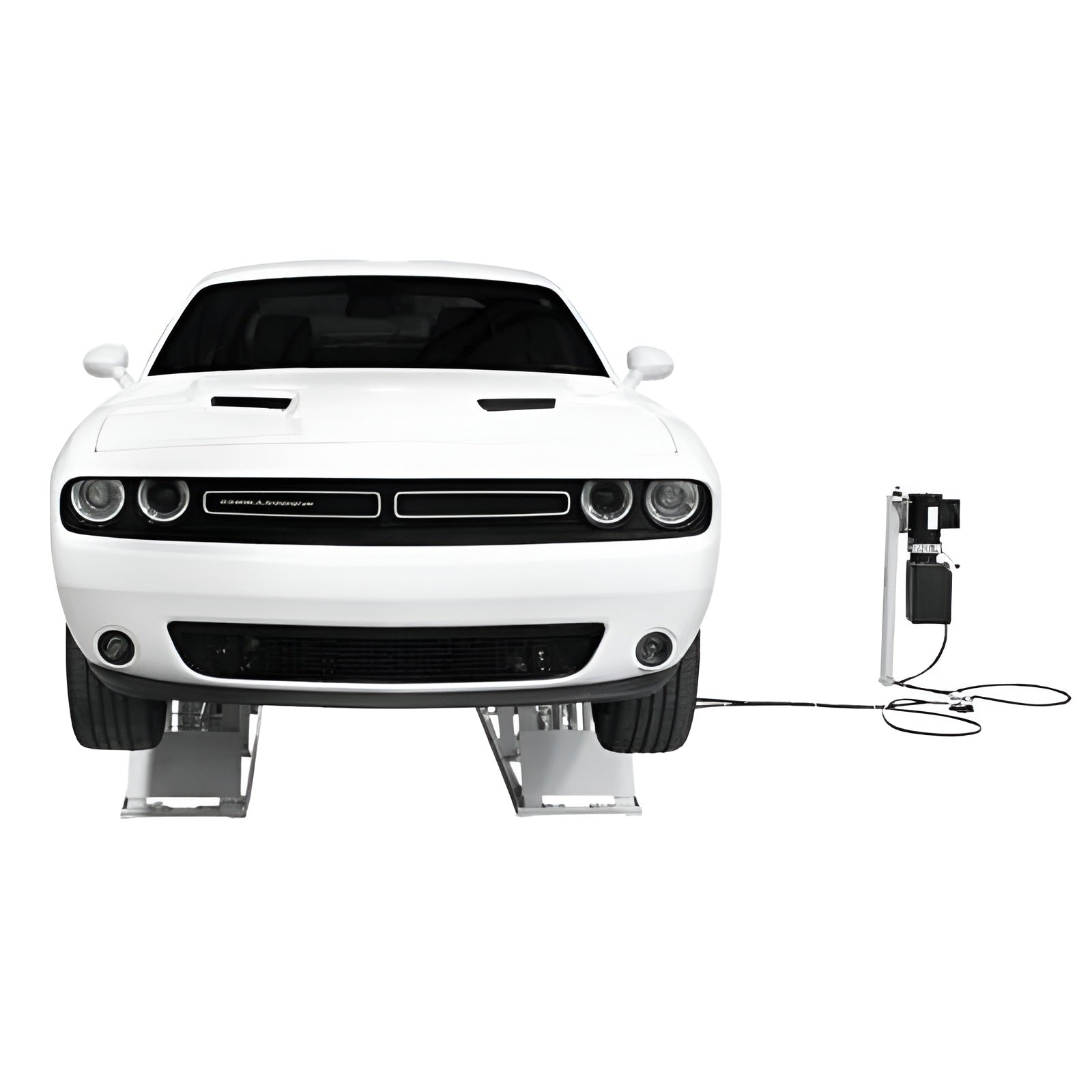

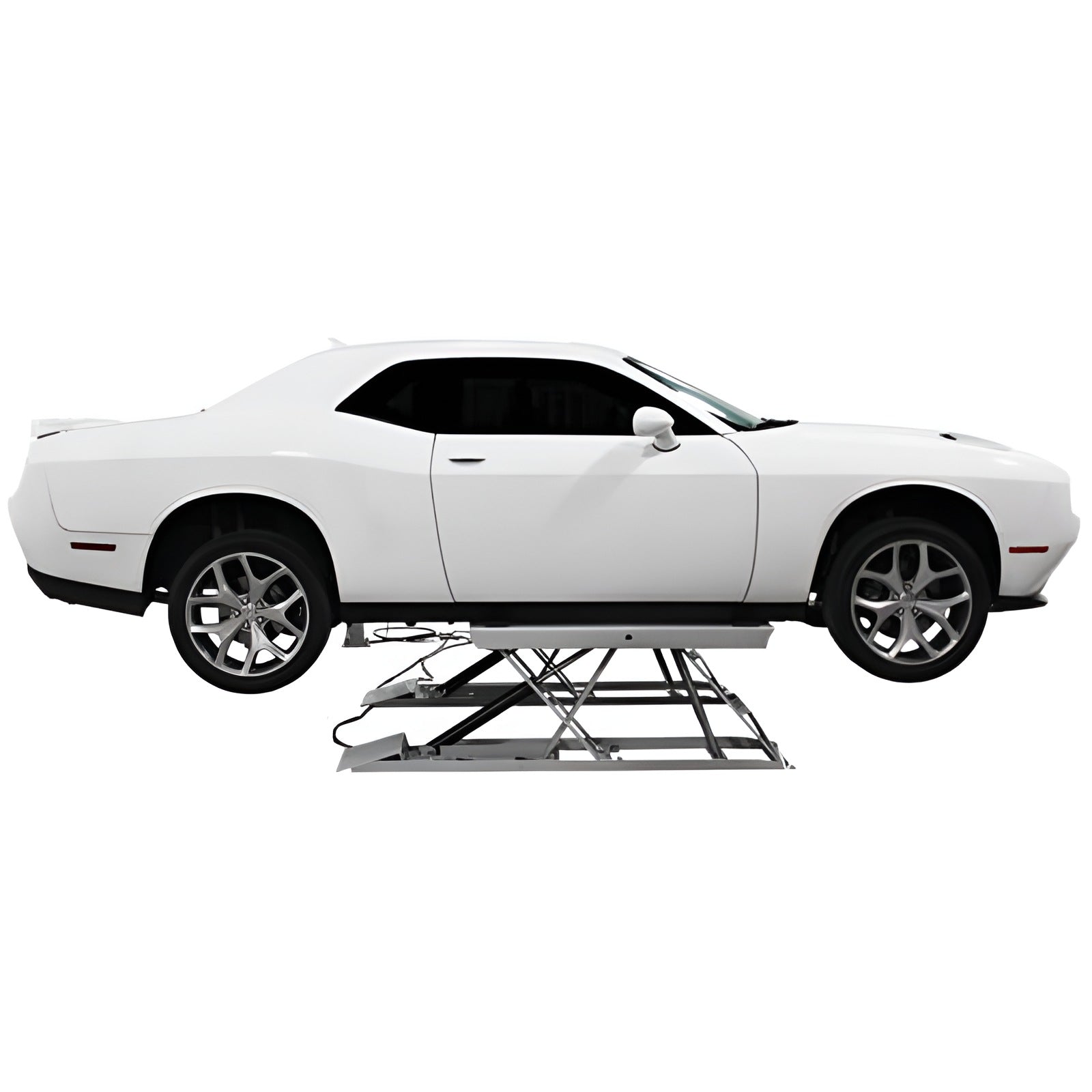

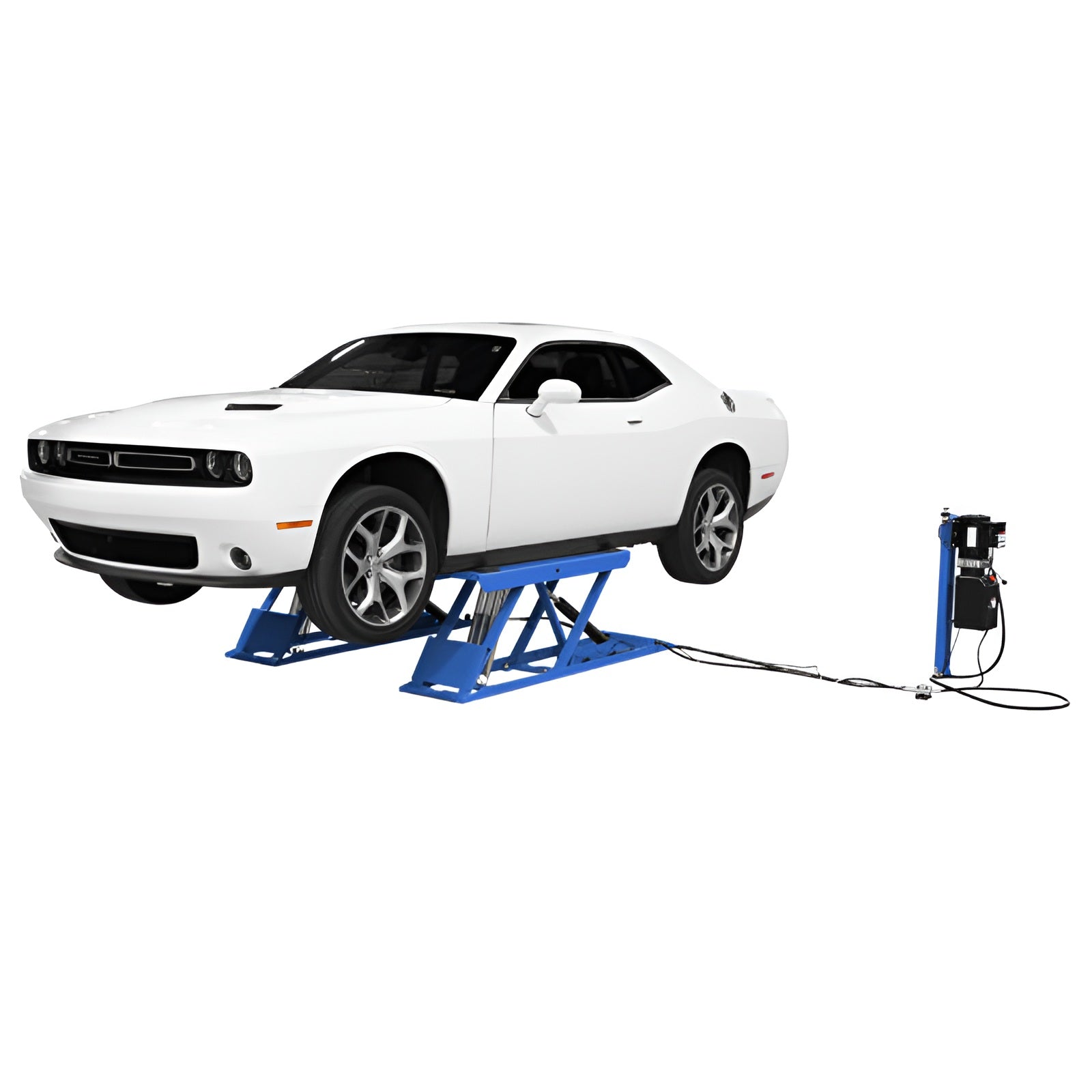

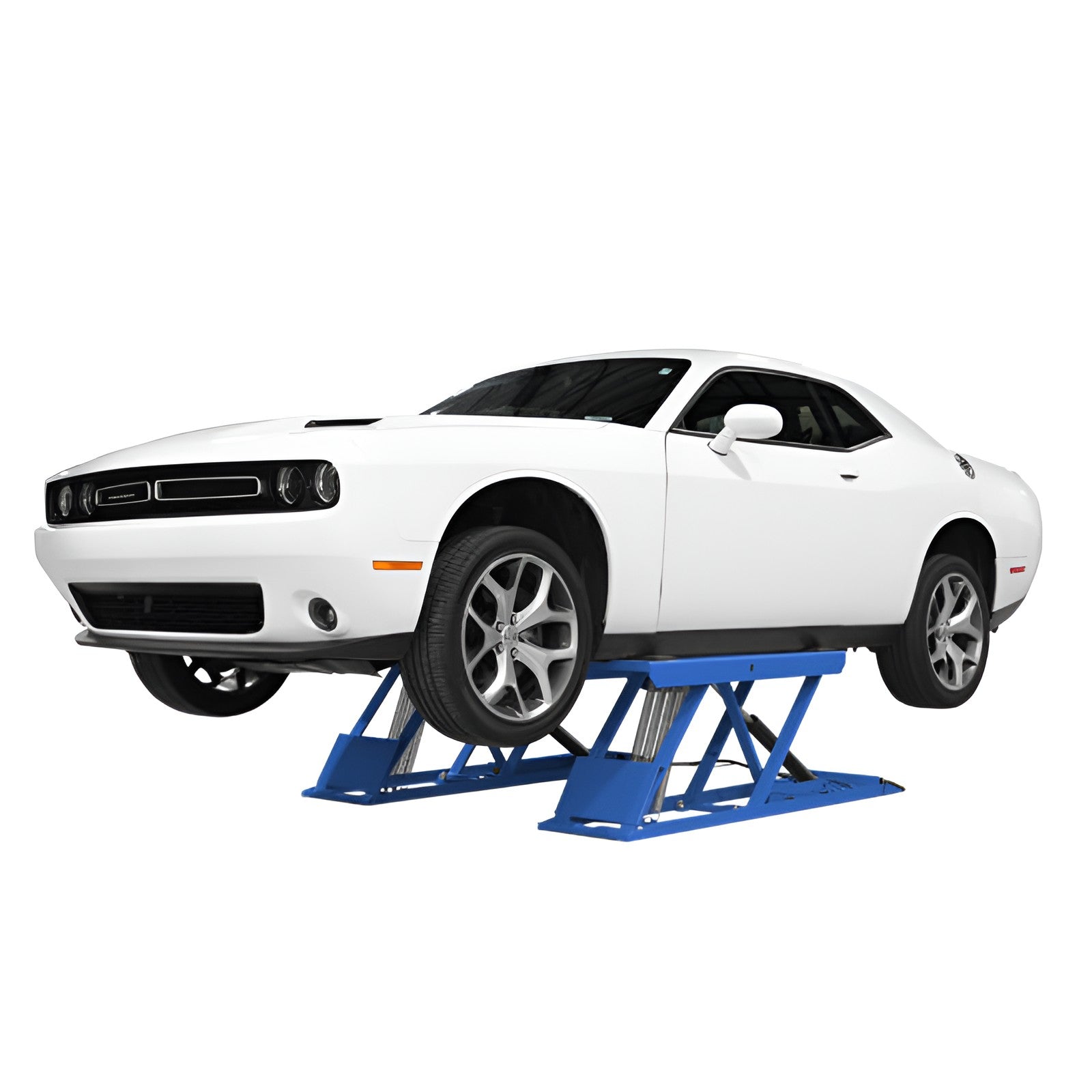

The Atlas® 6PL 6,000 lb. low rise lift is the perfect solution for swift tire and brake maintenance tasks, offering easy access to the vehicle's underside with its open center design. Equipped with non-slip pads and high-density rubber blocks, it ensures secure lifting without compromising vehicle integrity.

Operating the Atlas® 6PL is a breeze: drive the vehicle onto the lift, position the rubber blocks under the designated lifting points, and activate the power unit to elevate the vehicle to your preferred height. Lowering the lift is just as simple, with a convenient "dump valve lever" for precise control.

Please note: Maintain a gap of 2-6 inches between the lift surface and the vehicle's lifting points due to the horizontal cylinder setup. And don't forget, this lift comes in a striking blue color!

Low Rise Lift 6PL Specification:

• Capacity: 6,000 lb.

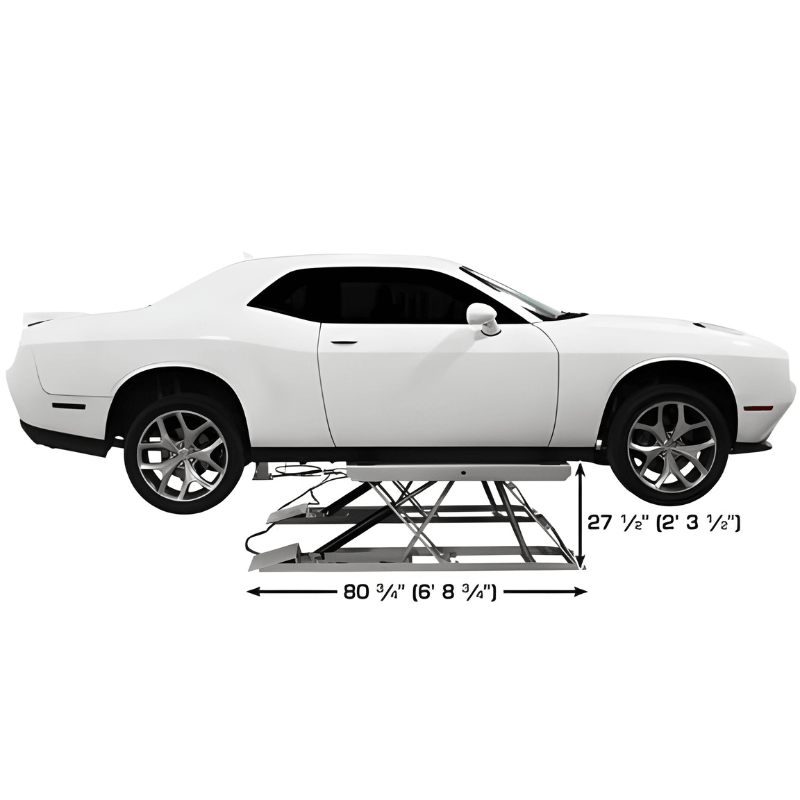

• Maximum Lifting Height with Blocks: 26" (2' 2")

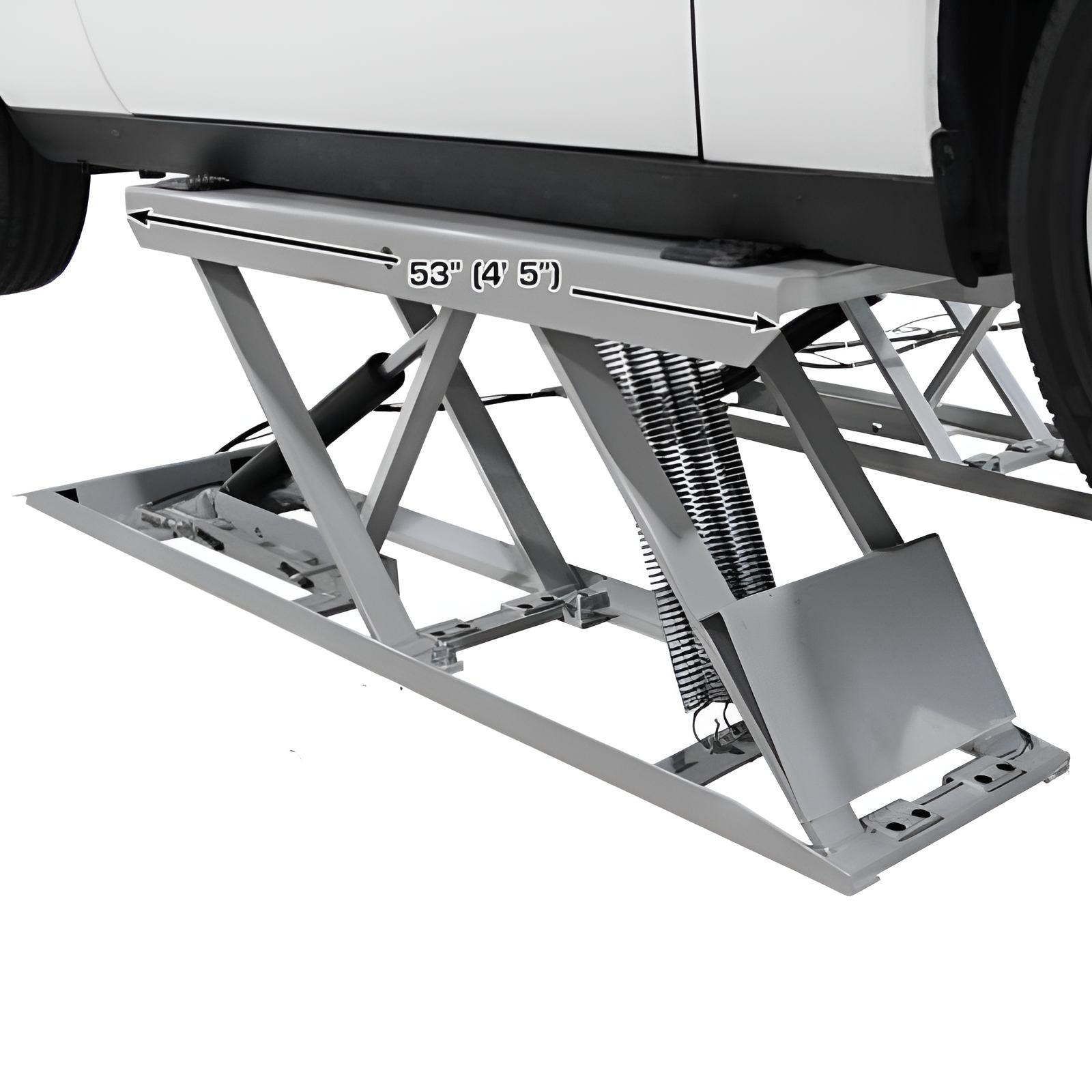

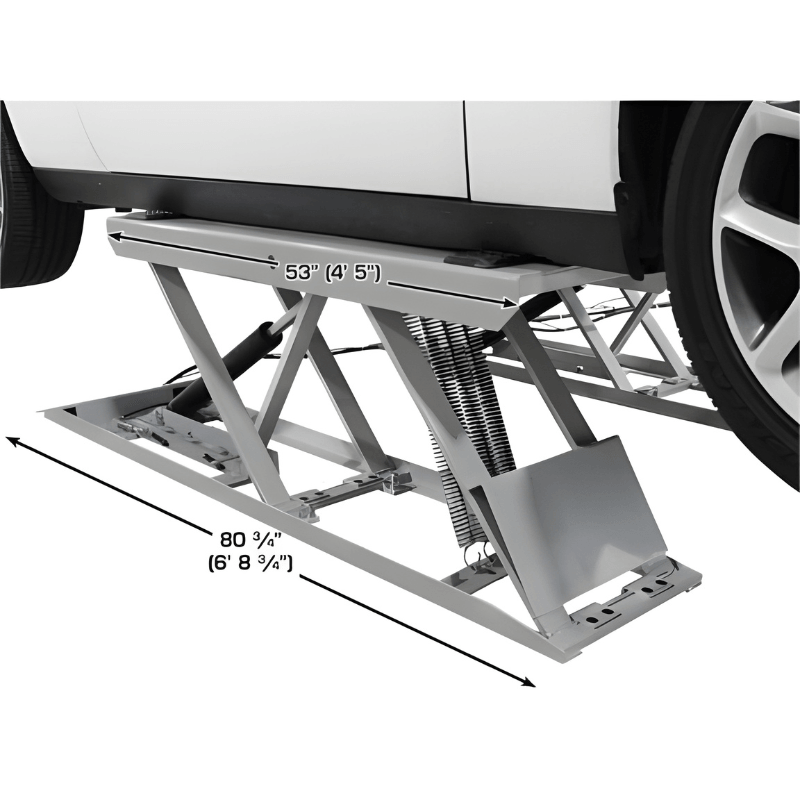

• Platform Dimensions: 53" x 18"

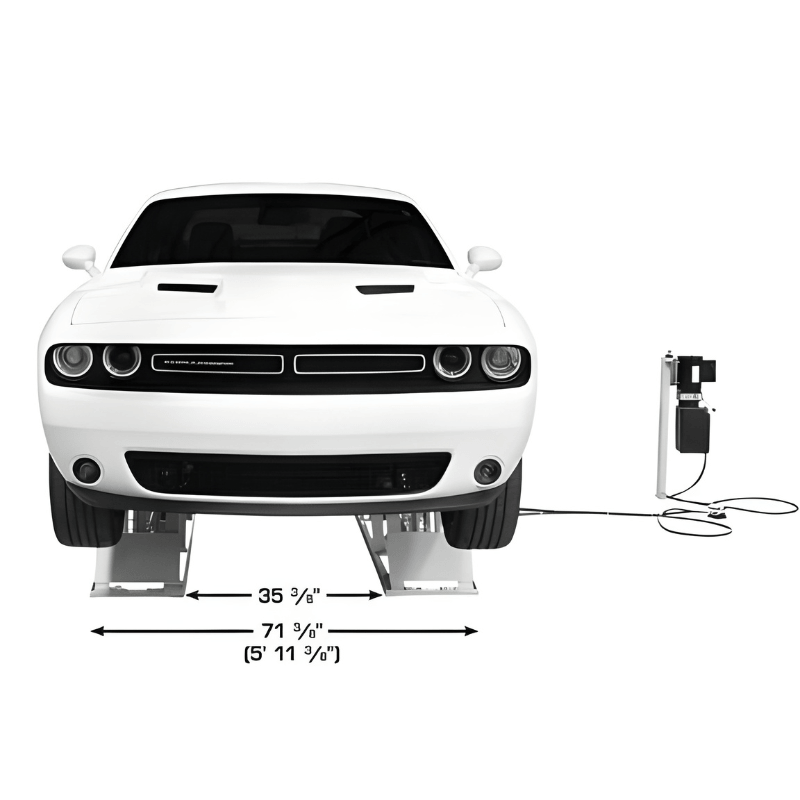

• Overall Width: 71" (5' 11") (Can be installed closer if desired)
• Lowered Height: 4 1/2"
• Air Requirement: 90-125 PSI
• Motor/Electrical Requirement: 110volt
• Oil Requirement: 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 850 lb.

6PL 6,000 lb Low Rise Lift Special Features:

• 6,000 lb. Capacity
• Open Center Design
• Commercial Grade Quality
• 4 Non-Slip Rubber Pads
• Drive Over Ramps
• Great for Tire and Brake Work
• Heavy Duty Rubber Lifting Blocks Included
• Mounting Hardware Included

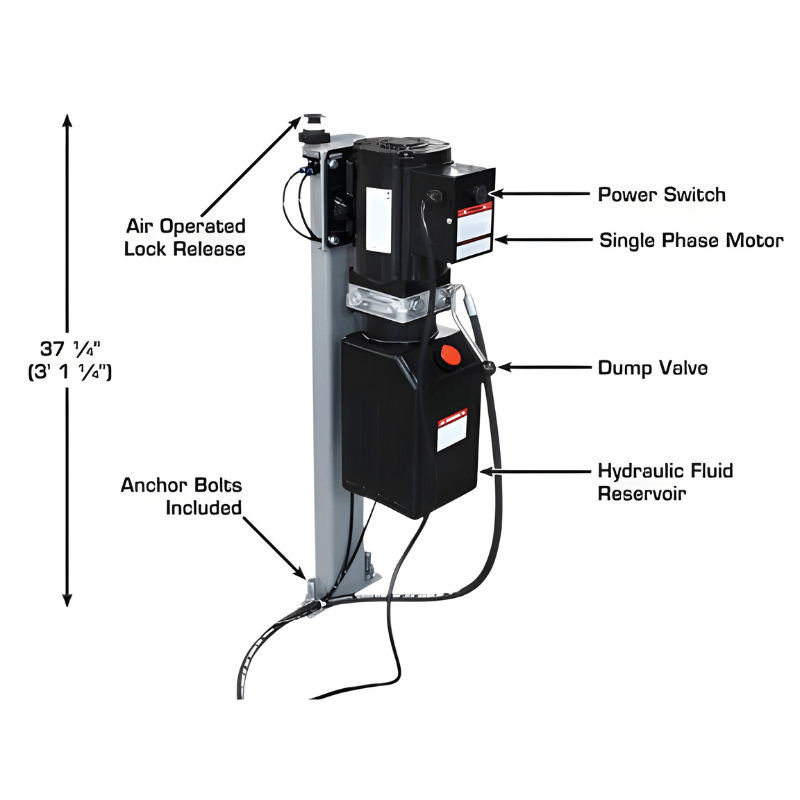

• Air-Operated Single Point Lock Release (External Air Supply Required)
• 110volt Electric Operation
• Shipping Weight: 850 lbs.
• 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Atlas 6PL Documentation:

   Atlas 6PL Low Rise Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $299

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA

• Indianapolis, IN
• Somerset, NJ

**THIS IS A SPECIAL-ORDER ITEM - LEADTIMES VARY (TYPICALLY 4-6 WEEKS)
