Atlas 7K-KWIK-BAY 7,000 lbs Mid Rise Scissor Lift - Portable

Atlas Kwik Bay Scissor Lift

Limited shop space, time-sensitive repairs, and the risk of damage to vehicles can make mid-rise lifting challenging for commercial quick service bays. Traditional lifts often require precise arm placement and complex setup, slowing down workflow and increasing the chance of undercarriage damage during service.

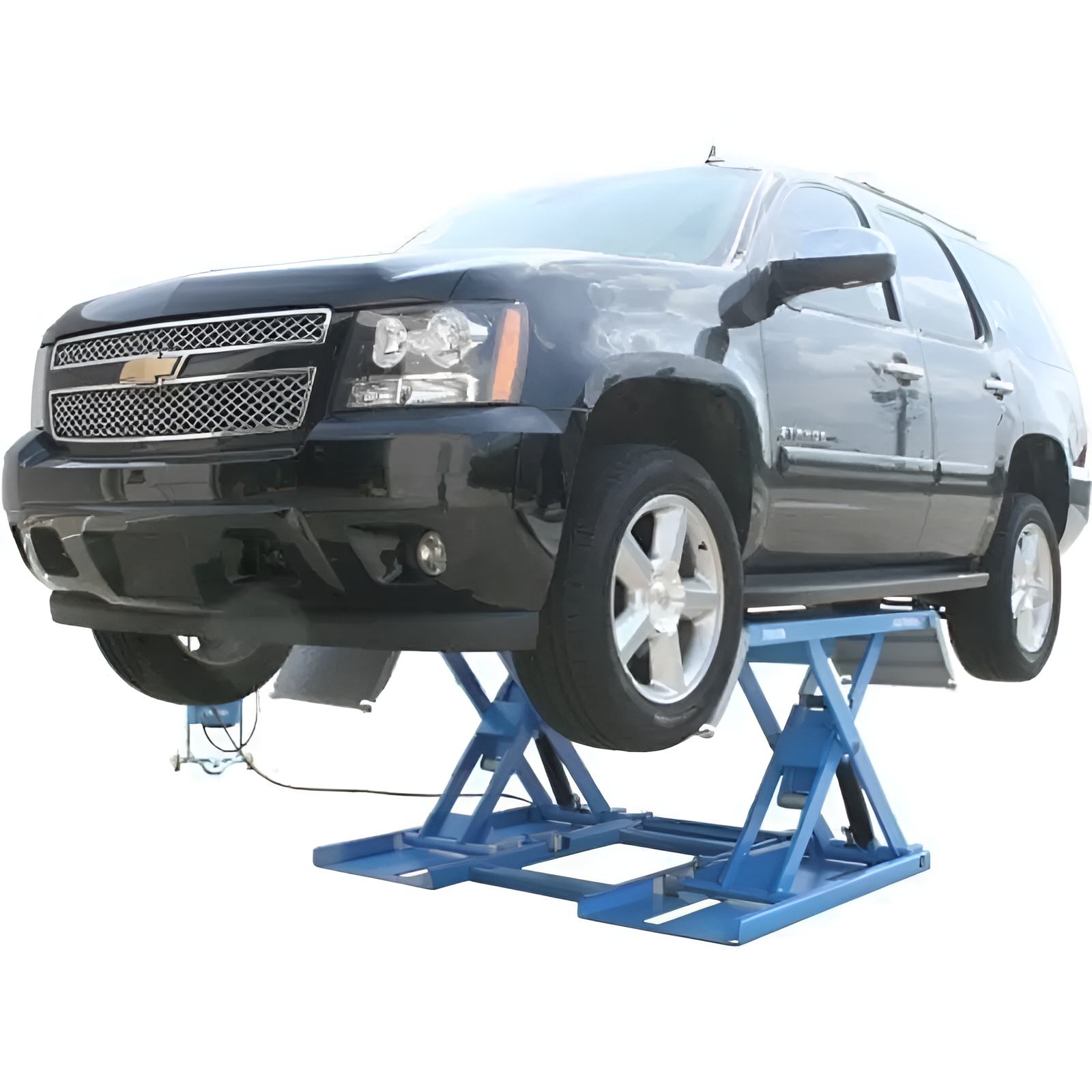

The Atlas 7K-KWIK-BAY solves these challenges with its free-standing, portable design and 7,000 lb lifting capacity. Vehicles are simply driven over the runways, and heavy-duty rubber lifting blocks are positioned under the proper lift points, allowing for fast, safe, and efficient lifting. Its large footprint provides stability at all safety lock positions, while the open-center platform offers better access to the underside of vehicles than other mid-rise lifts with full superstructures.

Built for durability and ease of use, the Kwik-Bay features dual hydraulic cylinders, solid safety lock bars, grease zerk fittings at all hinge points, and drive-over ramps for smooth vehicle positioning. This portable scissor lift is ideal for tire and brake service, inspection, or any application where a reliable, versatile mid-rise lift is needed.

Atlas KWIK BAY 7000 Specifications:

• Load Capacity: 7,000 lbs

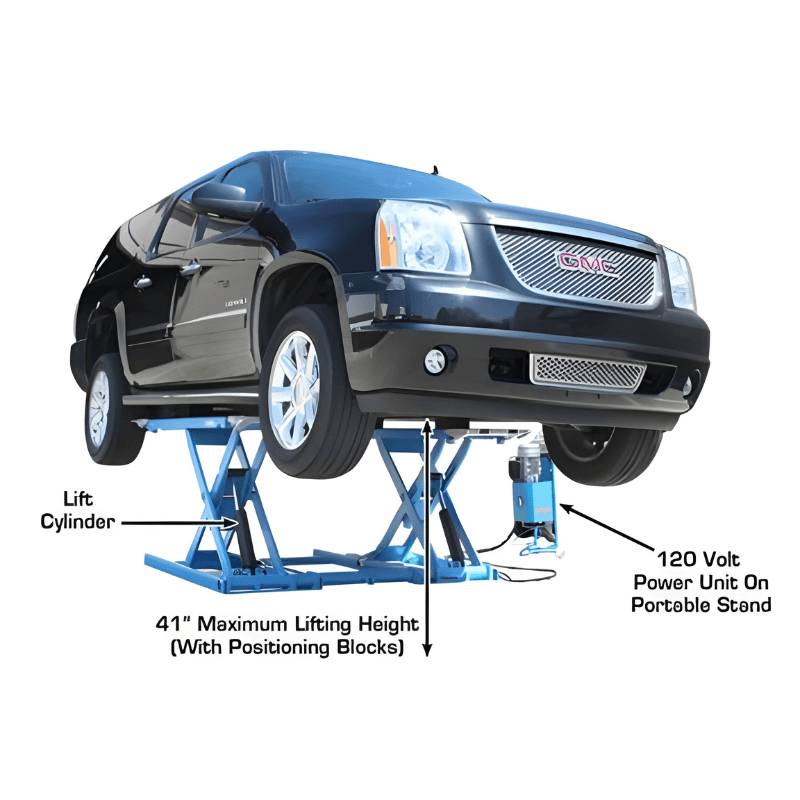

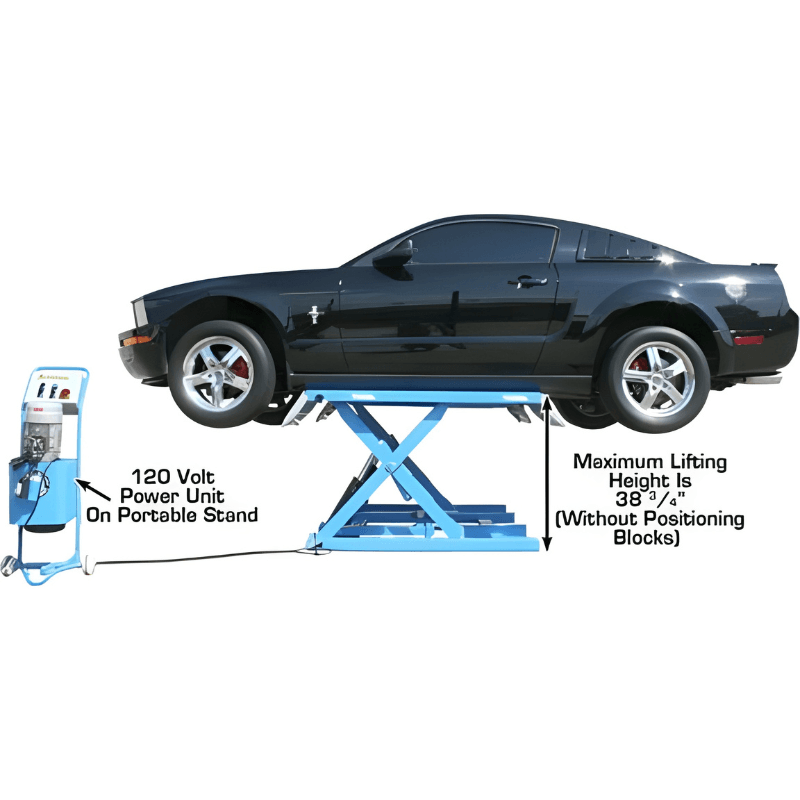

• Maximum Lifting Height: 41" (3' 5") with rubber blocks

• Minimum Lifting Height: 4 1/4"

• Overall Dimensions: 85 1/2" L × 72" W

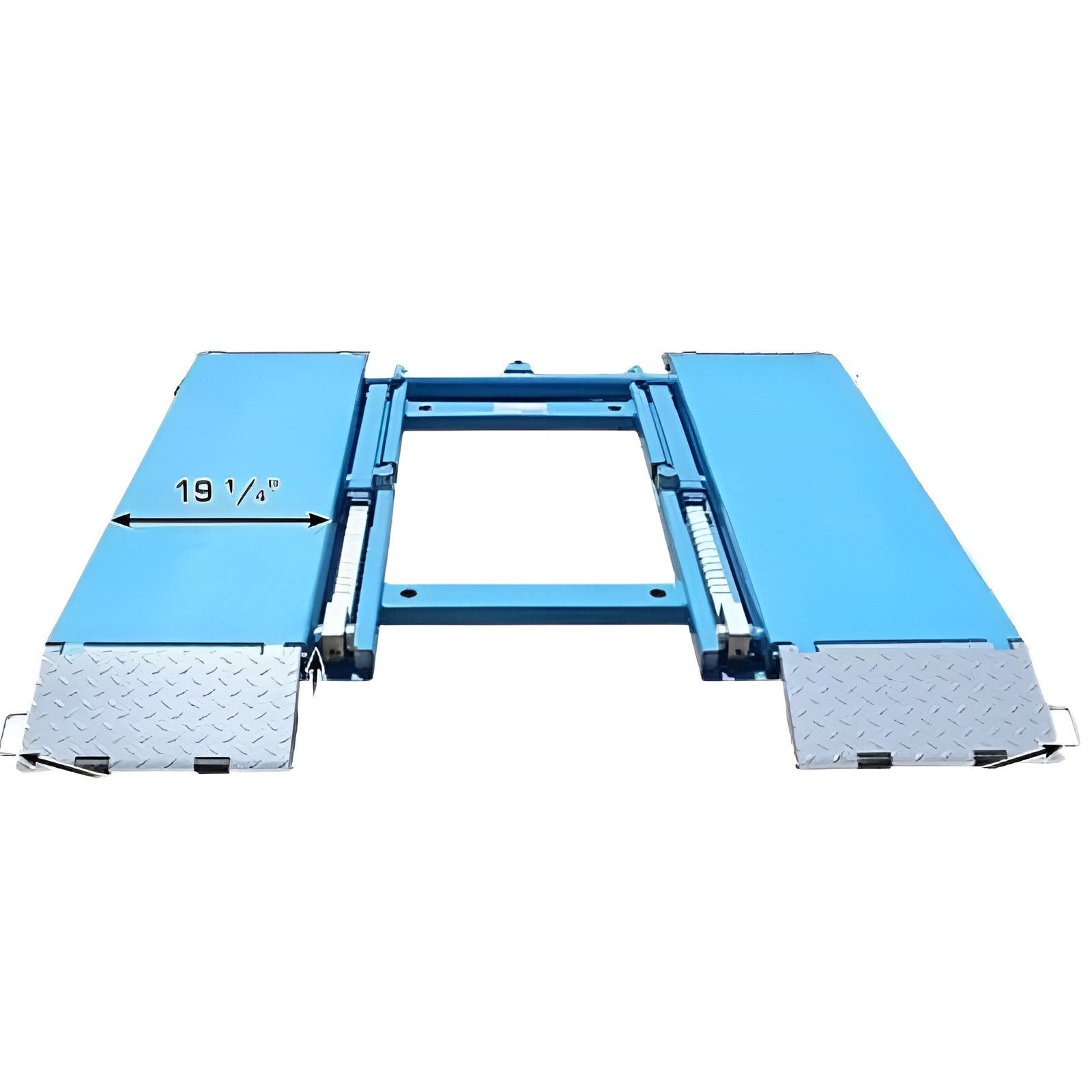

• Platform Dimensions: 56" L × 19 1/4" W

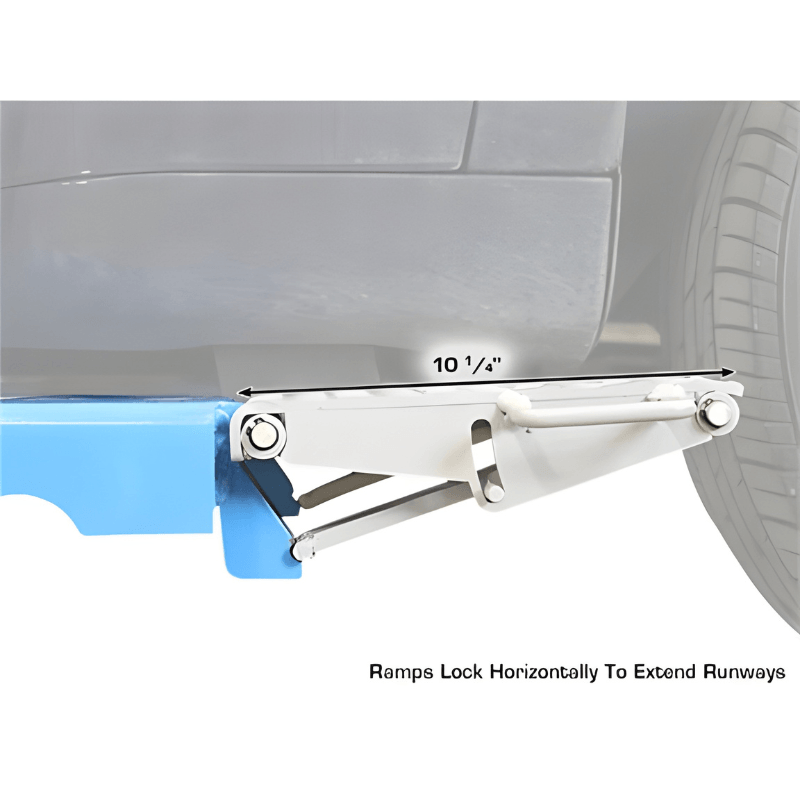

• Ramp Size: 14 1/2" × 19 1/4"

• Width Between Runways: 33 1/2"

• Air Requirement: 90–120 PSI

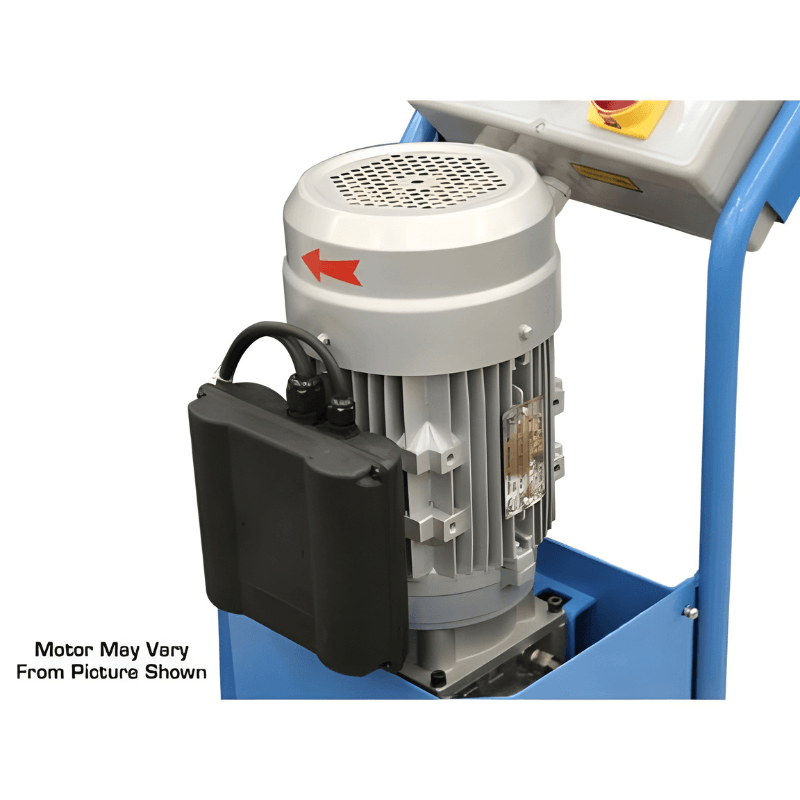

• Motor/Electrical: 110V, 30-amp breaker required (plug not included)

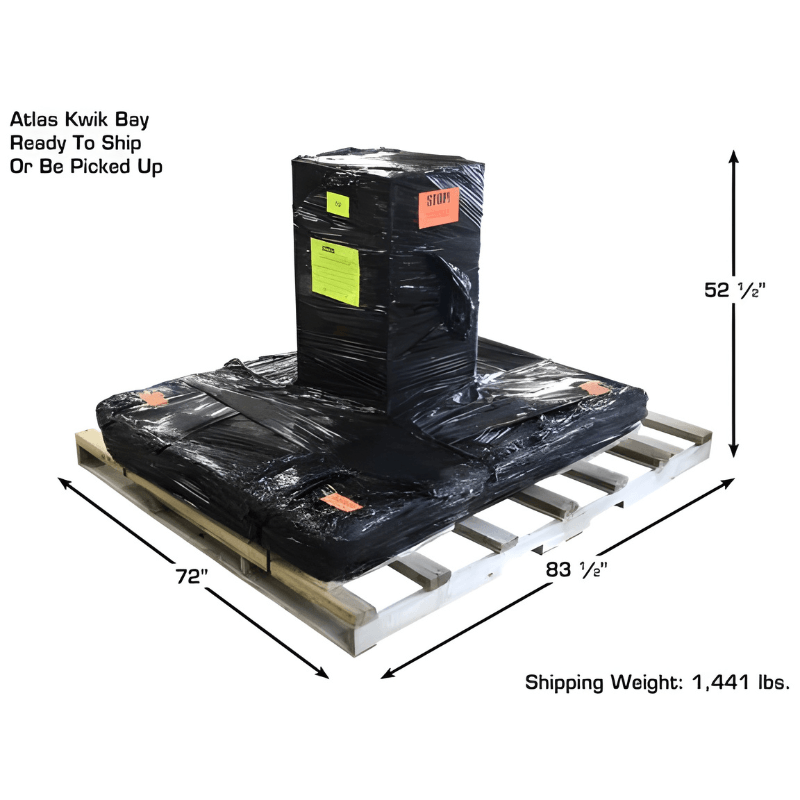

• Shipping Weight: 1,441 lbs

7K-KWIK-BAY 7,000lb Mid Scissor Lift Special Features:

• 7,000 lb commercial-grade lifting capacity

• Free-standing, portable mid-rise scissor lift

• Open-center design for improved undercar access

• Drive-over ramps for quick and safe vehicle positioning

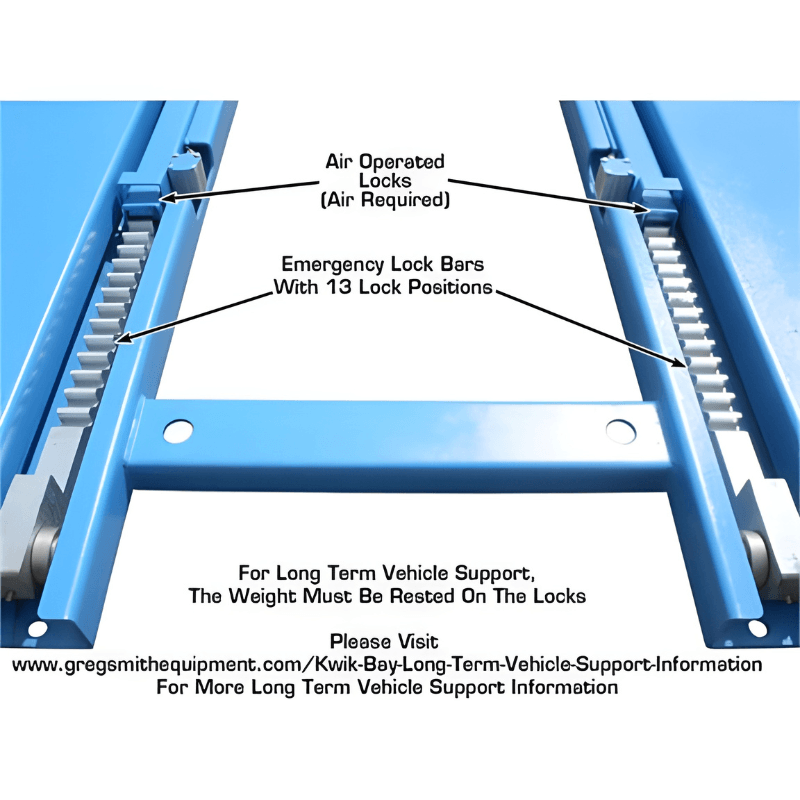

• Dual hydraulic cylinders with solid mechanical safety lock bars

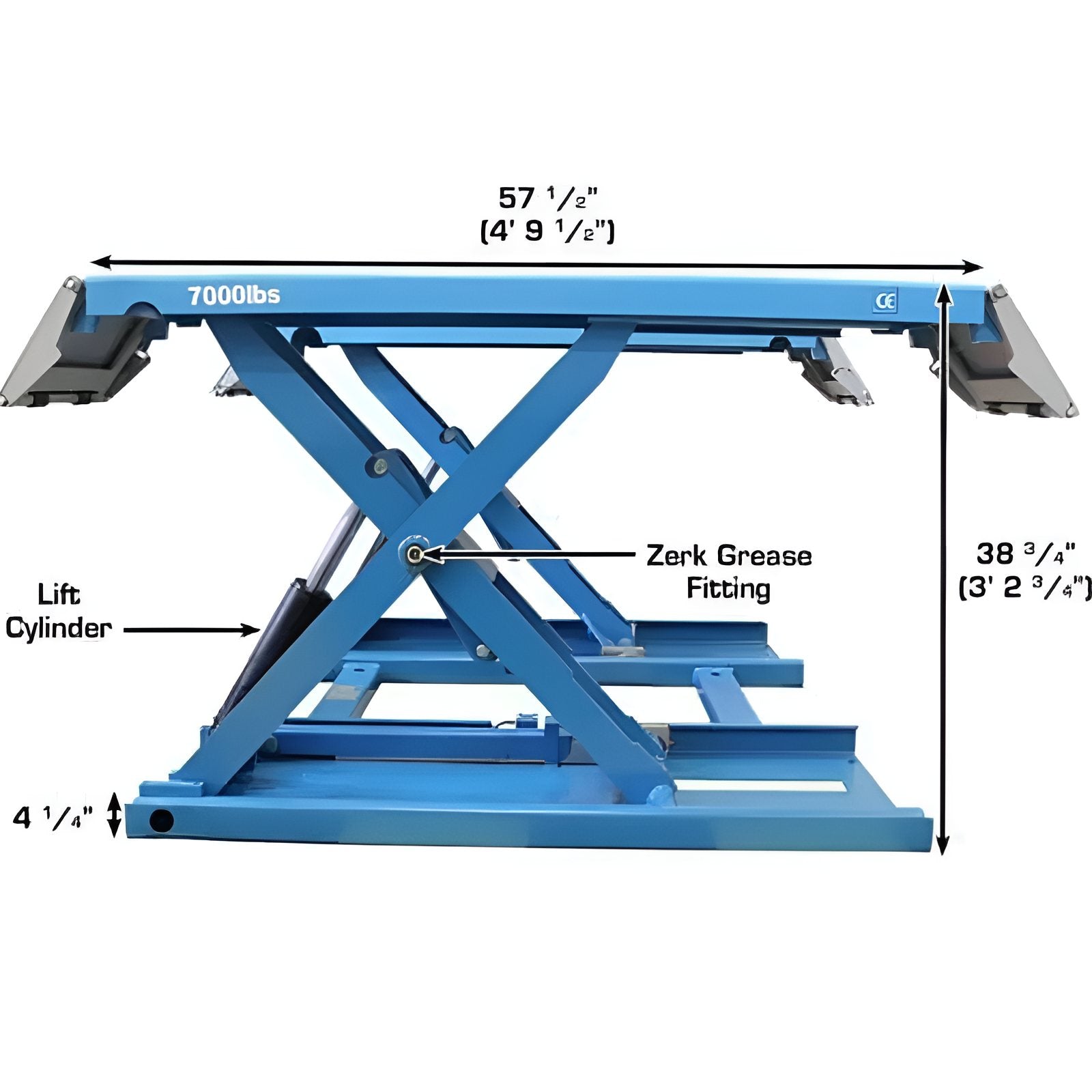

• Grease zerk fittings at all hinge points for long-term durability

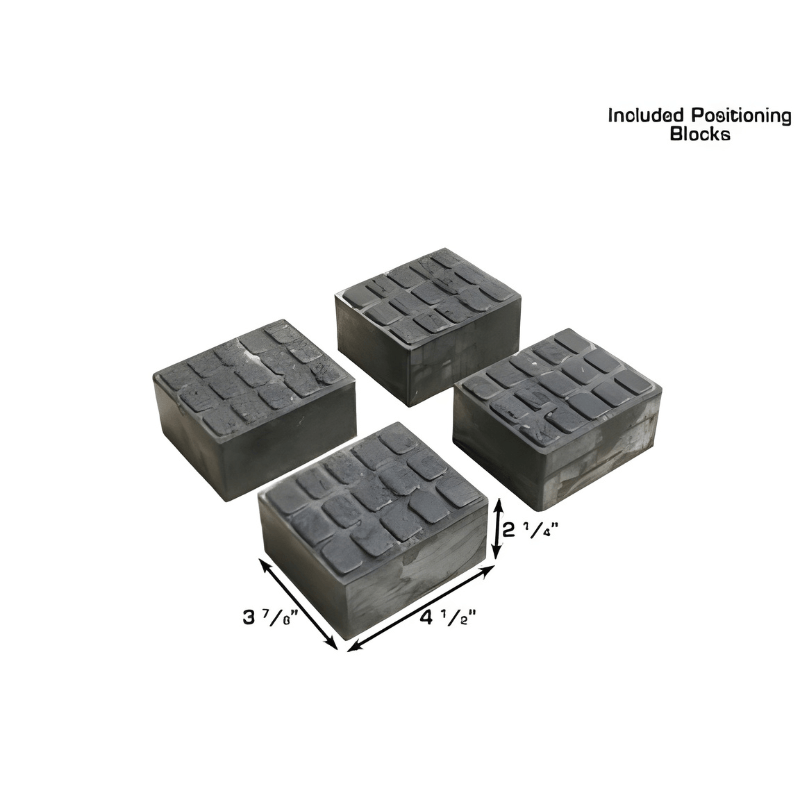

• Heavy-duty rubber lifting blocks included

• Ideal for tire, brake, and quick service applications

• Stable, large-footprint platform for secure lifting

• 2-year structural and 2-year hydraulic warranty

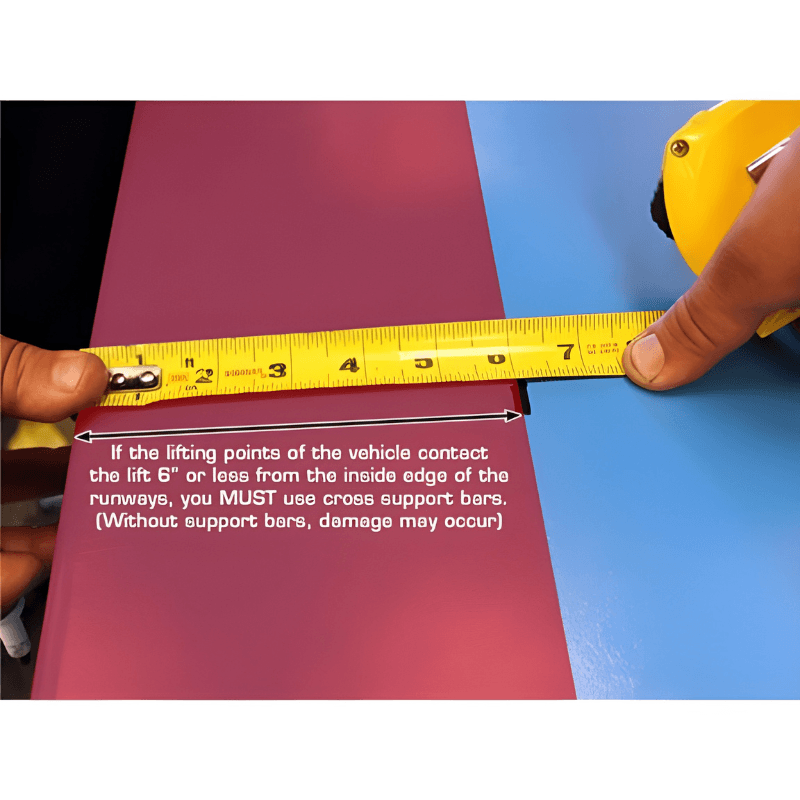

• Optional Item(Sold Separately)

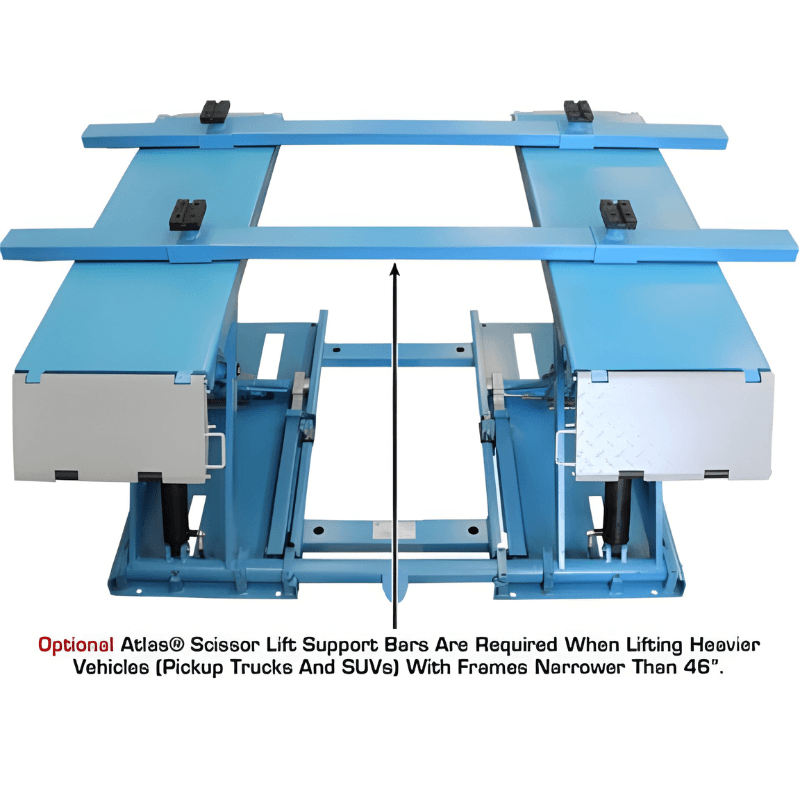

  • Scissor Lift Support Bar Kit

7K-KWIK-BAY Manual

   Atlas 7K-KWIK-BAY Manual
