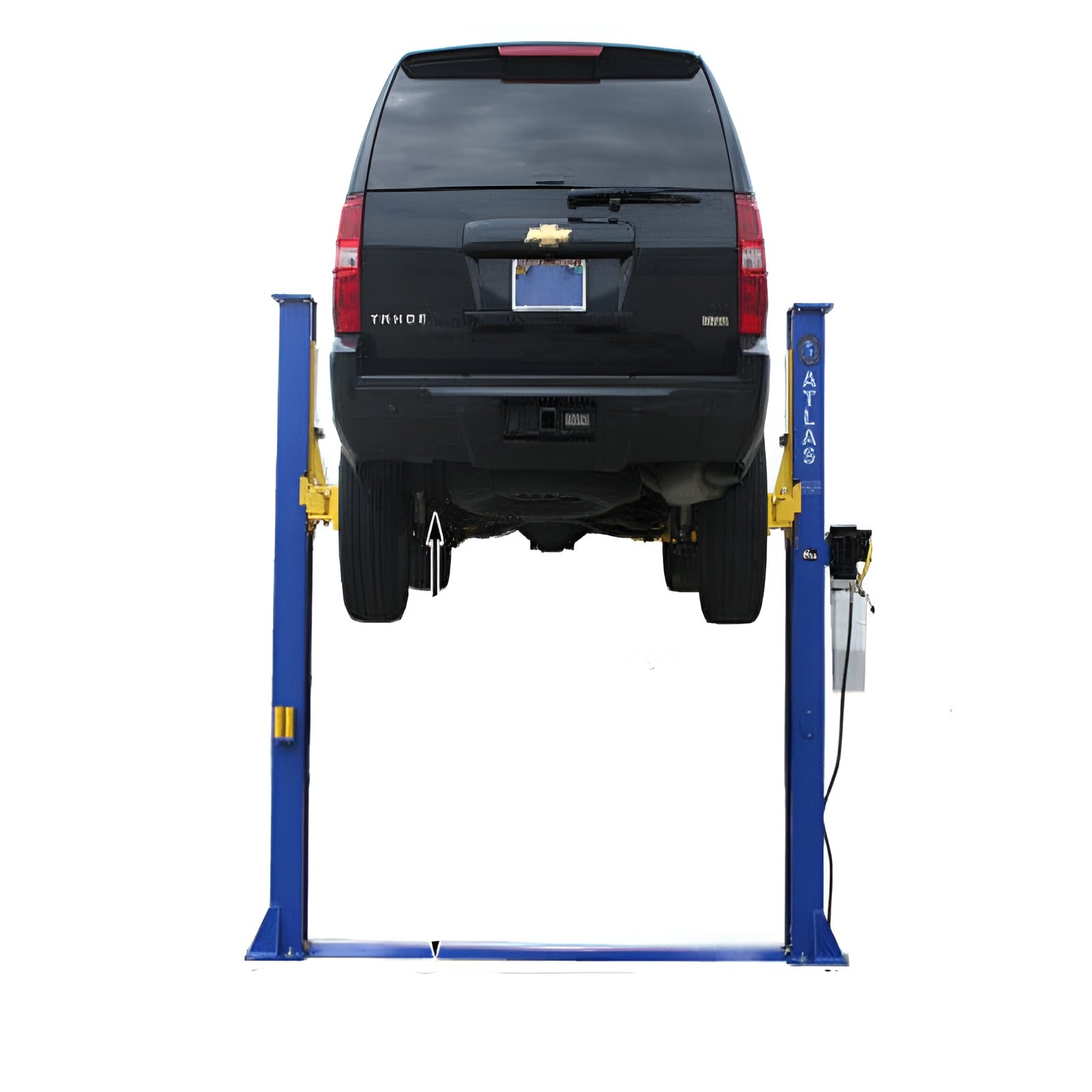

Atlas 9KBPX, 9,000 lb 2 Post Lift

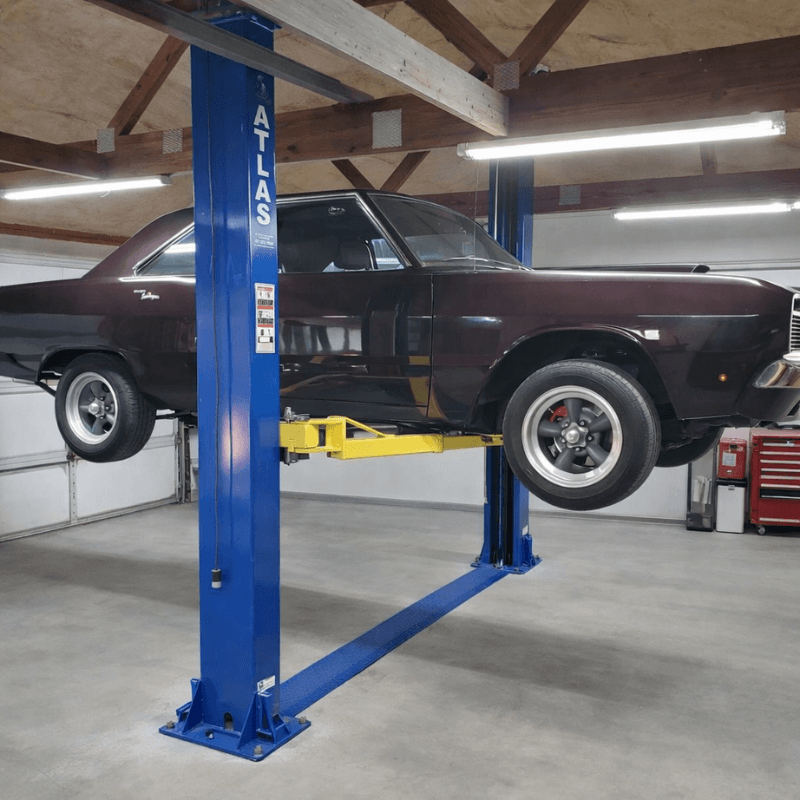

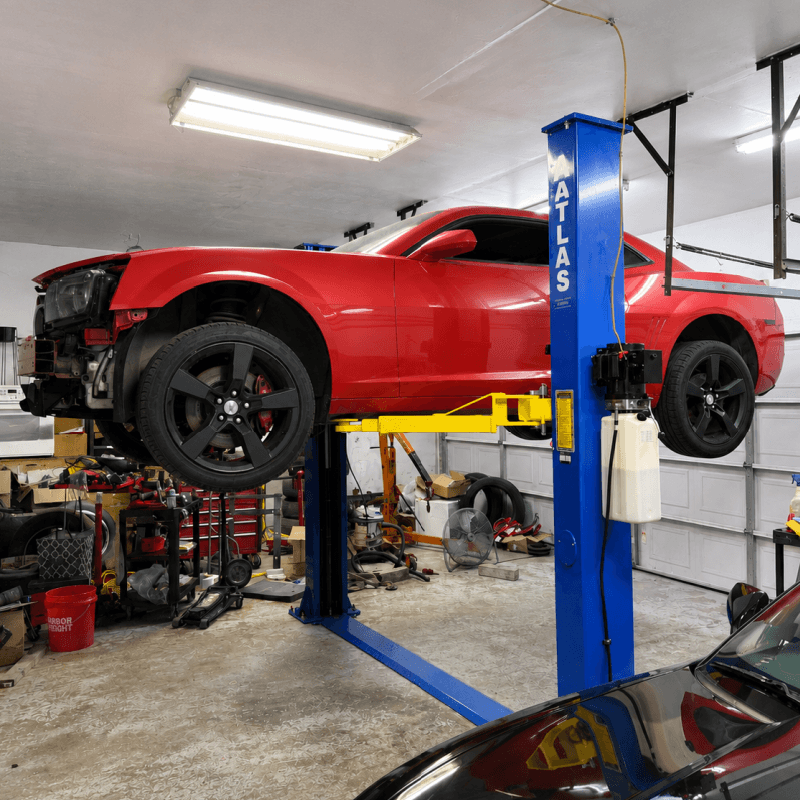

The Atlas® 9KBPX is here to transform your low-ceilinged space into a lifting powerhouse. This two-post marvel squeezes 9,000 pounds of lifting capacity into a svelte 111 ½" package, making it the perfect fit for garages where headroom is at a premium.

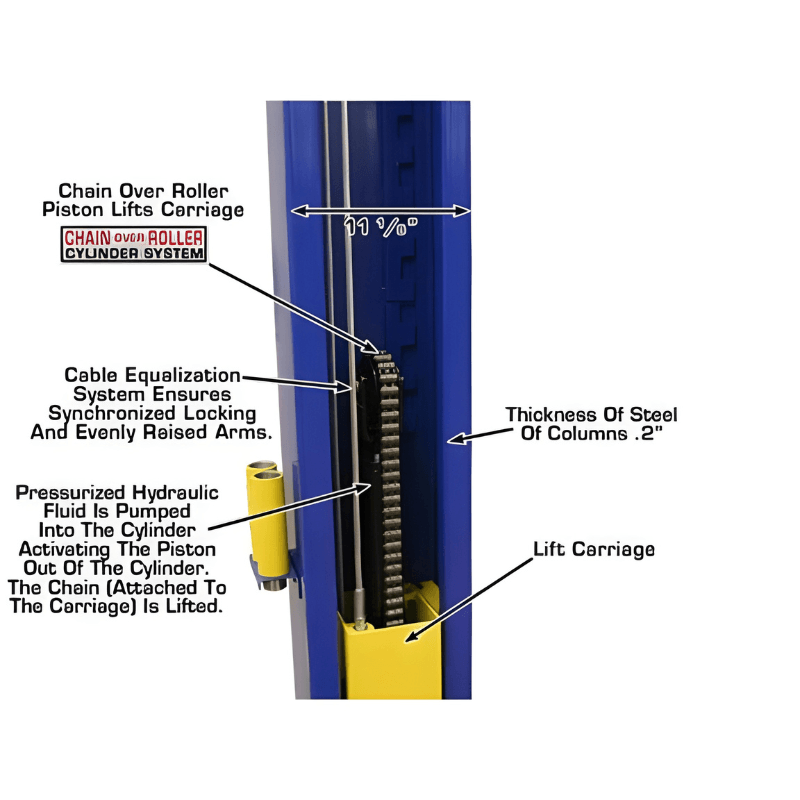

But don't let its compact size fool you – this lift packs a punch. With its "chain over roller" system and automatic Secondary Lock System, it's safer than a bank vault - because of its robustness and virtually nobody will ever try to steal it. The symmetric arms and automatic restraints mean you can hoist everything from zippy sports cars to beefy SUVs with ease. Whether you're a weekend warrior or running a bustling small shop, the 9KBPX is the way to more space.

2 Post Lift 9KBPX Specifications:

• Capacity 9,000 LB.

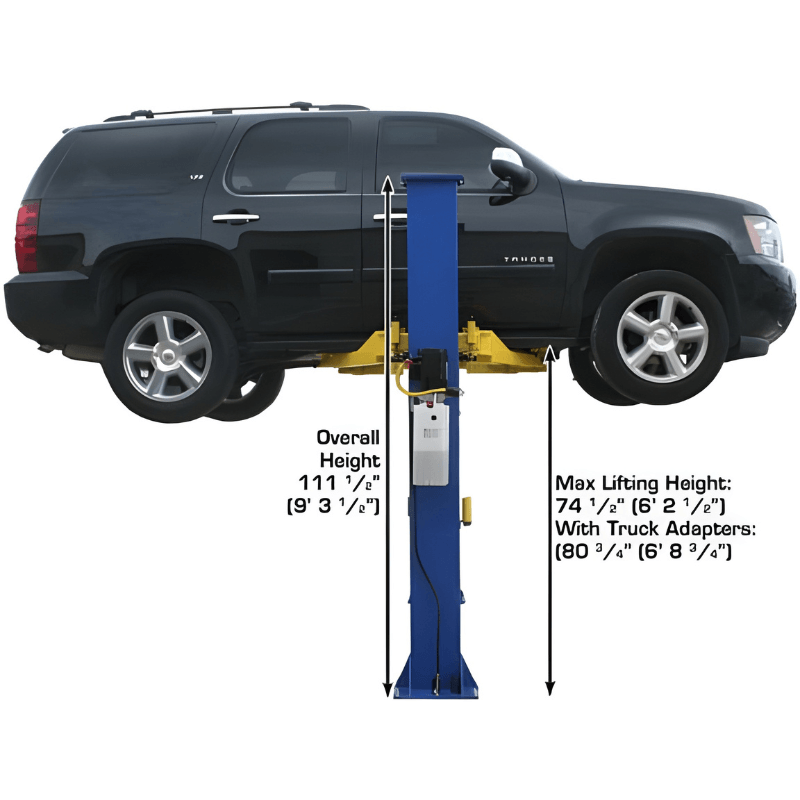

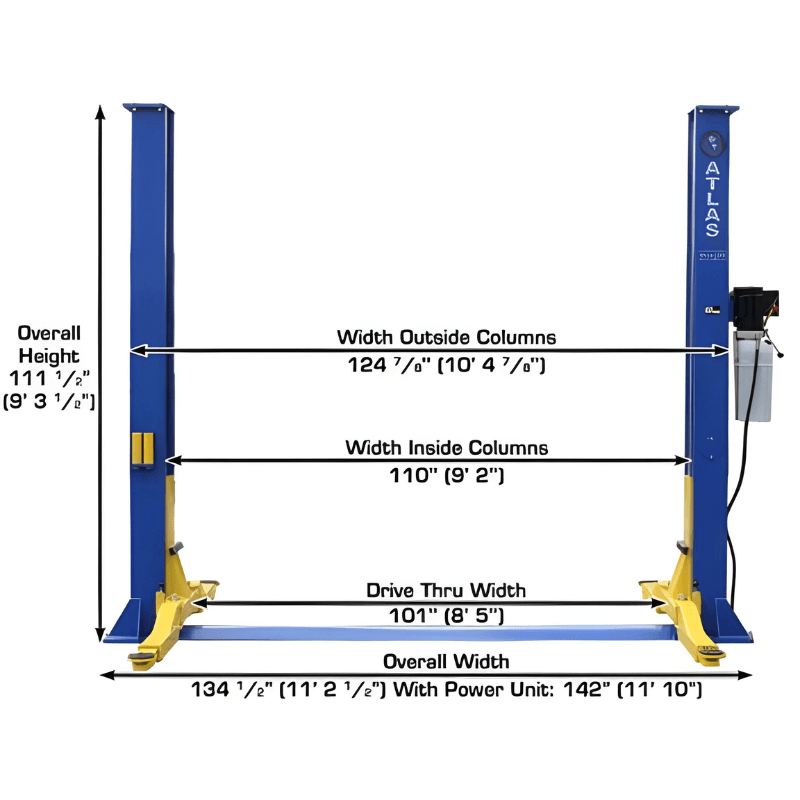

• Overall Height 111 1/2" (9’ 3 1/2")
• Overall Floor Width 134 1/2" (11’ 2 1/2")
• Outside Column to Outside Column 124 7/8" (10’ 4 7/8")

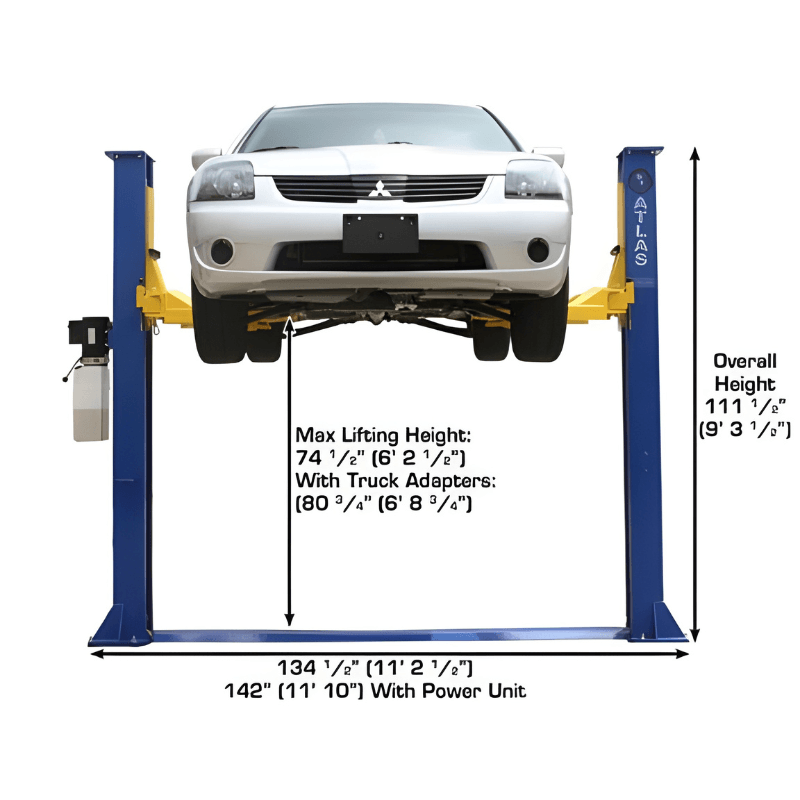

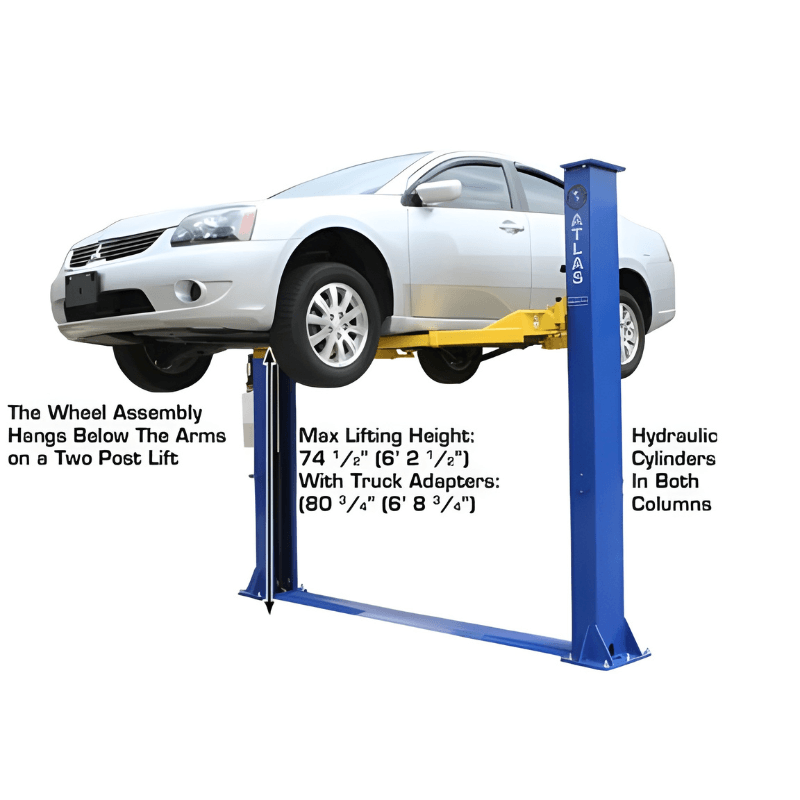

• Maximum Lift Height (Without Adapters) 74 1/2"
• Maximum Lift Height (With Adapters) 81"
• Minimum Arm Height 4"
• Inside Column 110” (9’ 2”)
• Drive Thru 101” (8’ 5”)

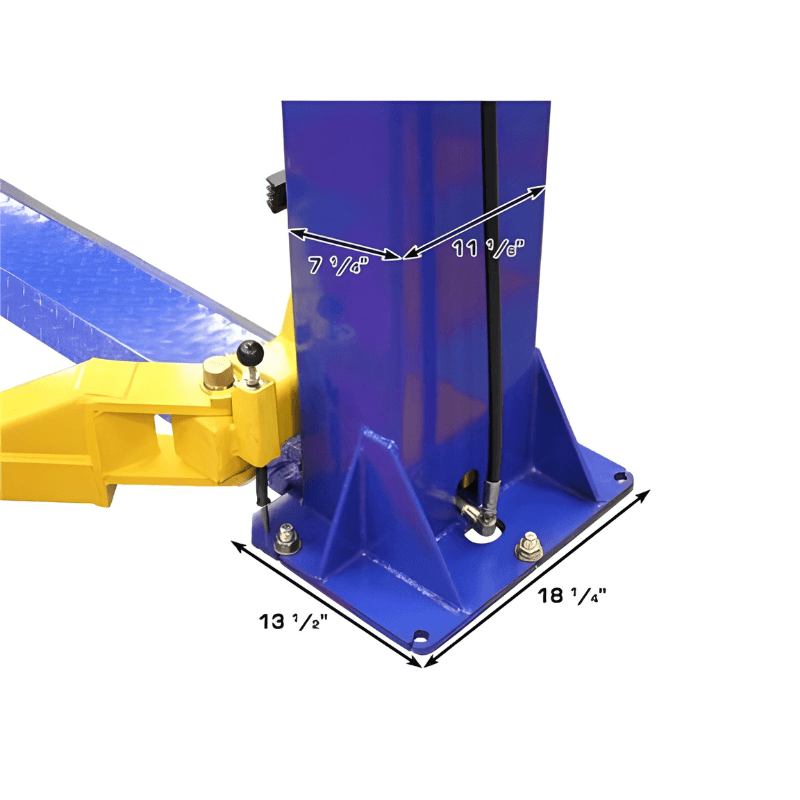

• Column Size 7 1/4" x 11"
• Column Thickness of Steel 5mm
• Base Of Lift 14 1/4" x 18 1/4"

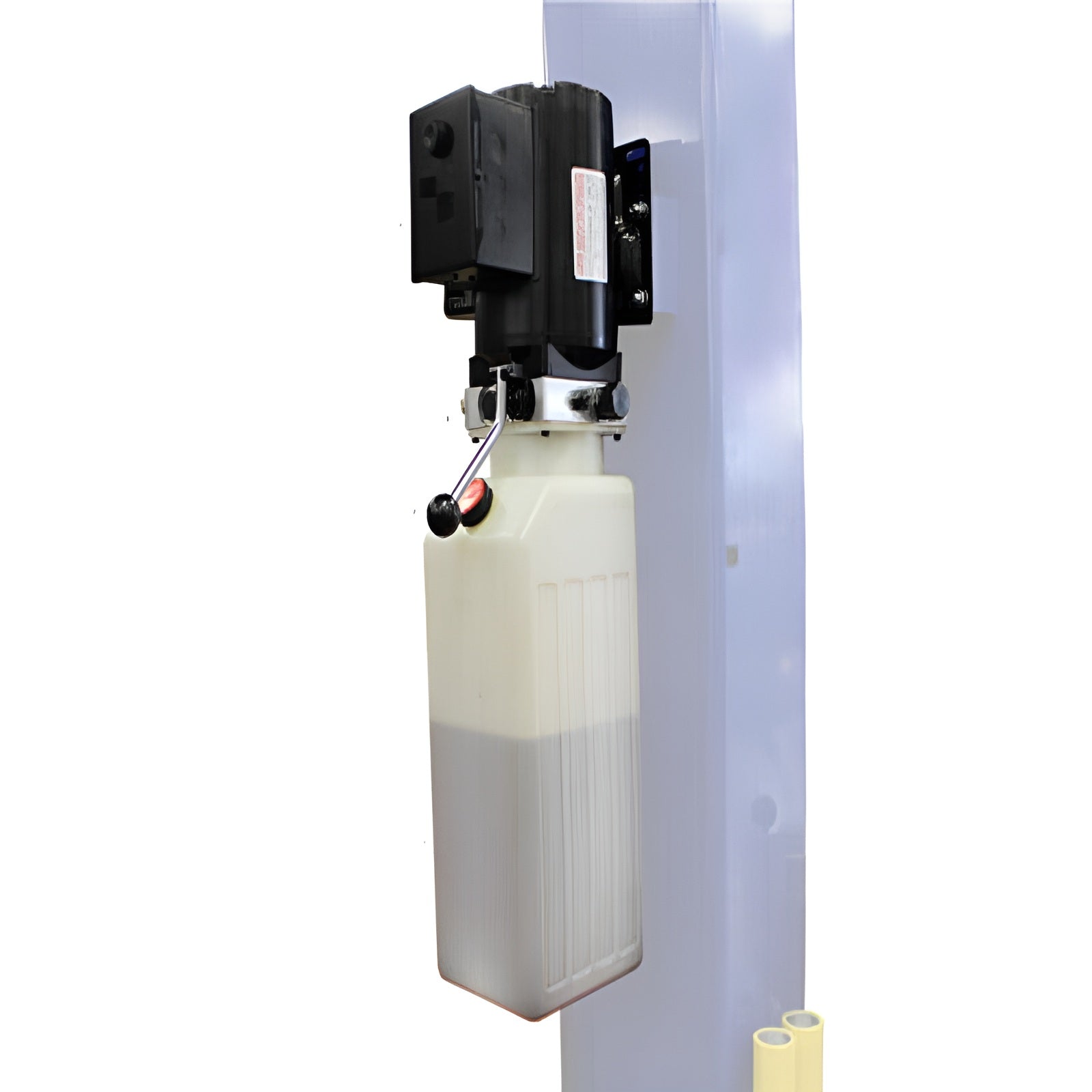

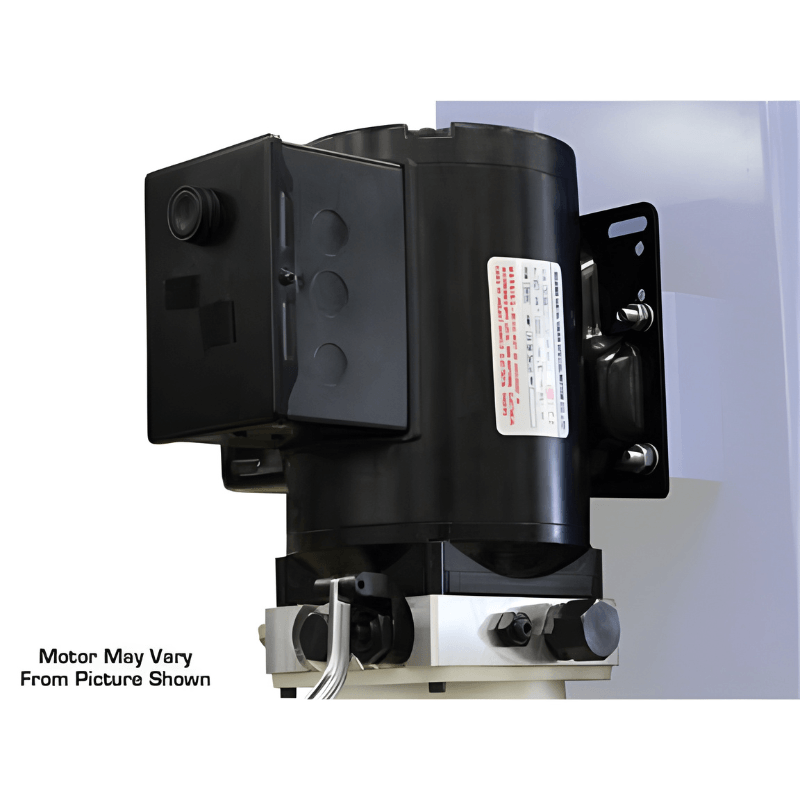

• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,400 LBS.s

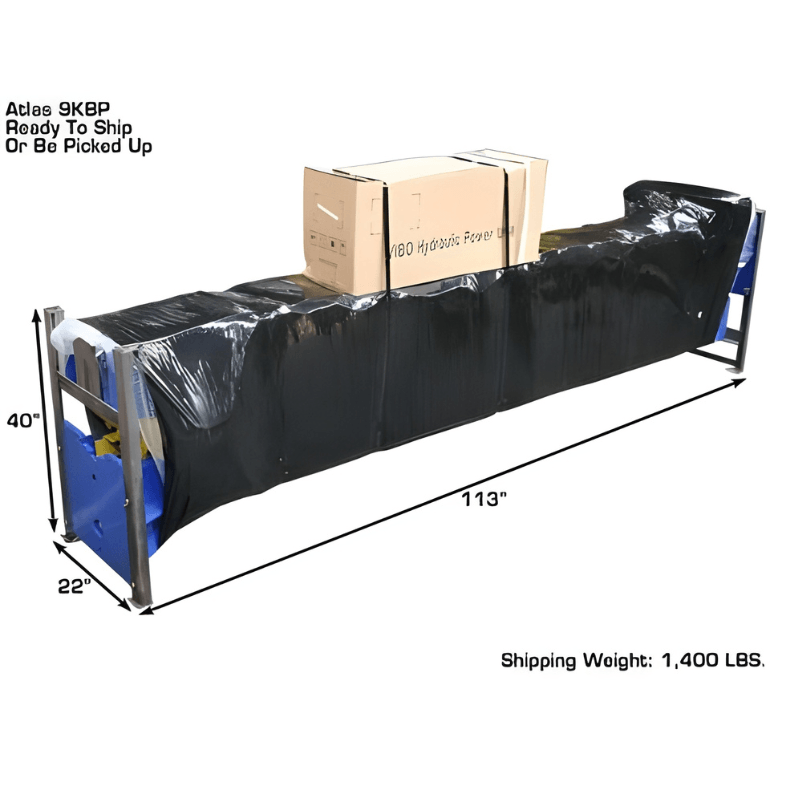

• Pallet Size:  113" Long x 40" Tall x 22" Wide + 1 small box

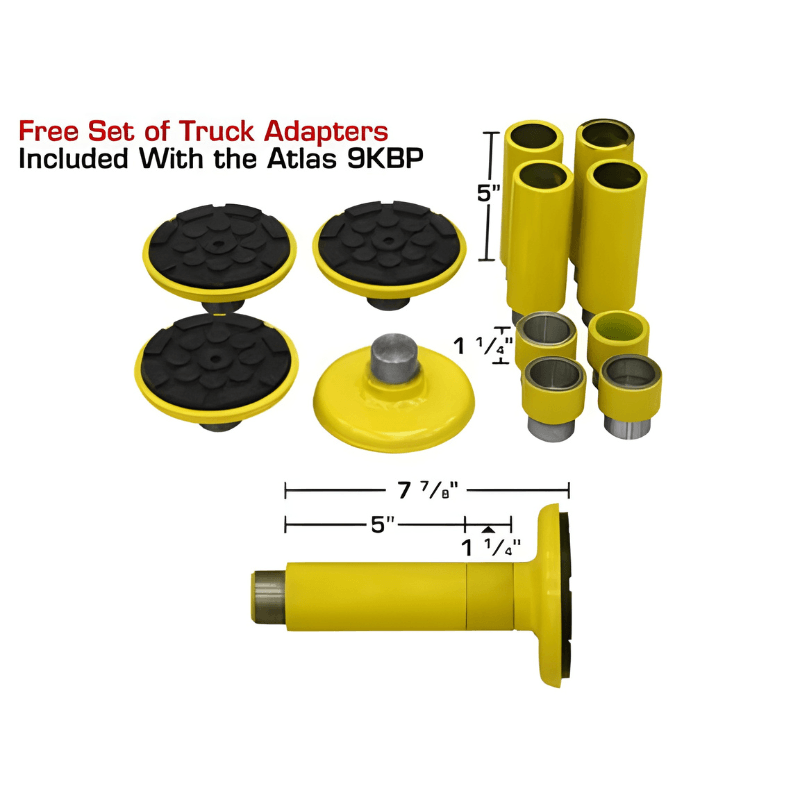

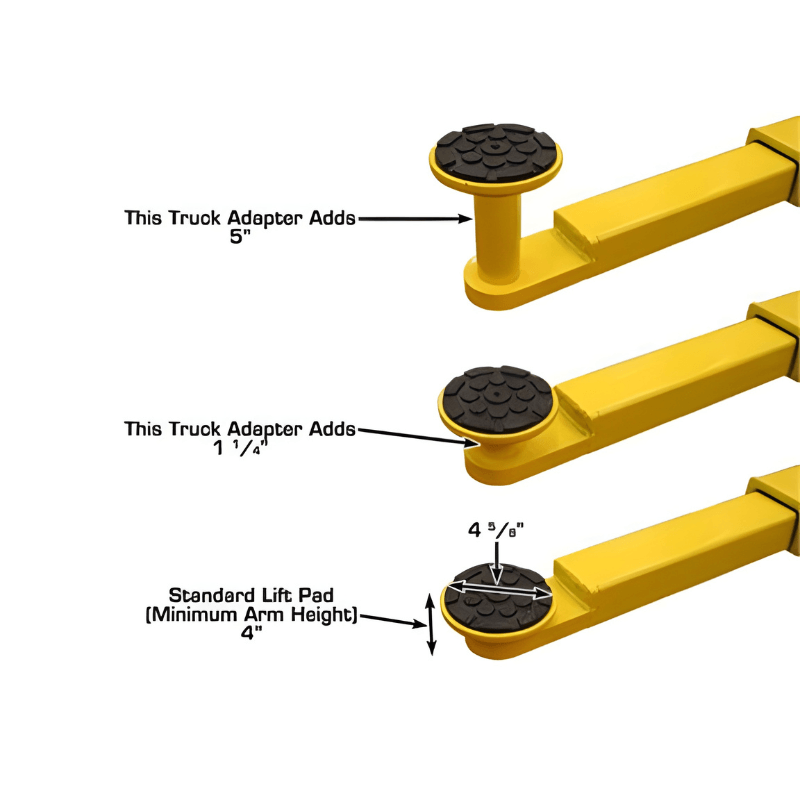

• Adapter Heights 4 Each 1.5”, 5”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

9KBPX 9,000 lb 2 Post Lift Special Features:

• Baseplate, Open-Top Style Lift

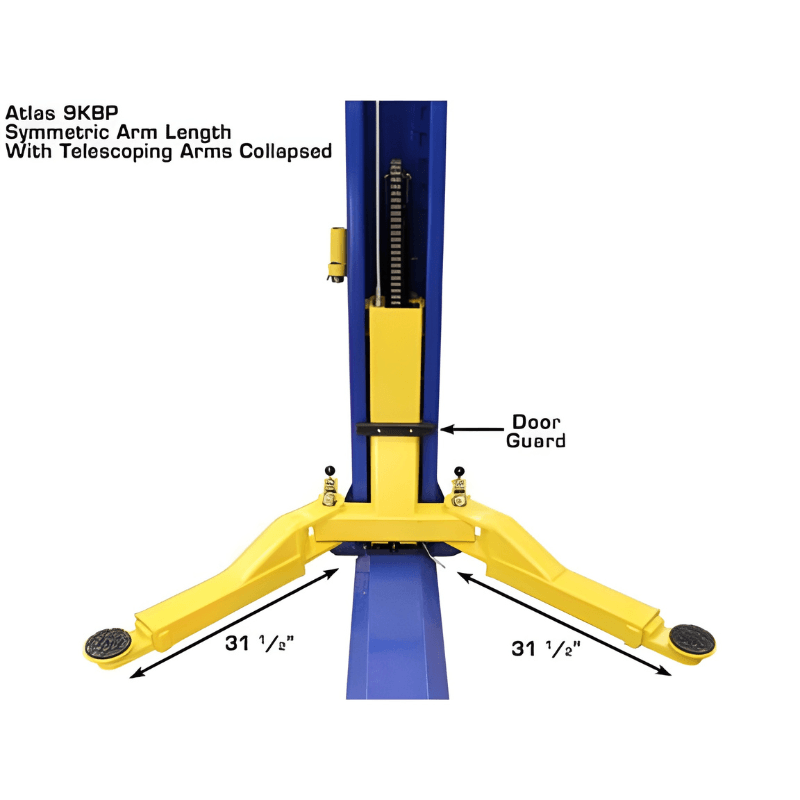

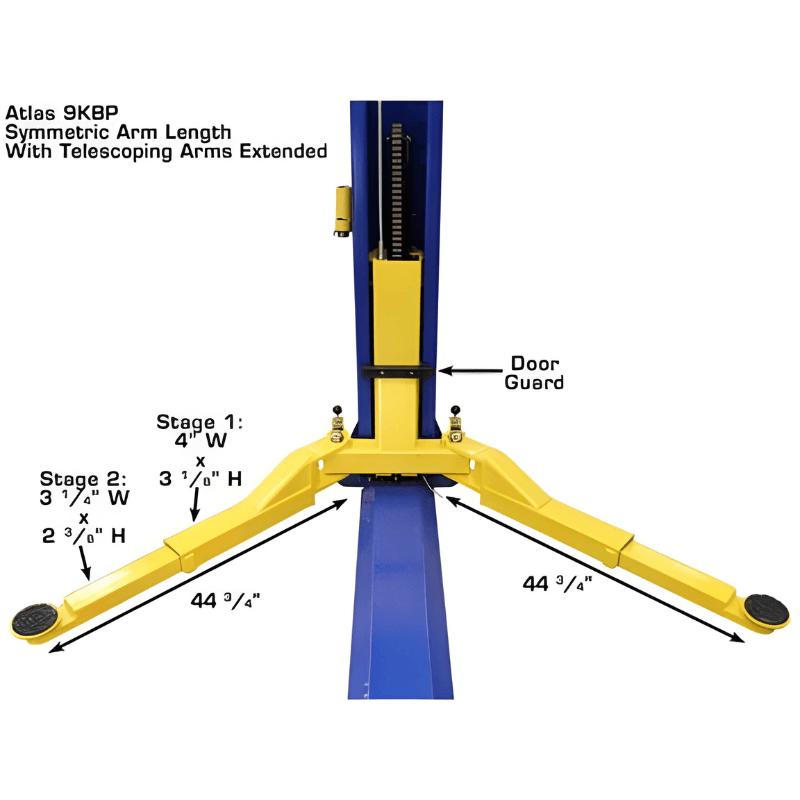

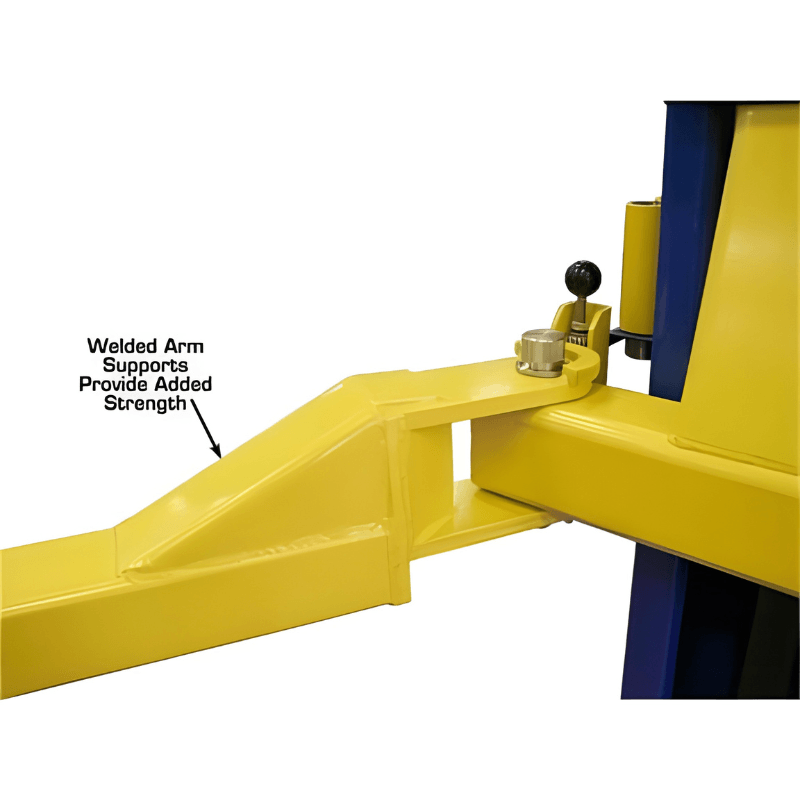

• Symmetric Arms
• Low Ceilings - 9'3-1/2" Columns

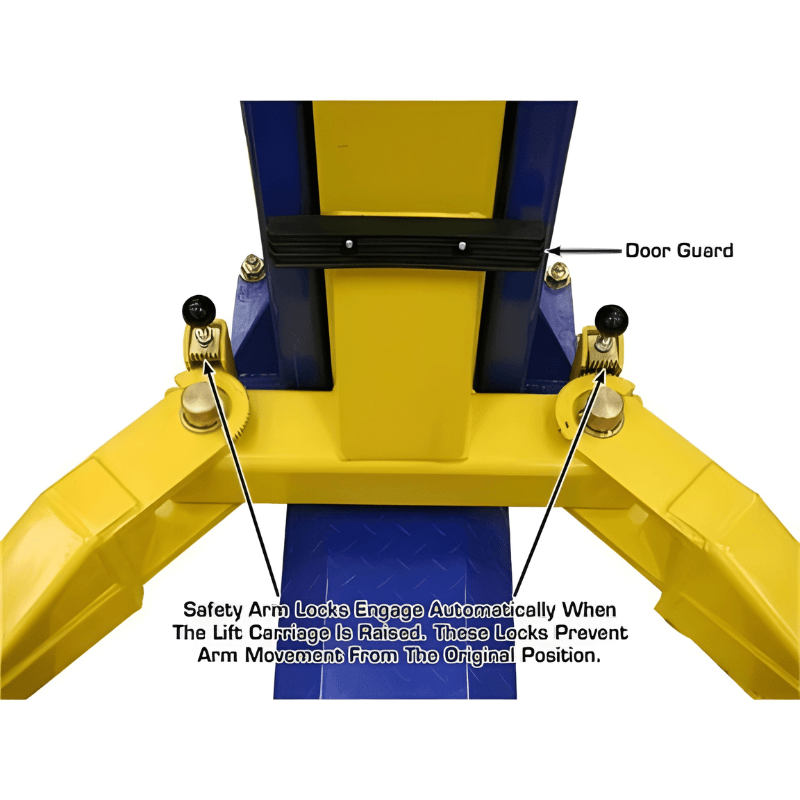

• Secondary Lock System
• Dual Point Lock Release
• Dual Hydraulic Chain-Drive Cylinders
• Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only

• Unit Includes:

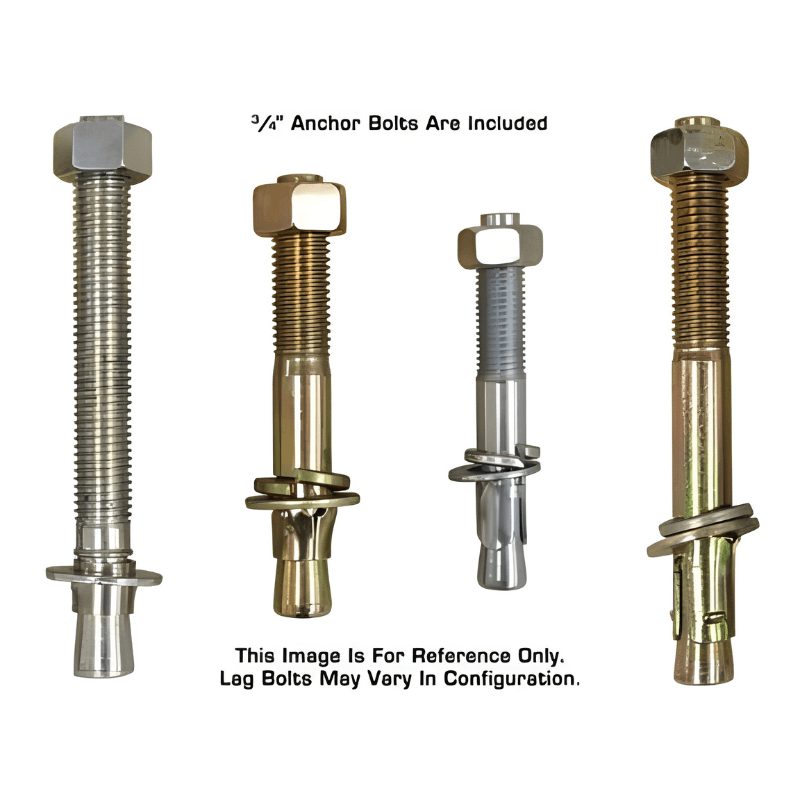

  • Mounting Hardware

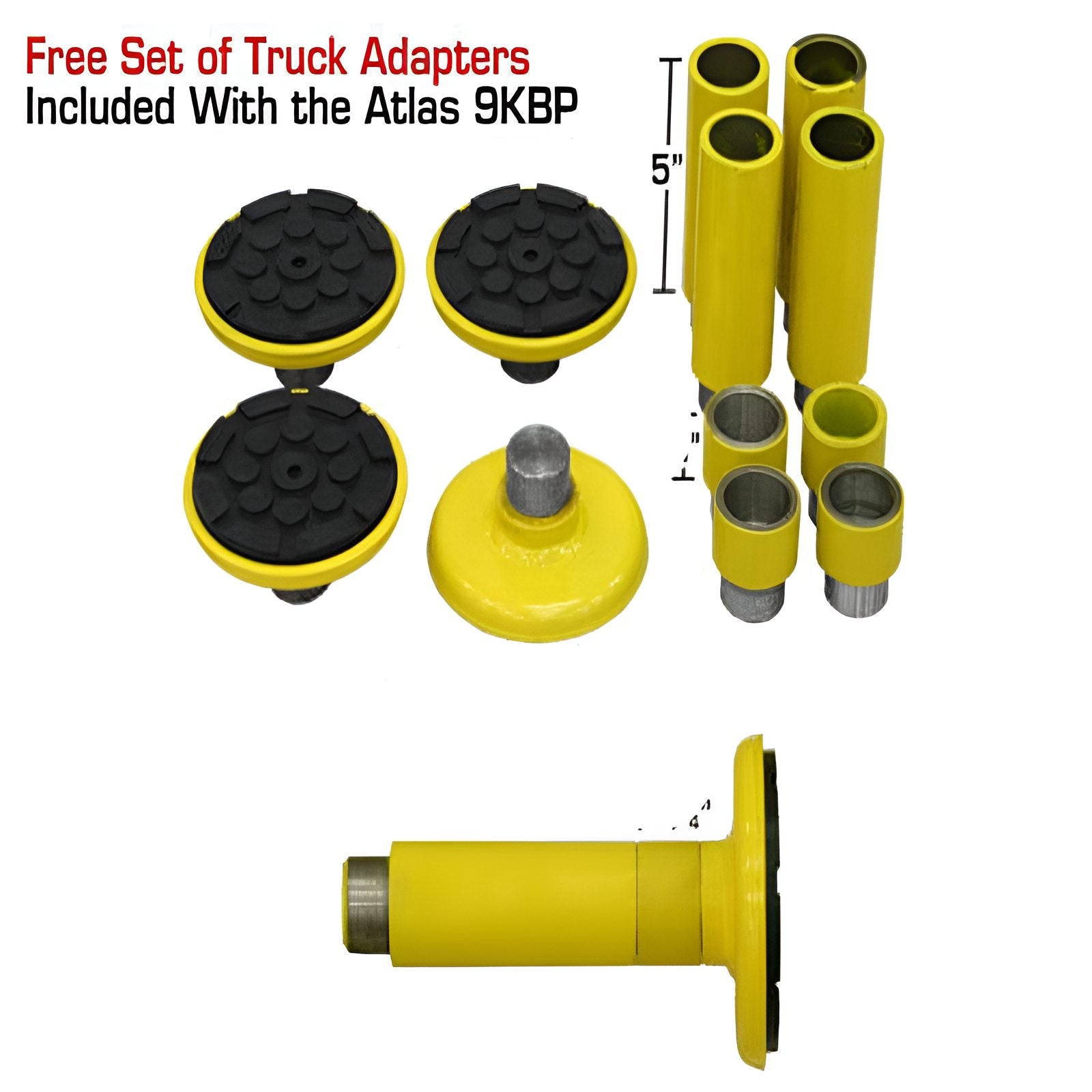

  • 8-piece Truck Adapter Set
• Buy as a Combo Atlas 9KBPX+LMA

Atlas 9KBPX Documentation:

   Atlas 9KBPX 2 Post Lift Product Manual
