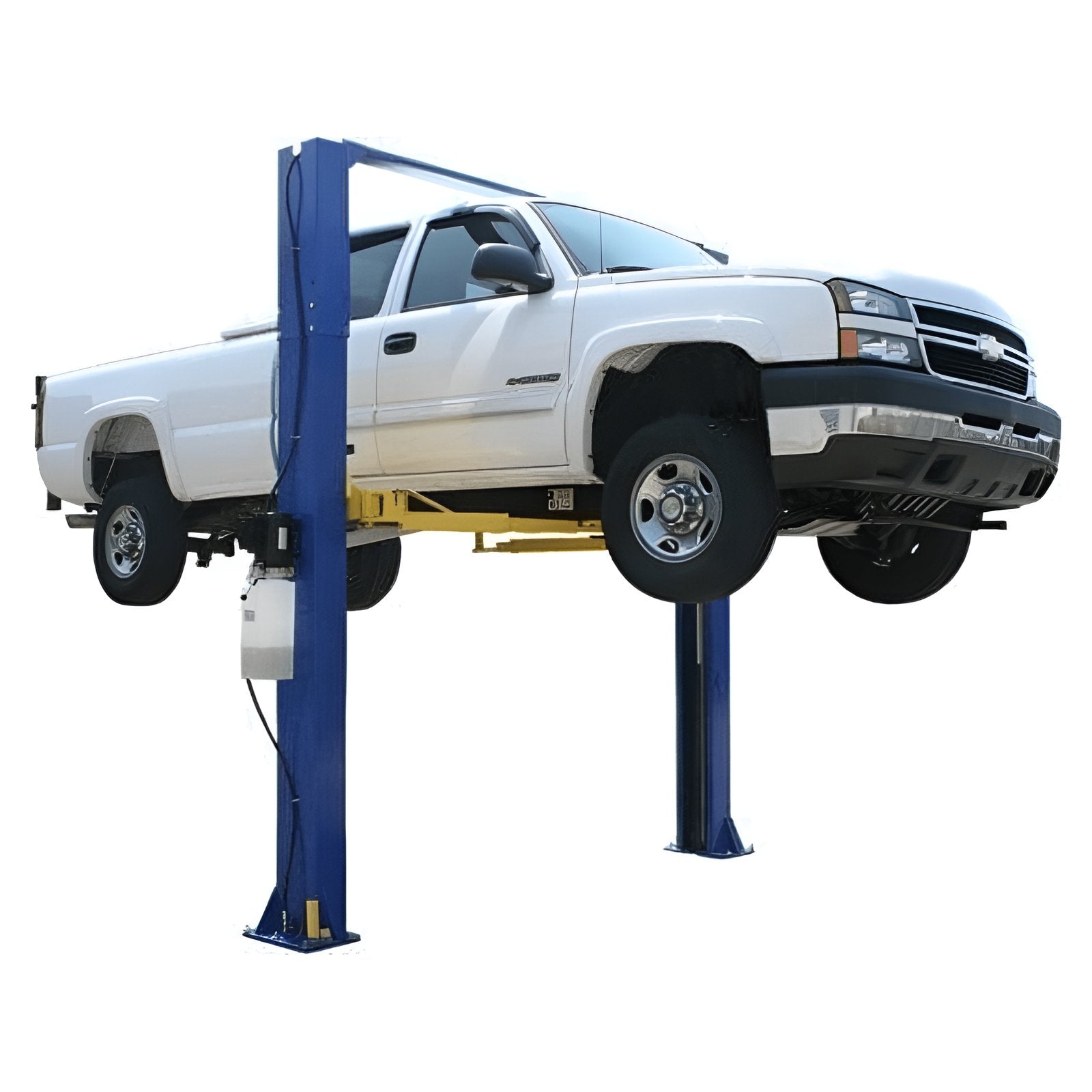

Atlas 9KOHX, 9,000 lb 2 Post Lift

 The Atlas® 9KOHX lift is ideal for those on a budget and offers a convenient 2-post lift for use in small commercial shops or by "Mr. Homeowner." It features reliable chain-drive cylinders and a dual safety system to ensure safe and efficient service for cars, SUVs, and light duty trucks. With the ability to adjust to two different height settings (11' 6" or 11' 10"), the 9KOHX can fit into most standard garages. Its symmetric columns and specially designed arms can be set to either a symmetric or asymmetric position, allowing for a low lift pad position on the EZ-metric lift arm configuration. This feature is perfect for small cars with low pick up points and heavy pick up trucks. Additionally, the 9KOHX is equipped with a spring loaded Secondary Lock System (SLS) that engages automatically in the event of a slack or broken chain. For those seeking high lifting capacity at a competitive price, this lift is for you.

 Post Lift 9KOHX Specifications:

• Capacity 9,000 LB.

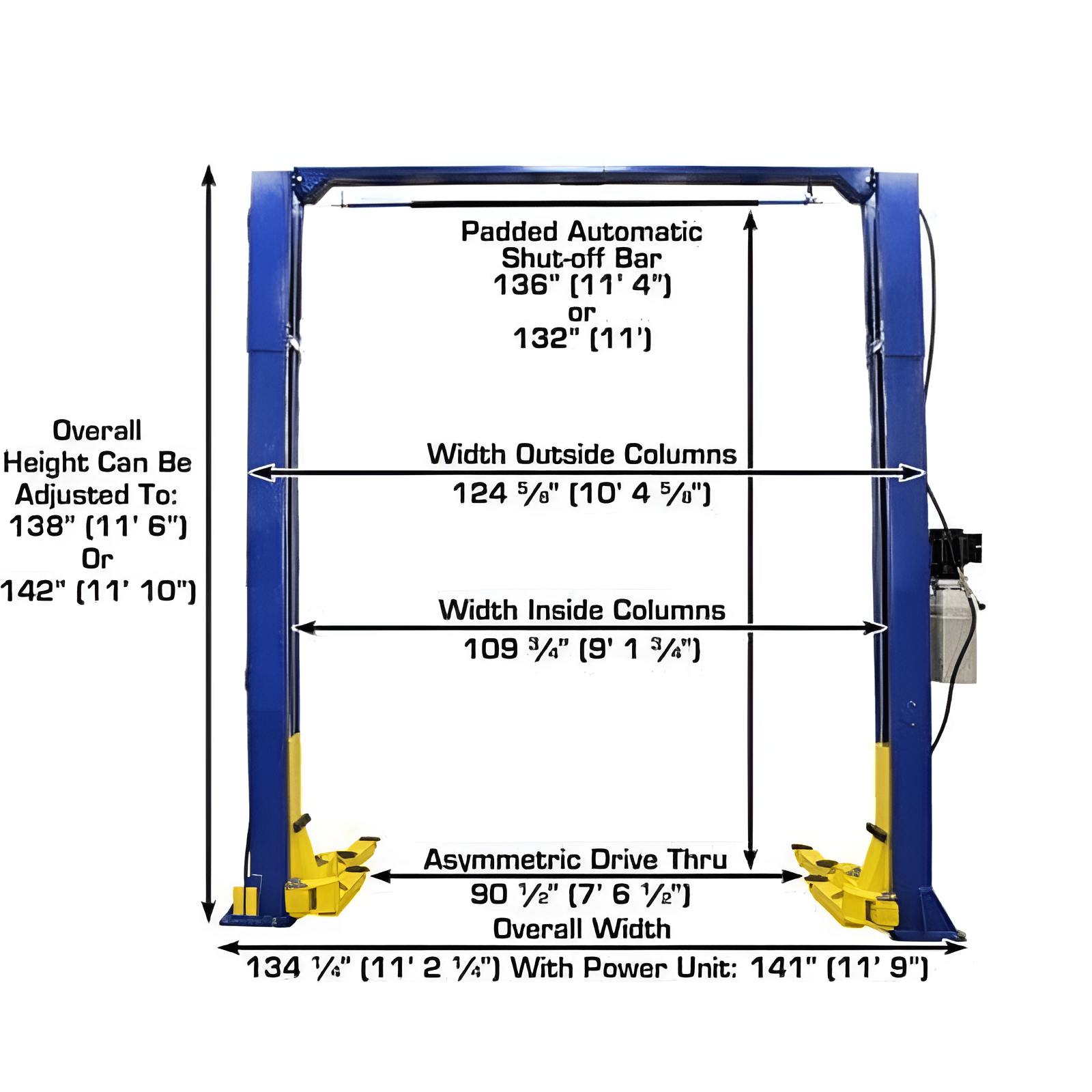

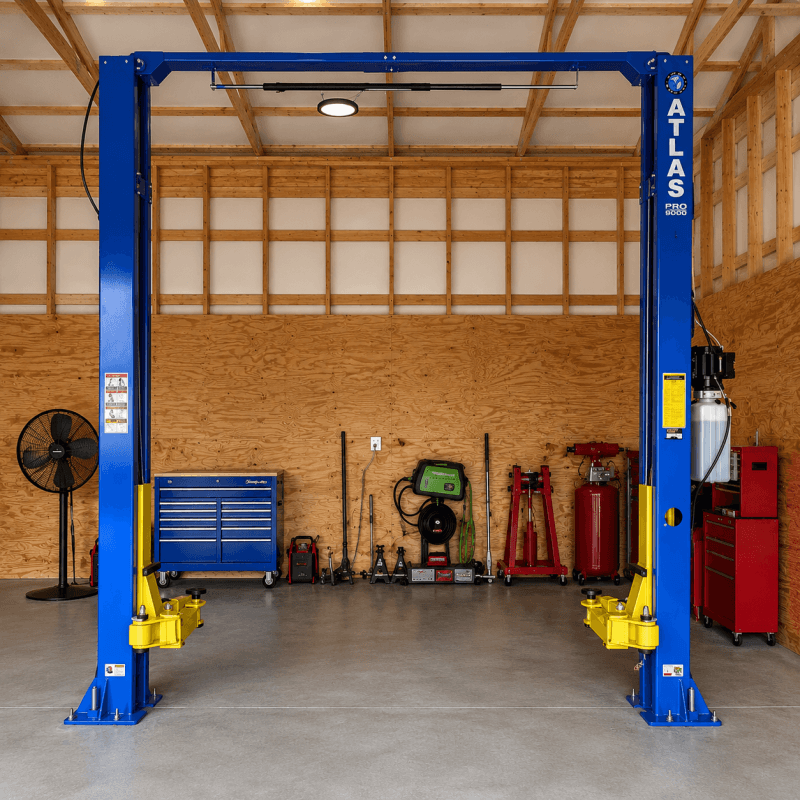

• Overall Height 138" (11’ 6") or 142” (11’ 10”)
• Overall Floor Width 134 1/2" (11’ 2 1/2")
• Outside Column to Outside Column 124 7/8" (10’ 4 7/8")

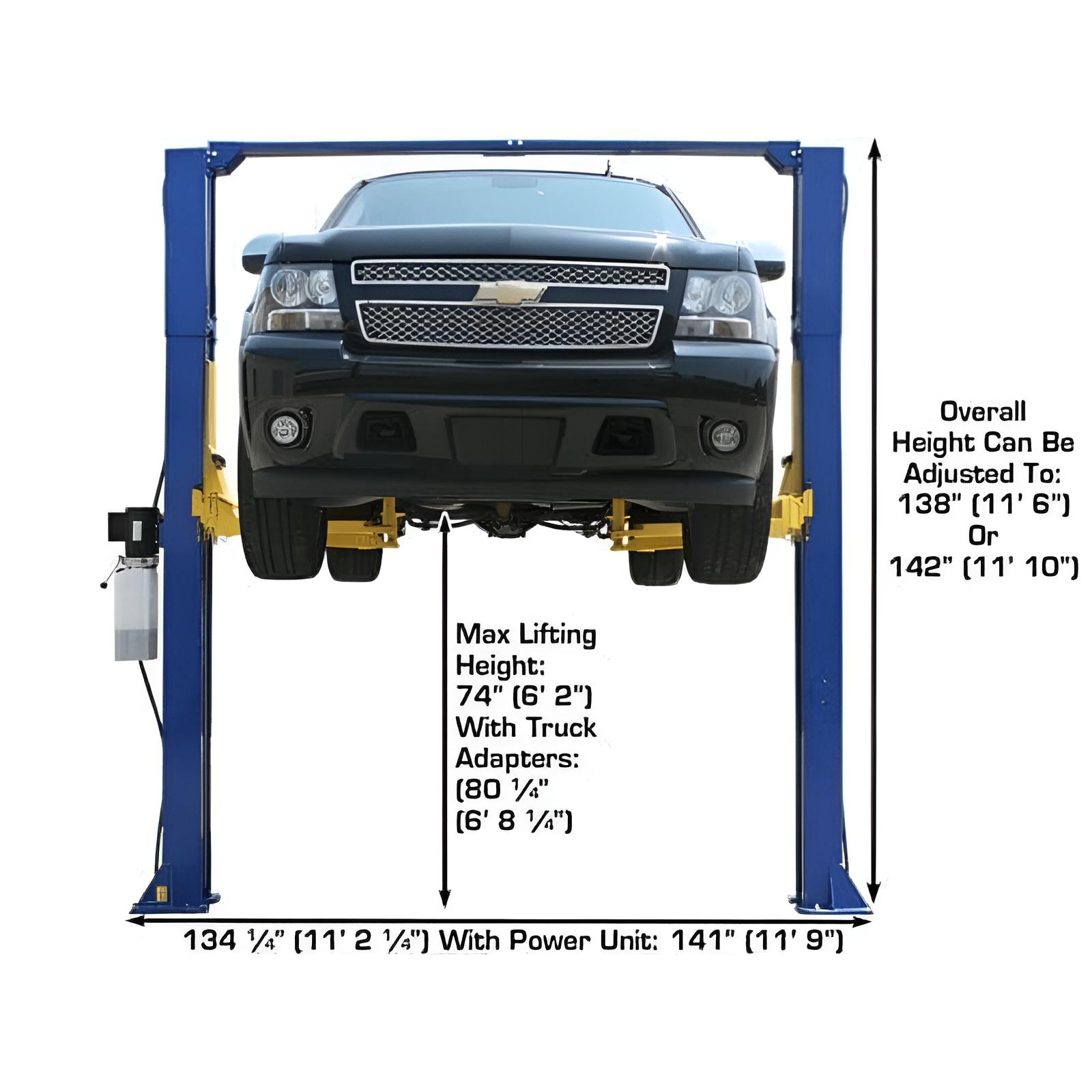

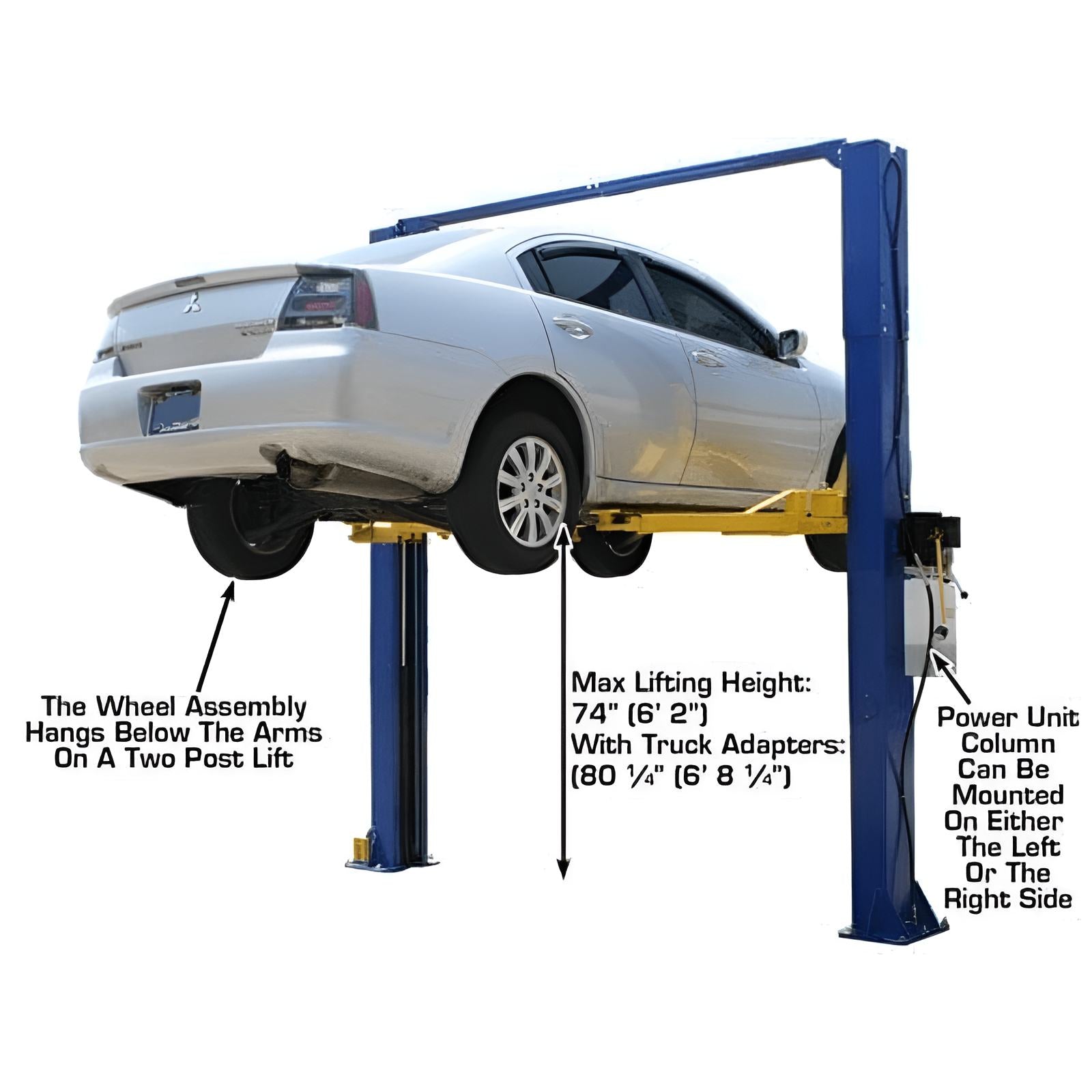

• Maximum Lift Height (Without Adapters) 74 1/2"
• Maximum Lift Height (With Adapters) 81"
• Minimum Arm Height 4"
• Inside Column 110” (9’ 2”)

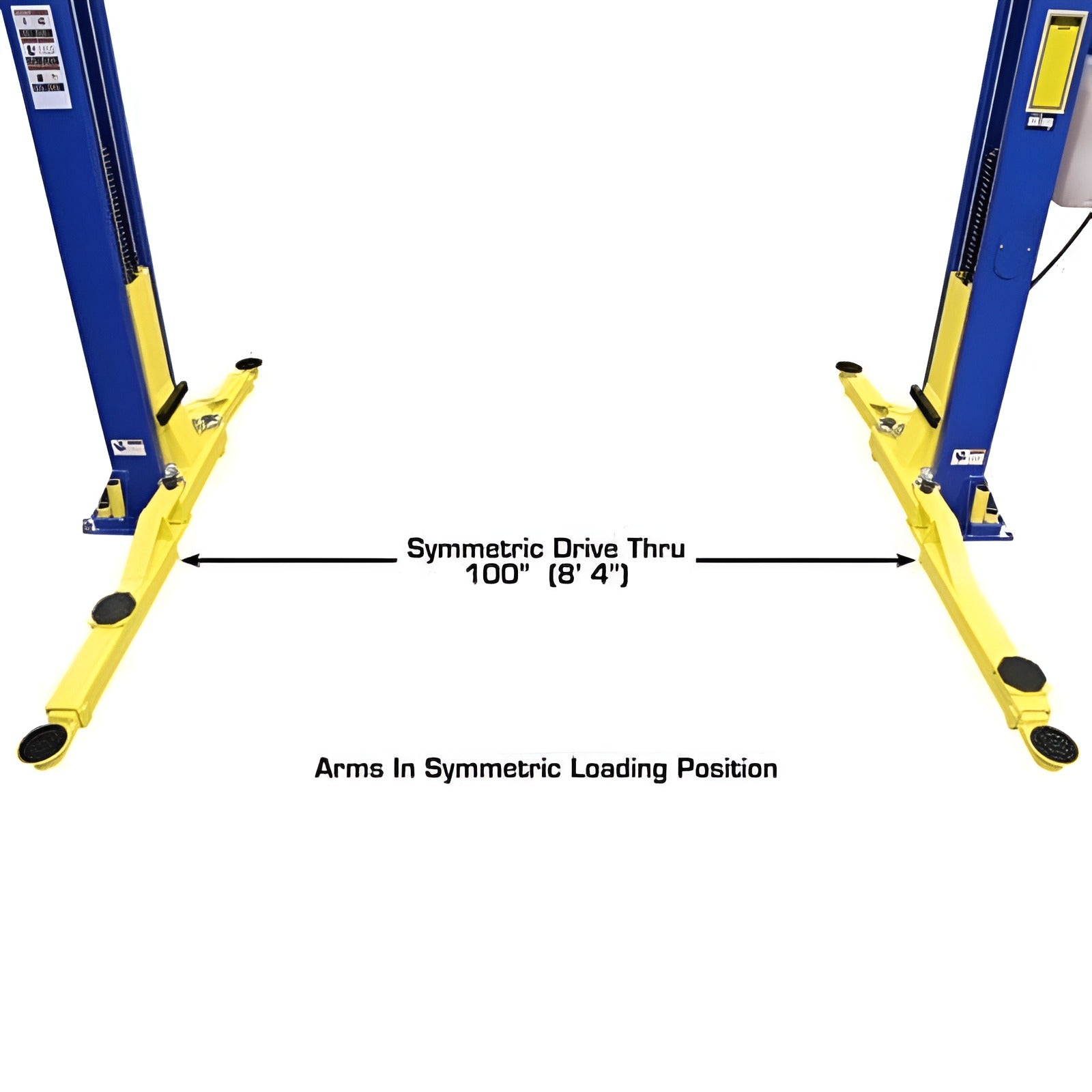

• Drive Thru 100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric

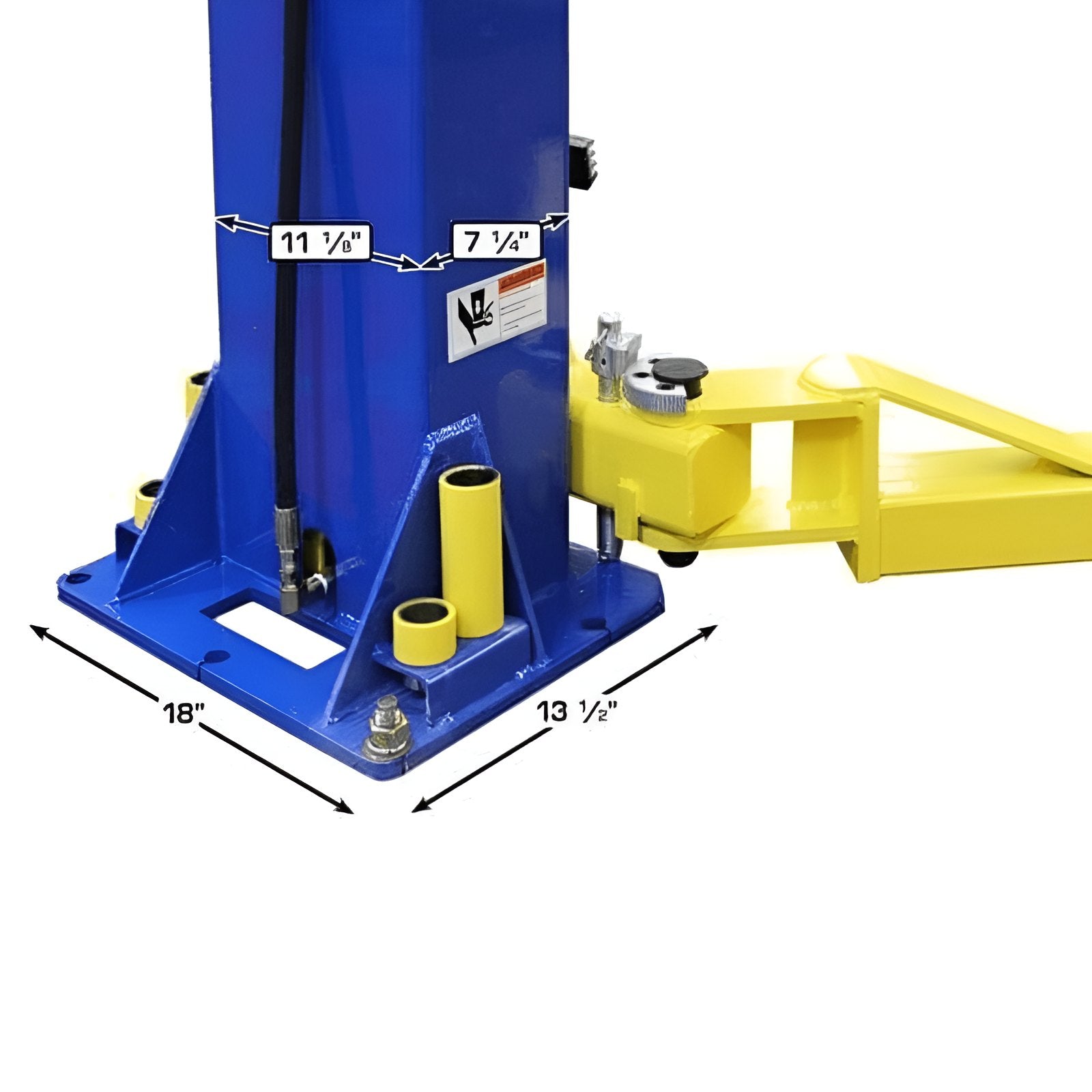

• Column Size 7 1/4" x 11"
• Column Thickness of Steel 5mm
• Base Of Lift 14 1/4" x 18"
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,450 LBS.

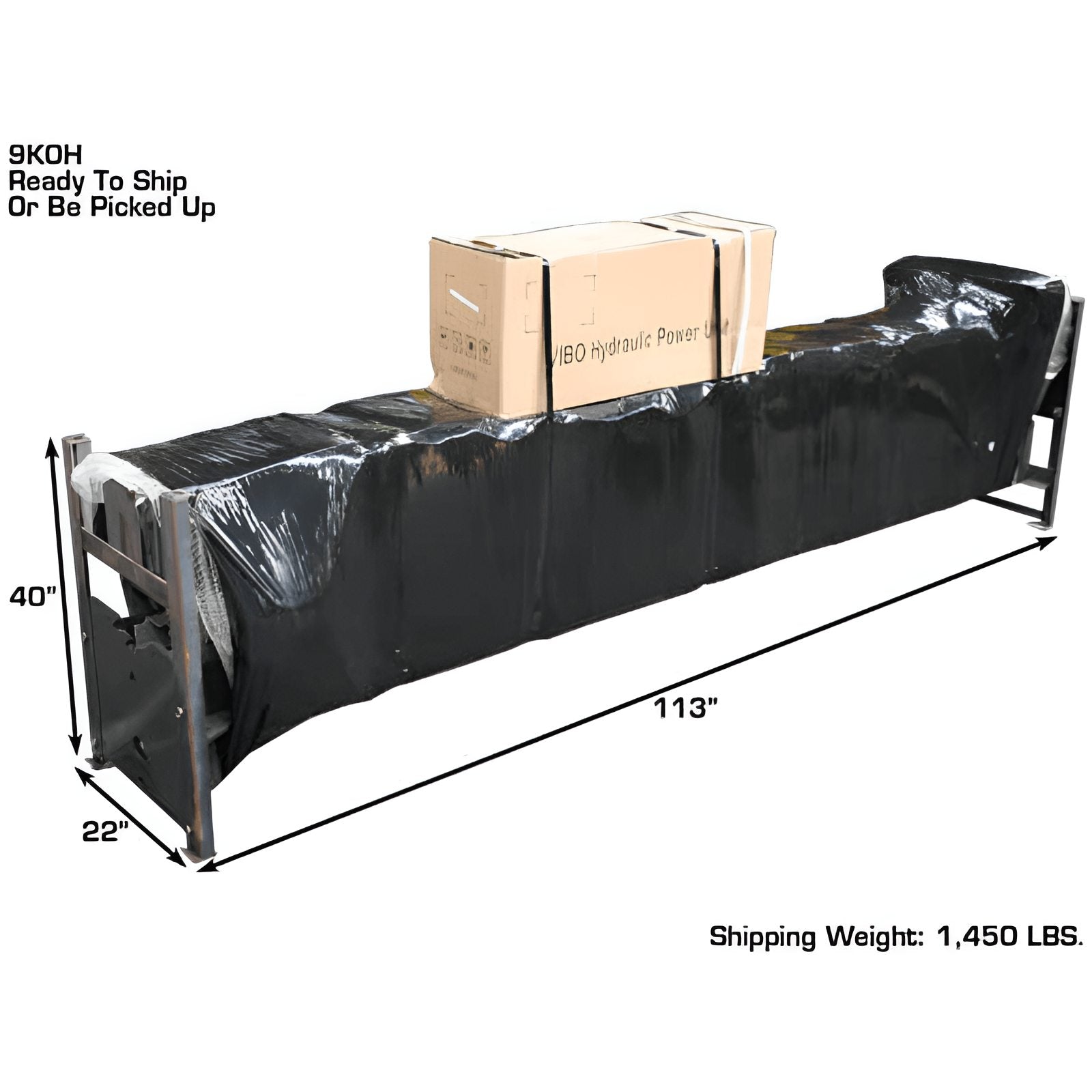

• Pallet Size:  113" Long x 40" Tall x 22" Wide + Box strapped to top of pallet

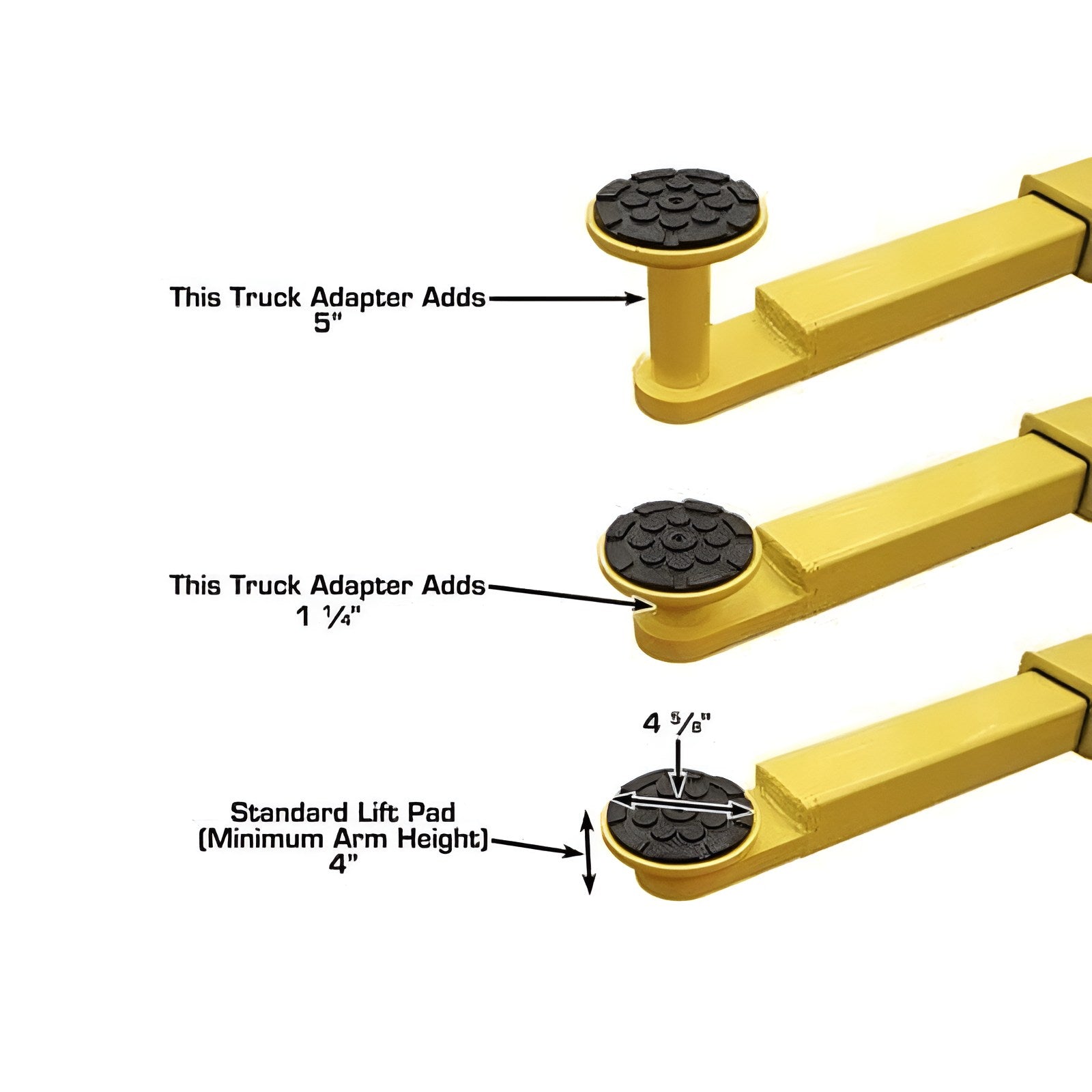

• Adapter Heights 4 Each 1.5”, 5”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

9KOHX 9,000 lb Post Lift Special Features:

• Overhead, Open Floor Design

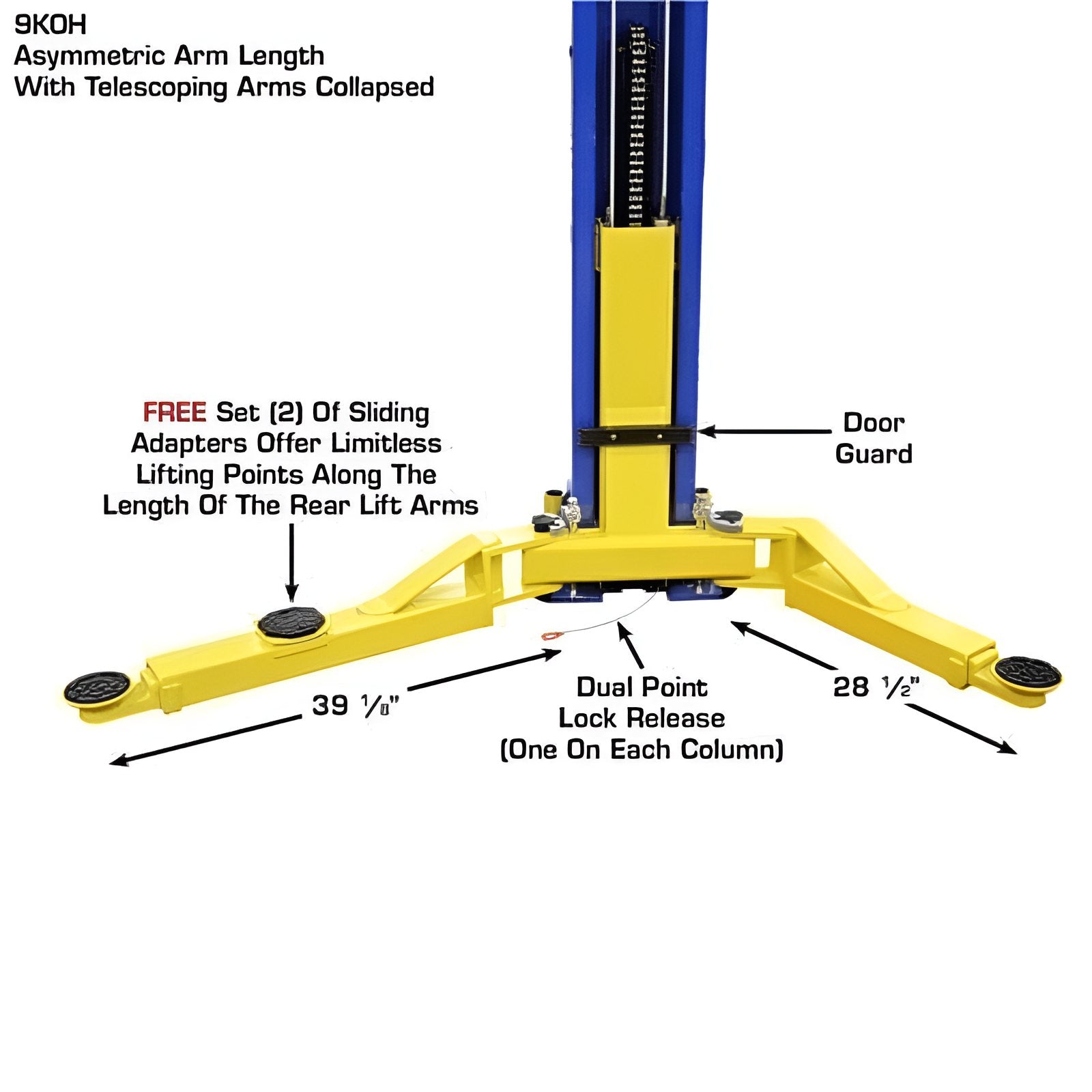

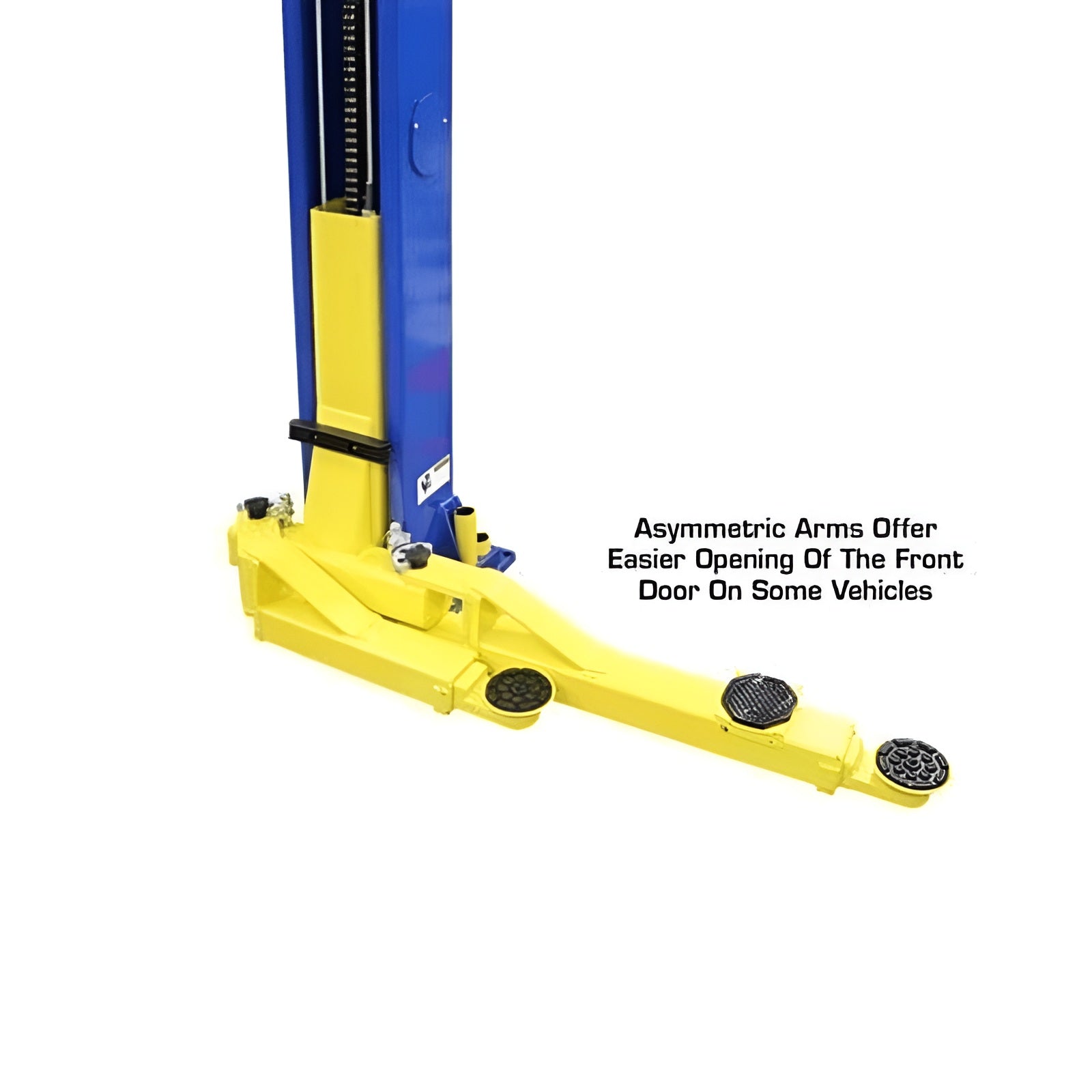

• Asymmetric & Symmetric Arms

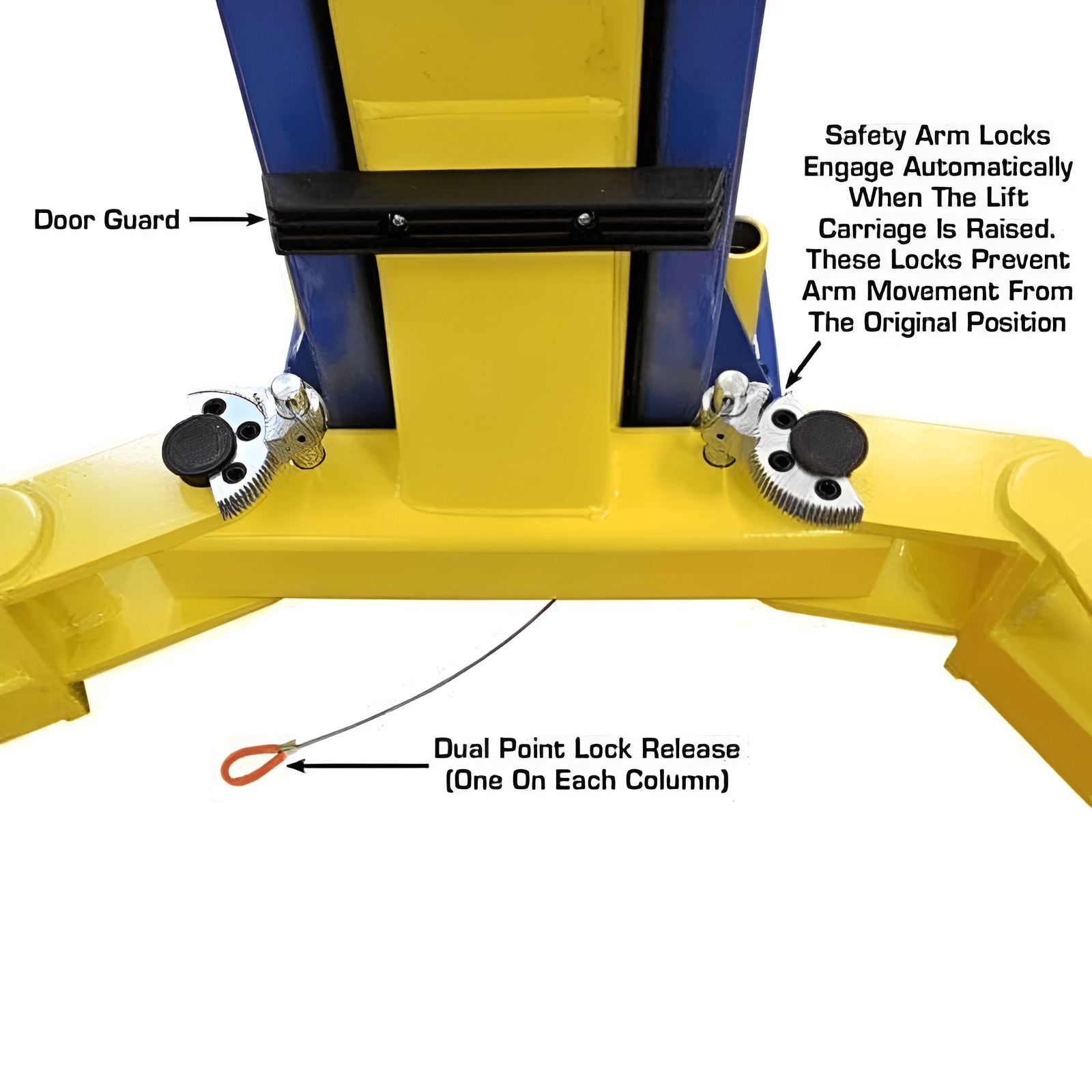

• Automatic Arm Restraints
• Lock Release: Dual Point
• Rubber Guards on the Carriage

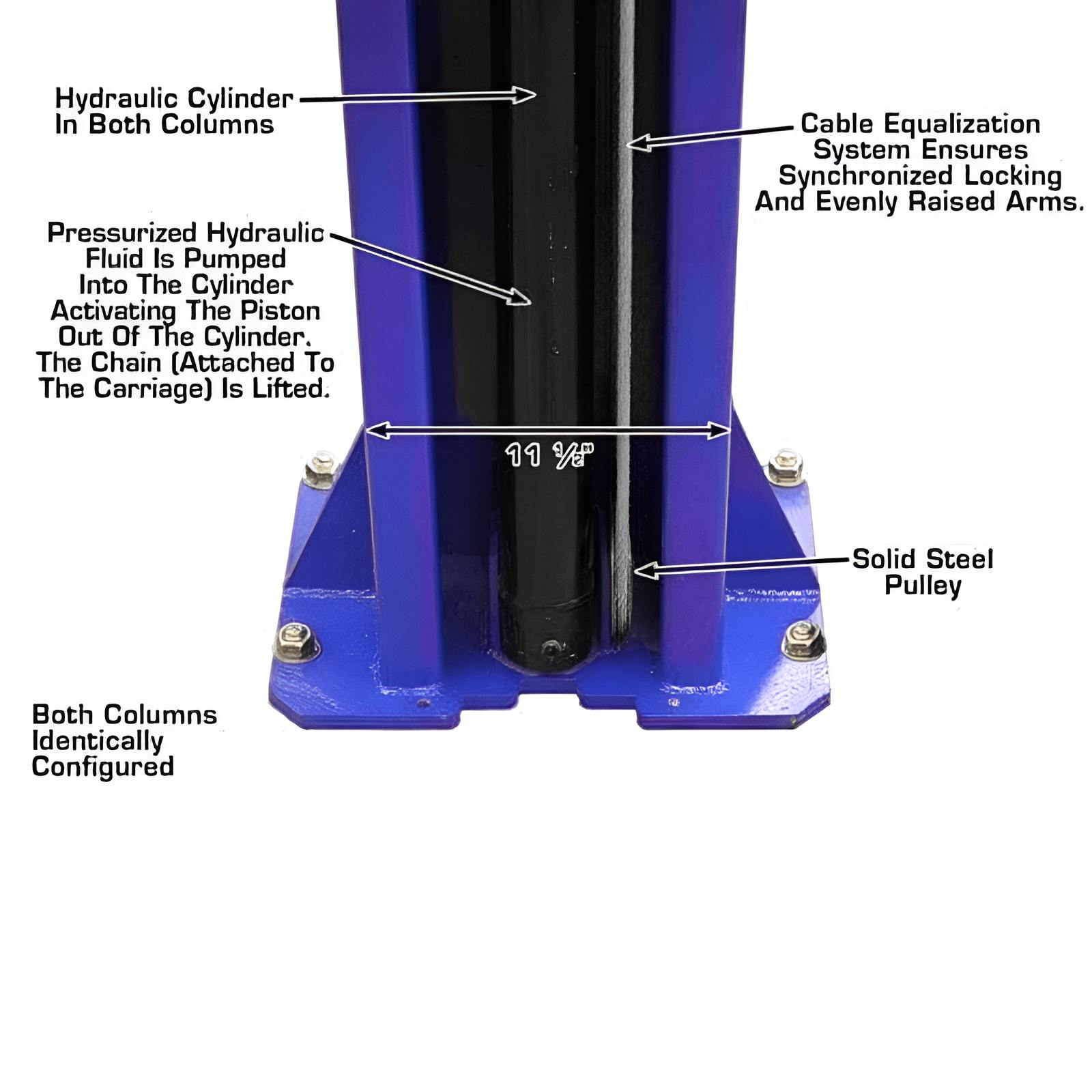

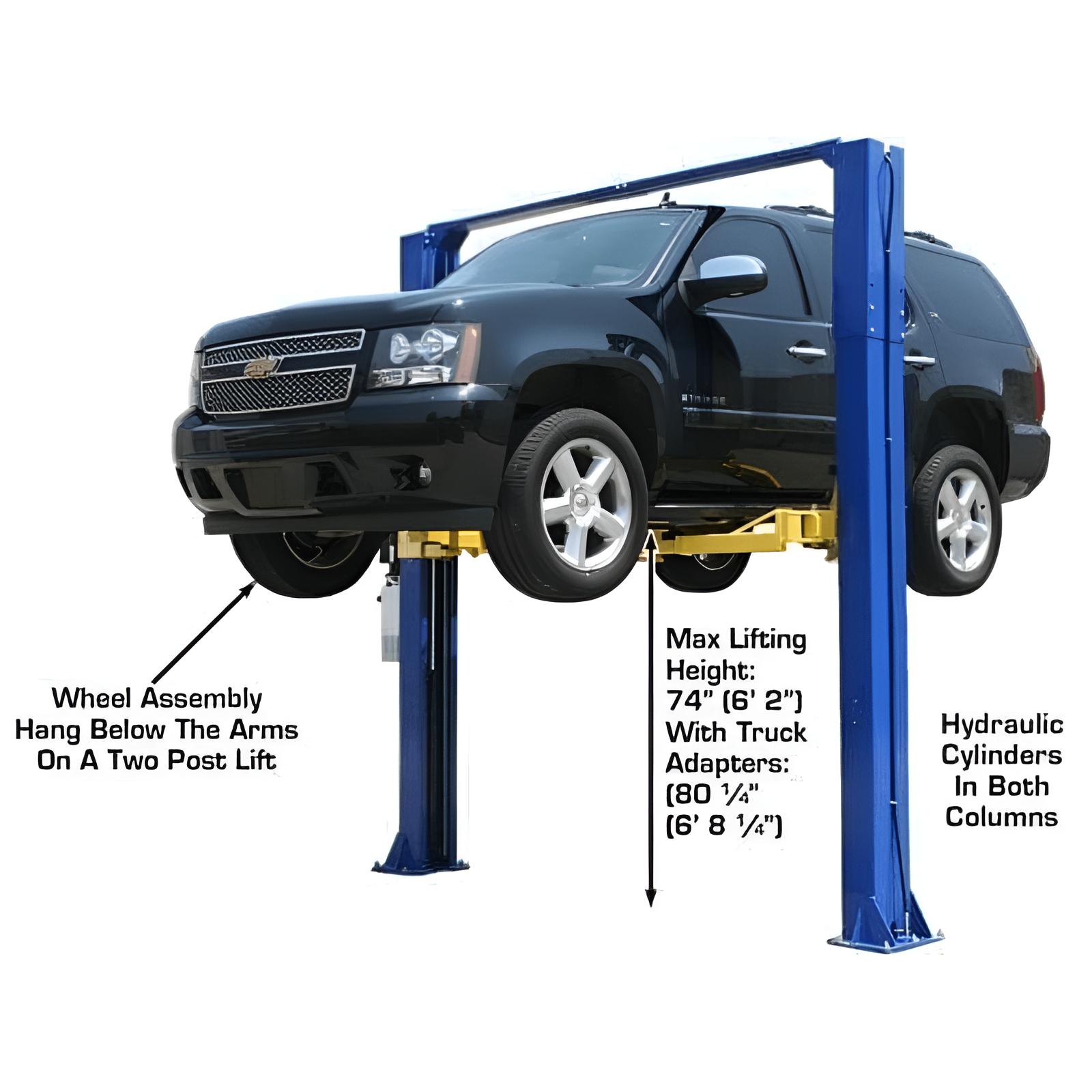

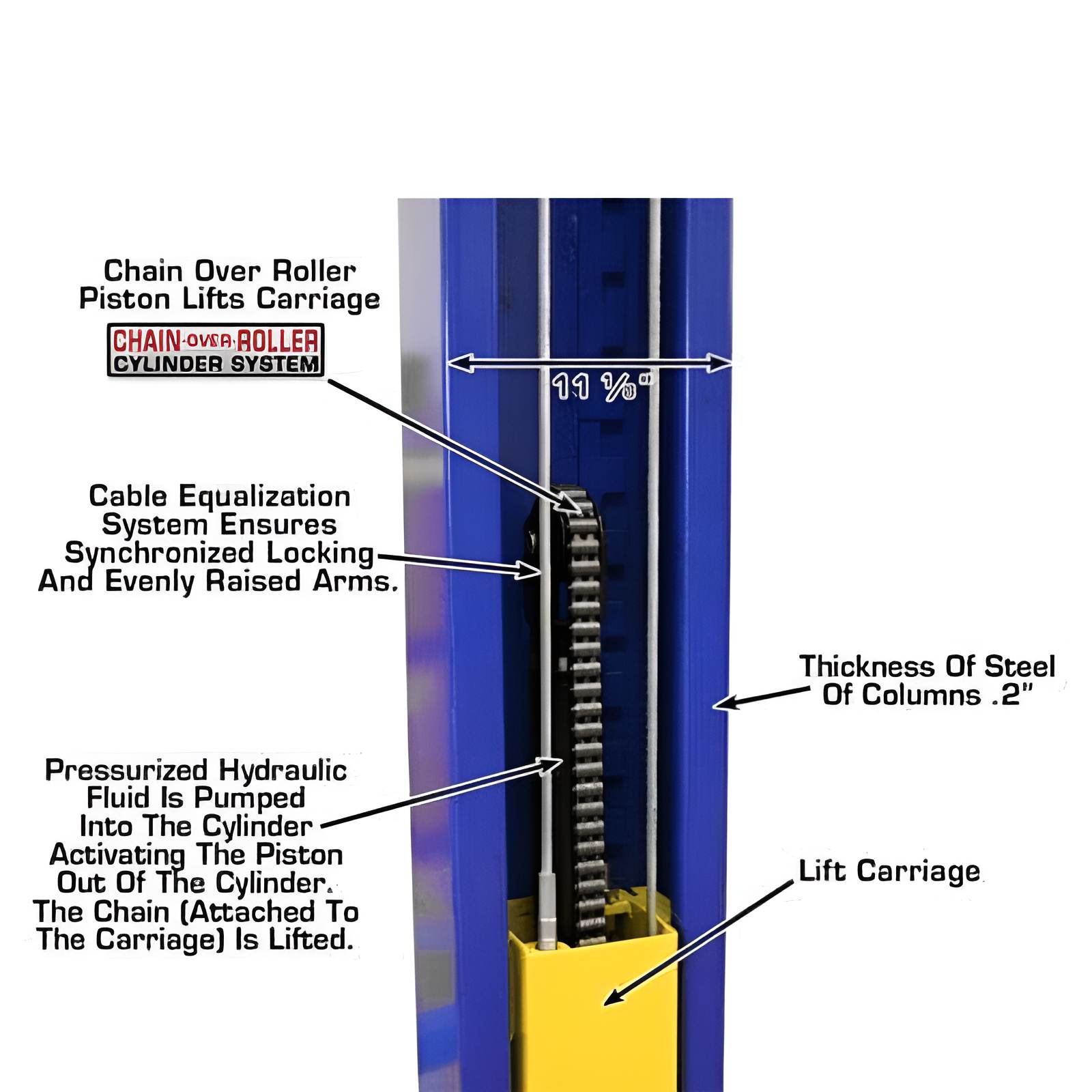

• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System
• Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only

• Unit Includes:

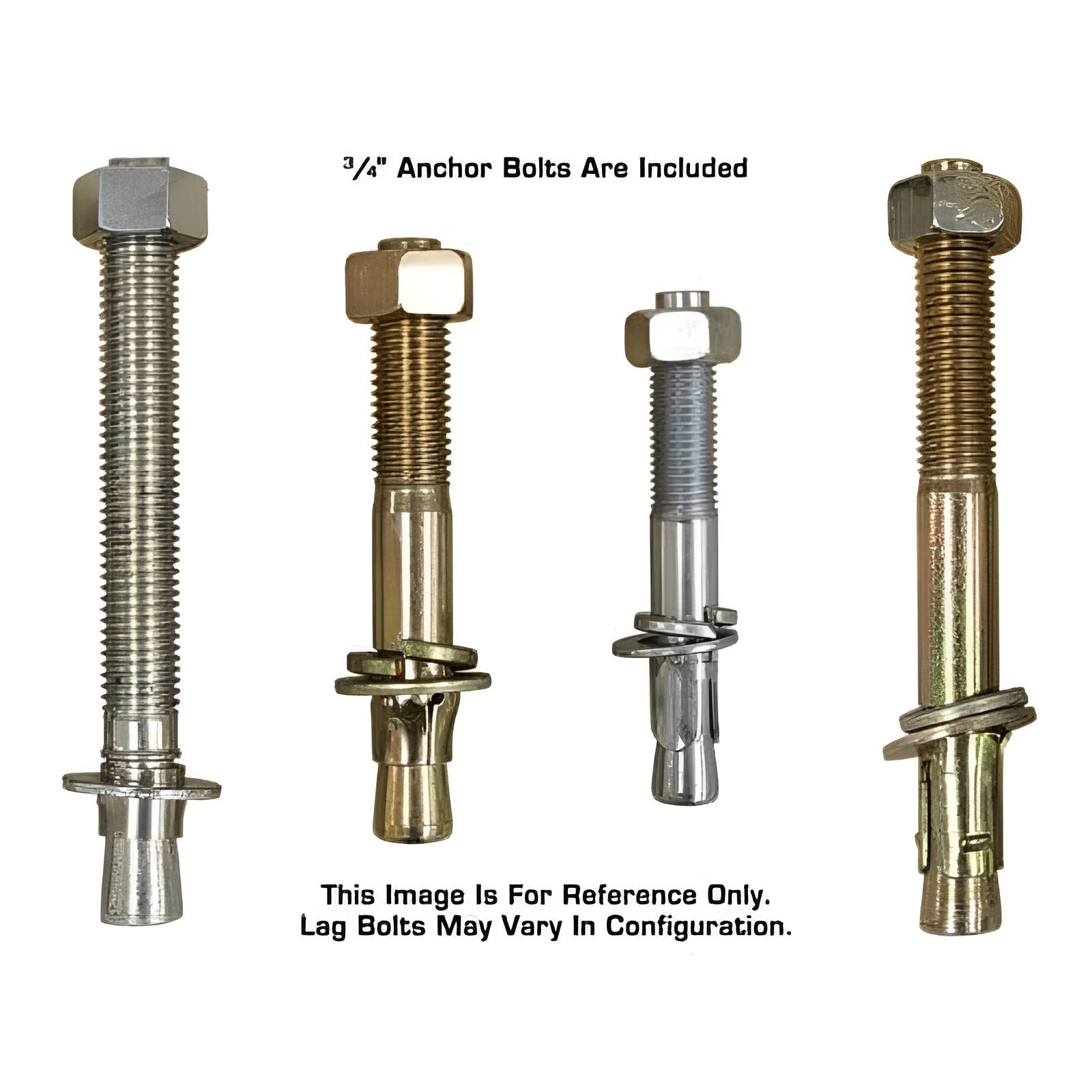

•     Mounting Hardware

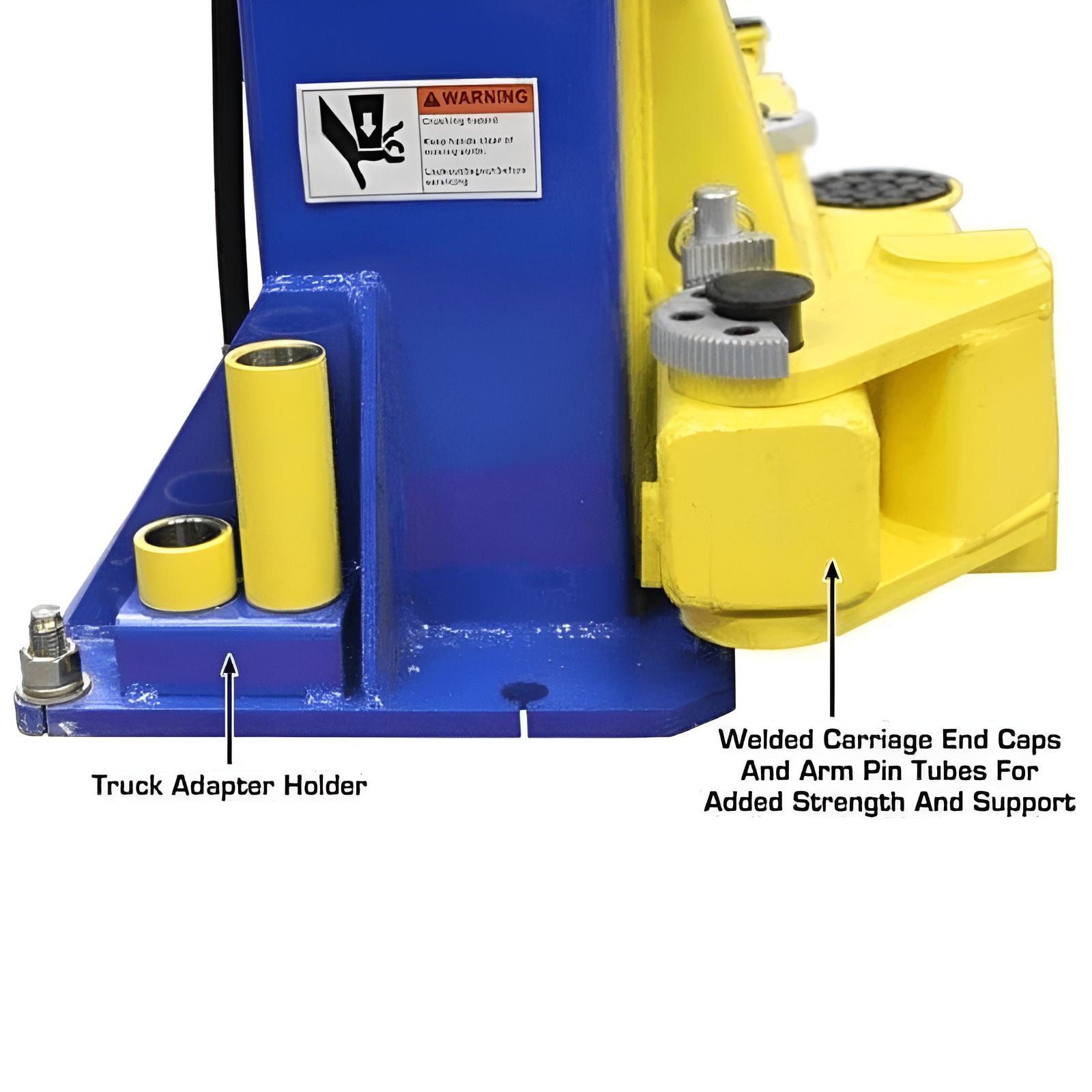

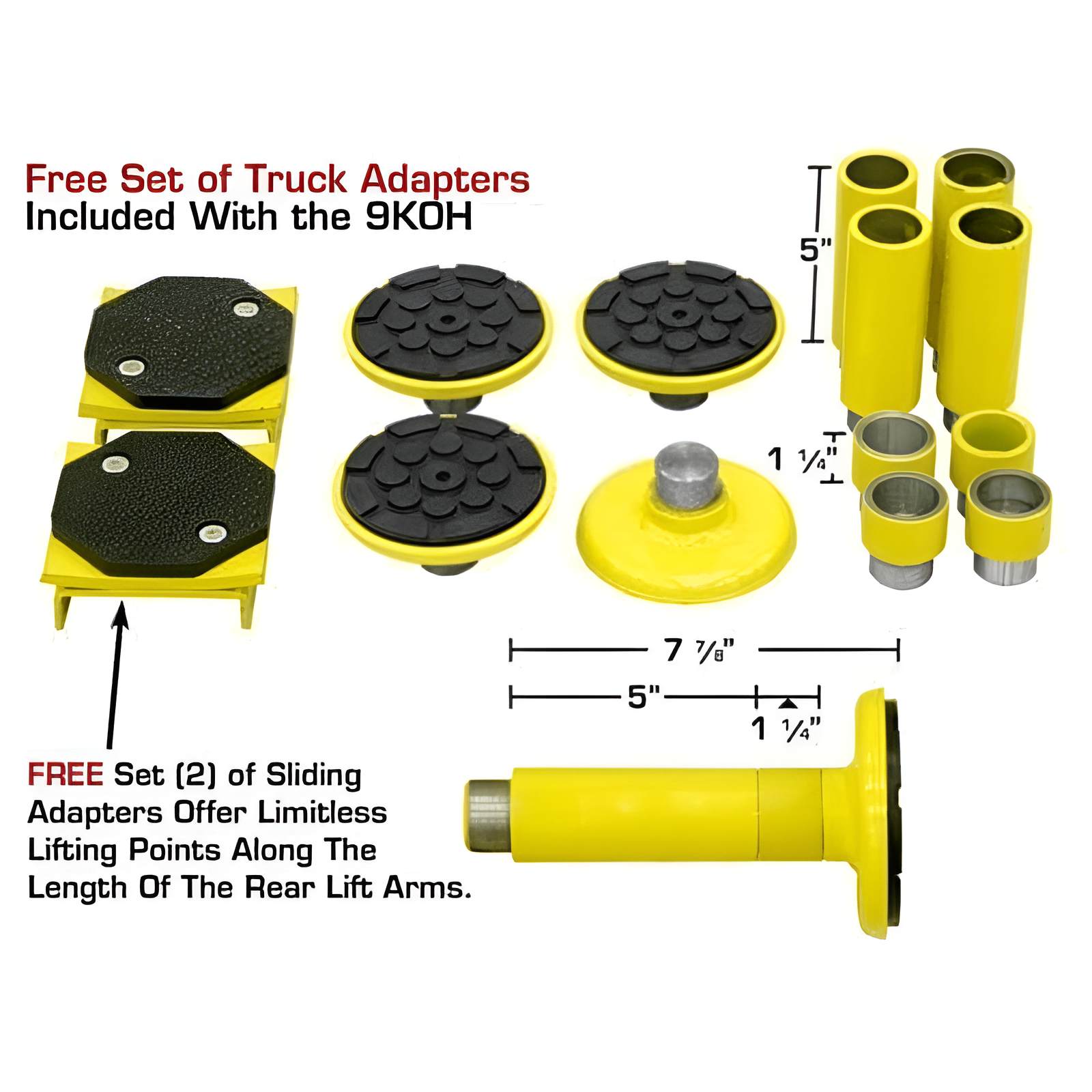

•     8-piece Truck Adapter Set
•     Sliding Arm Adapters

Atlas 9KOHX Documentation:

   Atlas 9KOHX Post Lift Product Manual
