The Atlas 5HP 60 Gallon Air Compressor is built to provide powerful and consistent air output for professional-grade tasks while maintaining a quieter operation than most competing models. Equipped with a 5-horsepower motor and a 3-cylinder, 1-stage pump, this unit is engineered for reliability and efficiency.
With 20.0 CFM at 40 PSI and 18.0 CFM at 90 PSI, it delivers excellent airflow for a wide variety of pneumatic tools, from grinders and sanders to paint sprayers and impact wrenches. The 60-gallon vertical tank, made in the USA, offers generous air storage while saving floor space in busy workshops or garages.

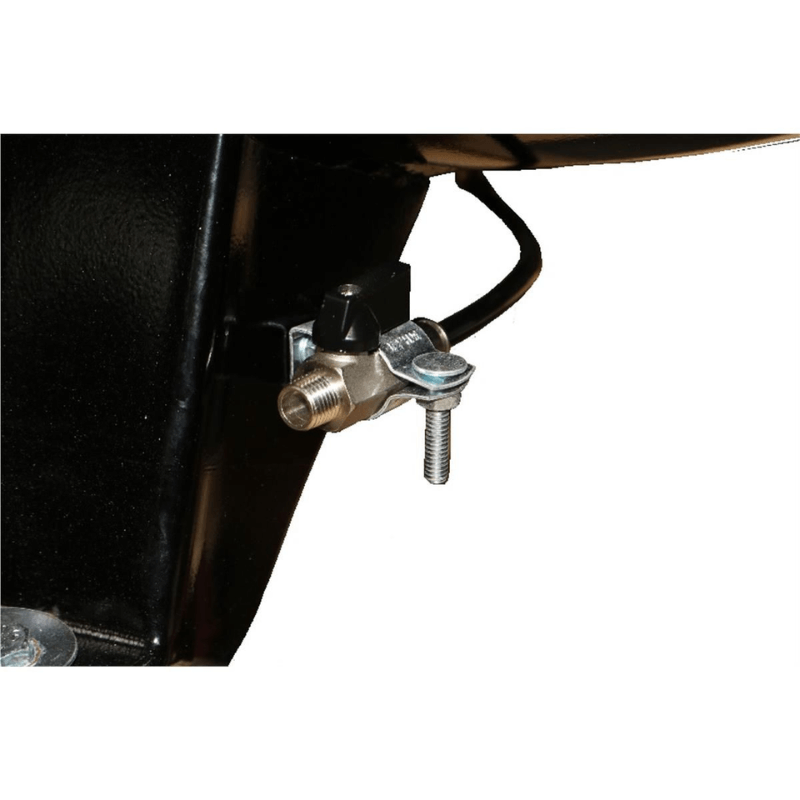

This model includes several premium features to enhance usability and longevity, such as vibro-isolation pads, a hands-free tank drain extension, and a finned tank inlet tube that helps reduce moisture accumulation inside the tank. The heavy-duty metal belt guard protects moving components while ensuring adequate ventilation.
Operating on 220V, single-phase power, the compressor requires a 30-amp breaker and No. 10 gauge wire for proper installation. If you're looking for dependable performance with thoughtful features that support long-term use and easy maintenance, the Atlas 5HP 60 Gallon model is an excellent choice for shops, garages, and contractors alike.

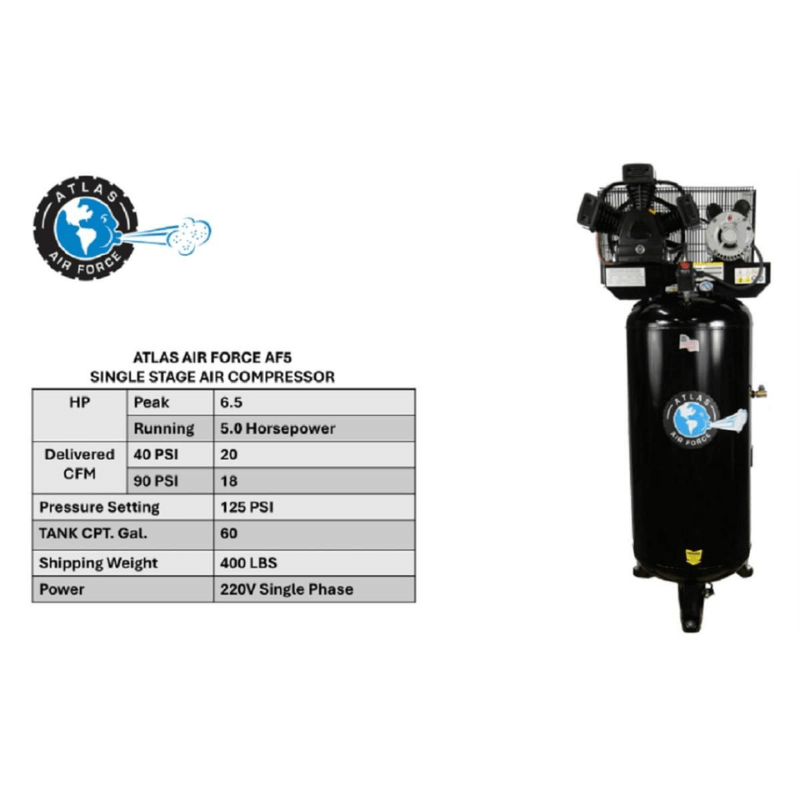

Motor Power: 5 Horsepower
Compressor Pump: 3-Cylinder, 1-Stage
Air Delivery @ 40 PSI: 20.0 CFM
Air Delivery @ 90 PSI: 18.0 CFM
Operating Pressure Range: 90–125 PSI
Tank Capacity: 60 Gallons (Vertical, USA-made)
Air Outlet Size: 1/2" NPT (Ball Valve Included)
Voltage Requirements: 220V, 1 Phase, 30 Amp Breaker, No. 10 Wire Required
Overall Dimensions: 28" L x 18" W x 68" H
Shipping Weight: 400 lbs.
Compact and portable design with oversized wheels for easy mobility
1.8 HP motor (2 HP peak) operates on standard 110V electric power
20-gallon vertical tank saves space and provides sufficient air storage
Delivers 6.0 CFM @ 90 PSI and 7.8 CFM @ 40 PSI for a wide range of tools
Quick coupler included for fast, convenient tool changes
Heavy-duty metal belt guard for enhanced safety and durability
Belt-driven 1-stage pump offers smooth and quiet operation
Ideal for homeowners, DIYers, and small workshop environments
Built with Atlas’s professional-grade construction standards
Backed by a 1-year parts-only warranty for peace of mind
