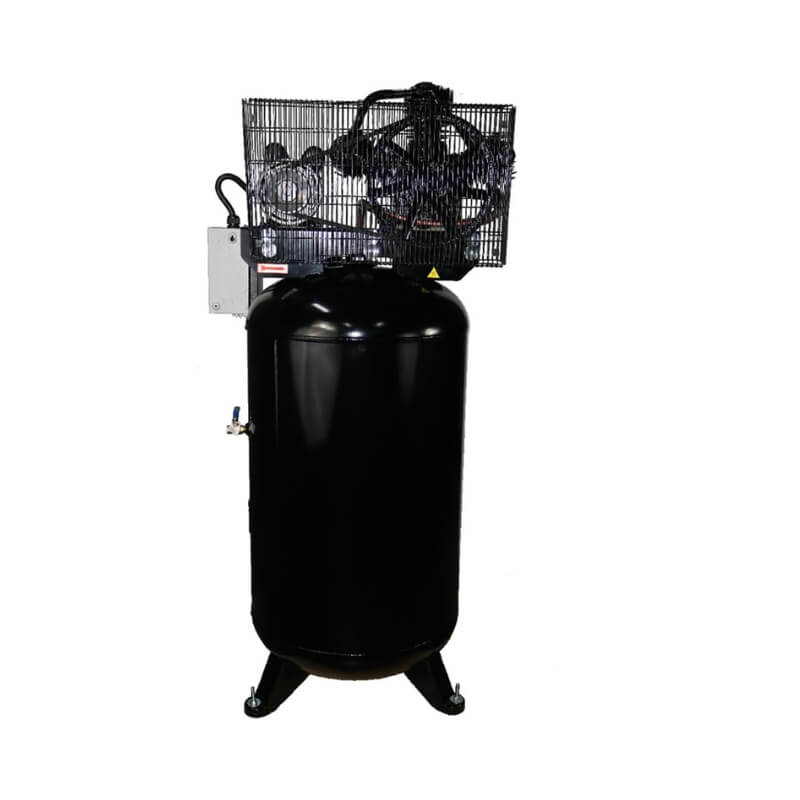

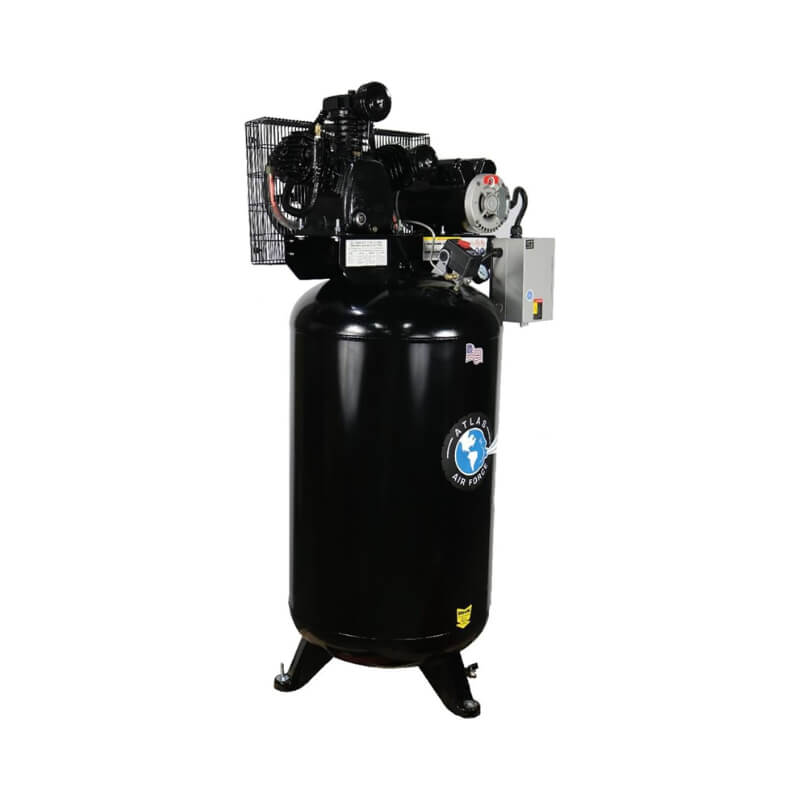

The Atlas Air Force AF7 is a rugged, commercial-grade, two-stage vertical air compressor built to deliver exceptional air power and long-lasting performance. Operating between 145 and 175 PSI, it features a low-RPM 5HP motor paired with a heavy-duty 3-cylinder cast iron pump, delivering high CFM for demanding tools and applications. Designed for automotive shops, fabrication facilities, and other professional environments, the AF7 stands out with its smooth, quiet operation and efficient air delivery.
This model includes an 80-gallon vertical tank made in the USA and comes standard with a magnetic starter, which helps control electric input and enhances the unit's lifespan. Also included are thoughtful upgrades such as vibro-isolation pads, a hands-free tank drain extension, and a finned tank inlet tube to reduce internal moisture. Backed by a solid build and premium components, the AF7 is a reliable and powerful solution for professional air needs at a great value.

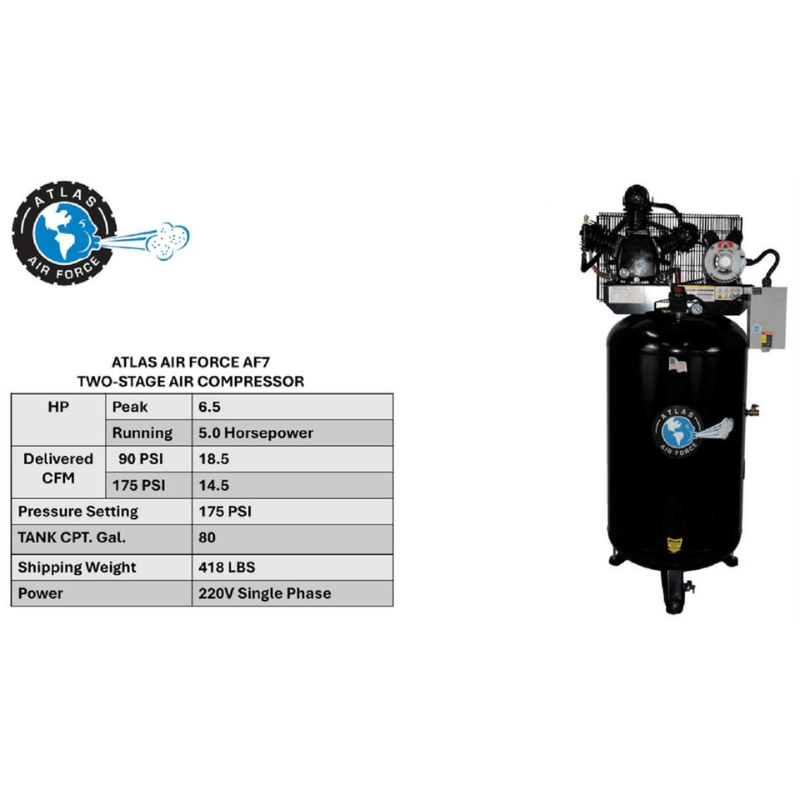

Compressor Pump: 3 Cylinder, 2-Stage Cast Iron
Motor Power: 5 Horsepower (Low RPM)
Tank Capacity: 80 Gallons (Vertical, Made in the USA)
Air Output:
145 PSI: 18.5 CFM
175 PSI: 14.5 CFM
Pressure Setting: 145–175 PSI
Motor Voltage: 220V, 1PH
Electrical Requirements: 30 Amp Breaker, #10 Wire
Air Outlet Size: 1/2" NPT (Ball Valve Included)

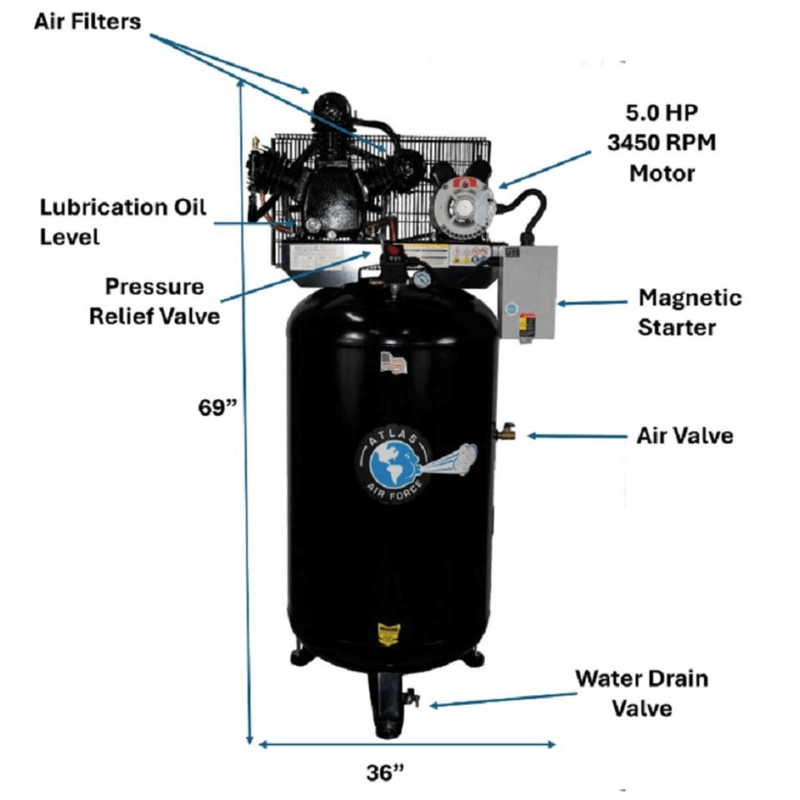

Overall Dimensions: 36" L x 24" W x 69" H
Shipping Weight: 485 lbs.
Magnetic starter included for added electrical control and longevity
Low-RPM motor and heavy-duty pump ensure quiet and efficient operation
Includes vibro-isolation pads for reduced vibration and noise
Hands-free tank drain extension simplifies maintenance
Finned tank inlet tube helps reduce internal moisture buildup
Durable metal belt guard protects critical components
Powerful enough to operate professional-grade shop tools
Designed for years of reliable, trouble-free service
Backed by a 1-year parts-only warranty for peace of mind
